2.8' Transmissive Smart HMI TFT LCD Display Module

Tianfu 2.8' Transmissive Smart HMI TFT LCD Display Module: 240×RGB×320 res, 65K/262K colors, 0.153mm pixel pitch. Driven by ILJ9341/ST7789 with MCU 8/16bit interface. Operates at -20°C~+70°C (storage: -30°C~+80°C). Features 4-LED backlight (80mA max), 300:1 contrast, 65° viewing angle. Low-power design: 2.5-3.3V logic & 1.65-3.3V I/O. 2.8' transmissive smart HMI TFT LCD display module is ideal for automotive HMI, industrial controls, outdoor IoT, and smart appliances requiring rugged reliability.

Send Inquiry

Product Description

Supporting small-batch trial orders and custom firmware/interface designs, HMI TFT LCD display module supplier, Tianfu ensures seamless integration into smart controls/portable instruments, backed by a 12-month warranty.

Tianfu 2.8' Transmissive Smart HMI TFT LCD Display Module In Stock Features

1.Industrial-Grade Reliability

Certified through thermal cycling (-30°C~+80°C), vibration, and ESD tests for harsh environment operation.

2.High-Resolution Clarity

240×RGB×320 resolution with 0.153mm pixel pitch, delivering sharp 65K/262K color visuals.

3.Wide Temperature Tolerance

OStable performance from -20°C to +70°C (storage: -30°C~+80°C), ideal for extreme conditions.

4.Low-Power Efficiency

2.5-3.3V logic voltage & optimized 4-LED backlight (80mA max) for energy-sensitive applications.

Tianfu Customized 2.8' Transmissive Smart HMI TFT LCD Display Module Specification

Module Type	2.8’ TFT Normally white
Resolution	240×RGB×320
Interface	MCU 8/16bit
Display Mode	Transmissive TFT
Driver IC	ILJ9341 / ST7789
Backlight	4 LEDs in parallel (80mA max)

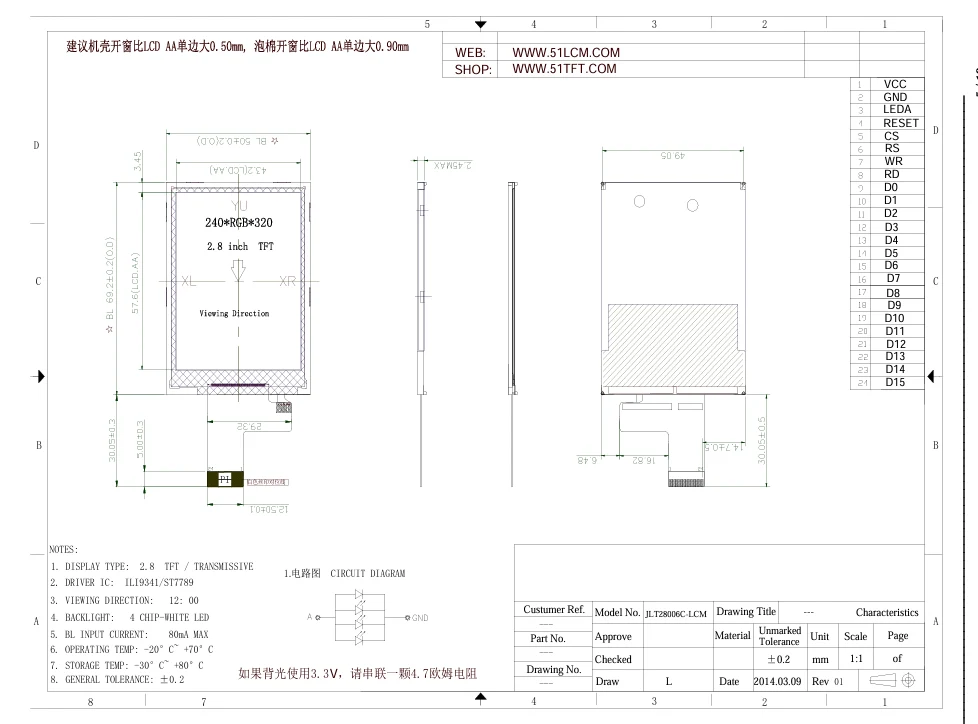

Mechanical Dimensions	50.0×69.2×2.45 mm
Active Area	43.20×63.35 mm
Pixel Pitch	0.153(H) × 0.153(V) mm
Operating Temperature	-20°C ~ +70°C
Storage Temperature	-30°C ~ +80°C
Contrast Ratio	300 (Typ.)
Response Time	30ms (Rise) / 30ms (Fall)
Viewing Angle	65° (Typ.) 12 o'clock direction
Touch Panel	None
Logic Voltage (VDD)	2.5–3.3V (Typ. 2.8V)
I/O Voltage (IOVCC)	1.65–3.3V (Typ. 1.8V)

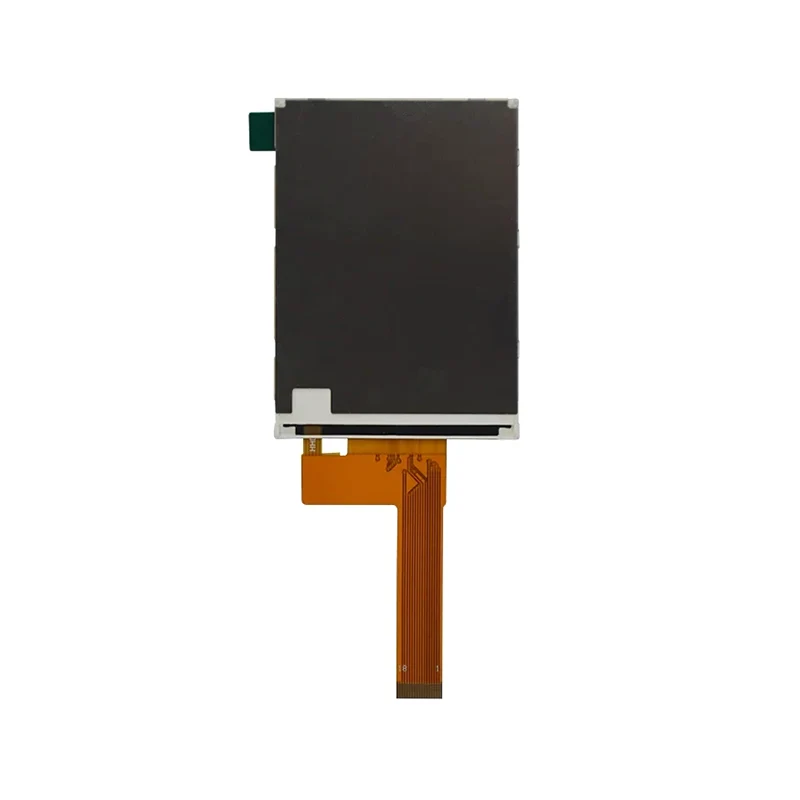

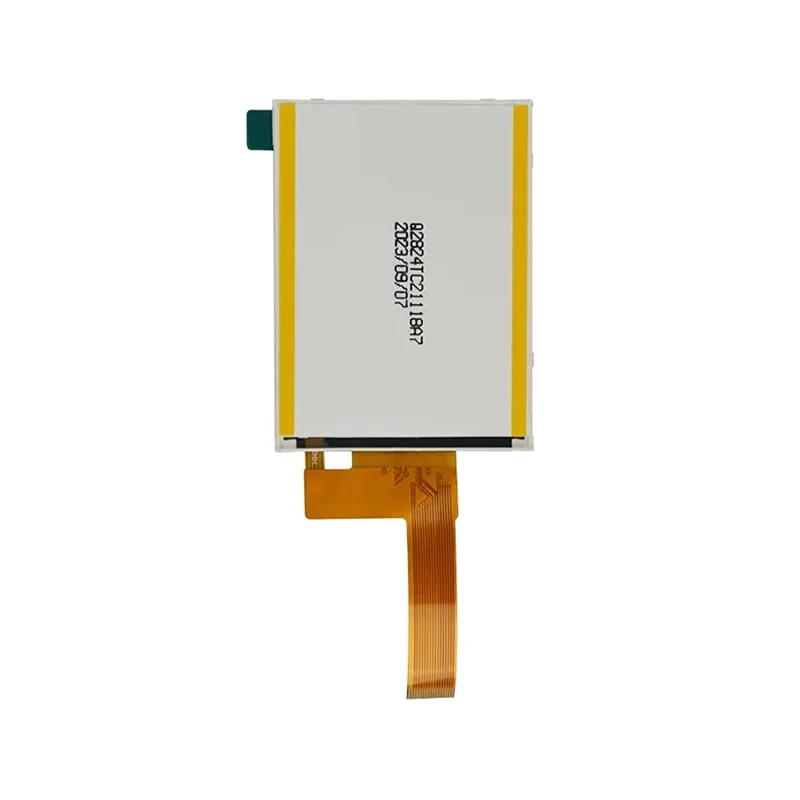

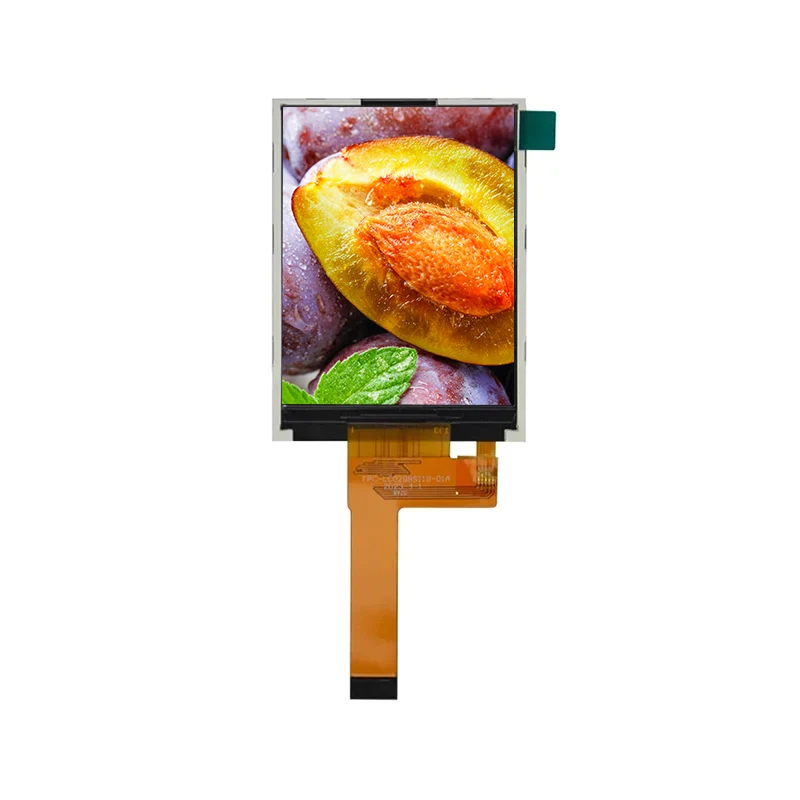

Tianfu 2.8' Transmissive Smart HMI TFT LCD Display Module Details

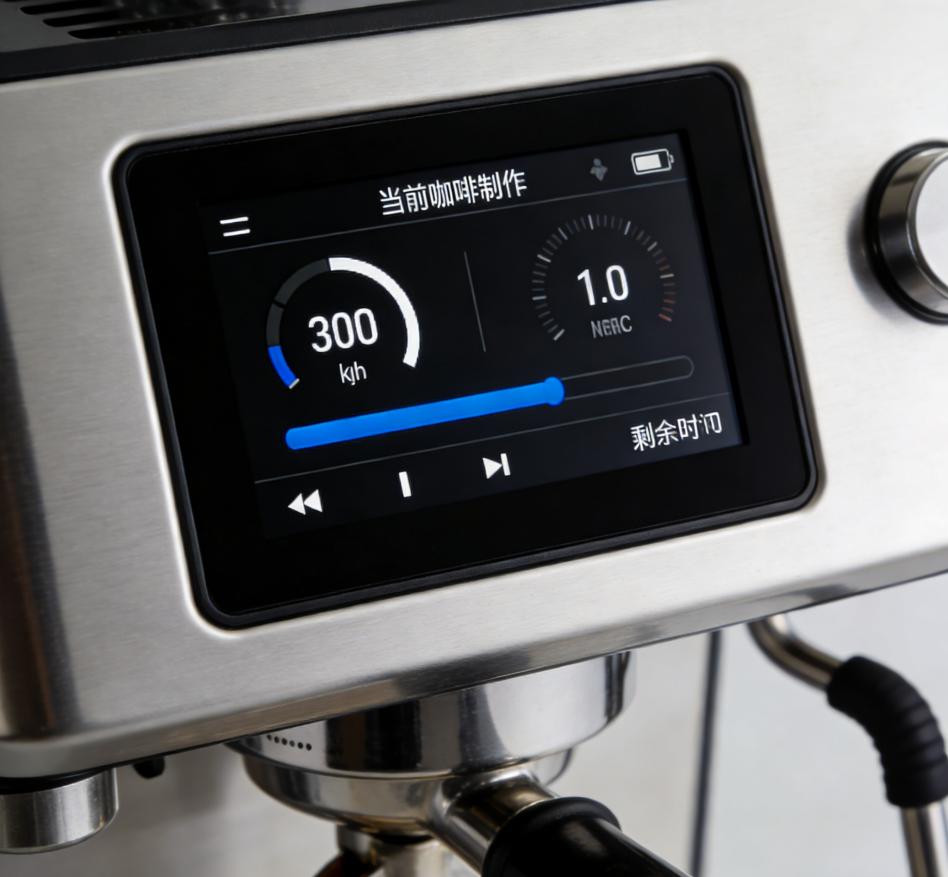

Tianfu 2.8' Smart HMI TFT LCD Display Module Application

Tianfu Leading Time

Standard Products		Customized Products
Order Quantity	Delivery Time	Customization Type	Delivery Time
1-30 PCS	Immediately	General	5-8 weeks
31-100 PCS	1 week	FPC	4 weeks
101-500 PCS	1-2 weeks	CTP	6 weeks
501-1000 PCS	2-5 weeks	B/L	6 weeks
1001-5000 PCS	4-5 weeks	Driver Board	8 weeks
5000+ PCS	5-7 weeks	LCD Panel	16 weeks
