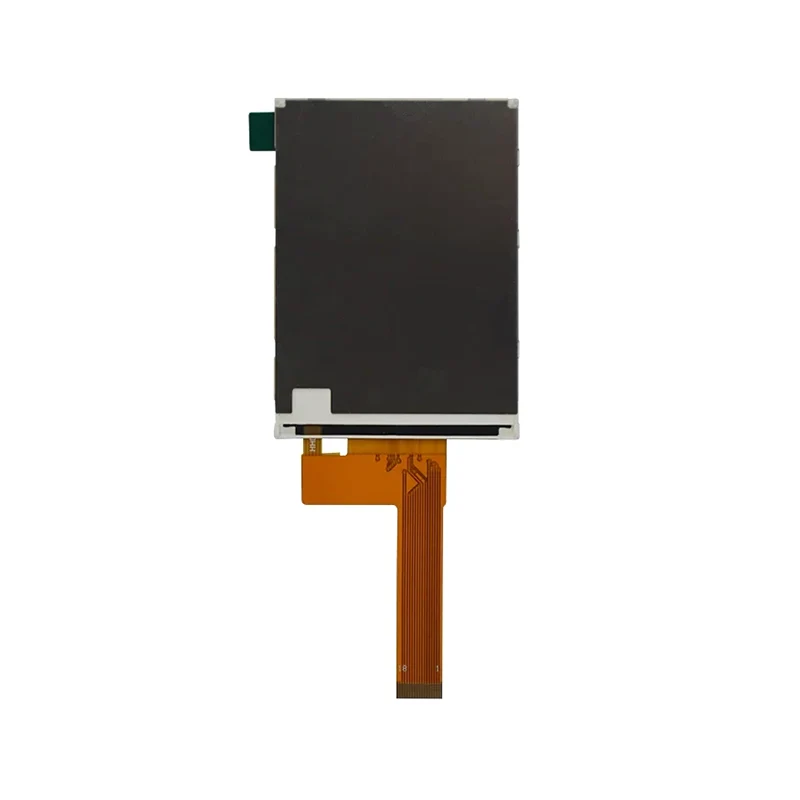

2.8' Normally Black IPS TFT LCD Screen Module

Built for extreme environments, Tianfu 2.8' Normally Black IPS TFT LCD Screen Module delivers 262K colors with 1200:1 contrast and 80° viewing angles. Operates in -40°C to +85°C (storage: -55°C to +110°C) and survives thermal shock tests (-30°C ↔80°C). Features 4-LED backlight (3.2V 80mA) and 4-wire SPI interface for seamless MCU integration.

Send Inquiry

Product Description

Compact 50.0×69.20×2.4mm design, 2.8' normally black IPS TFT LCD screen module is ideal for automotive HMI, industrial controls, and rugged IoT applications requiring crisp visuals and all-weather reliability.

Supporting small-batch trial orders and custom firmware/interface designs, IPS TFT LCD screen module manufacture, Tianfu ensures seamless integration into smart controls/portable instruments, backed by a 12-month warranty.

Tianfu 2.8' Normally Black IPS TFT LCD Screen Module In Stock Features

1.Industrial-Grade Durability

Operates in -40°C to +85°C and survives thermal shock tests (-30°C ↔80°C), ensuring reliability in harsh environments like automotive dashboards and outdoor IoT devices.

2.High-Contrast Visual Performance

Delivers 1200:1 contrast ratio and 80° viewing angles with precise CIE 1931 color calibration (e.g., red at 0.655x/0.335y), ideal for critical displays in medical or industrial equipment.

3.Simplified Integration with 4-Wire SPI

Pre-configured control pins (D/C, CS, RESET) and 2.5–3.3V logic voltage reduce development time and power consumption, compatible with low-cost MCUs.

4.Energy-Efficient Backlight Design

4 parallel white LEDs (3.2V @80mA) provide uniform brightness up to 4.8% transmittance, optimized for low-power portable devices.

Tianfu Customized 2.8' Normally Black IPS TFT LCD Screen Module Specification

Display Type	2.8" TFT-LCD (Normally Black, Transmissive)
Resolution	240×320 pixels (Graphic Dot-Matrix)
Active Area	43.20mm (W) × 57.60mm (H)
Driver IC	ST7789T3
Electrical Specifications
Logic Voltage (VCC)	2.5–3.3V (Typ. 2.8V)
Input Voltage (VIL/VIH)	Low: GND–0.3×VCC / High: 0.7×VCC–VCC
Backlight Configuration	4 White LEDs in Parallel (3.2V @80mA)
Backlight Brightness	4.8% Transmittance (Typical)
Mechanical & Environmental

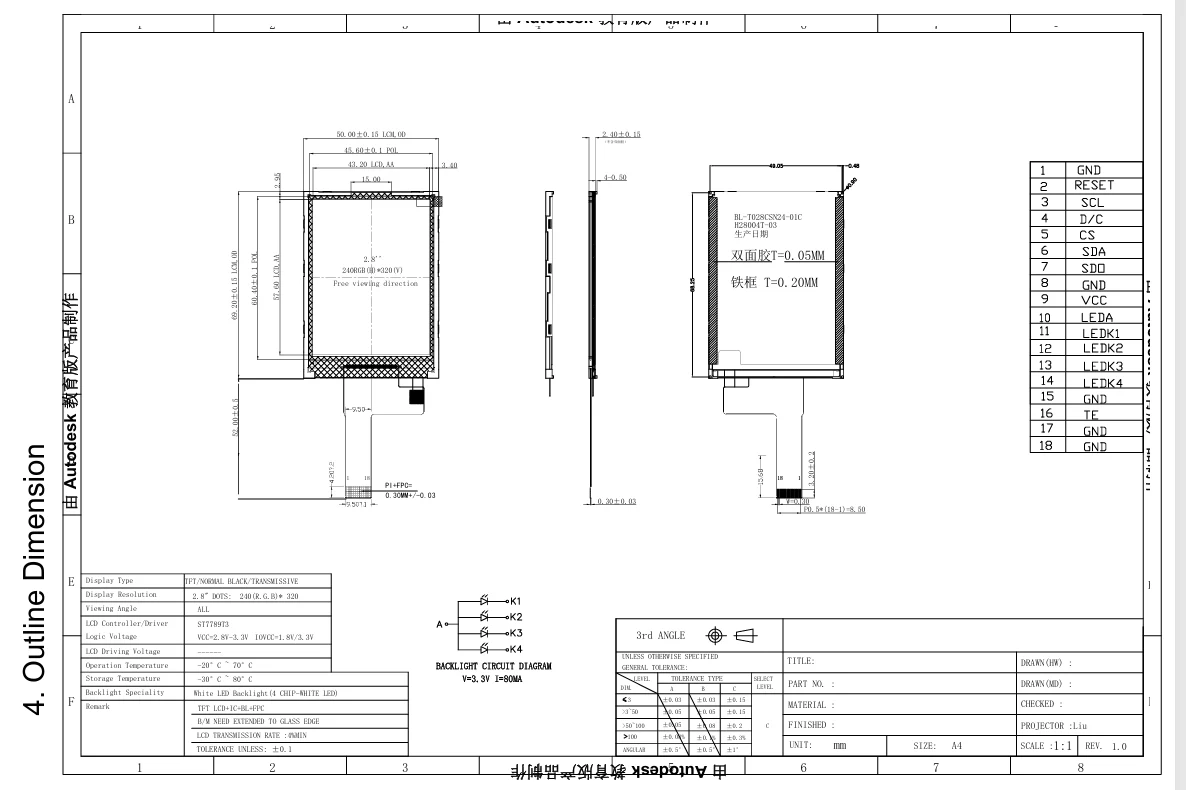

Outline Dimensions	50.0mm (W) × 69.20mm (H) × 2.4mm (T)
Operating Temperature	-40°C to +85°C
Storage Temperature	-55°C to +110°C
Optical Performance
Contrast Ratio	1200:1 (Typical)
Response Time	30ms (Typical)
Viewing Angle	80° (Horizontal & Vertical, CR≥10)
Color Gamut (CIE 1931)	White: (0.305–0.311x, 0.336–0.342y) Red: (0.655–0.661x, 0.335–0.341y) Green: (0.259–0.265x, 0.597–0.603y) Blue: (0.131–0.137x, 0.134–0.140y)

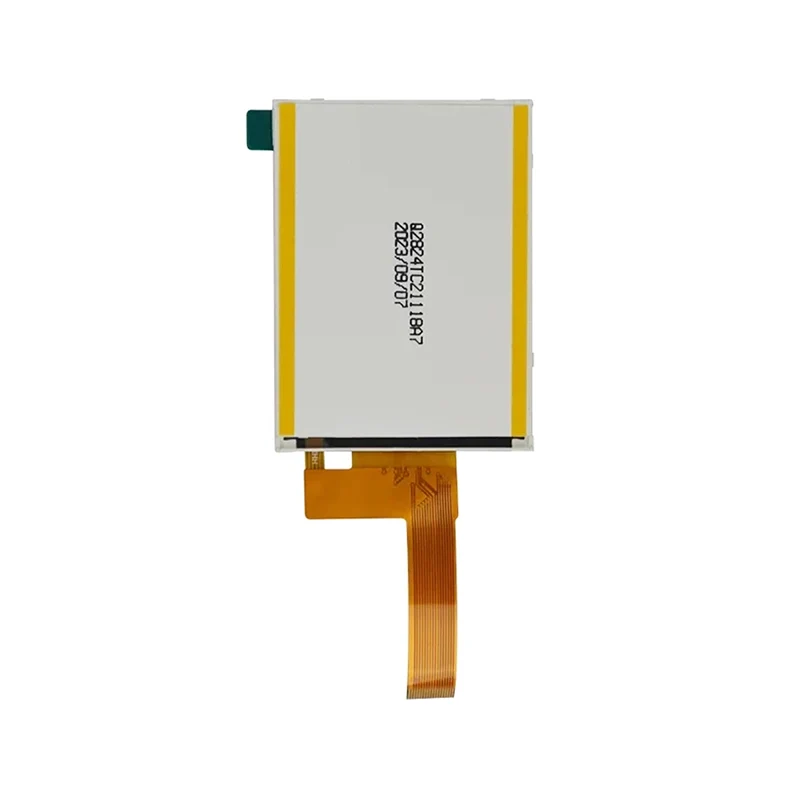

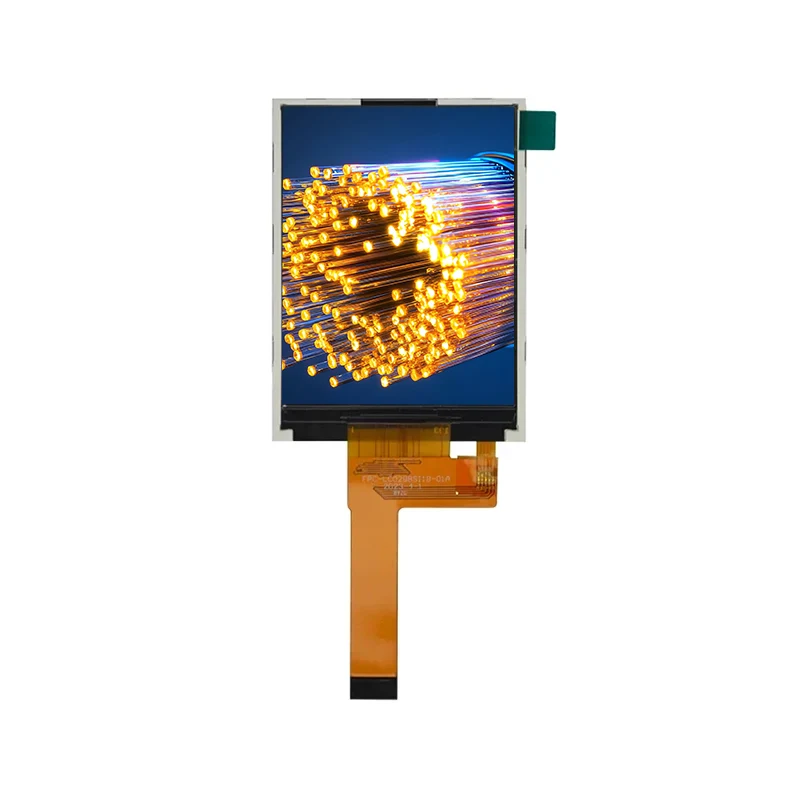

Tianfu 2.8' Normally Black IPS TFT LCD Screen Module Details

Tianfu 2.8' IPS TFT LCD Screen Module Application

Tianfu Leading Time

Standard Products		Customized Products
Order Quantity	Delivery Time	Customization Type	Delivery Time
1-30 PCS	Immediately	General	5-8 weeks
31-100 PCS	1 week	FPC	4 weeks
101-500 PCS	1-2 weeks	CTP	6 weeks
501-1000 PCS	2-5 weeks	B/L	6 weeks
1001-5000 PCS	4-5 weeks	Driver Board	8 weeks
5000+ PCS	5-7 weeks	LCD Panel	16 weeks
