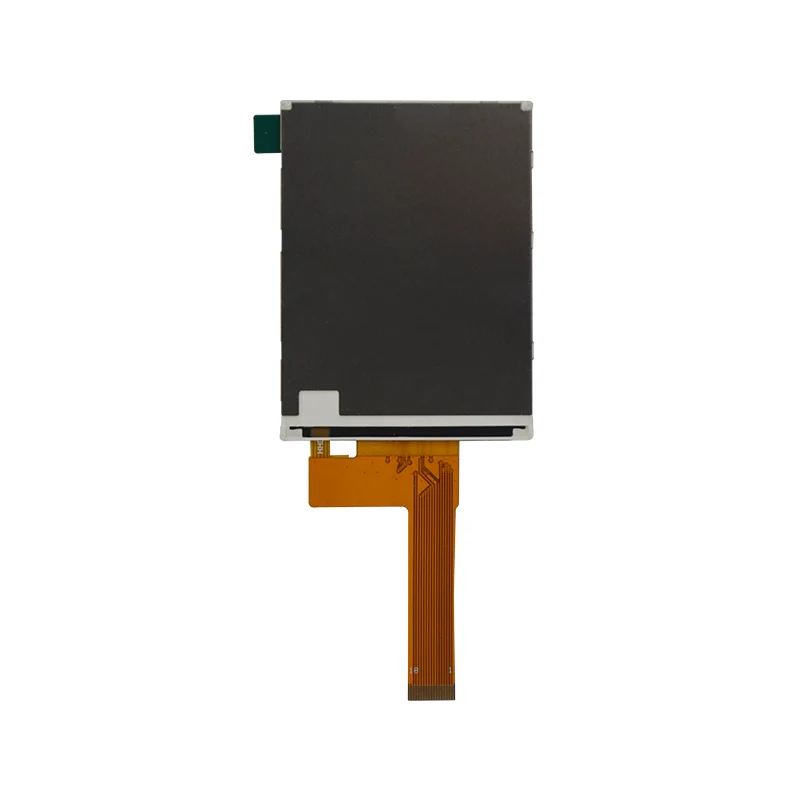

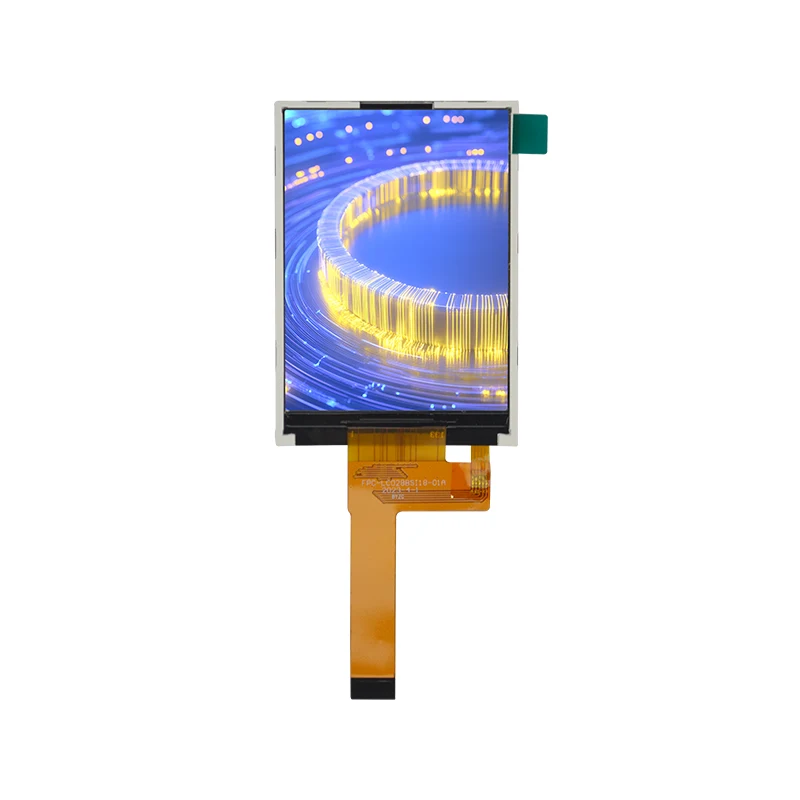

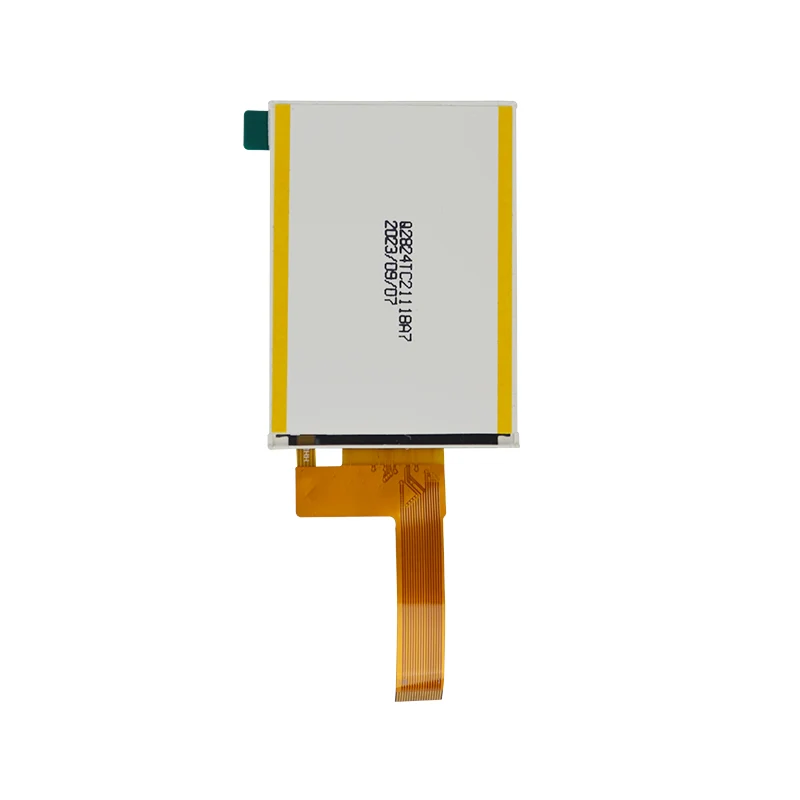

2.7' 300 Nit Standard IPS TFT LCD Screen Module

Featuring a wide-screen design (4:1 aspect ratio), 2.7-inch 300 nit standard IPS TFT LCD screen module from TF factory is particularly suitable for application scenarios that require displaying strip-shaped information, status bars, instrument parameters or scrolling text.

Core Advantages

Designed for Flexible Integration & Stable Performance

Interface Flexibility

Dual Interface Architecture

SPI Mode

Minimal IO pin usage, compatible with Arduino / STM32 / ESP32, lowering development cost and shortening debugging time.

RGB Mode

Direct RGB interface connection, supporting higher refresh rates and dynamic visual output for video and complex UI applications.

Display Efficiency

960 × 240 Wide-Screen Resolution

Long-content display without frequent page switching

Ideal for information-dense interfaces such as:

Electronic shelf labels

Vehicle-mounted status bars

Industrial instrument parameter panels

Scrolling notifications & advertising text

Power & Environment Adaptability

Low Consumption, High Stability

Typical current: 8mA, optimized for battery-powered devices

Operating temperature: -20°C to +70°C

Backlight voltage range: 8.7 – 10.2V for stable brightness and easier power design

Compact Integration

Slim & Space-Saving Design

Module thickness: 2.4mm (excluding FPC)

Effective display area: 33.06 × 58.80 mm

High screen-to-body ratio, suitable for compact embedded systems

Application-Oriented Design

Engineered for Real-World Scenarios

Industrial control panels

Automotive electronics

Portable instruments

Smart terminals and embedded systems

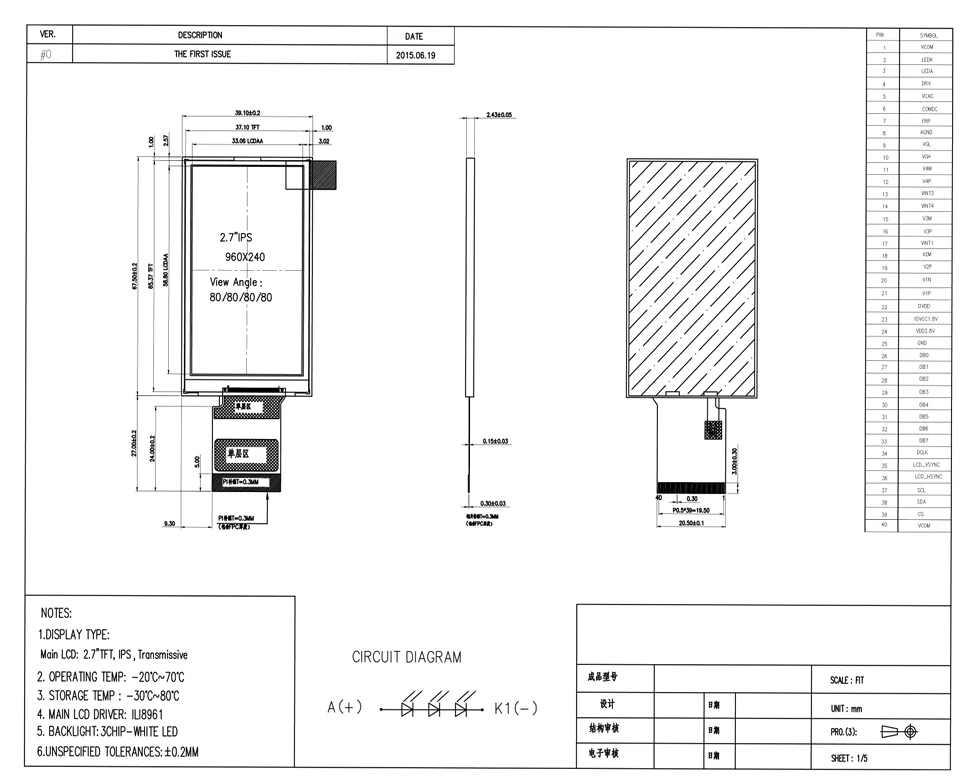

TFT LCD Screen Module Specification

Tianfu 2.7' 300 Nit Standard IPS TFT LCD Screen Module Details

Q1: What is the Minimum Order Quantity (MOQ) for this 2.7-inch display? Are there any off-the-shelf samples available?

A: As the manufacturer, our MOQ is 1 unit, and this can be further negotiated based on your project requirements. Engineering samples (1–5 units) can be provided promptly to support your pre-development and testing. We keep stock for some hot-selling models, with delivery within 3–5 working days.

Q2: What is the tiered pricing for bulk purchases? What are the main influencing factors?

A: Pricing drops significantly with increased order volume. The key influencing factors include:

Order quantity (tiered pricing applies to 500 units/1000 units/5000 units and above)

Customization requirements (e.g., special FPC length, interface sequence, backlight brightness)

Warranty grade (industrial-grade / commercial-grade)

Packaging and delivery terms

We recommend providing your estimated annual consumption, and we will formulate a cost-effective solution tailored to you.

Q3: What is the lead time for delivery?

A: - Standard models: 2–3 weeks after order confirmation.

Customized models: Approximately 4–6 weeks for initial development (including mold opening and sample trial production).

Rush orders: Expedited production can be negotiated, with the fastest delivery in 7–10 working days (additional fees may apply).

Q4: Do you support custom modifications? What are the common customizable items?

A: We fully support customization, which is one of our core services. Common customizable items include:

FPC interface position, length, and pin definition rearrangement

Backlight brightness and color temperature adjustment (specifications ranging from 200–800 nits are available)

Special wide temperature requirements (e.g., -30°C ~ 85°C industrial-grade)

Surface treatment (anti-glare, anti-fingerprint AF coating, full lamination)

Minor structural dimension adjustments (within mold design limits)

Q5: How do you ensure product quality? What is the warranty period?

A: We implement strict outgoing inspections (including power-on test, signal test, and visual inspection). A 12-month warranty period is provided. For industrial and automotive projects, we can supply detailed reliability test reports (e.g., temperature cycle test, high-temperature and high-humidity test data).
