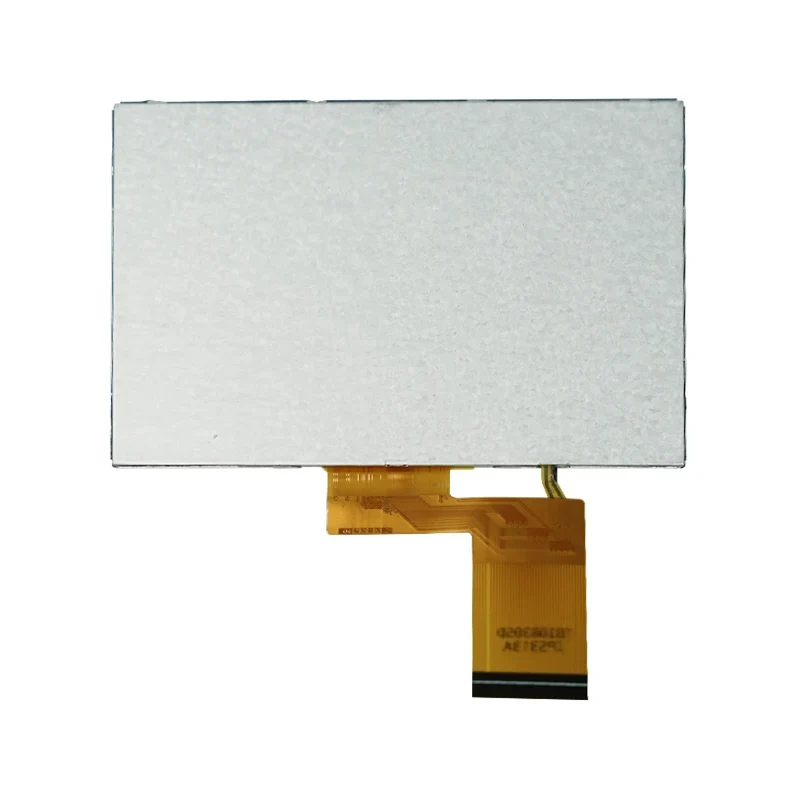

4.3' Industrial IPS TFT LCD Screen Module

Tianfu this 4.3' Industrial IPS TFT LCD Screen Module with Free View Angle vivid 262K colors, 480×RGB×272 resolution, 280 cd/m² brightness, and 800:1 contrast for sharp visuals. Built for extremes: -20°C to 70°C operation, -30°C to 80°C storage. All-angle visibility (All O’clock), RGB vertical stripes for color accuracy. Compact (105.5×67.2×3.0mm), 3.2V efficiency, 7-LED backlight. 4.3' Industrial IPS TFT LCD screen module is ideal for industrial, automotive, and IoT.

Send Inquiry

Product Description

Supporting small-batch trial orders and custom firmware/interface designs, TFT LCD screen module manufactures, Tianfu ensures seamless integration into smart controls/portable instruments, backed by a 12-month warranty.

Tianfu 4.3' Industrial IPS TFT LCD Screen Module Features

1.Extreme Environment Resilience

Operates flawlessly from -20°C to 70°C and survives storage in -30°C to 80°C, perfect for automotive, industrial, and outdoor applications.

2.Crisp, High-Brightness Display

280 cd/m² brightness and 800:1 contrast ratio deliver vivid visuals even in direct sunlight or low-light conditions.

3.Ultra-Compact Design

Slim 105.5×67.2×3.0mm footprint enables seamless integration into space-constrained devices like IoT gadgets and portable instruments.

4.Energy-Efficient Performance

3.2V power supply reduces energy consumption, ideal for battery-powered systems requiring long operational lifespans.

Tianfu 4.3' Industrial IPS TFT LCD Screen Module Specification

Core Specifications
Product Type	TFT Module
Product P/N	Q4340TT75221A0
Display Size	4.3-inch TFT-LCD
Active Area	95.04mm (W) × 53.86mm (H)
Resolution	480 × RGB × 272
Pixel Pitch	0.198mm (H) × 0.198mm (W)
Color Depth	262,000 colors
Display Mode	Normally White, Transmissive
Viewing Direction	12 O’CLOCK
Driver IC	LILI6485
Electrical Specifications
Power Supply (VDD/VCI)	3.2V (Typ.)
LED Forward Voltage (Vf)	12V (Min) – 16V (Max), 14V (Typ.)
LED Forward Current (Ir)	40mA (Typ.)
Operating Temperature	-20°C to 60°C
Storage Temperature	-20°C to 70°C
Operating Humidity	10%RH – 90%RH
Optical Specifications
Luminance (BP)	450 cd/m² (Min), 500 cd/m² (Typ.)
Contrast Ratio (CR)	500:1 (Min), 700:1 (Typ.)
Viewing Angle (Horizontal)	60° (Min), 70° (Typ.) @ CR > 10
Viewing Angle (Vertical)	45°–60° (Typ.)
Response Time (TRT)	20ms (Typ.), 30ms (Max) @ 25°C
Color Gamut	45% (Min), 50% (Typ.)

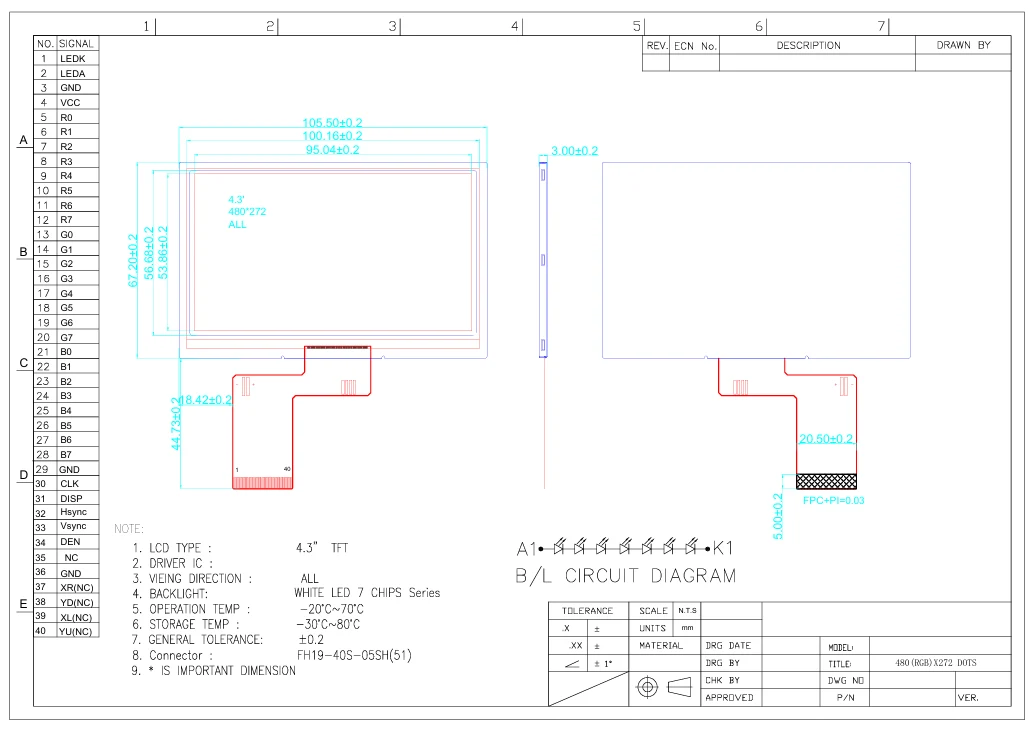

Mechanical Specifications
Outline Dimensions	105.5mm (W) × 67.2mm (H) × 3.0mm (T)
Connector Type	FH19-40S-0.5SH(51)
Backlight Type	White LED (Parallel chips)

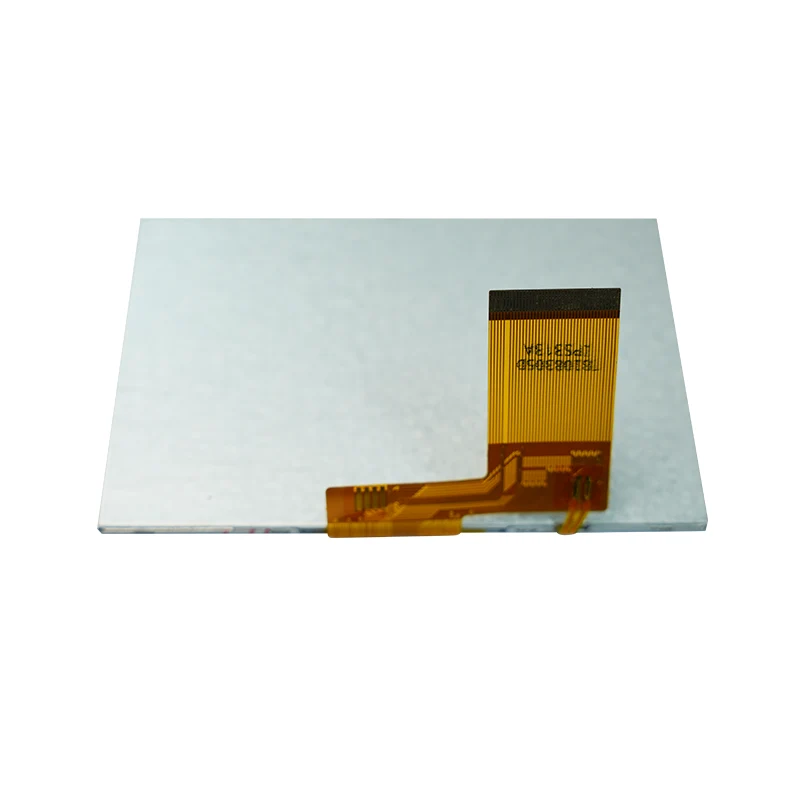

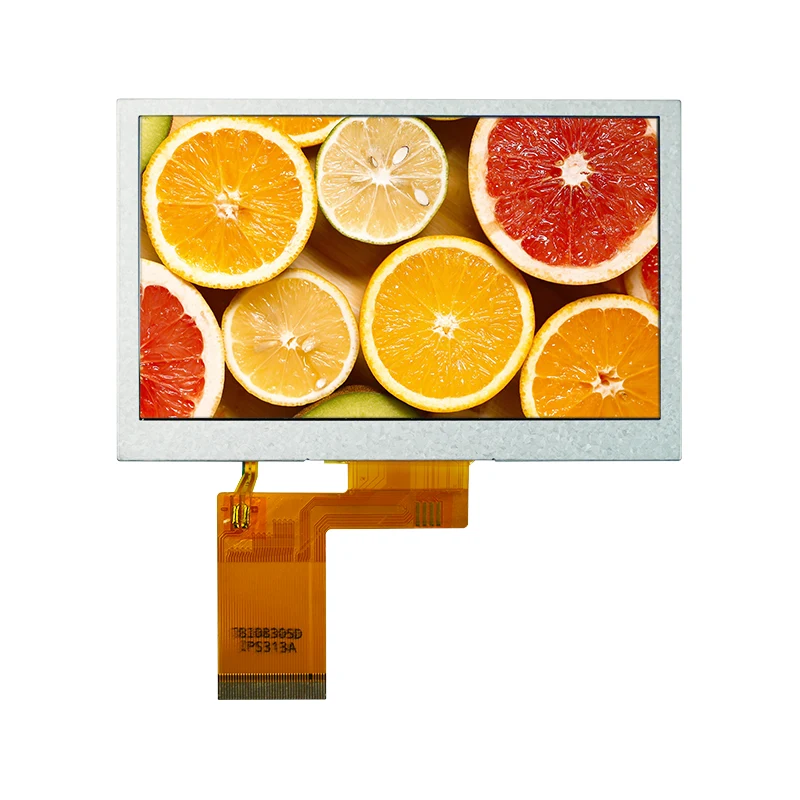

Tianfu 4.3' Industrial IPS TFT LCD Screen Module Details

Tianfu 4.3' IPS TFT LCD Screen Module Application

Tianfu Leading Time

Standard Products		Customized Products
Order Quantity	Delivery Time	Customization Type	Delivery Time
1-30 PCS	Immediately	B/L & FPC & TP	within 5 weeks
31-100 PCS	1 week	B/L & FPC & TP	within 5 weeks
101-500 PCS	within 2 weeks	B/L & FPC & TP	within 5 weeks
501-1000 PCS	within 3 weeks	B/L & FPC & TP	within 5 weeks
1001-5000 PCS	within 3 weeks	BL & FPC & TP	within 6 weeks
5000+ PCS	within 4 weeks	BL & FPC & TP	within 6 weeks
