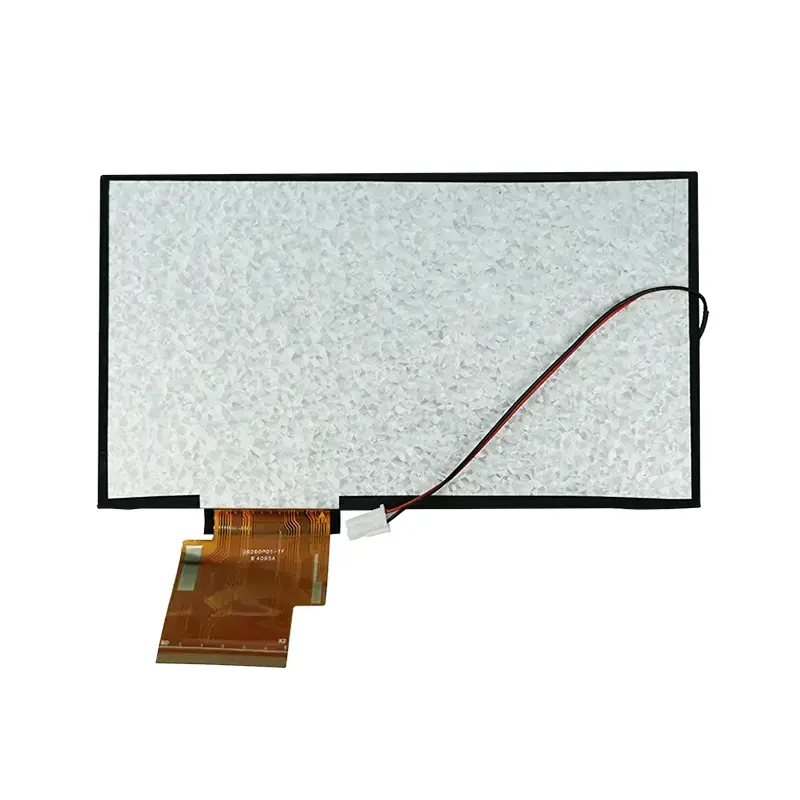

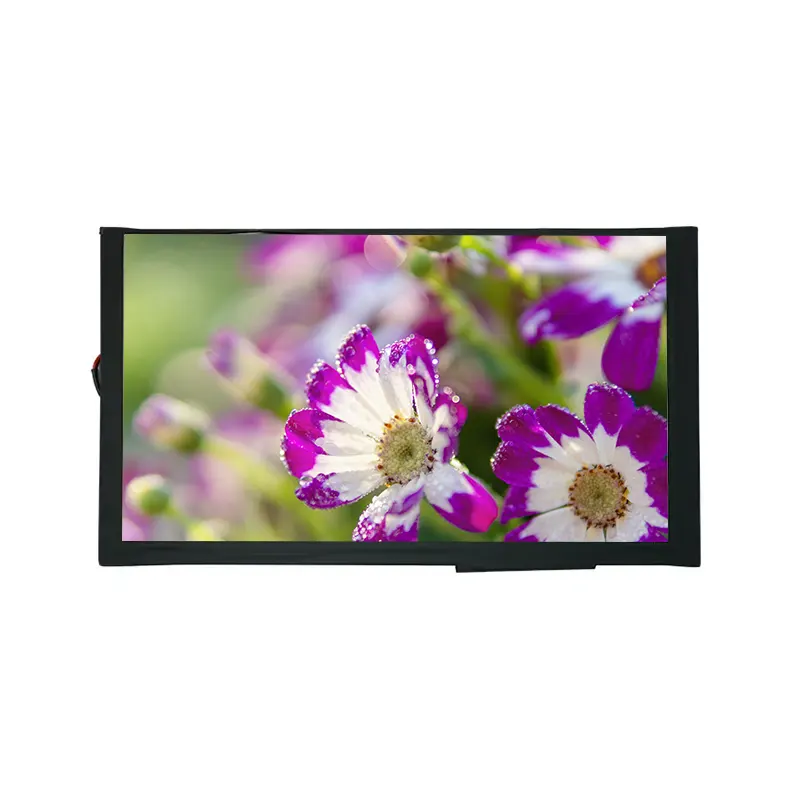

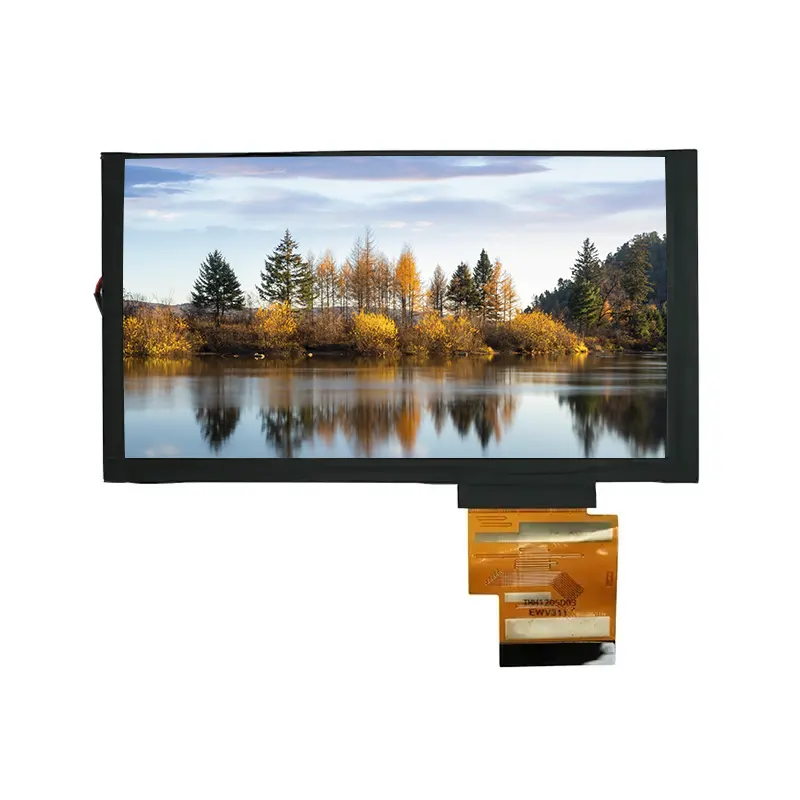

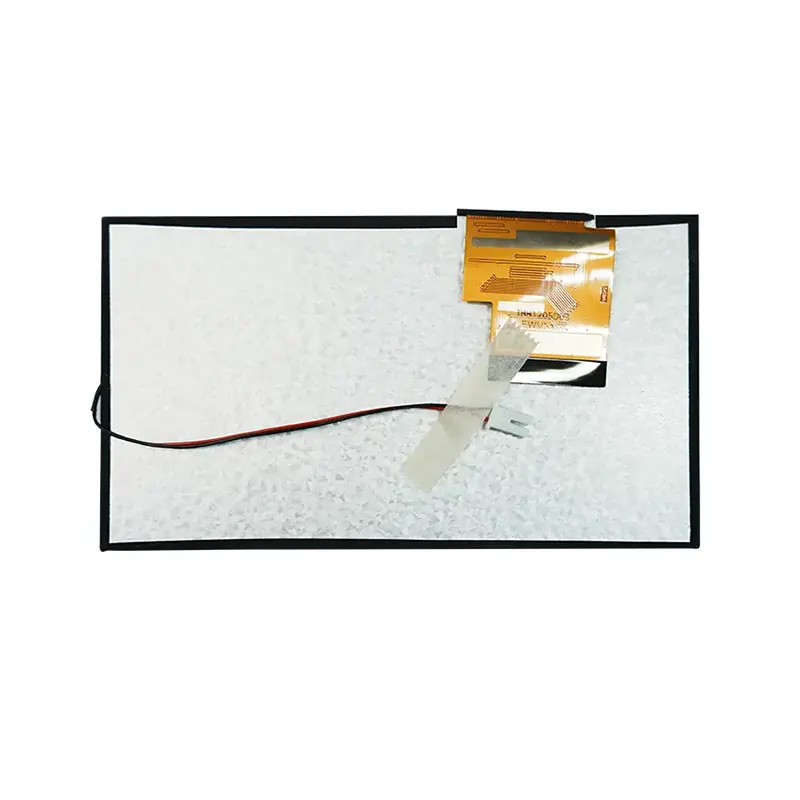

6.2' Wide Temp TN TFT LCD Screen Module

Main Application Scenarios

• Industrial Control Panels: Factory automation equipment, PLC control systems, Human-Machine Interfaces (HMI)

• In-Vehicle Display Systems: Commercial vehicle dashboards, logistics vehicle terminals, special vehicle control screens

• Outdoor Equipment Displays: Solar energy monitoring systems, outdoor payment terminals, public information displays

• Medical Equipment Displays: Portable medical instruments, auxiliary displays for diagnostic equipment

• Smart Home Control: Building automation control panels, smart central control systems

Tianfu 6.2' Wide Temp TN TFT LCD Screen Module In Stock Specification

Tianfu Customized 6.2' Wide Temp TN TFT LCD Screen Module Details

Optical Performance Advantages

High Brightness Display: With a typical brightness of 500 cd/m², it is nearly twice as bright as standard consumer-grade displays (250-300 cd/m²), ensuring perfect visibility even in direct sunlight or strong ambient light.

Wide Viewing Angles: Achieves a 150° viewing angle (CR≥10) both horizontally and vertically. This feature is crucial when multiple operators need to view the screen simultaneously or when the device is installed in unconventional positions.

Fast Response: A total response time of 25ms (rise + fall) ensures dynamic information updates without motion blur, making it suitable for displaying real-time data, monitoring feeds, and basic animated interfaces.

Color Performance: Boasts a 50% NTSC color gamut. While not as extensive as high-end consumer displays, it fully meets the requirements for industrial indicators, status notifications, and graphical data visualization.

Environmental Adaptability & Reliability

Wide Temperature Operation: Operating temperature range of -20°C to 70°C, suitable for environments ranging from cold warehouses to high-temperature workshops. The storage temperature range is even wider at -30°C to 80°C, ensuring safety during transportation and warehousing.

Robust Backlight System: Utilizes an array of 21 white LEDs with a power supply design of 9.6V/210mA, providing uniform and stable backlighting with a typical lifespan of over 50,000 hours.

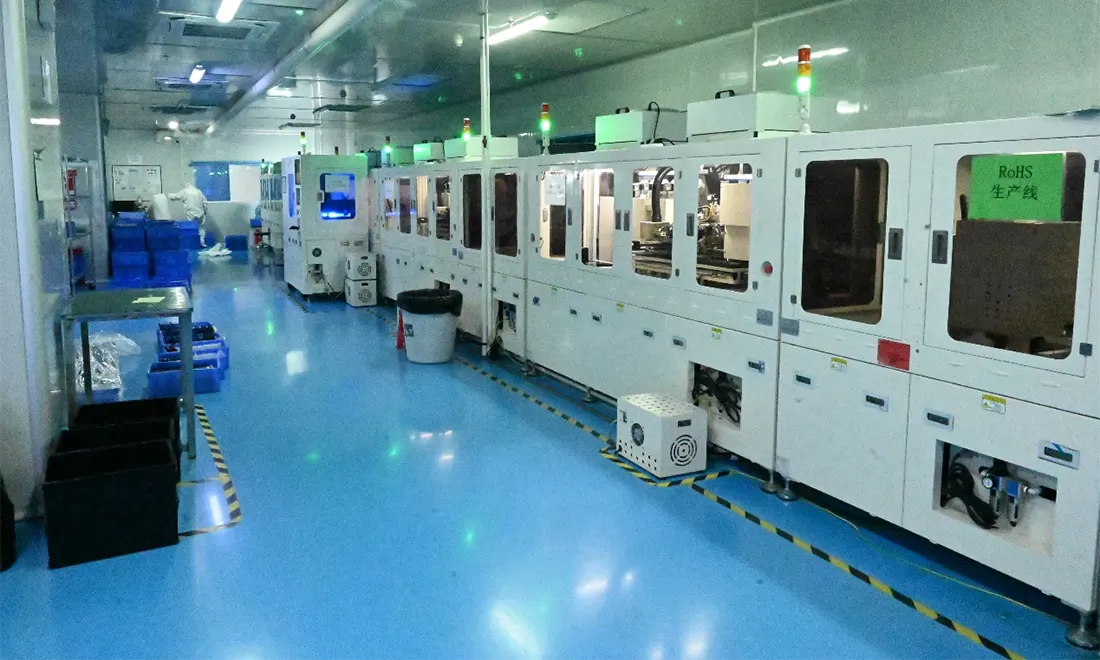

Production Quality Control

• Random sampling for High-Temperature & High-Humidity testing (85°C/85%RH for 240 hours) per batch.

• Thermal Shock testing (-20°C ⇄ 70°C for 1000 cycles).

• Vibration and Mechanical Shock testing to meet industrial equipment installation requirements.

Performance Consistency Guarantee

• Brightness Uniformity controlled at over 85%.

• No bright/dark pixel guarantee (Zero-defect pixel grade available upon request).

• Color Consistency between batches controlled with ΔE < 5.

Compatibility & Integration Support

• Supports standard RGB interface, compatible with mainstream industrial processors.

• Provides detailed interface definition and timing specification documents.

• Optional Resistive or Capacitive touch panels (Sold separately).

• Offers reference circuit designs and initialization code examples.

What has made Tianfu our customers' choice for 16 years?

A Decade of Expertise: With over 10 years dedicated to industrial display solutions, we deeply understand the unique requirements of industrial applications. Unlike consumer-grade displays that prioritize extreme color and slim profiles, we focus on reliability, environmental adaptability, and long-term stability.

Proven Field Performance: Our display modules have been validated in over 5,000 industrial deployments worldwide, including:

• Wind power monitoring systems in the extreme cold of Northern Europe (Continuous operation at -25°C)

• Oil drilling platform instrumentation in the high temperatures of the Middle East (Ambient temperatures of 50°C+)

• 24/7 Manufacturing Execution System (MES) terminals

Technical Support Commitment

• Providing comprehensive technical documentation and integration guides.

• A technical support team with an average of 8+ years of experience in industrial electronic products.

• Support for sample testing and fast delivery for small-batch orders.

• A commitment to long-term supply and lifecycle support for industrial products.

A case from our client: Display Upgrade for Intelligent Warehouse Logistics Terminals

Customer Background & Challenges: A large e-commerce logistics center urgently needed to upgrade the displays of its warehouse mobile data terminals (PDAs). The original screens lacked sufficient brightness under the high-intensity lighting of the warehouse, making it difficult for operators to read barcode scans and inventory information. Additionally, the significant temperature fluctuations within the warehouse (from cold storage zones to high-temperature summer conditions) caused standard screens to slow down or fail, severely impacting sorting efficiency and accuracy.

Our Solution: The customer adopted our 6.2' Wide Temp TN TFT LCD Screen Module. Its 500 cd/m² high brightness ensures clear visibility under all types of lighting. The -20°C ~ 70°C wide operating temperature range perfectly adapts to the complex warehouse environment, guaranteeing stable device operation year-round. Furthermore, the 150° wide viewing angle allows operators to easily read information regardless of how they hold the device.

Application Results: After the equipment upgrade, the efficiency of sorters reading screen information improved by over 30%, and the error rate caused by display issues dropped significantly. Customer feedback indicates that the display's reliability has drastically reduced equipment downtime for maintenance, providing a solid foundation for the "regular operation of the intelligent logistics system."

Q1: Is this display clearly visible outdoors in direct sunlight?

A: Yes, absolutely. The 500 cd/m² high-brightness design is specifically engineered for outdoor and high ambient light conditions. Compared to standard mobile phone screens (typically 300-400 cd/m²), our display maintains excellent readability in bright light. We recommend pairing it with an anti-glare (AG) surface treatment for optimal results.

Q2: Does the operating temperature range of -20°C to 70°C include the startup temperature?

A: Yes, this is the full operating temperature range, including both cold and hot startups. At -20°C, the display may take slightly longer to reach peak brightness (usually 30-60 seconds), but it will display normally. For more extreme applications, we can provide special versions upon request.

Q3: Is a contrast ratio of 140:1 sufficient? It seems lower than consumer products.

A: Contrast ratio standards for industrial displays differ from consumer products. The 140:1 figure is measured at a high brightness of 500 cd/m². The actual visual performance is far superior to consumer screens operating at the same brightness level. Our optimization ensures the best possible readability in industrial environments, which are often subject to ambient light interference.

Q4: Will a response time of 25ms cause motion blur?

A: For industrial applications, a total response time of 25ms is completely adequate. Industrial interfaces primarily consist of data updates and status indicators rather than high-speed video playback. This response time ensures smooth updates of dynamic data while providing better voltage stability and a longer lifespan.

Q5: Does it support touch functionality?

A: This product is a core display module, but we can provide a complete display + touch integration solution. We collaborate with several high-quality touch panel suppliers to offer either Resistive (better for gloved operation) or Capacitive touch solutions, ensuring the optical performance and reliability are perfectly matched.

Q6: What is the lifespan of the backlight LEDs, and is replacement difficult?

A: The backlight system is designed for a lifespan of over 50,000 hours (approximately 5-6 years under typical usage). The LEDs utilize an array design, so the failure of a single LED will not cause the entire backlight to fail. For applications requiring higher reliability, we can offer versions with redundant designs.

Q7: What is the minimum order quantity (MOQ), and what is the lead time?

A: The MOQ for standard models is 100 units, while samples are available starting from 1 unit. Please refer to the table below for specific lead times; rush orders can be negotiated for expedited production. We maintain safety stock for our most popular models to meet our customers' urgent needs.
