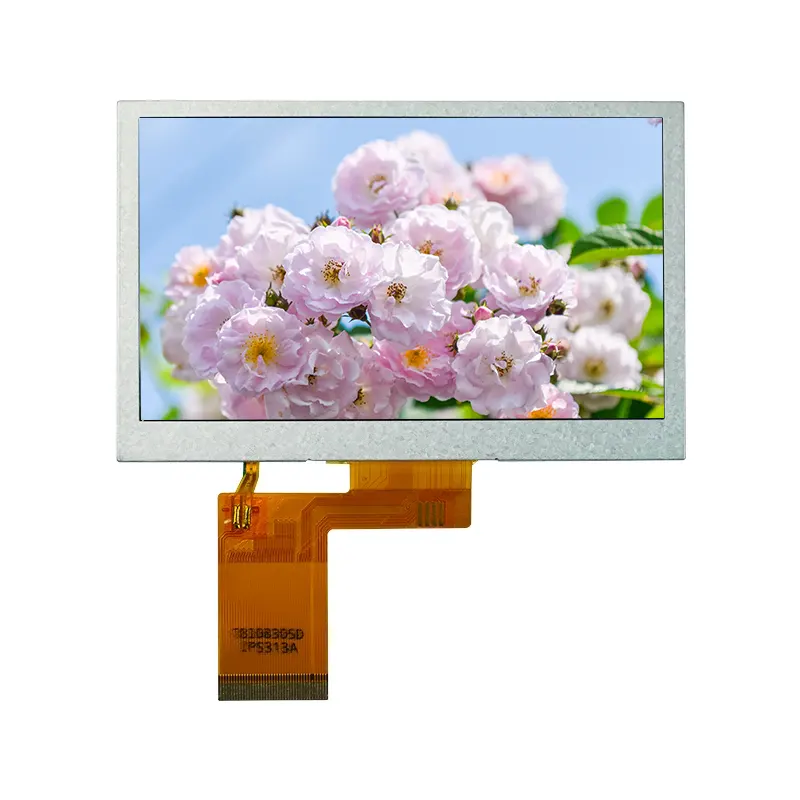

4.3' BOE Glass TN TFT LCD Screen Module

Tianfu 4.3" BOE Glass TN TFT LCD Module (480×272, 24-bit, 180cd/m², 700:1 contrast) operates at -10°C~60°C with 20,000hr backlight. Features 70° viewing angle, 45% CIE1931 gamut, 25ms response, and 24-bit RGB interface. RoHS-compliant, humidity-resistant, certified for thermal/vibration resilience. 4.3" BOE glass TN TFT LCD module is built for industrial/consumer devices.

Send Inquiry

Product Description

Supporting small-batch trial orders and custom firmware/interface designs, China TFT LCD module manufactures, Tianfu ensures seamless integration into smart controls/portable instruments, backed by a 12-month warranty.

Tianfu 4.3'' BOE Glass TN TFT LCD Screen Module In Stock Features

1.High Visibility Performance

480×272 resolution with 180 cd/m² brightness and 700:1 contrast ratio ensures crisp displays in diverse lighting conditions.

2.Industrial-Grade Reliability

Operates from -10°C to 60°C, survives thermal shocks (-20°C↔60°C), and withstands 50Hz vibration – ideal for harsh environments.

3.Long-Lasting Backlight

20,000-hour LED lifespan reduces maintenance costs, backed by 24-bit RGB interface for stable signal transmission.

4.Wide Compatibility

ILI6485 driver IC supports 24-bit parallel RGB input, enabling seamless integration with industrial controllers and embedded systems.

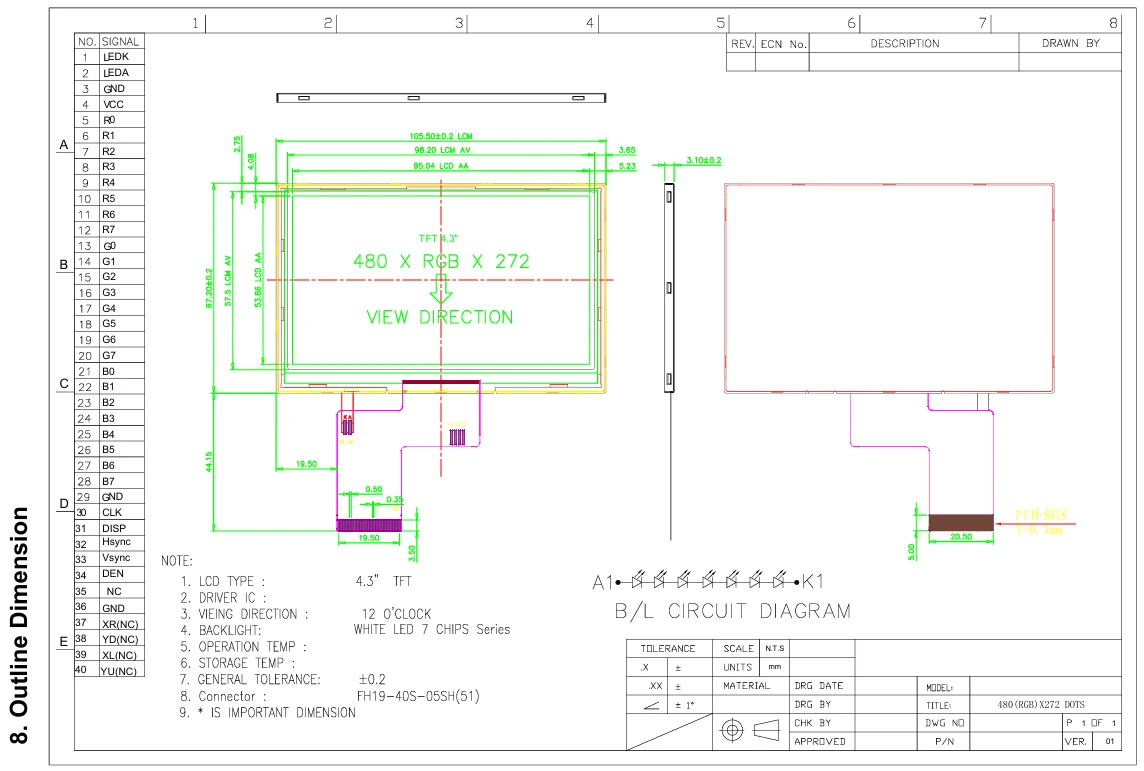

Tianfu Customized 4.3'' BOE Glass TN TFT LCD Screen Module Specification

Core Specifications
Display Size	4.3-inch TFT-LCD
Resolution	480 × RGB × 272
Active Area	95.04mm (W) × 53.86mm (H)
Pixel Pitch	0.198mm (H) × 0.198mm (W)
Display Mode	Normally White, Transmissive
Driver IC	ILI6485
Electrical Parameters
Power Supply (VDD)	3.2V (Typical)
Logic Voltage (VIL/VIH)	Low: 0–0.64V / High: 2.56–3.2V
LED Forward Voltage	18.9V–23.8V (21.4V Typ)
LED Current	20mA (Typical)
Optical Performance
Luminance	160–200 cd/m² (180 Typ)
Contrast Ratio	500:1–700:1
Viewing Angle (H/V)	60°–70° / 45°–60° (CR>10)
Color Gamut	45%–50% (CIE1931)
Response Time	20–30ms (25ms Typ)
Environmental Ratings
Operating Temp	-10°C to 60°C
Storage Temp	-20°C to 70°C
Humidity	10%–90% RH
Backlight Lifetime	15,000–20,000 Hours
Interface & Reliability
Interface Type	24-bit RGB Parallel
Key Pins	LEDK/LEDA, HSYNC/VSYNC, 24×RGB Data
Thermal Shock Test	-20°C↔ 60°C, 25 Cycles
Vibration Test	50Hz, 2cm Amplitude, X/Y/Z Axes

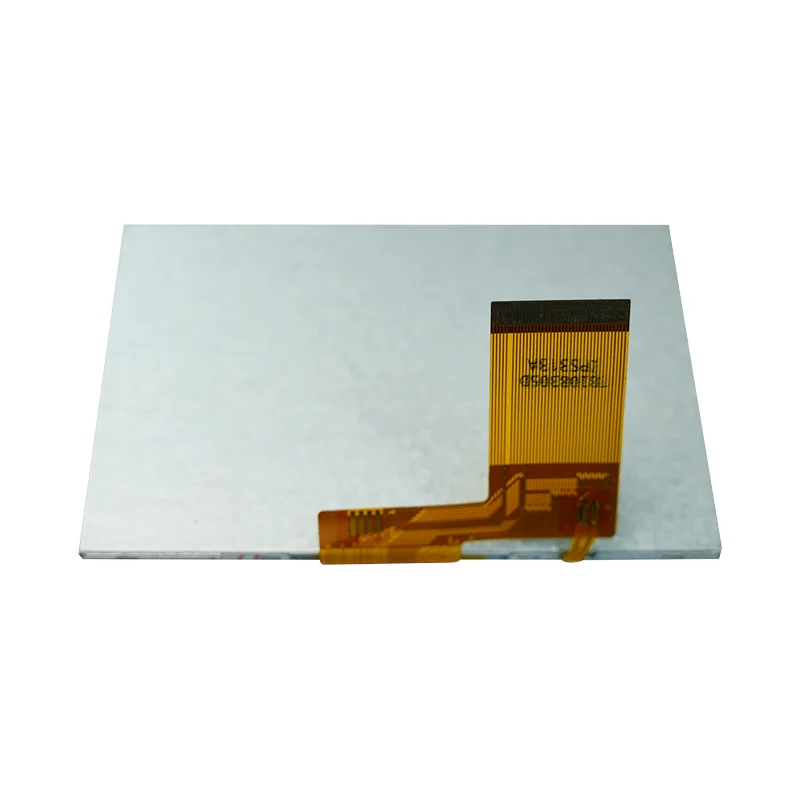

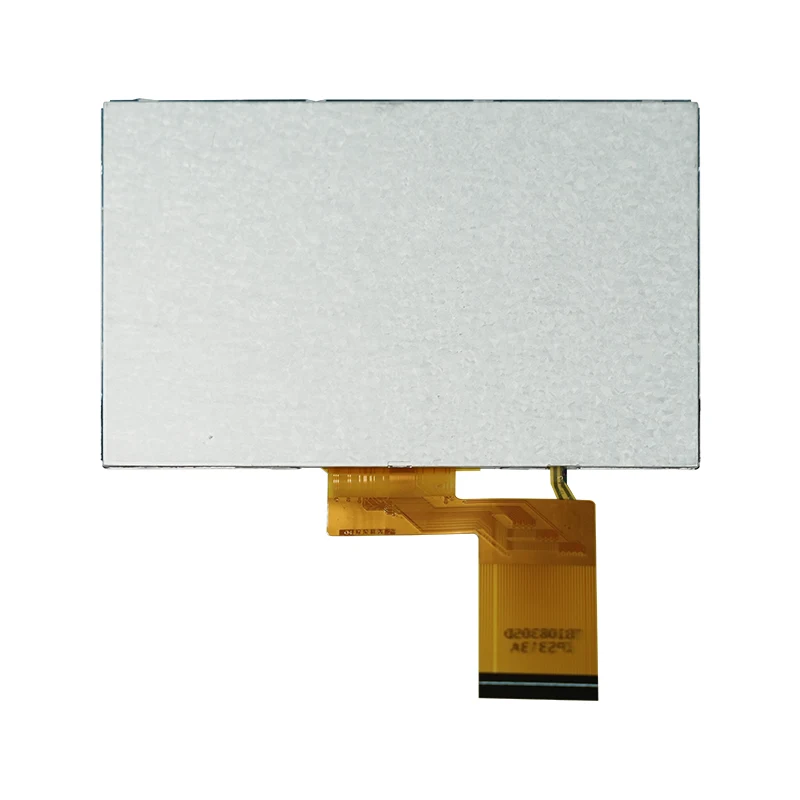

Tianfu 4.3'' BOE Glass TN TFT LCD Screen Module Details

Tianfu 4.3'' TFT LCD Screen Module Application

Tianfu Leading Time

Standard Products		Customized Products
Order Quantity	Delivery Time	Customization Type	Delivery Time
1-30 PCS	Immediately	B/L & FPC & TP	within 5 weeks
31-100 PCS	1 week	B/L & FPC & TP	within 5 weeks
101-500 PCS	within 2 weeks	B/L & FPC & TP	within 5 weeks
501-1000 PCS	within 3 weeks	B/L & FPC & TP	within 5 weeks
1001-5000 PCS	within 3 weeks	BL & FPC & TP	within 6 weeks
5000+ PCS	within 4 weeks	BL & FPC & TP	within 6 weeks
