4.3' 450 cd/m² Brightness TN TFT LCD Screen Module

Tianfu this 4.3' 450 cd/m² Brightness TN TFT LCD Screen Module: 4.3" 480×272, 262K colors, 500cd/m² brightness, 700:1 contrast. Operates -20°C~60°C, 20ms response. MIL-STD-105D certified, rugged FH19-40S connector. 4.3' 450 cd/m² brightness TN TFT LCD screen module is ideal for industrial/medical systems.

Send Inquiry

Product Description

Supporting small-batch trial orders and custom firmware/interface designs, TFT LCD screen module supplier, Tianfu ensures seamless integration into smart controls/portable instruments, backed by a 12-month warranty.

Tianfu 4.3' 450 cd/m² Brightness TN TFT LCD Screen Module In Stock Features

1.High Brightness & Clarity

500 cd/m² typical luminance and 700:1 contrast ratio ensures vivid visibility even in harsh lighting conditions, critical for industrial dashboards and outdoor devices.

2.Wide Operating Temperature Range

Reliable performance across -20°C to 60°C, tested for 120 hours at 70℃ storage and 90%RH humidity, making it ideal for extreme environments.

3.Fast Response Time for Dynamic Content

20ms response time (30ms max) minimizes motion blur, perfect for real-time monitoring systems, medical displays, and interactive HMIs.

4.Robust Mechanical Design

Compact 105.5×67.2×3.0mm footprint with industrial-grade connector (FH19-40S) ensures easy integration and durability in rugged applications.

Tianfu Customized 4.3' 450 cd/m² Brightness TN TFT LCD Screen Module Specification

Core Specifications
Product Type	TFT Module
Product P/N	Q4340TT75221A0
Display Size	4.3-inch TFT-LCD
Active Area	95.04mm (W) × 53.86mm (H)
Resolution	480 × RGB × 272
Pixel Pitch	0.198mm (H) × 0.198mm (W)
Color Depth	262,000 colors
Display Mode	Normally White, Transmissive
Viewing Direction	12 O’CLOCK
Driver IC	LILI6485
Electrical Specifications
Power Supply (VDD/VCI)	3.2V (Typ.)
LED Forward Voltage (Vf)	12V (Min) – 16V (Max), 14V (Typ.)
LED Forward Current (Ir)	40mA (Typ.)
Operating Temperature	-20°C to 60°C
Storage Temperature	-20°C to 70°C
Operating Humidity	10%RH – 90%RH
Optical Specifications
Luminance (BP)	450 cd/m² (Min), 500 cd/m² (Typ.)
Contrast Ratio (CR)	500:1 (Min), 700:1 (Typ.)
Viewing Angle (Horizontal)	60° (Min), 70° (Typ.) @ CR > 10
Viewing Angle (Vertical)	45°–60° (Typ.)
Response Time (TRT)	20ms (Typ.), 30ms (Max) @ 25°C
Color Gamut	45% (Min), 50% (Typ.)

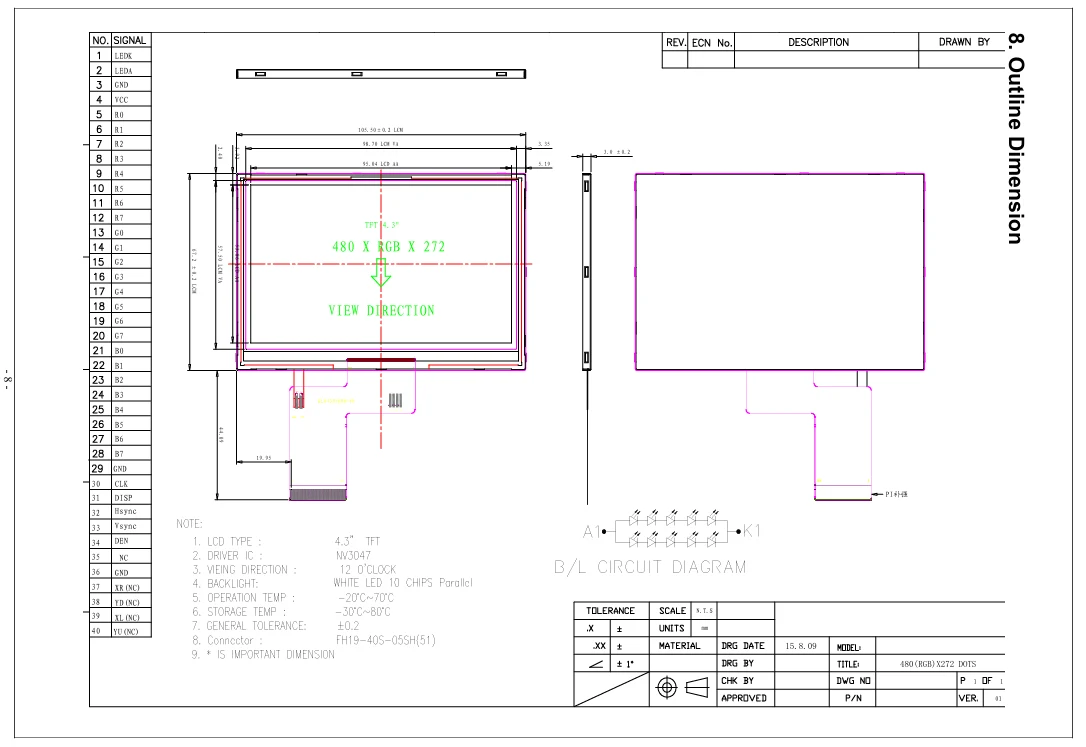

Mechanical Specifications
Outline Dimensions	105.5mm (W) × 67.2mm (H) × 3.0mm (T)
Connector Type	FH19-40S-0.5SH(51)
Backlight Type	White LED (Parallel chips)

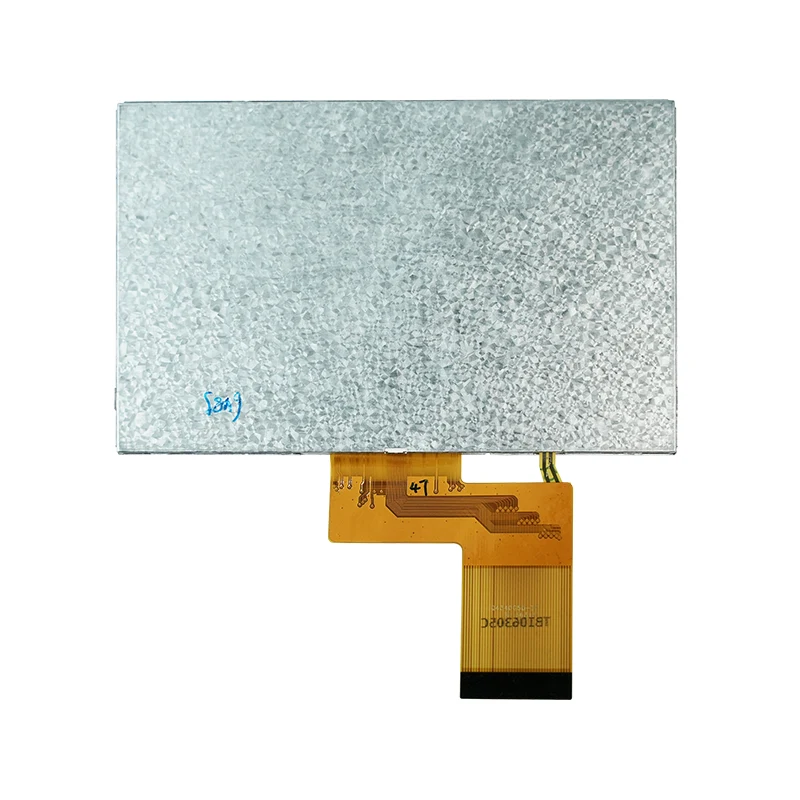

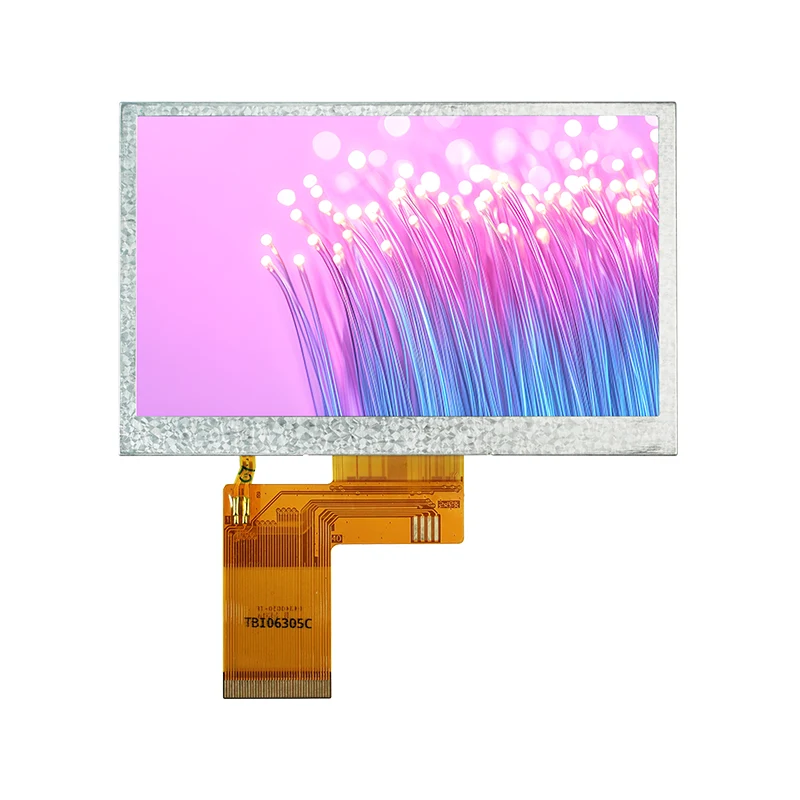

Tianfu 4.3' 450 cd/m² Brightness TN TFT LCD Screen Module Details

Tianfu 4.3' TFT LCD Screen Module Application

Tianfu Leading Time

Standard Products		Customized Products
Order Quantity	Delivery Time	Customization Type	Delivery Time
1-30 PCS	Immediately	B/L & FPC & TP	within 5 weeks
31-100 PCS	1 week	B/L & FPC & TP	within 5 weeks
101-500 PCS	within 2 weeks	B/L & FPC & TP	within 5 weeks
501-1000 PCS	within 3 weeks	B/L & FPC & TP	within 5 weeks
1001-5000 PCS	within 3 weeks	BL & FPC & TP	within 6 weeks
5000+ PCS	within 4 weeks	BL & FPC & TP	within 6 weeks
