2.4' Wide Temp TN TFT LCD Screen Module

Tianfu 2.4' Wide Temp TN TFT LCD Screen Module (240RGB×320 resolution, 12 o'clock viewing) operates at -30°C~+85°C for harsh environments. Certified CE/RoHS with aluminum frame and low-power LED backlight, this 2.4-inch-wide temp TN TFT LCD screen module serves automotive dashboards, industrial systems, outdoor IoT, and home appliances (washing machines/vacuums).

Send Inquiry

Product Description

Supporting small-batch trial orders and custom firmware/interface designs, TFT LCD screen module supplier, Tianfu ensures seamless integration into smart controls/portable instruments, backed by a 12-month warranty.

Tianfu 2.4' Wide Temp TN TFT LCD Screen Module In Stock Features

1.High-Resolution QVGA Display

240(RGB) × 320 pixels with TFT-LCD technology, delivering sharp and vibrant visuals for detailed graphics and text.

2.Optimized Viewing Performance

12 o’clock viewing angle with 300 cd/m² typical brightness (center point) and 200:1 contrast ratio, ensuring excellent visibility in diverse lighting conditions.

3.Fast Response for Dynamic Content

Rapid pixel transitions: 15ms rise time (Tr) and 20ms fall time (Tf), ideal for smooth video playback and interactive applications.

4.Energy-Efficient Operation

Low power consumption: Operates at 2.8V/3.3V logic voltage with a 5mA typical current draw, enhanced by integrated DC/DC converter technology.

30,000-hour LED backlight lifespan (typical), validated through rigorous reliability tests including thermal cycling, vibration, and humidity resistance.

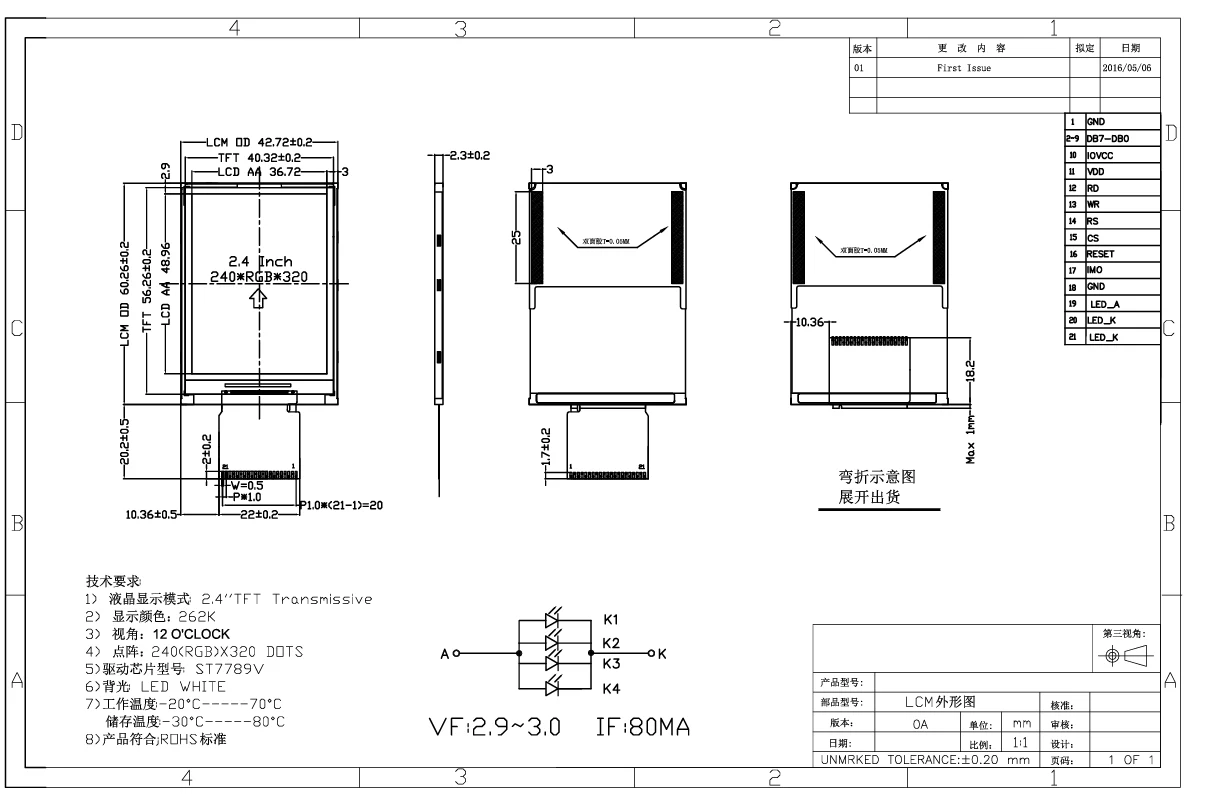

Tianfu Customized 2.4' Wide Temp TN TFT LCD Screen Module Specification

2.4 Transmissive TN TFT LCD Module
Module Type	TFT-LCD with ST7789V Driver IC
Resolution	240(RGB) × 320 pixels
Viewing Direction	12 o'clock (Vertical/Horizontal: θ ≤ 90°,ϕ ≤ 360°)
Brightness (Center)	280–300 cd/m² (Typical)
Contrast Ratio	200:1 (Typical)
Response Time	Rise: 15ms, Fall: 20ms (Typical)
Interface	Parallel 8080 Timing (8-bit data bus)
Operating Voltage	2.6–3.5V (VDD), 2.8V/3.3V (Typical)
Current Consumption	5mA (Typical @ 2.8V)
Backlight Voltage	3.2V (Typical @ 80mA)
Module Dimensions	42.72 × 60.26 × 2.3 mm
Active Area	36.72 × 48.96 mm
Operating Temperature	-20°C to +70°C
Storage Temperature	-30°C to +80°C
Backlight Lifespan	30,000 hours (Typical)

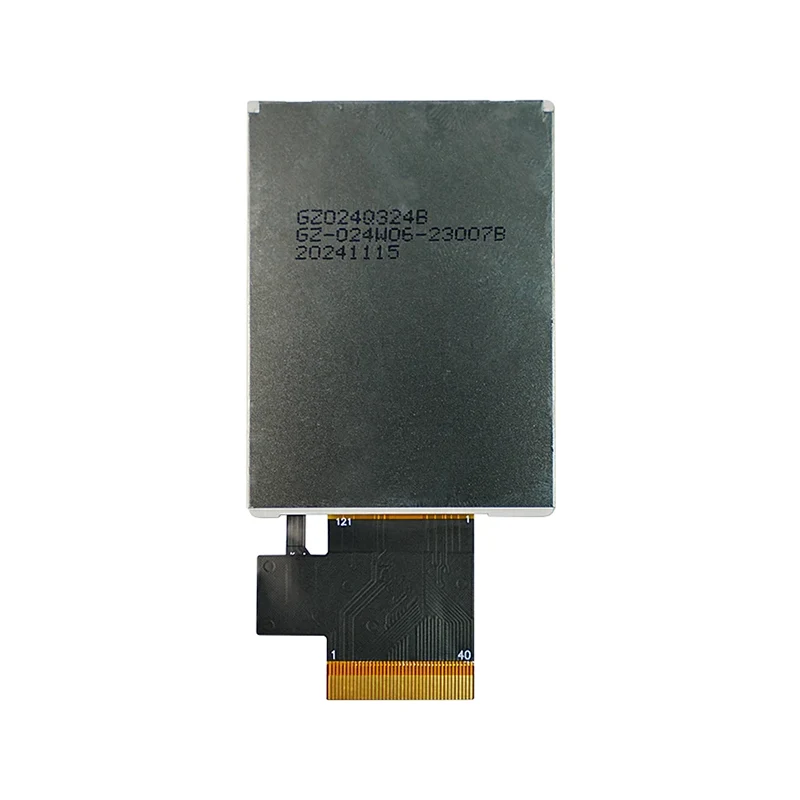

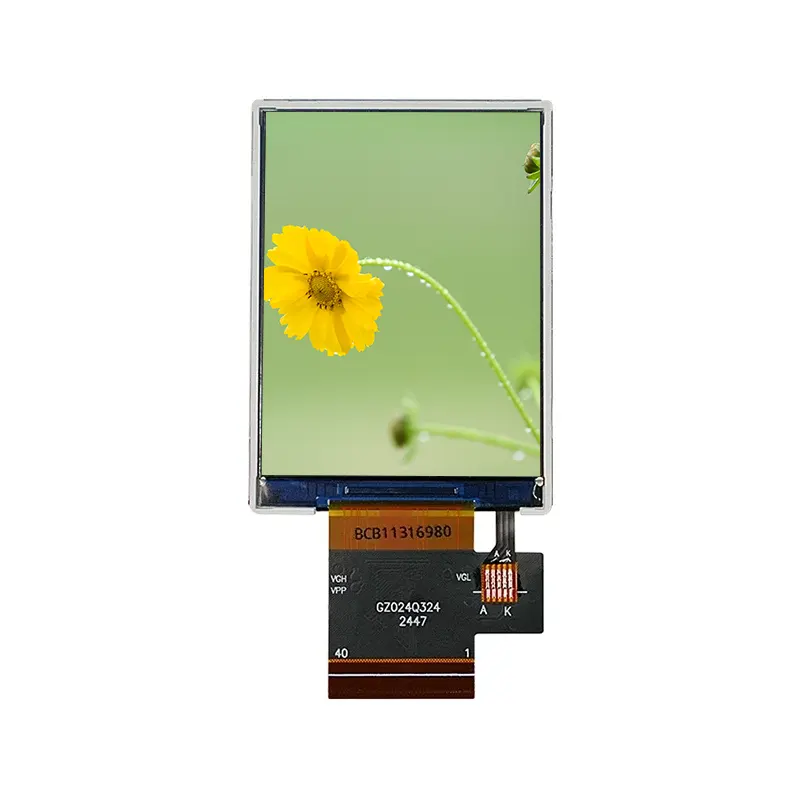

Tianfu 2.4' Wide Temp TN TFT LCD Screen Module Details

Tianfu Transmissive TN TFT LCD Module Application

Tianfu Leading Time

Standard Products		Customized Products
Order Quantity	Delivery Time	Customization Type	Delivery Time
1-30 PCS	Immediately	General	5-8 weeks
31-100 PCS	1 week	FPC	4 weeks
101-500 PCS	1-2 weeks	CTP	6 weeks
501-1000 PCS	2-5 weeks	B/L	6 weeks
1001-5000 PCS	4-5 weeks	Driver Board	8 weeks
5000+ PCS	5-7 weeks	LCD Panel	16 weeks
