2.8' 8 Bit Standard TN TFT LCD Screen Module

Tianfu 2.8' 8 Bit Standard TN TFT LCD Screen Module: Rugged -20°C to +70°C operation (storage: -30°C to +80°C) with ST7789V driver, 262K colors, and 500:1 contrast. Supports SPI/RGB/8-bit parallel interfaces. Features 4-LED backlight (3.2V, 80mA, 280 cd/m²), 16ms response, and compact 50.0×69.20×2.9mm design. 2.8' 8 Bit standard TN TFT LCD screen module is built for automotive HMI, industrial controls, and outdoor IoT with thermal shock/humidity resistance.

Send Inquiry

Product Description

Supporting small-batch trial orders and custom firmware/interface designs, China Tianfu TFT LCD screen module factory, ensures seamless integration into smart controls/portable instruments, backed by a 12-month warranty.

Tianfu 2.8' 8 Bit Standard TN TFT LCD Screen Module In Stock Features

1.Industrial-Grade Durability

Operates in -20°C to +70°C with 90% humidity resistance and survives thermal shock tests (-20°C ↔70°C), ensuring reliability in automotive, outdoor, and harsh industrial environments.

2.Multi-Interface Flexibility

Supports 8-bit parallel, SPI, and serial interfaces, compatible with diverse MCUs for seamless integration and reduced development time.

3.High-Performance Display

240×320 resolution with 262K colors, 500:1 contrast ratio, and 16ms response time for crisp visuals in dynamic applications.

4.Optimized Power Efficiency

Wide voltage input (2.5–3.6V) and energy-efficient 4-LED backlight (3.2V @80mA, 280 cd/m²) minimize power consumption without compromising brightness.

Tianfu Customized 2.8' 8 Bit Standard TN TFT LCD Screen Module Specification

Display Type	2.8" TFT-LCD (Normally White, Transmissive)
Resolution	240×320 pixels (Graphic Dot-Matrix)
Active Area	43.20mm (W) × 57.60mm (H)
Driver IC	ST7789V
Logic Voltage (VCC)	2.5–3.6V (Typ. 3.3V)
Input Voltage (VIL/VIH)	Low: GND–0.2×VCC / High: 0.8×VCC–VC
Backlight Configuration	4 White LEDs in Parallel (80mA 3.2V)
Backlight Brightness	250–300 cd/m² (Typ. 280 cd/m²)

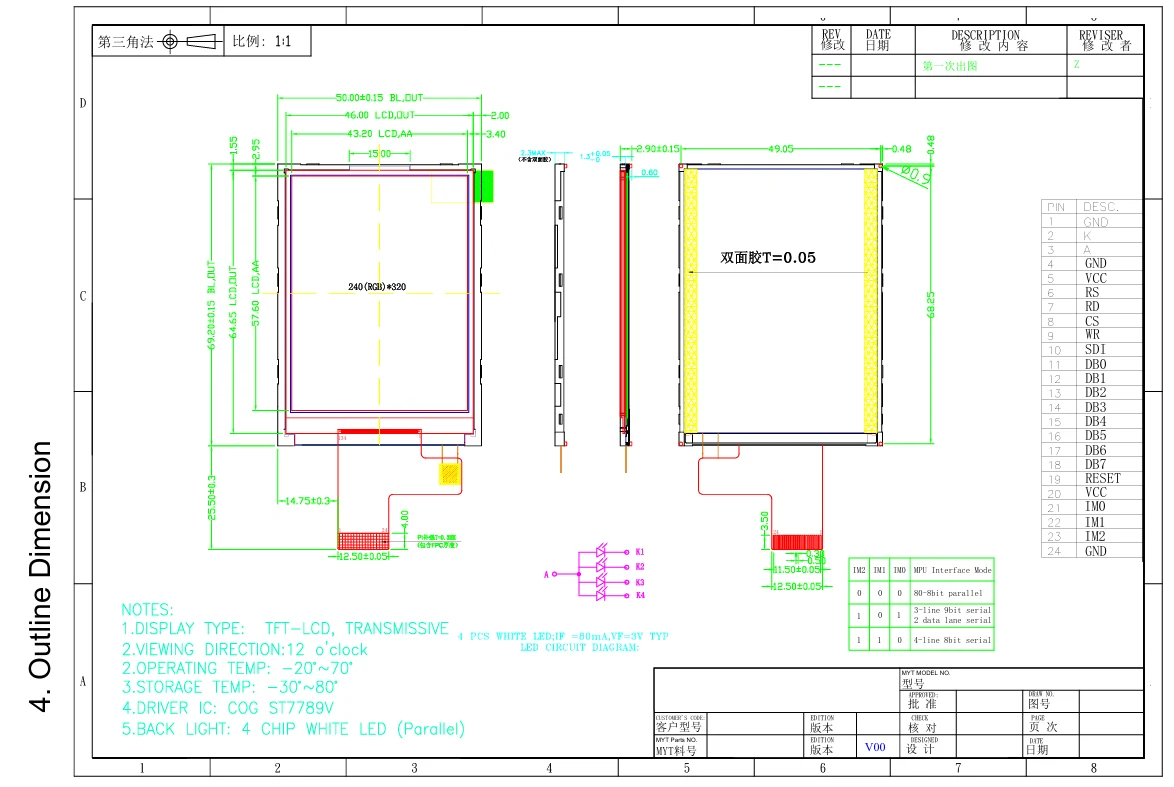

Outline Dimensions	50.0 mm (W) × 69.20mm (H) × 2.9mm (T)
Operating Temperature	-20°C to +70°C (90% RH max)
Storage Temperature	-30°C to +80°C (80% RH max)
Contrast Ratio	500:1 (Typical)
Response Time	16ms (Typical)
Viewing Angle	- Horizontal: ±45° (CR≥10) - Vertical (Top/Bottom): 50°/20° (CR≥10)
Color Gamut (CIE 1931)	White: (0.301x, 0.337y) Red: (0.621x, 0.332y) Green: (0.294x, 0.577y) Blue: (0.141x, 0.157y)
Transmittance	6.4% (Typical)
Interface Type	- 8-bit MCU Parallel (8080 timing) - 3-line 9-bit Serial - 2-data-lane Serial - 4-line 8-bit Serial

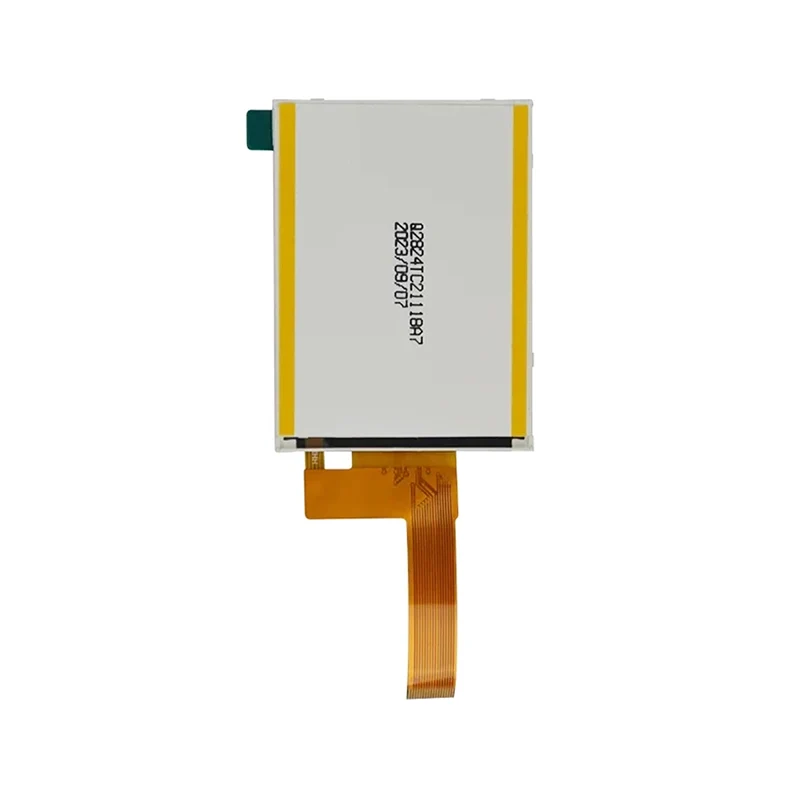

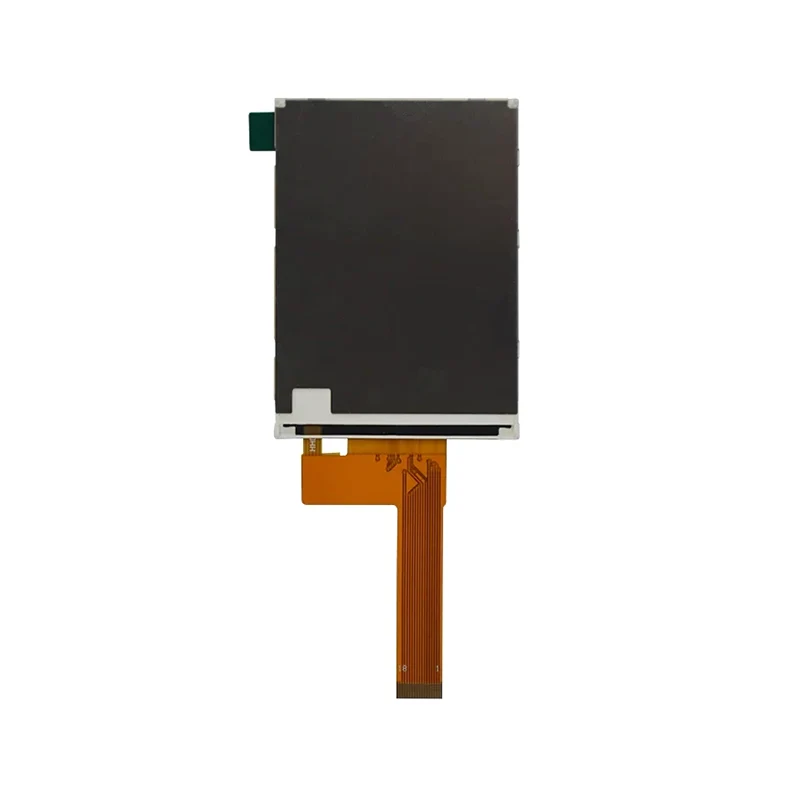

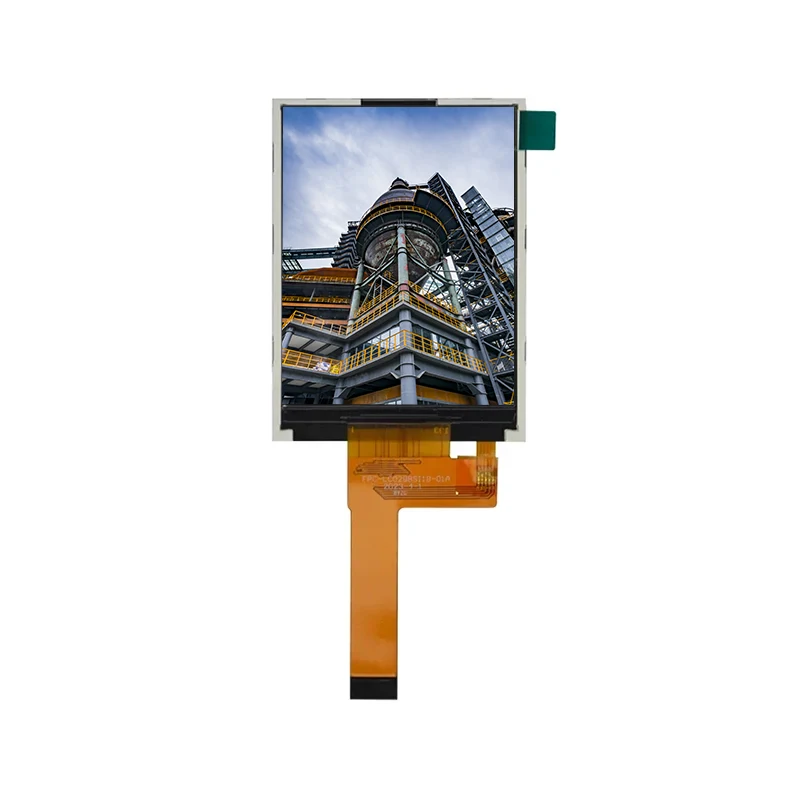

Tianfu 2.8' 8 Bit Standard TN TFT LCD Screen Module Details

Tianfu Standard TN TFT LCD Screen Module Application

Tianfu Leading Time

Standard Products		Customized Products
Order Quantity	Delivery Time	Customization Type	Delivery Time
1-30 PCS	Immediately	General	5-8 weeks
31-100 PCS	1 week	FPC	4 weeks
101-500 PCS	1-2 weeks	CTP	6 weeks
501-1000 PCS	2-5 weeks	B/L	6 weeks
1001-5000 PCS	4-5 weeks	Driver Board	8 weeks
5000+ PCS	5-7 weeks	LCD Panel	16 weeks
