8.0' Embedded Systems IPS TFT LCD Screen Module

Tianfu this 8.0' Embedded Systems IPS TFT LCD Screen Module: WXGA (800×1280) with 16.7M colors and full viewing angles. Ultra-efficient (0.2W typ.) MIPI DSI interface for seamless integration. Rugged design (-10°C to +70°C), 8.0' embedded systems IPS TFT LCD screen module is reliability-tested for industrial/medical use. Compact, crisp, built to last.

Send Inquiry

Product Description

Supporting small-batch trial orders and custom firmware/interface designs, Tianfu ensures seamless integration into smart controls/portable instruments, backed by a 12-month warranty.

Tianfu 8.0' Embedded Systems IPS TFT LCD Screen Module In Stock Features

1.Crisp 8" IPS WXGA Display

– 800×1280 resolution with 16.7M colors for lifelike visuals.

2.85° Wide Viewing Angle

– Consistent clarity from any direction (CR≥10).

3.Ultra-Low Power (0.2W)

– Optimized for energy efficiency in embedded systems.

4.Industrial Toughness

– Operates flawlessly from -10°C to +70°C, reliability-tested for harsh environments.

Tianfu Customized 8.0' Embedded Systems IPS TFT LCD Screen Module Specification

Core Specifications	Technical Details
Display Size	8.0-inch a-Si TFT-LCD (Transmissive)
Resolution	800(RGB) × 1280 (WXGA)
Pixel Pitch	0.13455 mm (Uniform H/V)
Display Mode	Normally Black (IPS Technology)
Interface	MIPI DSI (Video Mode Only) Lane Configuration: 4 Data Lanes, 1 Clock Lane
Surface Treatment	IPS Panel with HC Polarizer
Power Consumption	0.20W (Typ.) / 0.45W (Max.) @3.3V
Backlight	Single LED (Side-Light Type) Voltage: 3.0–3.6V DC
Viewing Angle	85° (Typ.) in All Directions (CR≥10)
Operating Temperature	-10°C to +70°C

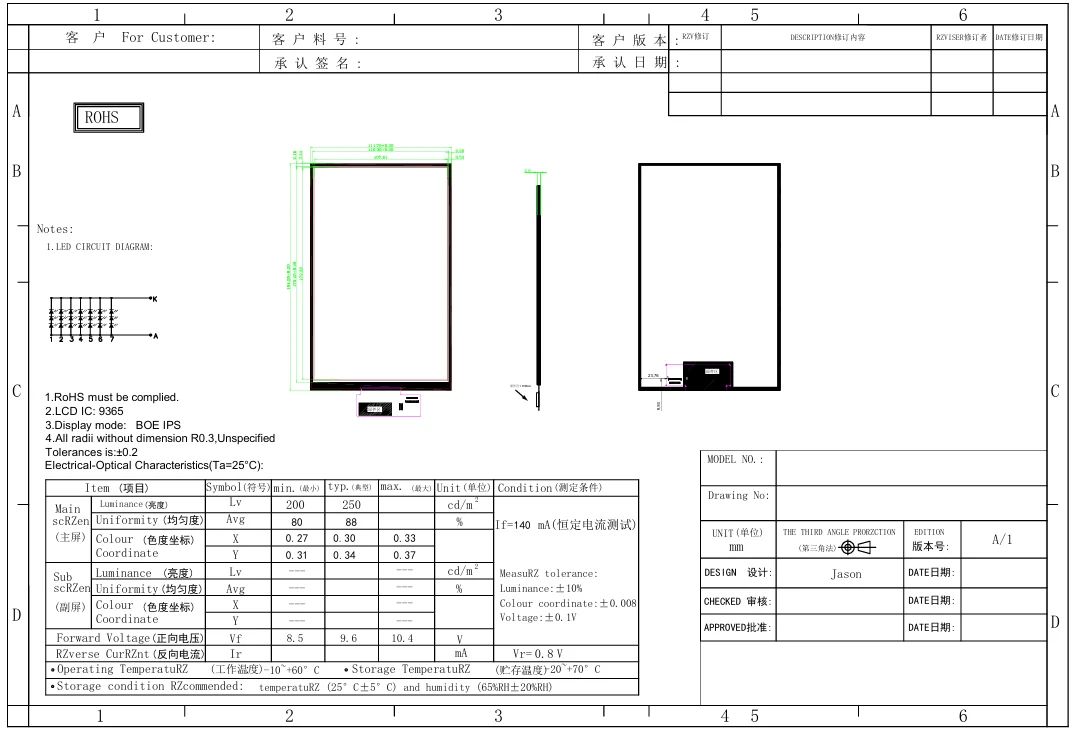

Tianfu 8.0' Embedded Systems IPS TFT LCD Screen Module Details

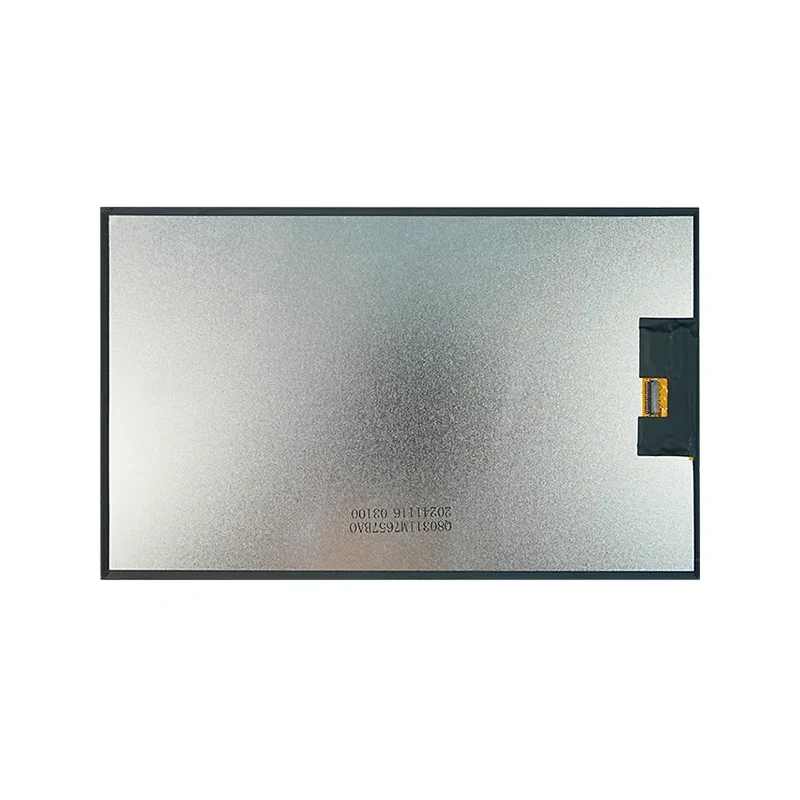

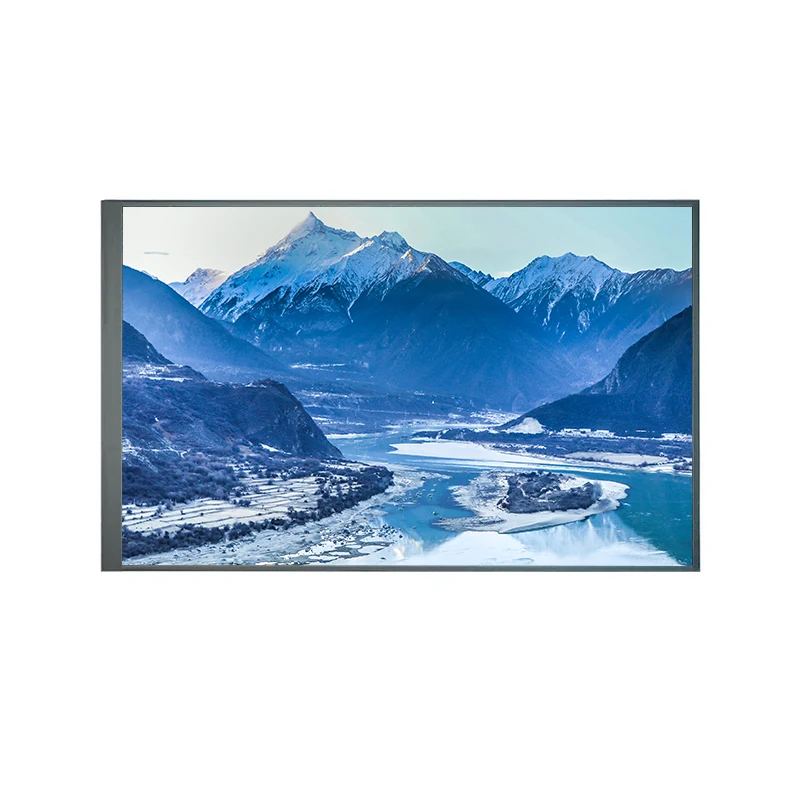

8.0' Embedded Systems IPS TFT LCD Screen Module

Tianfu 8.0' IPS TFT LCD Screen Module Application

Tianfu Leading Time

Standard Products		Customized Products
Order Quantity	Delivery Time	Customization Type	Delivery Time
1-30 PCS	Immediately	B/L & FPC & TP	within 5 weeks
31-100 PCS	1 week	B/L & FPC & TP	within 5 weeks
101-500 PCS	within 2 weeks	B/L & FPC & TP	within 5 weeks
501-1000 PCS	within 3 weeks	B/L & FPC & TP	within 5 weeks
1001-5000 PCS	within 3 weeks	BL & FPC & TP	within 6 weeks
5000+ PCS	within 4 weeks	BL & FPC & TP	within 6 weeks
