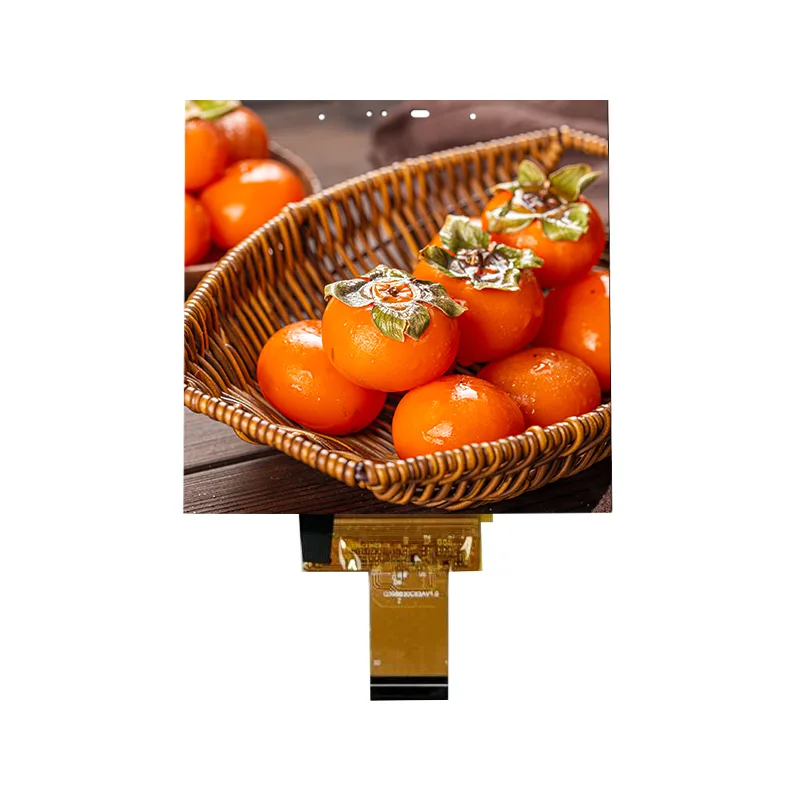

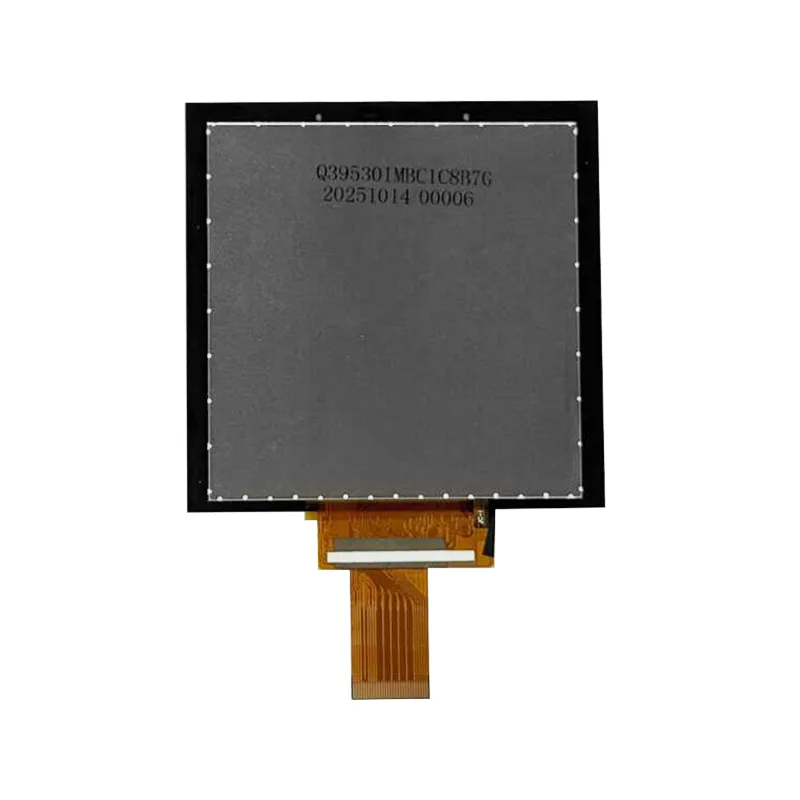

3.95 Inch Small Size IPS In-cell Touch Screen Module for Smart Home

3.95 inch small size IPS in-cell touch screen module for smart home supports dual System MIPI/IIC interfaces and an ST7102I driver IC (30ms fast response time). A 4S2P LED backlight (40mA low current) balances brightness and power efficiency. The 2.2mm thin module facilitates compact installation.

Application:

Industrial and Commercial Applications

Environmental Adaptability: The 3.95 inch small size IPS in-cell touch screen module is suitable for harsh environments due to its thin design; wide operating temperature (-30°C to +85°C) and storage temperature: -30~+85℃.

Stability and Durability: 3.95 inch small size IPS in-cell touch screen module is ideal for these aera, such as Industrial handheld terminals/barcode scanners, vehicle-mounted display terminals, outdoor portable testing equipment, commercial POS machines/self-service checkout machines, and laboratory equipment front panels.

Smart Home and Security: As the thinness design,500 nits of high brightness and 480×RGB×480 resolution of 3.95 inch small size IPS in-cell touch screen module, ensure it is excellent for smart home.

Typical Applications: 3.95 inch small size IPS in-cell touch screen module is perfect for smart home, such as: Environmental Control: High-end smart thermostats, air purifier control panels; Access Control: Smart door lock interior panels, video doorbell displays; Security Monitoring: Smart peephole displays, security alarm panels; Appliance Control: High-end coffee machine touchscreens, smart kitchen timers.

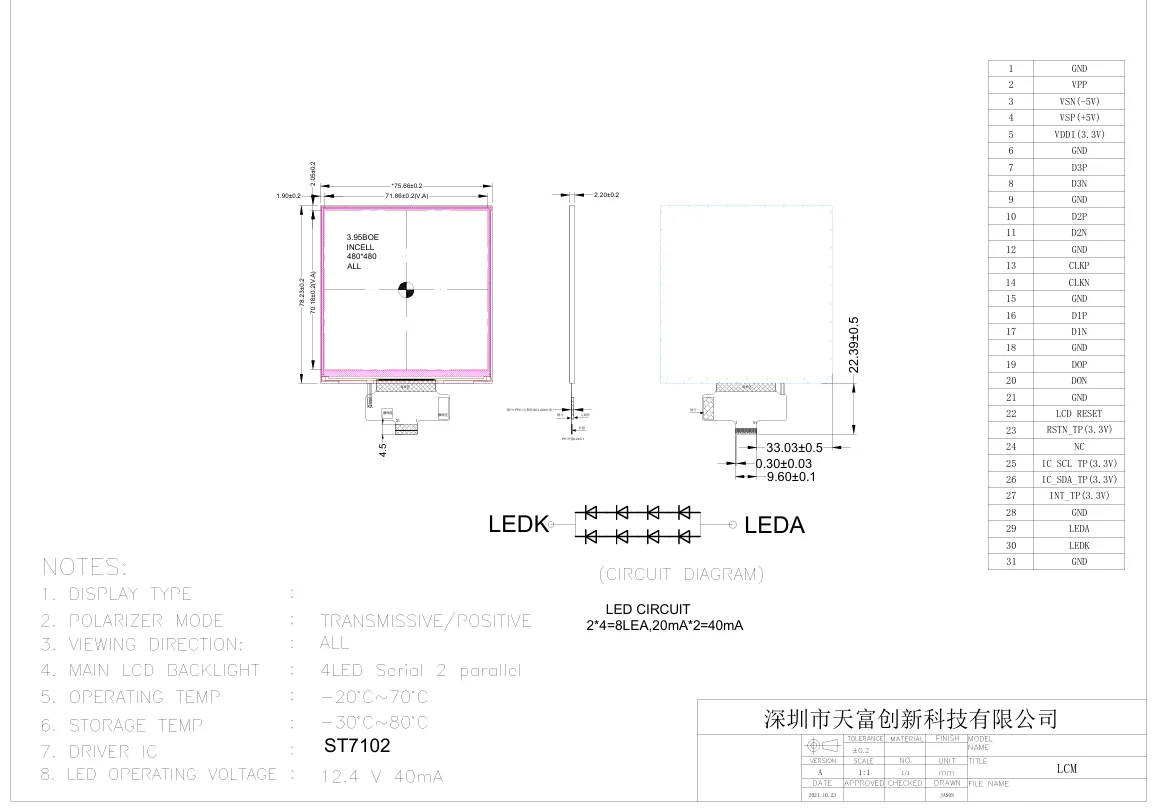

Item Specification

Details

Tianfu Leading Time

Quality Inspection

Tianfu Quality Control: Not Just "It Works," Only "Fifteen Years of Stability"

Globally selected materials: Touch ICs, panels, and backlight adhesive undergo 18 pre-tests before shipment. Ironclad Production Standards: ISO 9001+ triple-inspection system, laser-measured substrate flatness to 0.005mm, and uncompromising attention to detail.

Hardcore Testing: Accelerated burn-in chambers simulate extreme environments, and each display includes a "survival log" with -30°C startup and 85°C brightness decay. The data speaks for itself. We're not claiming to be the industry leader, we're just going the extra mile—your stable operation is our responsibility!

Package

Tianfu Packaging offers fully customized protection solutions for TFT LCD display modules. The snap-in card holder perfectly conforms to the module's length, width, thickness, and edge curvature; EPE format ensures a tight, gap-free fit. The outer box features five layers of reinforced corrugated paper, perfectly matched to the pallet's dimensions. The interior features a custom foam interlayer and air cushioning, creating a four-layer protection system.

This packaging has passed ISTA-3A testing (simulating road/air transport drops, vibrations, and crushing), reducing vibration risks by over 98%, ensuring the display remains intact, scratch-free, and functional during long-distance transportation and repeated loading and unloading.
