2.4'' Active Matrix Small TFT LCD Display Module

Tianfu 2.4'' Active matrix Small TFT LCD Display Module with SPI 4w Interface (240RGB×320 resolution, 12 o'clock viewing) , operates at -30°C~+85°C for harsh environments. Certified CE/RoHS with aluminum frame and low-power LED backlight, this transmissive 2.4'' Active matrix small TFT LCD display module serves automotive dashboards, industrial systems, outdoor IoT, and home appliances (washing machines/vacuums).

Send Inquiry

Product Description

Supporting small-batch trial orders and custom firmware/interface designs, Tianfu, as a LCD module manufacture, ensures seamless integration into smart controls/portable instruments, backed by a 12-month warranty.

Tianfu 2.4'' Active matrix Small TFT LCD Display Module In Stock Features

1.High-Resolution QVGA Display

240(RGB) × 320 pixels with TFT-LCD technology, delivering sharp and vibrant visuals for detailed graphics and text.

2.Optimized Viewing Performance

12 o’clock viewing angle with 300 cd/m² typical brightness (center point) and 200:1 contrast ratio, ensuring excellent visibility in diverse lighting conditions.

3.Fast Response for Dynamic Content

Rapid pixel transitions: 15ms rise time (Tr) and 20ms fall time (Tf), ideal for smooth video playback and interactive applications.

4.Energy-Efficient Operation

Low power consumption: Operates at 2.8V/3.3V logic voltage with a 5mA typical current draw, enhanced by integrated DC/DC converter technology.

30,000-hour LED backlight lifespan (typical), validated through rigorous reliability tests including thermal cycling, vibration, and humidity resistance.

Tianfu Customized 2.4'' Active matrix Small TFT LCD Display Module Specification

Parameter	Q27 (TFT-LCD with IL18961 Driver IC)
Module Type	2.7" TFT/16M Color
Resolution	960×240 pixels (Graphic Dot-matrix)
Interface	SPI & RGB
Display Mode	Transmissive TFT
Backlight	White LED (Parallel)
Mechanical Dimensions	39.1(W) × 67.5(H) × 2.4(T) mm (FPC excluded)
Active Area	33.06(W) × 58.80(H) mm
Pixel Pitch	0.18375(W) × 0.13775(H) mm
Electrical Specifications	· Logic Voltage (VDD): 3.0–3.6V (Typ. 3.3V) · Input Voltage (VIH): 0.8×IOVCC to IOVCC · Input Voltage (VIL): -0.3V to 0.2×IOVCC · Current Consumption: 8mA (Typ.)
Backlight Specifications	· Voltage: 8.7–10.2V · Current: 15–25mA · Operating Temp: -20°C to +70°C · Storage Temp: -30°C to +80°C
Timing Characteristics	· CLKIN Frequency: 13.5–30MHz (Typ. 27MHz) · HSD Period: 1024–1907 CLKIN cycles · Vertical Sync: 242.5–450.5H (NTSC/PAL)

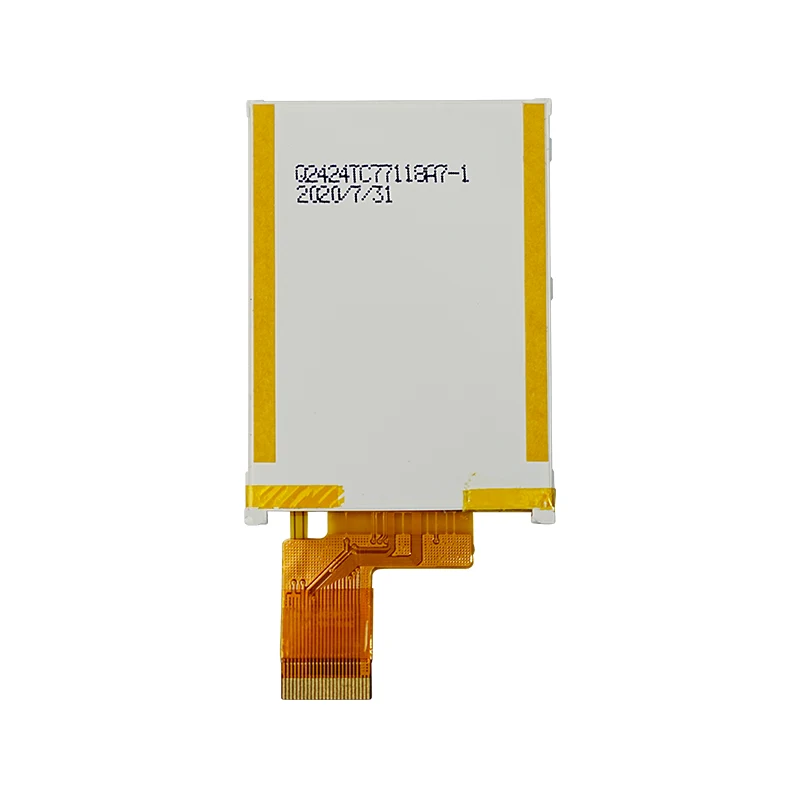

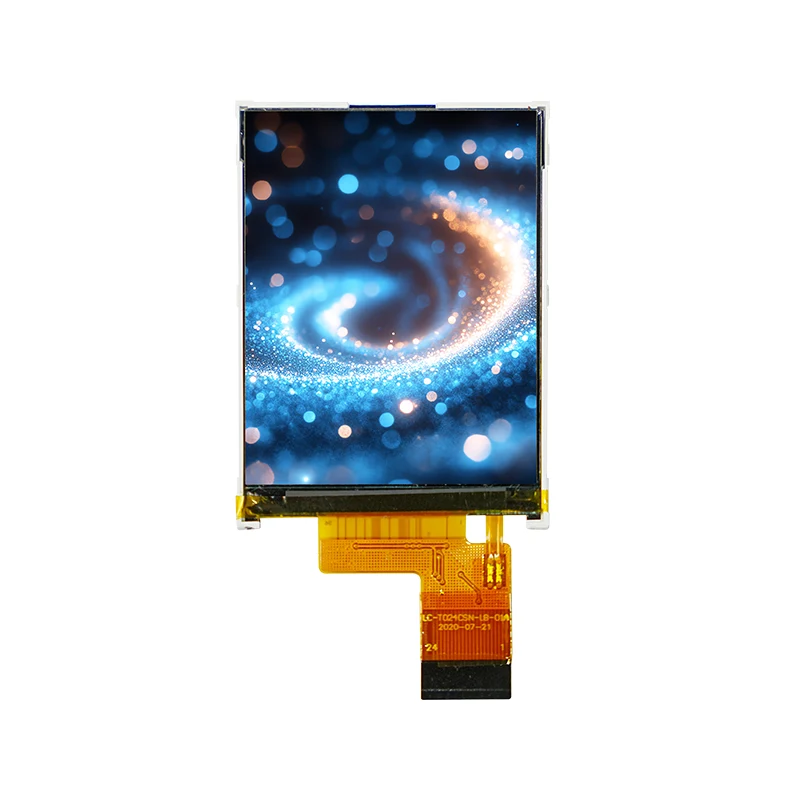

Tianfu 2.4'' Active matrix Small TFT LCD Display Module Details

Tianfu Small TFT LCD Module Application

Tianfu Leading Time

Standard Products		Customized Products
Order Quantity	Delivery Time	Customization Type	Delivery Time
1-30 PCS	Immediately	General	5-8 weeks
31-100 PCS	1 week	FPC	4 weeks
101-500 PCS	1-2 weeks	CTP	6 weeks
501-1000 PCS	2-5 weeks	B/L	6 weeks
1001-5000 PCS	4-5 weeks	Driver Board	8 weeks
5000+ PCS	5-7 weeks	LCD Panel	16 weeks
