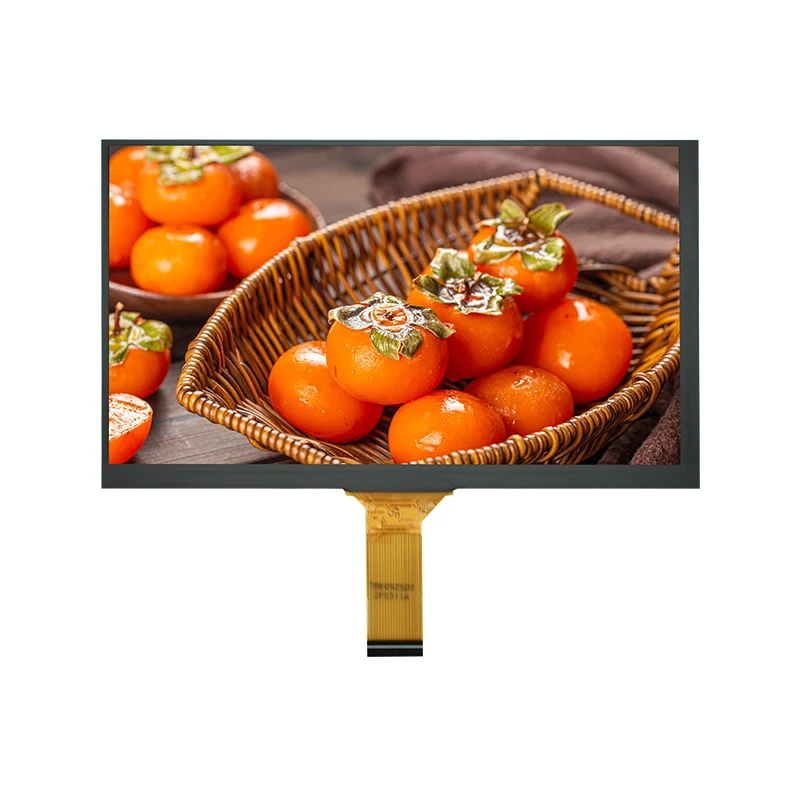

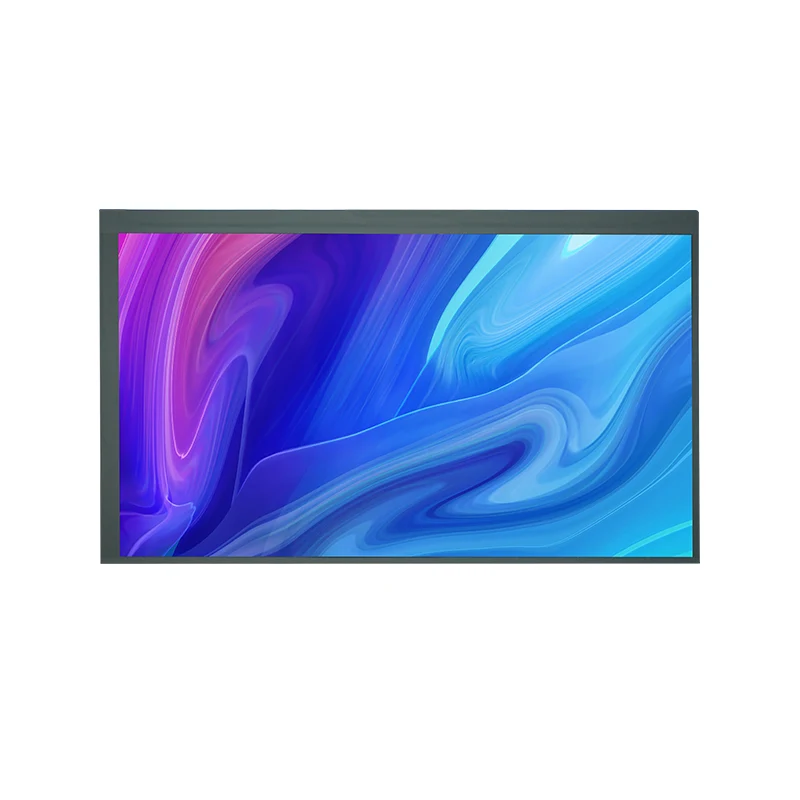

7.0' Anti-glare 300 Nit Small TFT LCD Display Module

Experience vivid clarity on Tianfu this 7.0' Anti-glare 300 Nit Small TFT LCD Display Module : 1024×RGB×600 resolution & anti-glare for outdoor use. 270cd/m² brightness, 500:1 contrast, 12 O'clock viewing angles, and 10ms/15ms response for smooth motion. Ultra-efficient 1.674W backlight, 20K-hour lifespan. Built for industrial/commercial durability.

Send Inquiry

Product Description

Supporting small-batch trial orders and custom firmware/interface designs, TFT LCD display module manufactures, Tianfu ensures seamless integration into smart controls/portable instruments, backed by a 12-month warranty.

Tianfu 7.0' Anti-glare 300 Nit Small TFT LCD Display Module In Stock Features

1.High-Resolution Clarity

1024×RGB×600 WVGA resolution ensures sharp, detailed visuals for industrial and commercial applications.

2.Outdoor-Ready Display

Anti-glare surface and 270 cd/m² brightness deliver clear visibility even in direct sunlight.

3.Wide Viewing Angles

12 O’clock viewing angles (CR≥10) maintain color accuracy for multi-user scenarios.

4.Energy-Saving Performance

Ultra-low 1.674W backlight power and 20,000-hour LED lifespan reduce operational costs.

Tianfu Customized 7.0' Anti-glare 300 Nit Small TFT LCD Display Module Specification

Core Specifications	Details
Display Size	7.0-inch TN TFT-LCD
Resolution	1024×RGB×600 (WVGA)
Pixel Density	0.1506(H) × 0.1432(V) mm pixel pitch
Display Mode	Normally White, Transmissive
Interface	TTL Parallel RGB (Digital)
Surface Treatment	Anti-glare
Driver Element	a-Si TFT Active Matrix

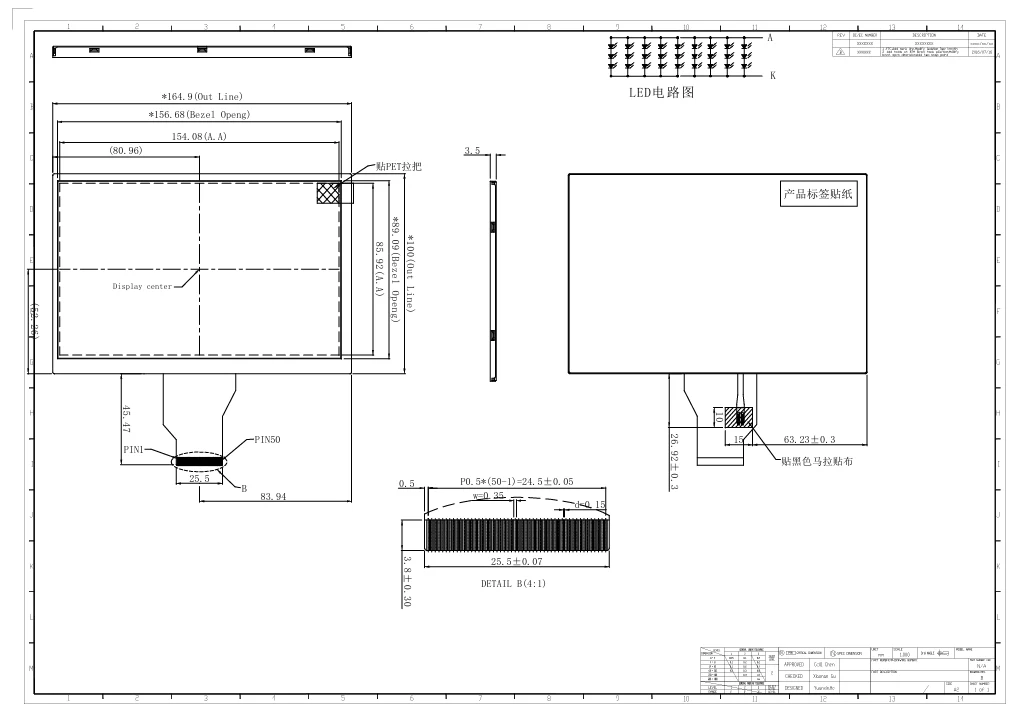

Active Area	154.08(W) × 85.92(H) mm
Backlight Power	1.674W (Typ.)
Panel Power	0.226W (Typ.)
Luminance	250 (Min) / 270 (Typ.) / 300 (Max) cd/m²
Contrast Ratio	400 (Min) / 500 (Typ.)
Viewing Angle (CR≥10)	Left/Right: 70° (Typ.) Top: 60° (Typ.) Bottom: 70° (Typ.)
Response Time	Rise (TON): 10 ms (Typ.) Fall (TOFF): 15 ms (Typ.)
Color Chromaticity (CIE1931)	Wx: 0.26–0.36 Wy: 0.28–0.38
Luminance Uniformity	≥70% (Min) / 75% (Typ.)

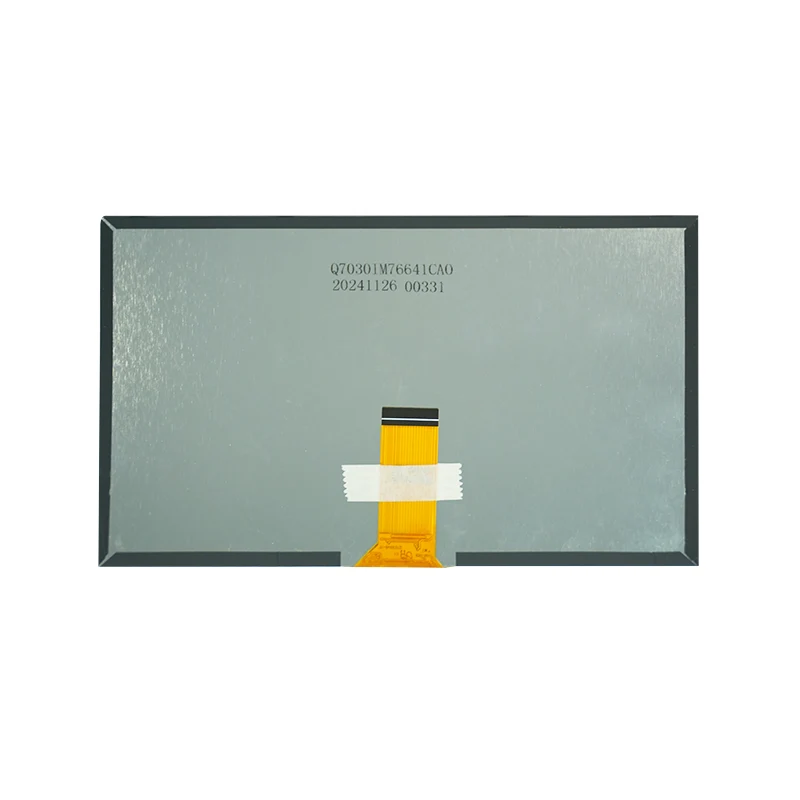

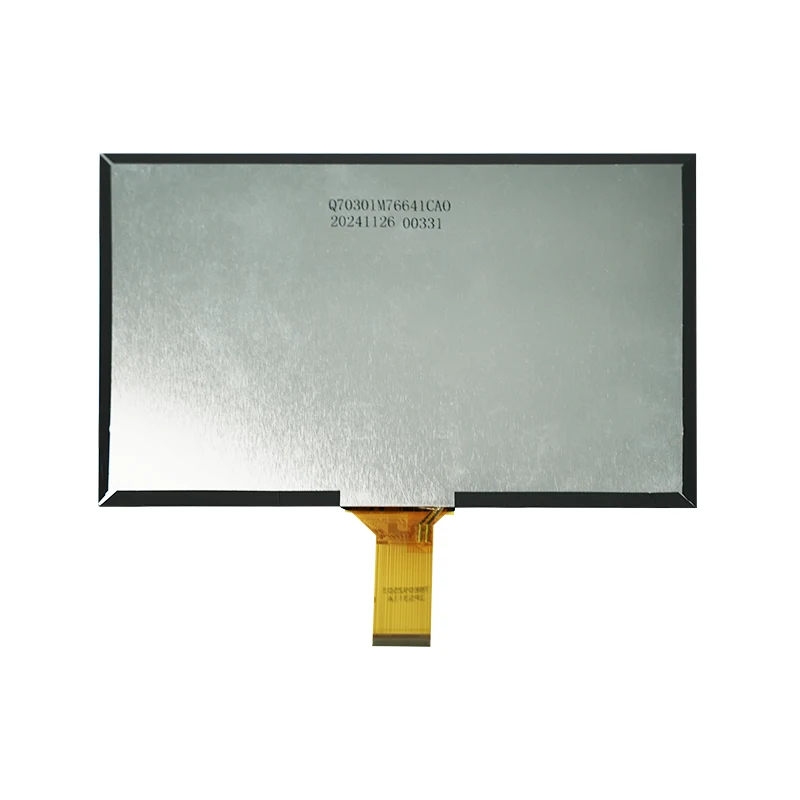

Tianfu 7.0' Anti-glare 300 Nit Small TFT LCD Display Module Details

Tianfu 7.0' TFT LCD Display Module Application

Tianfu Leading Time

Standard Products		Customized Products
Order Quantity	Delivery Time	Customization Type	Delivery Time
1-30 PCS	Immediately	B/L & FPC & TP	within 5 weeks
31-100 PCS	1 week	B/L & FPC & TP	within 5 weeks
101-500 PCS	within 2 weeks	B/L & FPC & TP	within 5 weeks
501-1000 PCS	within 3 weeks	B/L & FPC & TP	within 5 weeks
1001-5000 PCS	within 3 weeks	BL & FPC & TP	within 6 weeks
5000+ PCS	within 4 weeks	BL & FPC & TP	within 6 weeks
