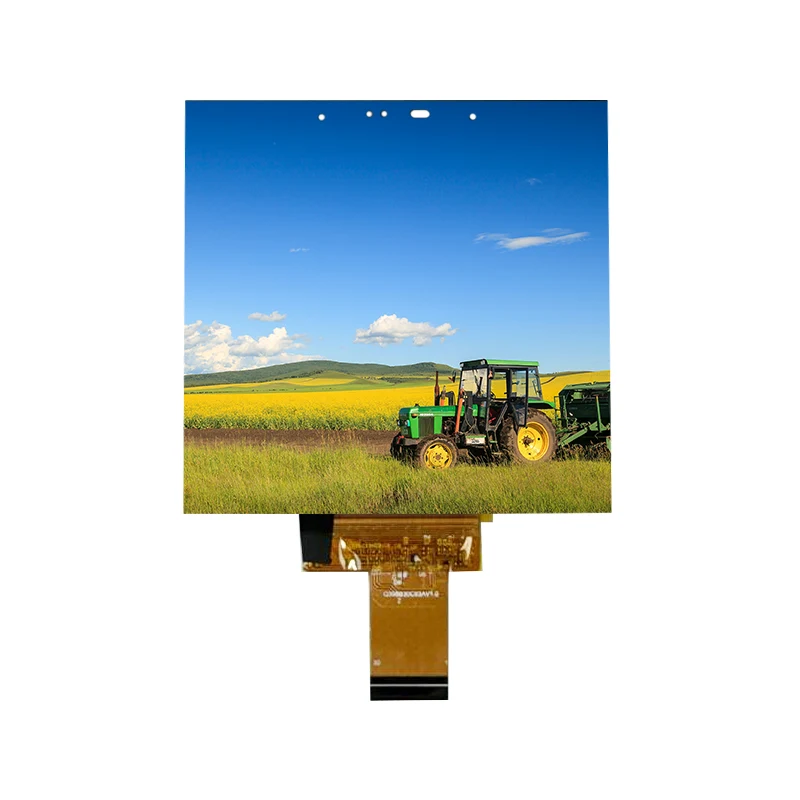

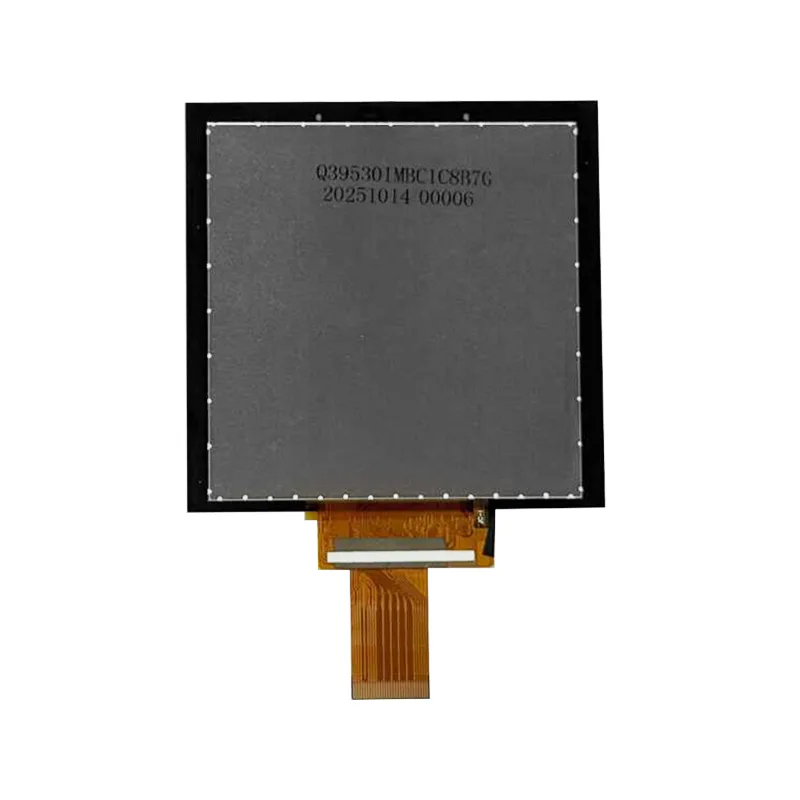

3.95 Inch Low-power 480×480 Pixels IPS Thin In-cell Touch Screen Module

Enhance your user experience with exceptional visual clarity. This 3.95 inch low-power 480×480 pixels IPS thin in-cell touch screen module boasts a crisp 480x480 resolution and 16.7 million colors, delivering lifelike images. 500 nits of brightness and a 1200:1 contrast ratio provide wide viewing angles and excellent sunlight visibility.

Send Inquiry

Product Description

Its advanced In-Cell architecture gives it a sleek, modern look. Integrate this 3.95 inch low-power 480×480 pixels IPS thin in-cell touch screen module to make your product interfaces stand out.

Application:

Smart Home and Building Automation

Seamless Integration: A slim and lightweight 3.95 inch low-power 480×480 pixels IPS thin in-cell touch screen module creates a sleek and modern design that blends seamlessly into residential and commercial interiors.

User-Friendly Interface: Sensitive touch and excellent visibility in all lighting conditions provide an intuitive user experience, suitable for:

• Advanced Smart Home Controllers: Centralized lighting, temperature, and security control panels.

• Connected Appliance Interfaces: Smart refrigerator displays, coffee maker control panels.

• Access Control Systems: Access control panels and intercom screens.

• Environmental Monitors: HVAC control units and air quality displays.

Item Specification

Parameter	Specification
Size	3.95 inch TFT LCD Module2
Panel Type	TFT IN-CELL
Resolution	480×RGB×480
Display Area	71.86(W) × 70.18(H) mm
Pixel Pitch	0.1497(H) × 0.1462(V) mm
Display Mode	N/A
Number of Colors	16.7M
Viewing Direction	ALL
NTS	72%
Contrast Ratio	1200 (Typical)
Surface Luminance	500 cd/m² (Typical)
Response Time	30 ms (Typical)
Driver IC	ST7102I
Interface Type	System MIPI/IIC Interface
Operating Temperature	-30°C to +80°C
Storage Temperature	-30°C to +80°C
Module Dimensions	75.66(W) × 78.23(H) × 2.20(T) mm
Backlight Type	LED (4S2P configuration, 8 LEDs)
Backlight Current	40 mA
Backlight Voltage	12.4V (Typical)

Details

Tianfu Leading Time

Standard Products		Customized Products
Order Quantity	Delivery Time	Customization Type	Delivery Time
1-30 PCS	Immediately	B/L & FPC & TP	within 5 weeks
31-100 PCS	1 week	B/L & FPC & TP	within 5 weeks
101-500 PCS	within 2 weeks	B/L & FPC & TP	within 5 weeks
501-1000 PCS	within 3 weeks	B/L & FPC & TP	within 5 weeks
1001-5000 PCS	within 3 weeks	BL & FPC & TP	within 6 weeks
5000+ PCS	within 4 weeks	BL & FPC & TP	within 6 weeks

Quality Inspection

Tianfu Aviation-Grade TFT thin in-cell touch screen module: Sourced from the highest level, quality at heart. Under the ISO 9001 system, we ensure superior performance through 1:1 precise replication technology. Each product undergoes rigorous testing in extreme environments, providing robust support for critical aviation applications with reliability and durability exceeding standards.

Package

Tianfu Packaging provides comprehensive customized protection solutions for TFT LCD display modules.

Our packaging system ensures safe transport through a four-fold precision design:

• Precise Inner Positioning: Utilizing snap-fit brackets and EPE linings that perfectly match the module's dimensions and edge curvature, a tight seal is achieved, eliminating internal displacement.

• Robust Outer Support: A five-layer reinforced corrugated cardboard outer box, precisely matched to the pallet, provides a robust external structure.

• Energy Absorption Middle Layer: Customized foam inserts and air cushions work together to effectively absorb impact energy.

This packaging solution has passed ISTA-3A standard testing, simulating harsh land/air transport environments.
