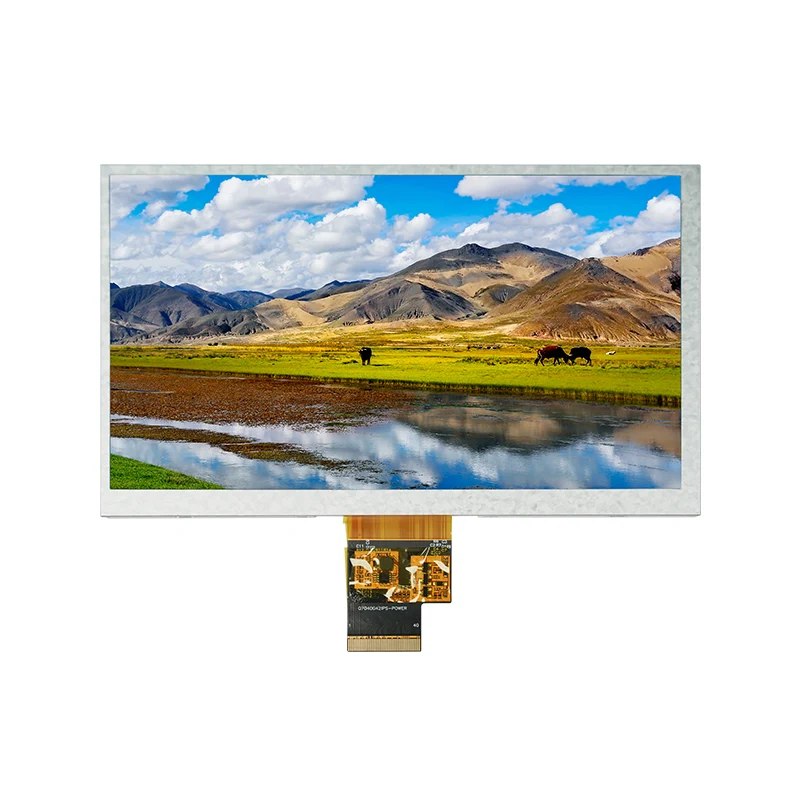

7' Anti-glare Square TFT LCD Display Module

Tianfu this 7' Anti-glare Square TFT LCD Display Module：1024×RGB×600 WVGA resolution with 800:1 contrast and 280nits brightness. Operates in -10℃~+60℃ extremes via TTL interface (50-pin Hirose). 7' anti-glare square TFT LCD display module features 25ms response, 51% NTSC colors, 3H anti-glare surface, and IEC-certified durability (200 thermal cycles/100G vibration). 18-LED backlight 9.6V/180mA for industrial reliability.

Send Inquiry

Product Description

Supporting small-batch trial orders and custom firmware/interface designs, China TFT LCD display module supplier, Tianfu ensures seamless integration into smart controls/portable instruments, backed by a 12-month warranty.

Tianfu 7' Anti-glare Square TFT LCD Display Module In Stock Features

1.Industrial Temperature Range

Operates reliably in -10℃ to +60℃ environments with IEC-certified thermal/vibration resistance.

2.High-Contrast TN Panel

Delivers 800:1 contrast ratio and 280nits brightness for clear visibility in harsh lighting.

3.Robust TTL Interface

50-pin Hirose FH12A connector with DE/SYNC mode control and scan direction adjustment.

4.Enhanced Durability

3H anti-glare surface and 25,000hr LED lifespan (18 LEDs @9.6V/180mA).

Tianfu Customized 7' Anti-glare Square TFT LCD Display Module Specification

Core Specifications
Display Size	7.0-inch TN TFT-LCD
Resolution	1024×RGB×600 (WVGA)
Pixel Pitch	0.1506mm (H) × 0.1432mm (V)
Display Mode	Normally White
Interface	TTL Parallel RGB
Surface Treatment	Anti-glare (3H Hardness)
Optical Performance
Luminance (Typ.)	280 cd/m²
Contrast Ratio	800:1
Response Time	25ms (Typ.)
Viewing Angle	70° Horizontal / 60° Vertical
Color Gamut	51% NTSC
Electrical Characteristics
Power Supply	3.3V Digital (3.0–3.6V) 10.4V Analog
Current Consumption	4mA (Digital), 20mA (Analog)
Backlight System	18 LEDs 1.73W total power
Operation Temp	-10℃ to +60℃
Storage Temp	-20℃ to +70℃
Certified Reliability
Thermal Tests	240hrs @-20℃/+70℃ 200-cycle thermal shock (-20℃↔70℃)
Vibration	8-33.3Hz/1.3mm sweep
Shock Resistance	100G acceleration

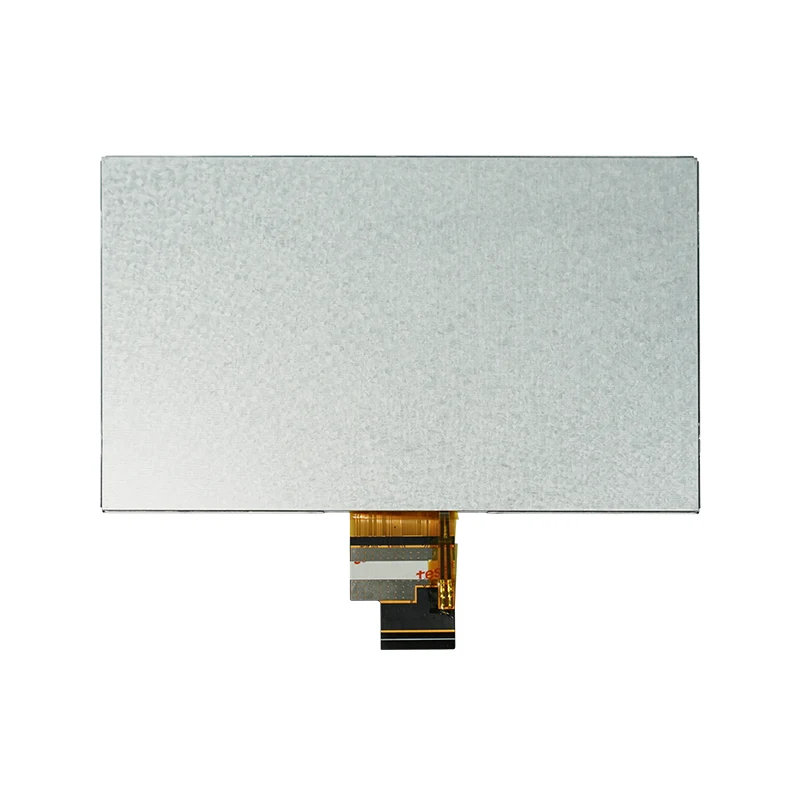

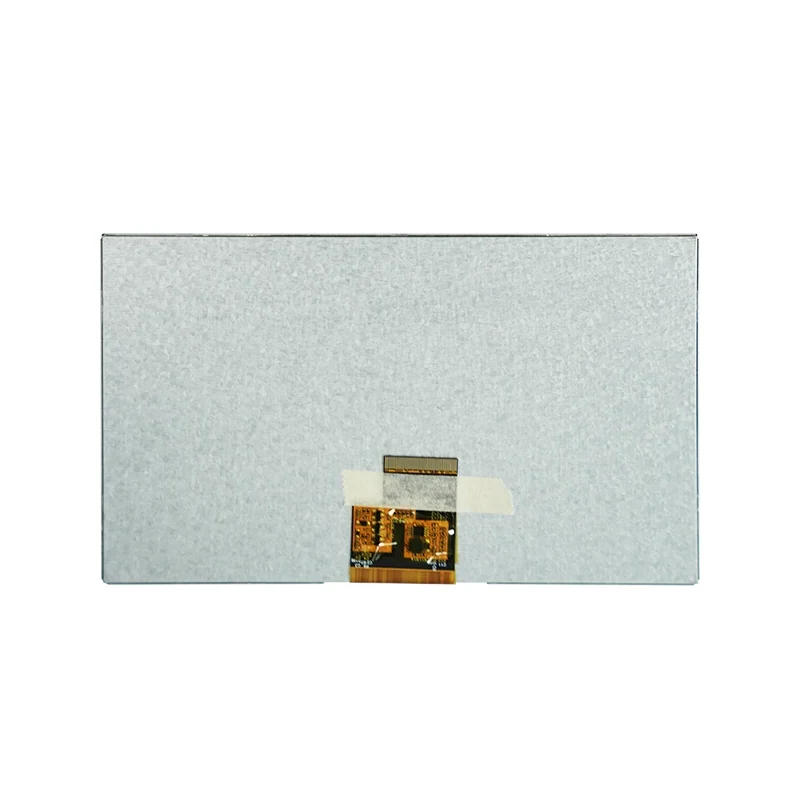

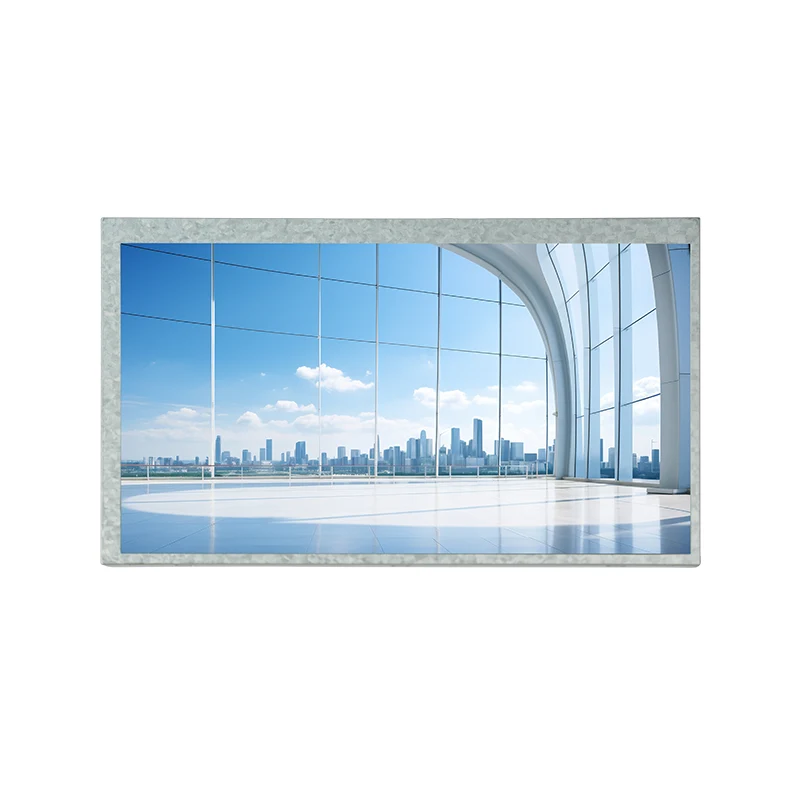

Tianfu 7' Anti-glare Square TFT LCD Display Module Details

Tianfu 7' TFT LCD Display Module Application

Tianfu Leading Time

Standard Products		Customized Products
Order Quantity	Delivery Time	Customization Type	Delivery Time
1-30 PCS	Immediately	B/L & FPC & TP	within 5 weeks
31-100 PCS	1 week	B/L & FPC & TP	within 5 weeks
101-500 PCS	within 2 weeks	B/L & FPC & TP	within 5 weeks
501-1000 PCS	within 3 weeks	B/L & FPC & TP	within 5 weeks
1001-5000 PCS	within 3 weeks	BL & FPC & TP	within 6 weeks
5000+ PCS	within 4 weeks	BL & FPC & TP	within 6 weeks
