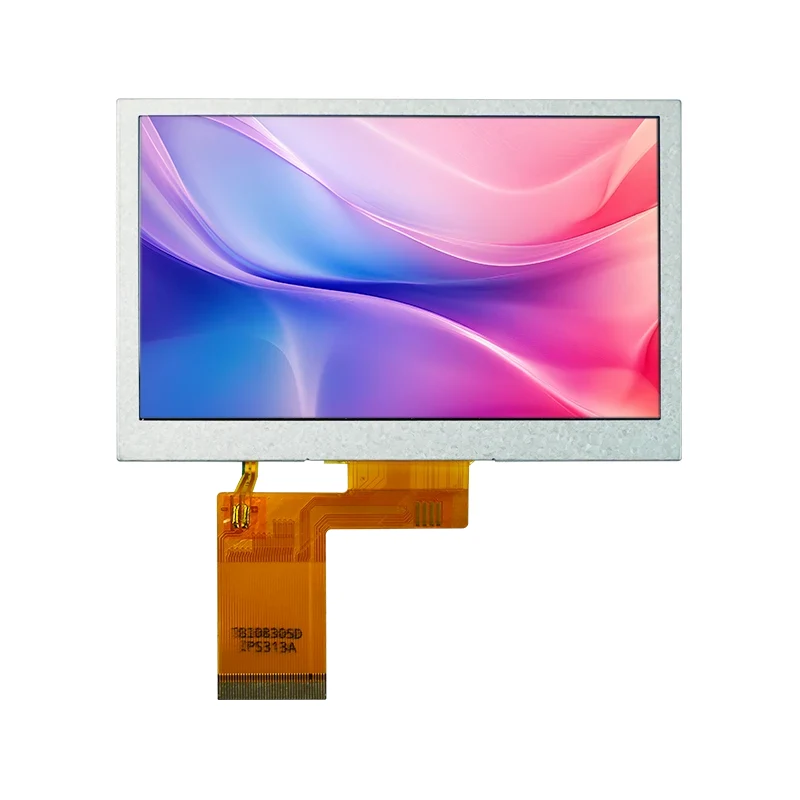

4.3' Normally White Square TFT LCD Display Module

Core Features & Application Scenarios:

• Precise Resistive Touch: Supports single-point touch, ideal for glove operation or stylus input in industrial environments.

• Wide-Temperature Operation: Operates stably from -10°C to +60°C, suitable for harsh conditions.

• Efficient SPI Communication: Adopts SPI (CS/SCL/SDA) interface for stable data transmission and MCU resource savings.

• Versatile Display: Supports full-color RGB display for status indication, data visualization, and user interfaces.

• Broad Application Areas: Industrial HMI panels, portable testing equipment, in-vehicle display systems, and smart building control terminals.

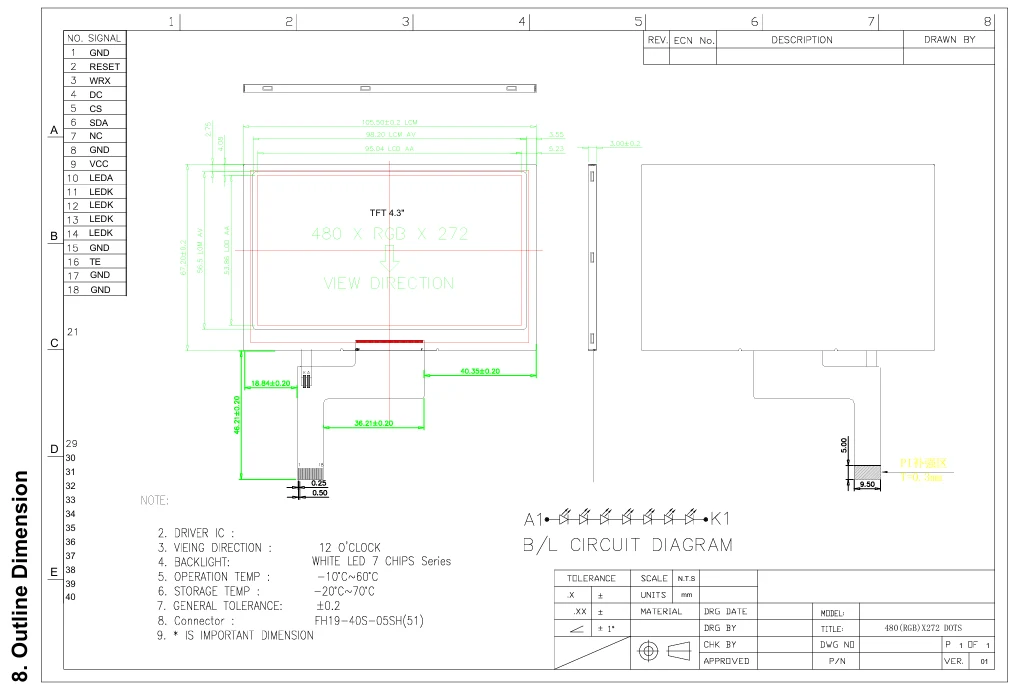

Tianfu Customized 4.3' Normally White Square TFT LCD Display Module Specification

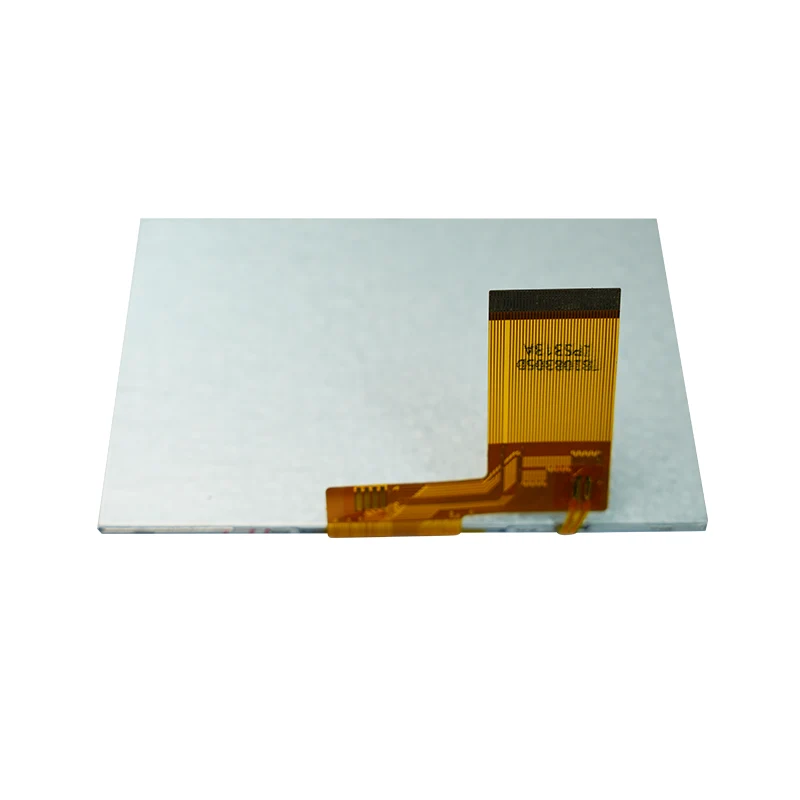

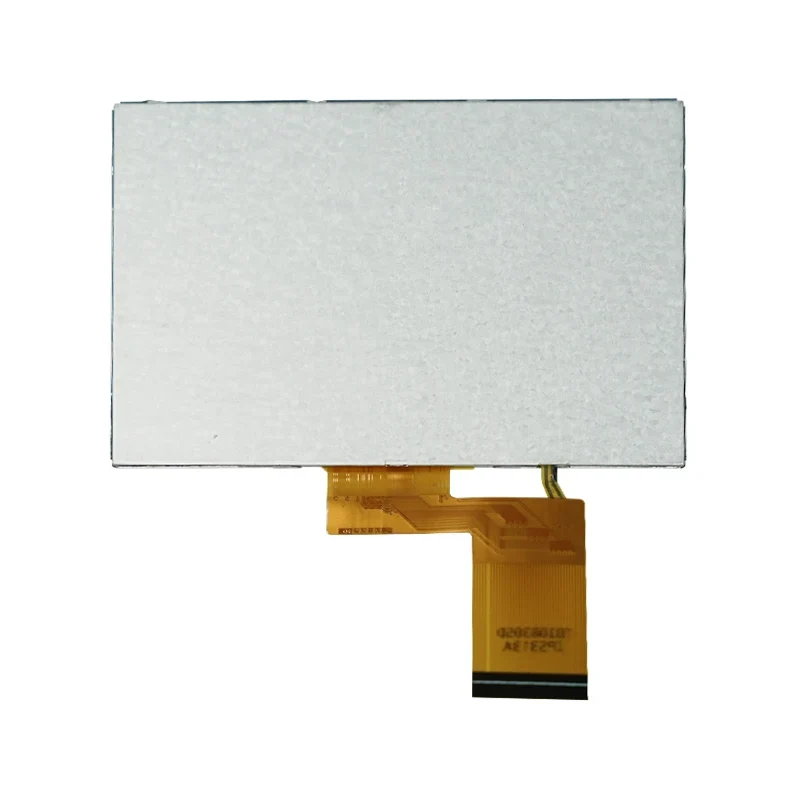

Tianfu 4.3' Normally White Square TFT LCD Display Module Details

Q1: Which main control chips does this display support?

A: This module uses a standard SPI interface and is compatible with most embedded platforms, including STM32, ESP32, Raspberry Pi Pico, Arduino (level shifting required), and various industrial PLCs.

Q2: What is the difference between a resistive touch screen and a capacitive touch screen? Which is more suitable for my application?

A: A resistive screen operates by pressure sensing and supports touch with gloves, styluses, or any object, making it more suitable for industrial environments, medical devices, or scenarios requiring precise tapping. A capacitive screen only supports finger touch but offers multi-touch capability. If your application requires gloved operation or may involve oil/water contamination, a resistive screen is the more reliable choice.

Q3: How to understand the viewing angle parameters? My device will be viewed at an angle—will it work?

A: This module has a horizontal viewing angle of 60°–70° and a vertical viewing angle of 45°–60°, suitable for front‑on or small‑angle viewing. If your device requires viewing from large angles (e.g., from the side), we recommend considering an IPS wide‑viewing‑angle model.

Q4: Does the operating temperature range of -10°C~60°C include the effect of backlight heating?

A: Yes, this temperature range applies to the module’s overall operating temperature and already accounts for backlight heating. Testing in the actual target environment is recommended when operating at extreme temperatures. Q5: Do I need to purchase an additional driver board or controller?

A: This is an integrated display‑and‑touch module that already includes the display driver and touch controller. You only need to connect it to your main controller via SPI and RGB interfaces.

For 16 years, we have been an expert manufacturer of LCDs, where quality control is synonymous with our name.

• All modules undergo 72-hour burn-in testing and full-parameter functional inspection before shipment.

• Industrial-grade components are used, compliant with RoHS environmental standards.

• Manufactured under the ISO 9001 certified quality management system.

Production & Testing Environment

• Assembled in a Class 1000 cleanroom to prevent dust in the display area.

• Individual inspection for dead pixels (white/black) and line defects.

• Touchscreen linearity calibration and functional verification.

Reliability Commitment

• MTBF of 20,000 hours based on typical operating environment test data.

• 12-month warranty covering material and workmanship defects.

• Support for reliability test reports for volume orders.

Our support is designed to be seamless and proactive. We’re here not just to fix issues, but to ensure your operations never skip a beat.

Technical Support System

Technical Documentation: Complete datasheets, application notes, and reference designs are available.

Fast Response: Technical inquiries are replied to within 24 hours on working days.

Customization Services: Limited customization is supported, such as FPC length, connector type, and backlight adjustment.

Warranty Policy

Warranty Period: 12 months from the date of receipt.

Coverage: Display abnormalities, touch failures, and interface malfunctions caused by non-human factors.

Repair Process: Provide a fault description → Technical support confirmation → Arrange repair or replacement.

Logistics & Delivery

Standard Packaging: Anti-static bag + Custom blister tray + shockproof carton.

Ongoing Service

Stable Supply: Guaranteed supply stability throughout the product lifecycle.

Upgrade Path: Recommendations for compatible product upgrades.

Resource Updates: Regular updates to technical documentation and the FAQ library.
