10.1' Wide Temp HD TFT LCD Display Module

Tianfu 10.1' Wide Temp HD TFT LCD Display Module: 102× 600 res, 250-nit brightness, 450:1 contrast. Rugged (-20°C~70°C), 52% NTSC colors, anti-glare surface. 28-LED backlight (140mA). Precision controls: 14 Gamma voltages, shift/scan modes, dithering. 10.1' wide temp HD TFT LCD display module is built for industrial, medical, and retail systems demanding reliability, clarity, and seamless integration. Engineered to endure.

Send Inquiry

Product Description

Supporting small-batch trial orders and custom firmware/interface designs, Tianfu, as a LCD display module supplier, ensures seamless integration into smart controls/portable instruments, backed by a 12-month warranty.

Tianfu 10.1' Wide Temp HD TFT LCD Display Module In Stock Features

1.Crystal-Clear Visuals

10.1-inch display with 1024×600 resolution, 250-nit brightness, and 450:1 contrast for sharp, vibrant imaging.

2.Industrial-Grade Durability

Operates flawlessly in -20°C to 70°C extremes, backed by rigorous reliability testing (thermal shock, vibration, ESD).

3.True-to-Life Color

52% NTSC gamut and 14 Gamma correction voltages ensure accurate color reproduction and uniformity.

4.Smart Control Integration

Features shift direction (SHLR), scan control (UPDN), and dithering (DITH) for flexible system adaptation.

Tianfu Customized 10.1' Wide Temp HD TFT LCD Display Module Specification

Display Size	10.1-inch a-Si TFT-LCD (Transmissive)
Resolution	1024(RGB) × 600 pixels (RGB vertical stripe)
Display Mode	Normally White TN, 6 o'clock Viewing Direction
Interface	LVDS (Low-Voltage Differential Signaling)
Power Supply Voltage	Digital: 3.0–3.6 V (VDD) Analog: 8.1–8.5 V (AVDD) Gate Voltage: VGH=18–20 V, VGL=-7.6–-5.6 V Common Voltage: VCOM=3.0–3.4 V
Optical Characteristics	Luminance: 250 cd/m² (Typ.) Contrast Ratio: 450:1 (Typ.) Response Time: 8 ms (Typ.) Color Gamut: 52% NTSC (Typ.) Viewing Angle: 45° Horizontal / 15° Vertical (CR >10)

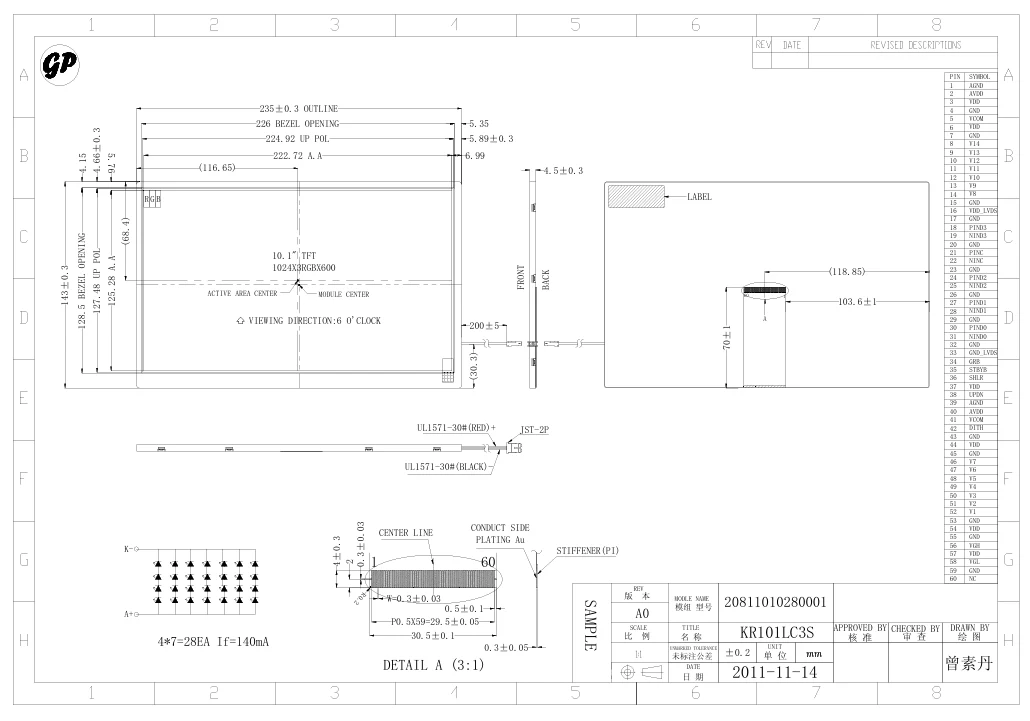

Mechanical Specifications	Active Area: 222.72 × 125.28 mm Outline Dimensions: 235 × 143 × 4.5 mm Weight: N/A
Environmental Conditions	Operating Temperature: -20℃ to 70℃ Storage Temperature: -30℃ to 80℃ Humidity: Non-condensing
Backlight	Type: White LED Current: 140 mA (28 LEDs) Forward Voltage: 12–14.4 V Lifetime: 50,000 hours (Typ.)
Additional Features	Gamma Correction: 14 reference voltages (V1–V14) Control Pins: STBYB (Standby), SHLR (Shift Direction), UPDN (Scan Direction) Dithering Function: Enabled via DITH pin

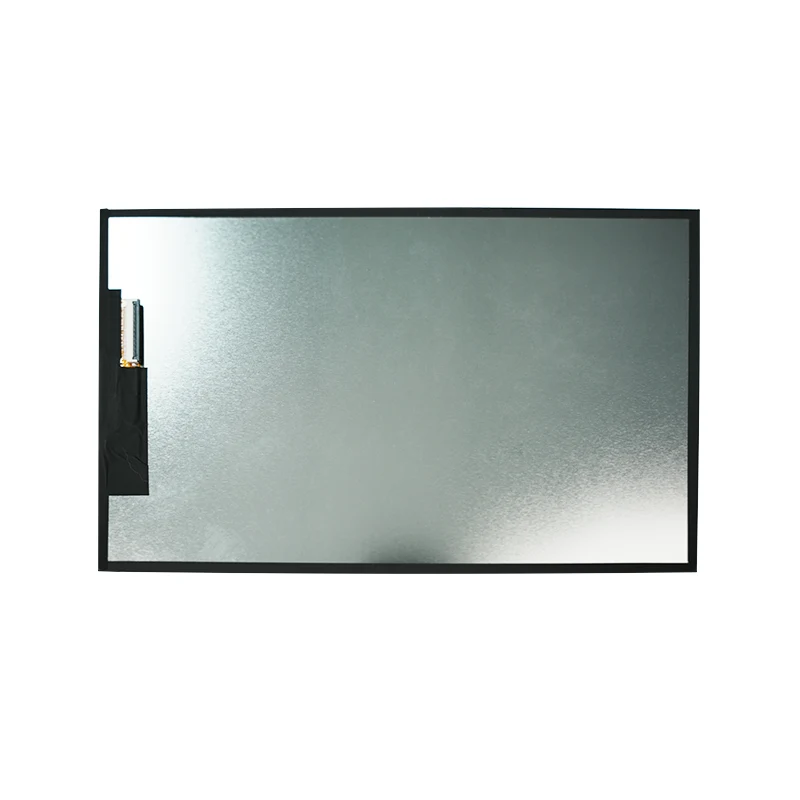

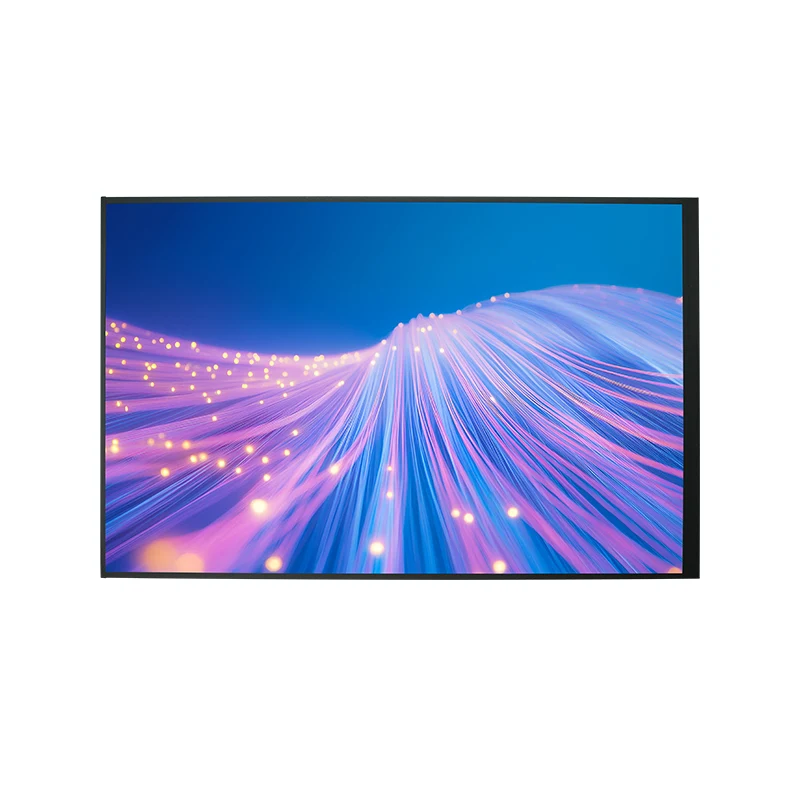

Tianfu 10.1' Wide Temp HD TFT LCD Display Module Details

Tianfu 10.1' Wide Temp HD TFT LCD Display Module Application

Tianfu Leading Time

Standard Products		Customized Products
Order Quantity	Delivery Time	Customization Type	Delivery Time
1-30 PCS	Immediately	B/L & FPC & TP	within 5 weeks
31-100 PCS	1 week	B/L & FPC & TP	within 5 weeks
101-500 PCS	within 2 weeks	B/L & FPC & TP	within 5 weeks
501-1000 PCS	within 3 weeks	B/L & FPC & TP	within 5 weeks
1001-5000 PCS	within 3 weeks	BL & FPC & TP	within 6 weeks
5000+ PCS	within 4 weeks	BL & FPC & TP	within 6 weeks
