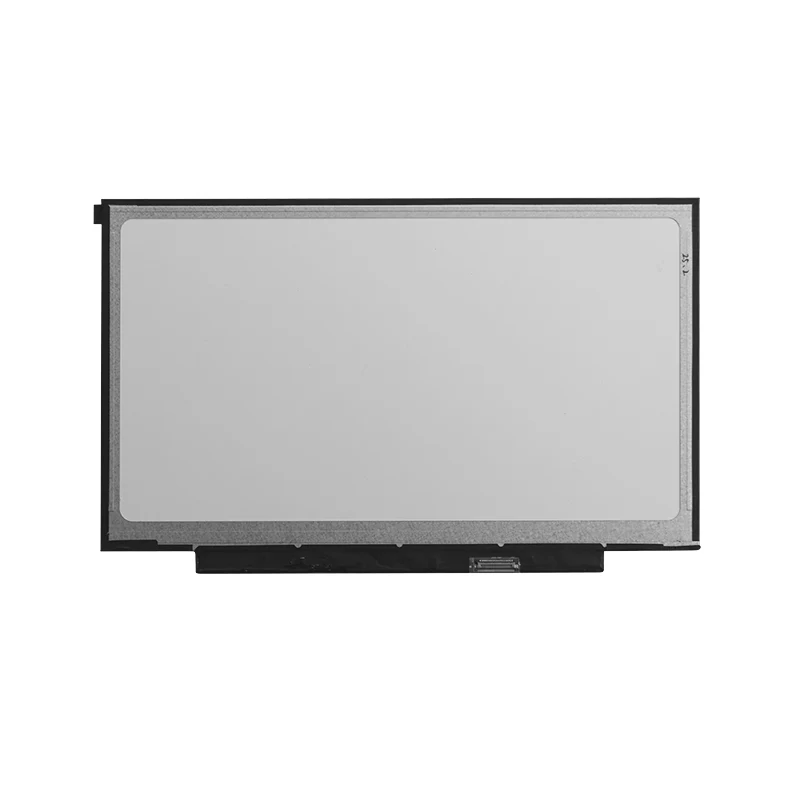

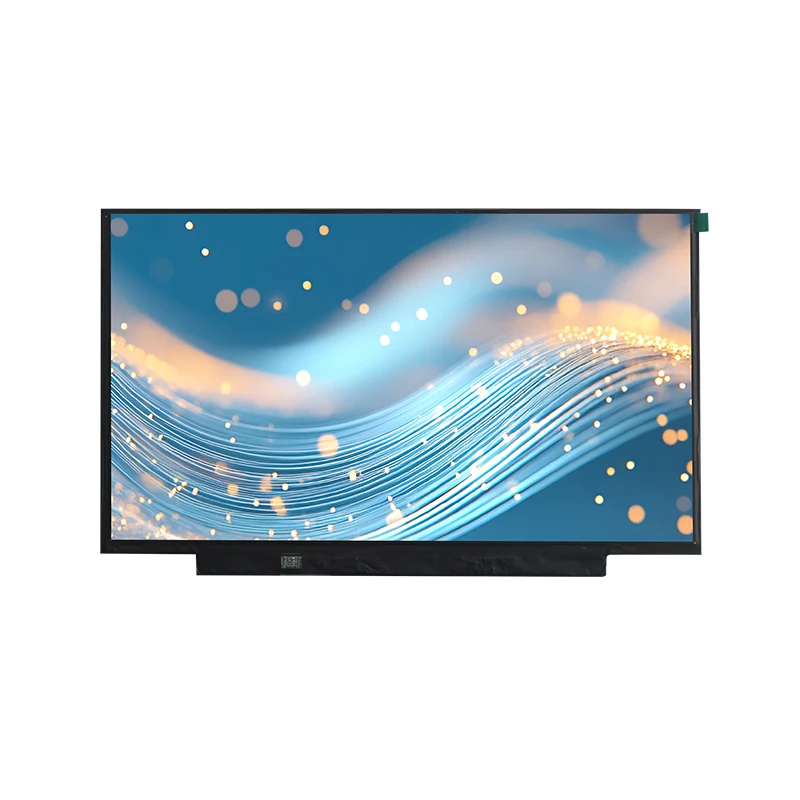

11.6' Anti-Glare Full HD TFT LCD Display Module

Tianfu 11.6' anti-glare full HD TFT LCD Display module: 1366×768 RGB vertical stripe for crystal clarity. IPS panel with 250 cd/m², 1200:1 contrast, 45% NTSC, and full angles. Rugged anti-glare design operates in 0-50°C. Energy-efficient (3.77W) with 15k-hour LED lifespan. Quality 11.6' anti-glare full HD TFT LCD Display module ensures reliability for medical, industrial, and portable devices.

Send Inquiry

Product Description

Supporting small-batch trial orders and custom firmware/interface designs, Tianfu ensures seamless integration into smart controls/portable instruments, backed by a 12-month warranty.

Tianfu 11.6' anti-glare full HD TFT LCD Display module In Stock Features

1.Crystal-Clear Visuals

10.1-inch display with 1024×600 resolution, 250-nit brightness, and 450:1 contrast for sharp, vibrant imaging.

2.Industrial-Grade Durability

Operates flawlessly in -20°C to 70°C extremes, backed by rigorous reliability testing (thermal shock, vibration, ESD).

3.True-to-Life Color

52% NTSC gamut and 14 Gamma correction voltages ensure accurate color reproduction and uniformity.

4.Smart Control Integration

Features shift direction (SHLR), scan control (UPDN), and dithering (DITH) for flexible system adaptation.

Tianfu Customized 11.6' anti-glare full HD TFT LCD Display module Specification

Parameter	Specification
Display Size	11.6-inch TFT-LCD (Transmissive)
Resolution	1366(RGB) × 768 pixels Pixel Arrangement: RGB Vertical Stripe
Display Mode	Normally Black (IPS Panel) Viewing Direction: All View (80° H / 85° V)
Optical Characteristics	· Brightness: 250 cd/m² (Typ.) · Contrast Ratio: 1200:1 (Typ.) · Response Time: 30 ms (Tr+TF) · NTSC Ratio: 45% · Surface Treatment: Anti-Glare (AG)
Interface	Embedded DisplayPort (eDP 1.2) Connector: 30-pin FPC
Power Supply	· Logic Voltage: 3.0–3.6 V (VCCS) · Backlight Voltage: 6.5–21 V (LED_VCCS) · Power Consumption: 3.77 W (Typ.) · Backlight Lifetime: 15,000 hrs @25°C
Environmental Ratings	· Operating Temperature: 0°C to +50°C · Storage Temperature: -20°C to +60°C · Humidity: Non-condensing

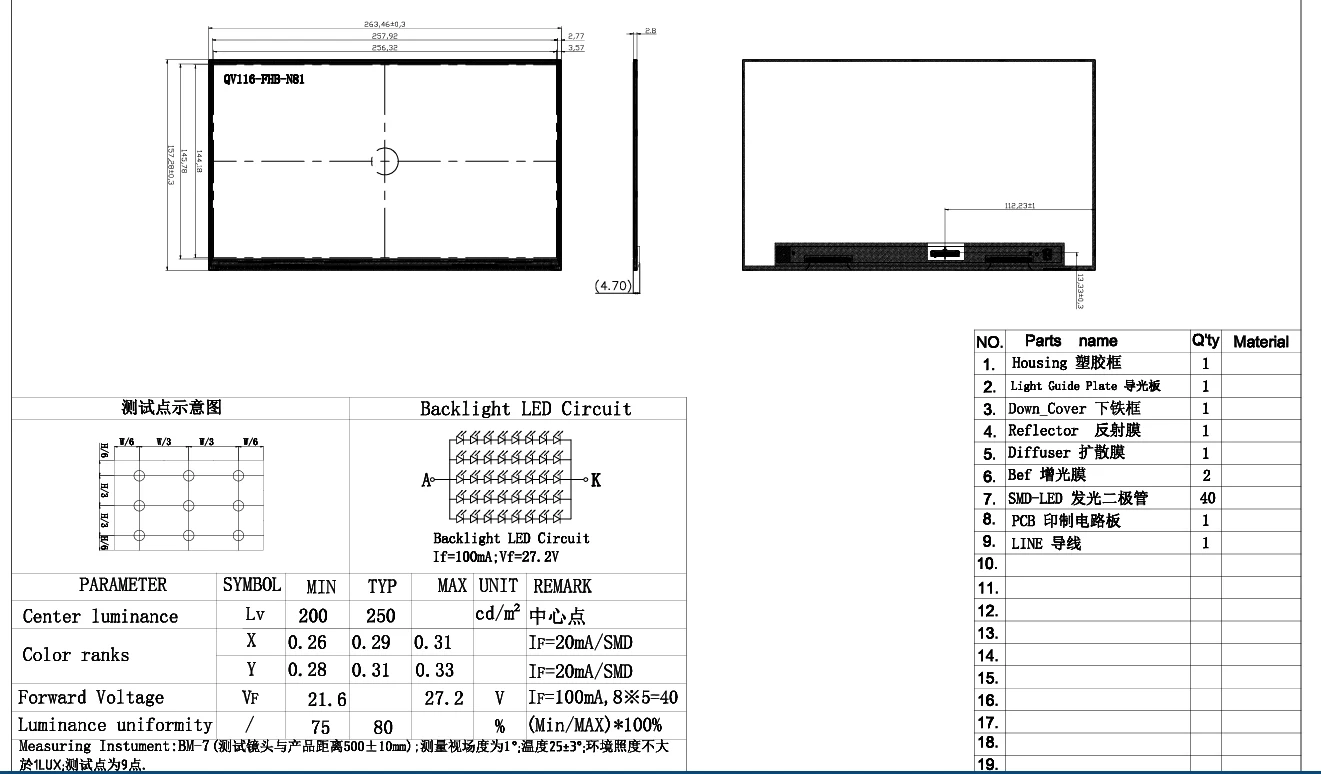

Tianfu 11.6' anti-glare full HD TFT LCD Display module Details

Tianfu IPS TFT LCD Display module Application

Tianfu Leading Time

Standard Products		Customized Products
Order Quantity	Delivery Time	Customization Type	Delivery Time
1-30 PCS	Immediately	B/L & FPC & TP	within 5 weeks
31-100 PCS	1 week	B/L & FPC & TP	within 5 weeks
101-500 PCS	within 2 weeks	B/L & FPC & TP	within 5 weeks
501-1000 PCS	within 3 weeks	B/L & FPC & TP	within 5 weeks
1001-5000 PCS	within 3 weeks	BL & FPC & TP	within 6 weeks
5000+ PCS	within 4 weeks	BL & FPC & TP	within 6 weeks
