8.0' Industrial IPS HD TFT LCD Display Module

Tianfu, this 8.0' Industrial IPS HD TFT LCD Display Module with 800×1280 resolution, delivers crisp visuals, 1200:1 contrast, and 80° wide viewing angles. Featuring MIPI DSI (4-lane) for seamless integration, 280cd/m² brightness, and ultra-slim 2.7mm profile. Built for reliability with industrial-grade temp tolerance (-20°C~+60°C) and 30ms response time. 8.0' industrial IPS HD TFT LCD display module is ideal for medical, industrial, and premium consumer tech.

Send Inquiry

Product Description

Supporting small-batch trial orders and custom firmware/interface designs, IPS HD TFT LCD display module manufacture, Tianfu ensures seamless integration into smart controls/portable instruments, backed by a 12-month warranty.

Tianfu 8.0' Industrial IPS HD TFT LCD Display Module In Stock Features

1.Crisp WXGA Clarity

800×1280 resolution with 16.7M colors delivers sharp, lifelike visuals for industrial and medical displays.

2.IPS Technology

80° wide viewing angles and 1200:1 contrast ratio ensures consistent image quality from any perspective.

3.Ultra-Slim Design

2.7mm thickness and 114.7×184.2mm footprint enable seamless integration into space-constrained devices.

4.Robust Reliability

Industrial-grade durability with -20°C to +60°C operation and 90% humidity resistance for harsh environments.

Tianfu Customized 8.0' Industrial IPS HD TFT LCD Display Module Specification

Display Type	8.0-inch Transmissive a-Si TFT-LCD (IPS Technology)
Resolution	800(RGB) × 1280 (WXGA) 16.7M colors
Pixel Details	• Pixel Pitch: 44.85 μm (H) × 134.55 μm (V) • Arrangement: RGB Vertical Stripe
Display Performance	• Luminance: 280 cd/m² (Typ.) • Contrast Ratio: 1200:1 (Typ.) • Response Time: 30ms (Typ.) • Viewing Angle: 80° (H/V)
Power Requirements	• Analog Supply (VCI): 2.5–4.8V • Interface Supply (IOVCC): 1.65–3.6V • Backlight Current: 140mA (Typ.) • Power Sequence Tolerance: 120ms (SLPOUT mode)
Interface	• Type: MIPI DSI (Video Mode Only) • Configuration: 4 Data Lanes + 1 Clock Lane • Driver IC: JD9365DA • Reset Logic: Active-low RST pin

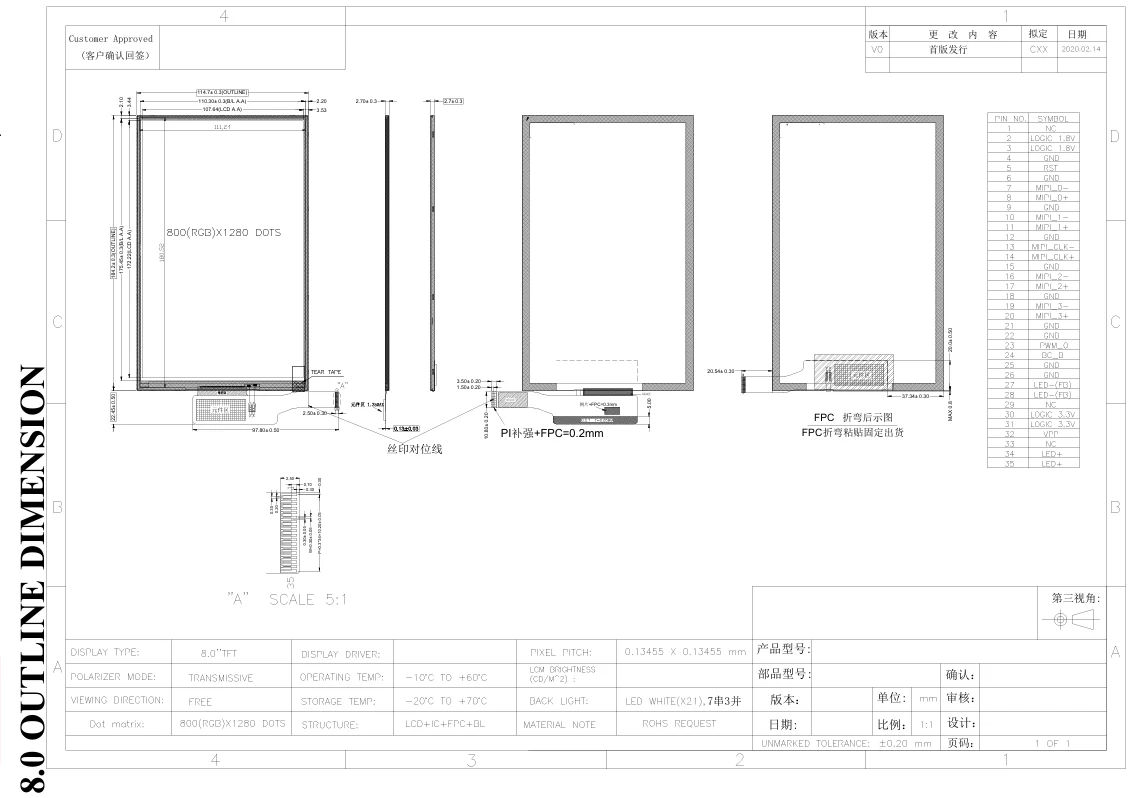

Mechanical Properties	• Dimensions: 114.7 × 184.2 × 2.7 mm (L×W×H) • Active Area: 107.64 × 172.22 mm • Weight: TBD (Typ.)
Reliability Testing	• Operating Temp: -20°C to +60°C • Storage Temp: -30°C to +70°C • Humidity: 90% RH at 60°C (96hrs) • Thermal Shock: 30 cycles (-20°C↔ +80°C)
Backlight Unit	• Type: Single LED (Side-Light) • Forward Voltage: 9.6V (Typ.) • Lifetime: TBD • Control: PWM dimming via Pin 23

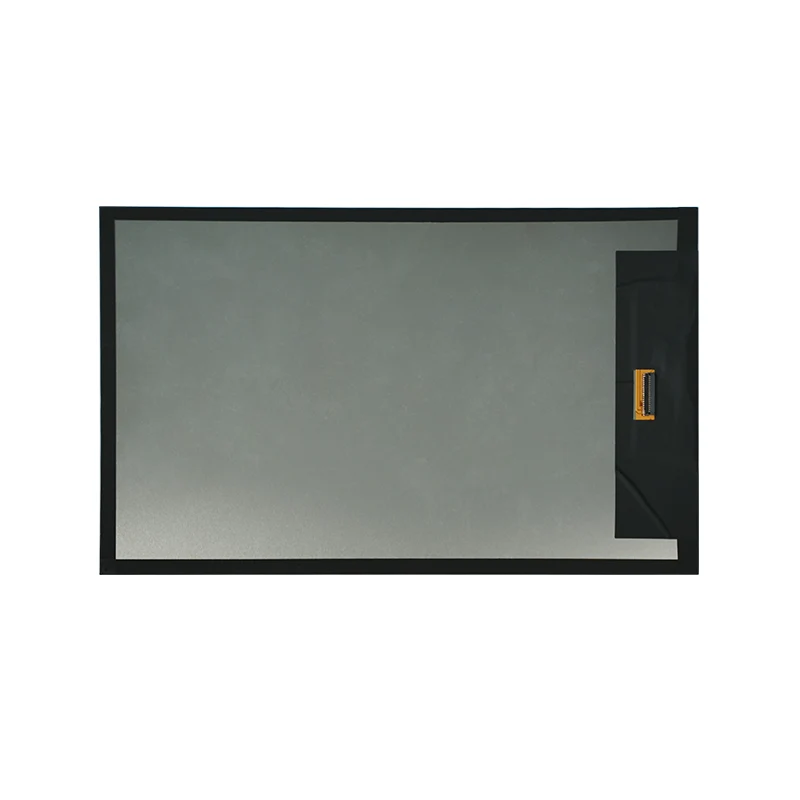

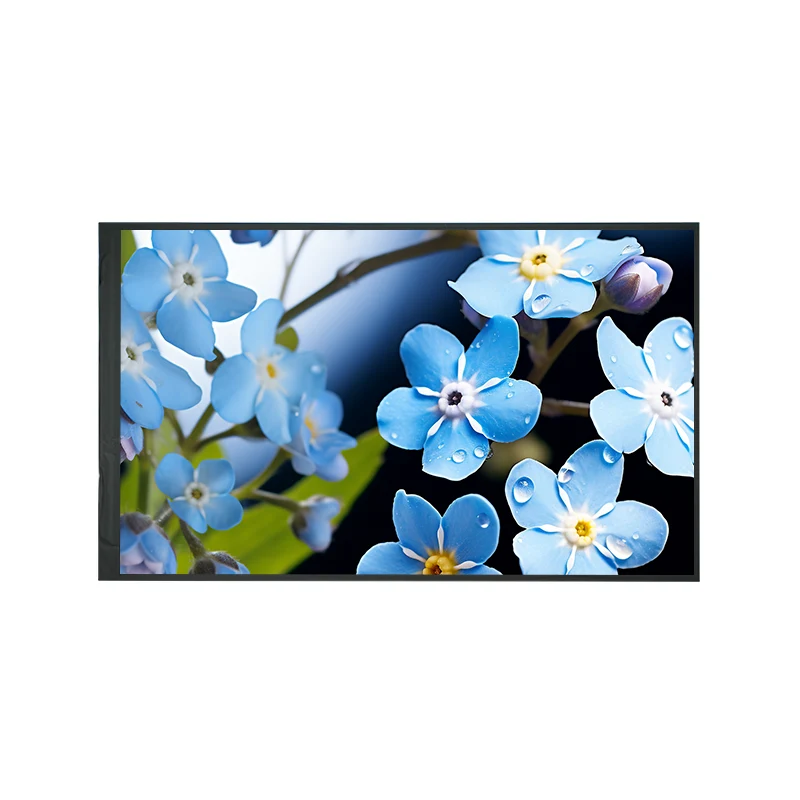

Tianfu 8.0' Industrial IPS HD TFT LCD Display Module Details

Tianfu 8.0' Industrial IPS HD TFT LCD Display Module Application

Tianfu Leading Time

Standard Products		Customized Products
Order Quantity	Delivery Time	Customization Type	Delivery Time
1-30 PCS	Immediately	B/L & FPC & TP	within 5 weeks
31-100 PCS	1 week	B/L & FPC & TP	within 5 weeks
101-500 PCS	within 2 weeks	B/L & FPC & TP	within 5 weeks
501-1000 PCS	within 3 weeks	B/L & FPC & TP	within 5 weeks
1001-5000 PCS	within 3 weeks	BL & FPC & TP	within 6 weeks
5000+ PCS	within 4 weeks	BL & FPC & TP	within 6 weeks
