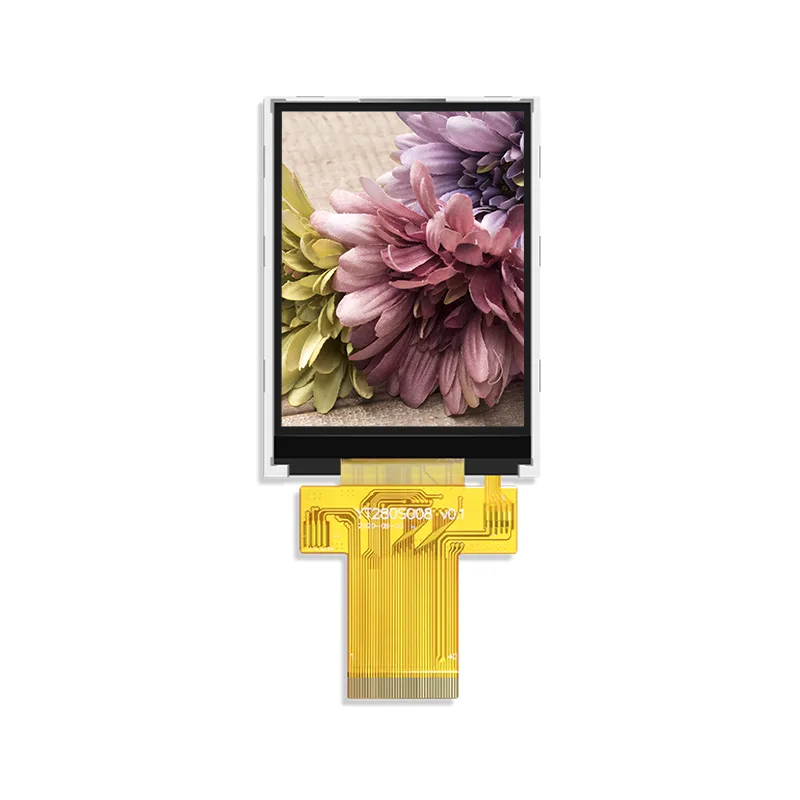

2.8 inch High-brightness IPS TFT Small TFT Touch Screen Module

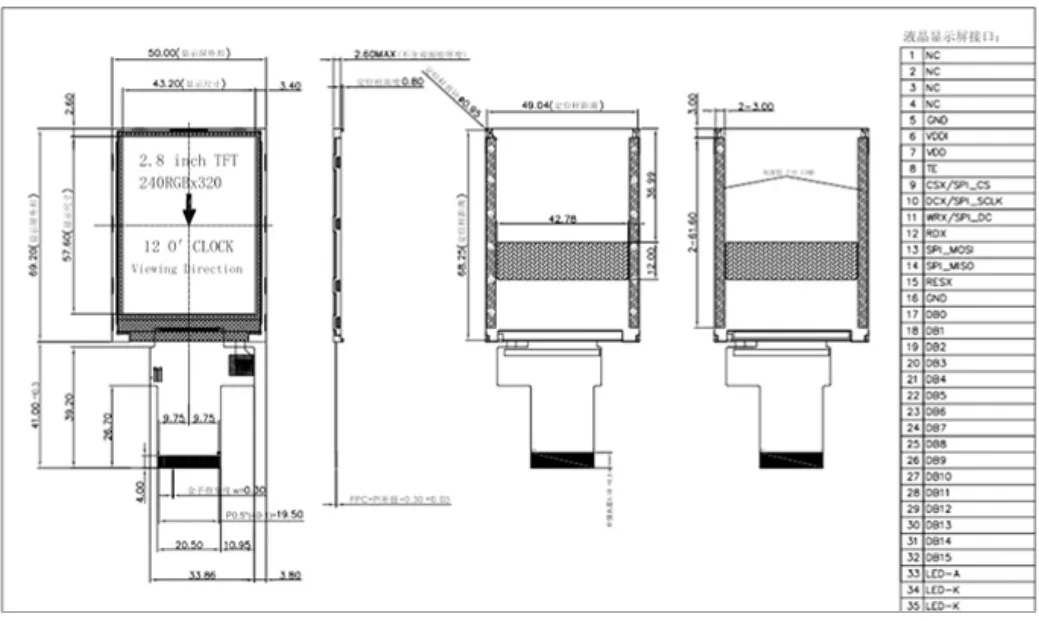

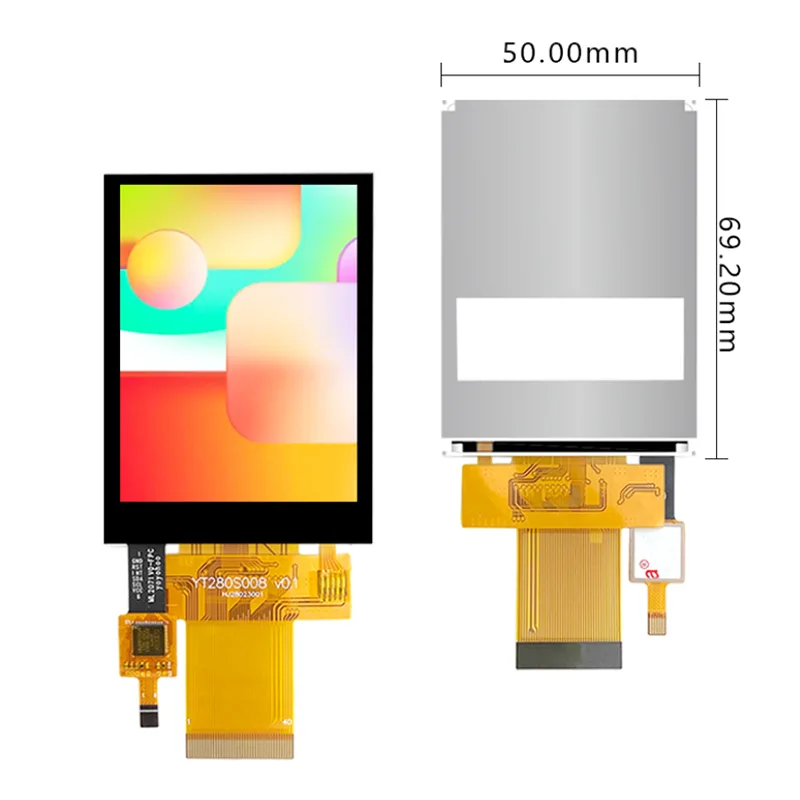

2.8 inch high-brightness IPS TFT small TFT touch screen module supports flexible connectivity options, including 3-wire/4-wire SPI and 8-bit/16-bit MCU parallel interfaces, enabling easy integration into a variety of designs. Its compact 50.00×69.20×2.60mm form factor fits space-constrained devices, and its -10°C to 60°C operating temperature range ensures stable operation in applications such as industrial control panels, smart home displays, and handheld inspection tools.

Application:

2.8 inch High-brightness IPS TFT Small TFT Touch Screen module, that Meet Your Requirements:

IPS LCD touchscreen display for industrial human-machine interface: Operating temperature range extends from -20°C to 70°C, with some models extending to -30°C to 80°C. Screen brightness exceeds 500 nits (cd/m²), with ultra-bright versions reaching 1000-1500 nits. It supports 24/7 operation. 2.8 inch high-brightness IPS TFT small TFT touch screen module is suitable for programmable logic controllers and industrial portable human-machine interface devices.

Medical monitoring display: 2.8 inch high-brightness IPS TFT small TFT touch screen module features an anti-glare glass cover and is sunlight-readable (effectively reducing visual fatigue for medical staff from prolonged viewing). It offers high touch accuracy, fast response, and supports glove operation. It is suitable for portable blood glucose meters, blood glucose monitoring systems, blood pressure monitoring devices, oximeters, and other medical devices.

Consumer electronics display: 2.8 inch high-brightness IPS TFT small TFT touch screen module supports 240×RGB×320 resolution using the RGB565 data format. It also features low power consumption and a service life of at least 30,000 hours. IPS wide-viewing angle technology ensures smooth viewing from all angles. This type of LCD module is suitable for consumer electronics such as children's smart watches, POS terminals, and drone remote control sub-screens. We offered industrial-grade POS machine (mobile payment terminal) with 2.8 inch high-brightness IPS TFT small TFT touch screen module, reducing costs by 25%.

Item Specification

Details

Tianfu Leading Time

Quality Inspection

Our specially developed TFT capacitive touch modules meet aerospace-grade standards and adhere to Tianfu's strict ISO 9001 standards. High-precision, 1:1 replication of ISO 9001 standards ensures consistent quality from design to finished product, using raw materials sourced from top global suppliers. Rigorous validation is performed at each stage using advanced equipment, and prior to delivery, burn-in testing exceeding industry standards is performed, demonstrating our commitment to mission-critical aerospace reliability.

Package

Tianfu provides fully customized packaging for TFT LCD modules. Customized snap-in card holders precisely match the module dimensions (a 1:1 fit) and are housed in EPE-lined corrugated boxes, ensuring zero clearance from the pallet. The outer box features five layers of reinforced corrugated cardboard (matched to the pallet), while the interior incorporates foam partitions and air cushioning, providing four layers of protection.

Verified by ISTA-3A testing (simulating drops, vibrations, and crushing during road and air transportation), this box reduces the risk of transport vibration by over 98%, ensuring the module remains intact, scratch-free, and functional during long-distance transportation and repeated handling.
