5.0' Sunlight Readable IPS HDMI TFT LCD Display Module

As your strategic manufacturer in China, Tianfu ensures high quality and fully customized LCDs. 5.0' Sunlight Readable IPS HDMI TFT LCD Display Module that adopts transmissive display technology and a normally white mode, capable of presenting clear and vivid color images and content. Specifically designed for embedded systems and industrial equipment requiring stable and reliable visual interaction, it converts digital signals into intuitive visual information, serving as a core component for implementing Human-Machine Interfaces (HMI).

Send Inquiry

Product Description

What can it do?

● Display Interactive Interfaces: Real-time visualization of device status, operation menus, data graphs, and parameter settings.

● Present Multimedia Content: Supports smooth playback of color pictures, videos, and dynamic graphics.

● Serve as an Information Output Terminal: Functions as the primary display on various devices to provide intuitive information feedback.

Core Features:

● True Color Display: Supports 24-bit RGB color, offering rich color gradation and detailed picture quality.

● Wide Voltage & Temperature Range: Operates on a core voltage of 2.6V-3.6V and supports an ambient temperature range of -10°C to 60°C, ensuring high adaptability.

● Plug-and-Play: Features a standard RGB parallel interface with excellent compatibility with mainstream embedded processors (such as the ARM Cortex series), enabling simple integration.

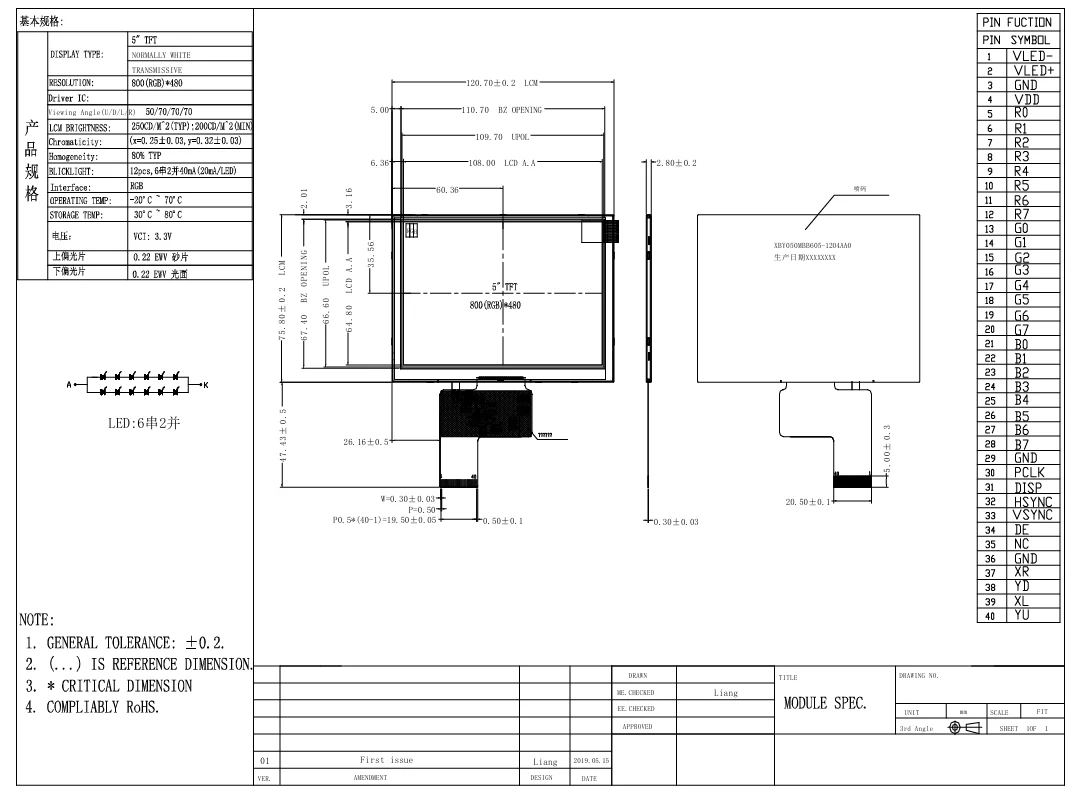

Tianfu Customized 5.0' Sunlight Readable IPS HDMI TFT LCD Display Module Specification

Display Size	5.0-inch TFT-LCD
Resolution	800 × 480 pixels
Pixel Pitch	~0.106mm (H) × 0.106mm (W) (Calculated)
Display Mode	Normally White, Transmissive
Driver IC	NV3047 (Based on image; not explicitly stated in PDF)
Brightness	250 cd/m² (Typ.) Min: 200 cd/m²
Brightness Uniformity	80% (Typ.) Min: 75%
Contrast Ratio	350:1 (Typ.) Min: 250:1
Response Time	20 ms (Typ.)
NTSC Ratio	50%
Interface	RGB Parallel Interface: · Power: VDD (2.6-3.6V), GND · Data Bus: 24-bit (R0-R7, G0-G7, B0-B7) · Control Signals: PCLK, HSYNC, VSYNC, DE · Backlight: LED_A (19.2V), LED_K (GND)

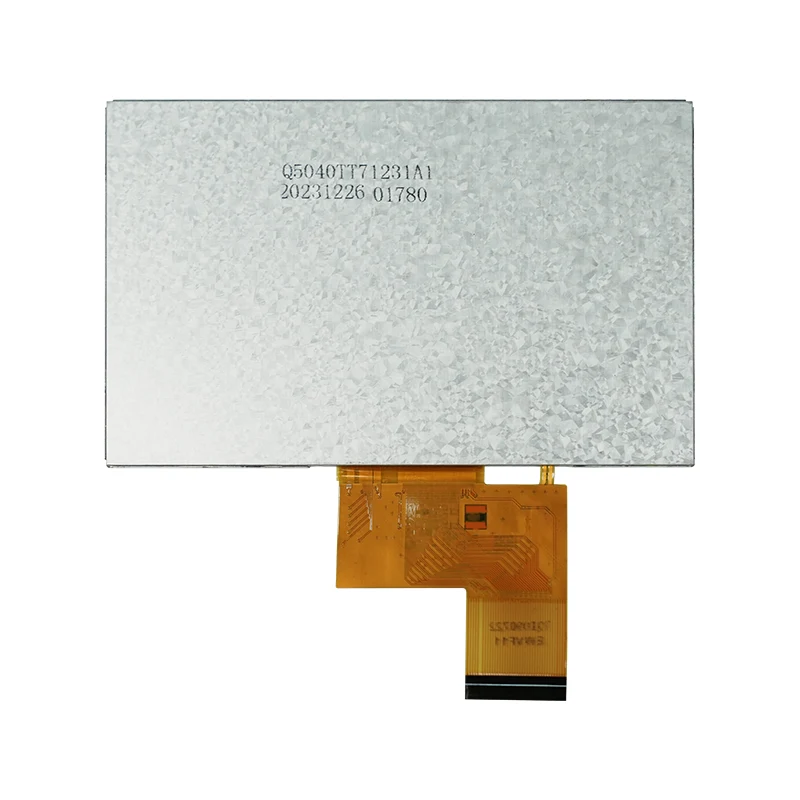

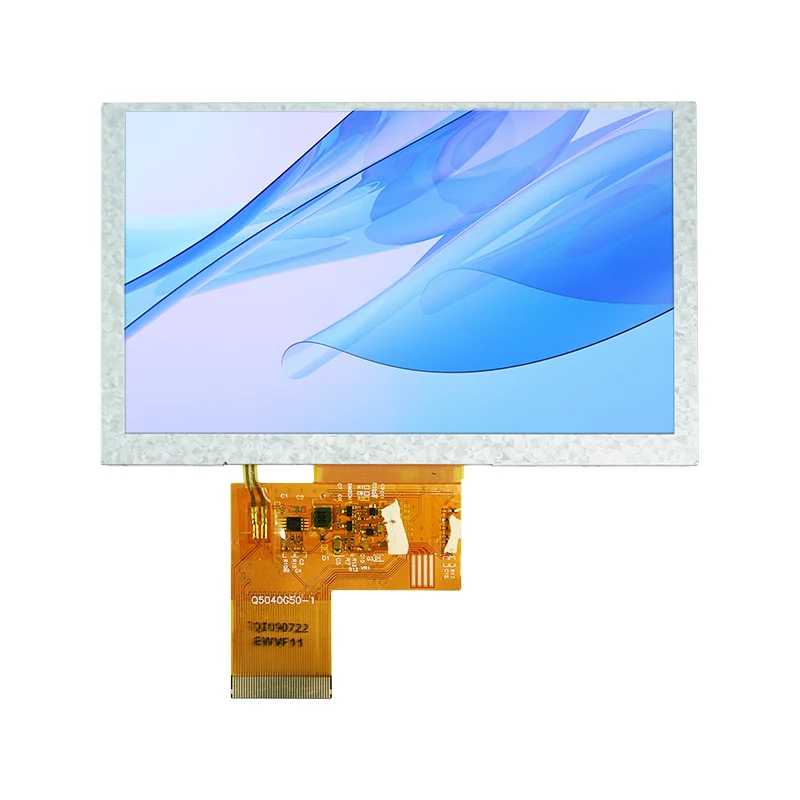

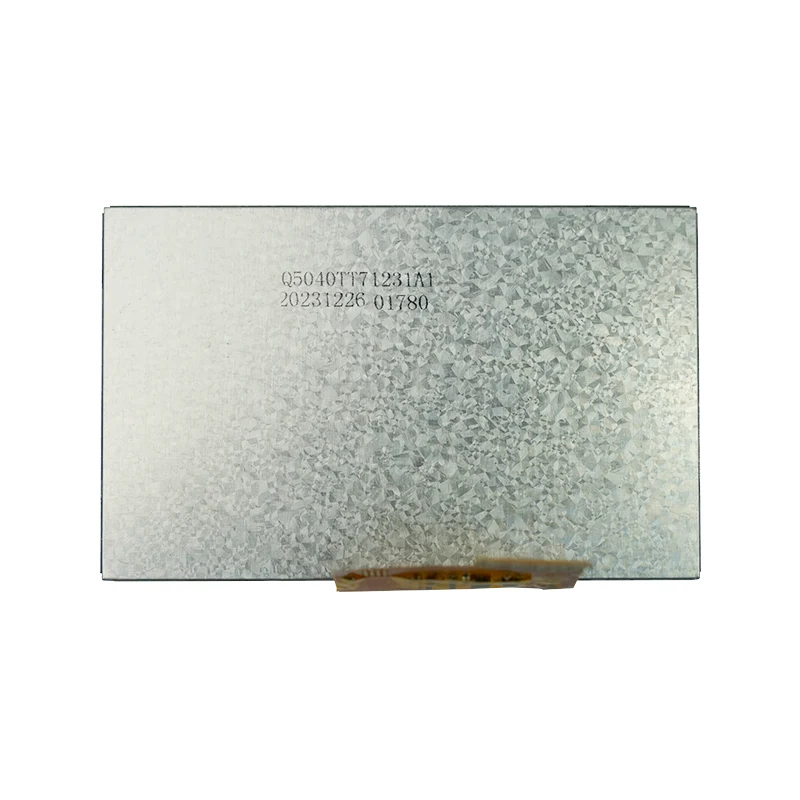

Tianfu 5.0' Free View Angle Industrial IPS TFT LCD Screen Module Details

With its balanced performance and high reliability, this 5-inch display is widely used across multiple industries that demand superior display quality and stability.

• Industrial Automation and Control

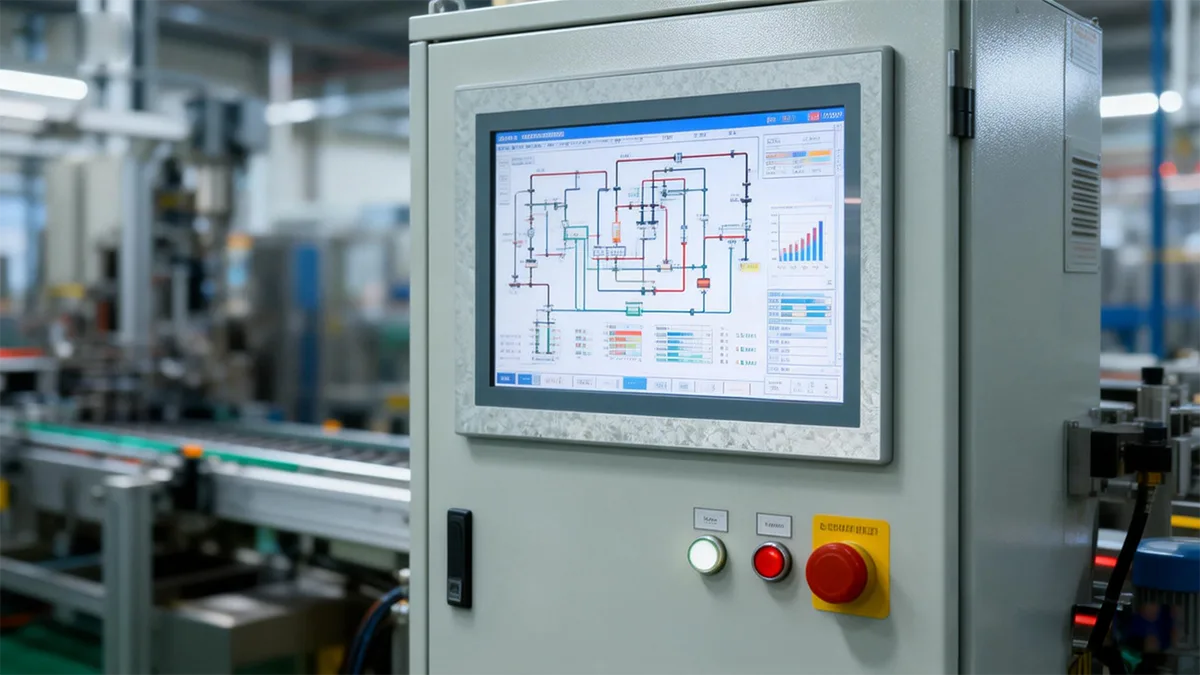

◦ Cases: Used in PLC touchscreen all-in-ones, industrial HMI panels, and CNC machine tool operation interfaces to display real-time production line status, equipment parameters, and alarm information.

• Medical Equipment

◦ Cases: Serves as the display unit for portable monitors, diagnostic devices, and infusion pumps, clearly presenting vital sign data and equipment operating status.

• Smart Home and IoT

◦ Cases: Integrated into smart central control screens and thermostats to deliver user-friendly graphical control and feedback interfaces.

• Commercial and Retail Terminals

◦ Cases: Applied in POS cash register systems, self-service terminals (Kiosks), and queue management systems to display transaction information, advertisements, and guidance content.

• Consumer Electronics and Devices

◦ Cases: Used in high-end aftermarket in-vehicle displays, handheld test instruments, fitness equipment dashboards, etc.

Comparison Dimensions	Our Advantages	The Value We Bring You
Balanced performance	A brightness of 250 cd/m² paired with a 50% NTSC color gamut delivers clear and vivid display performance in indoor environments.	Achieve superior visual performance within budget constraints, ensuring high cost-effectiveness.
Power supply design	Wide-voltage logic power supply (2.6V–3.6V) is compatible with multiple level standards, enabling more flexible designs.	Simplifies power supply design, easily interfaces with mainstream 3.3V or 3.0V systems, and reduces peripheral circuitry.
Interface Standard	It features a general-purpose 24-bit RGB parallel interface with standardized timing and mature, well-established driver support.	Low development barrier, rich documentation, rapid software and hardware adaptation, and shortened project cycles.
Reliability	It features a definite wide operating temperature range (-10°C to 60°C), making it suitable for most commercial and light industrial environments.	Reliable performance in marginally severe conditions minimizes potential malfunctions.

We are committed to providing our customers with reliable and safe products.

Environmental Compliance: Our product design and manufacturing processes comply with international standards and directives such as ISO9001, RoHS, and REACH, strictly restricting the use of hazardous substances.

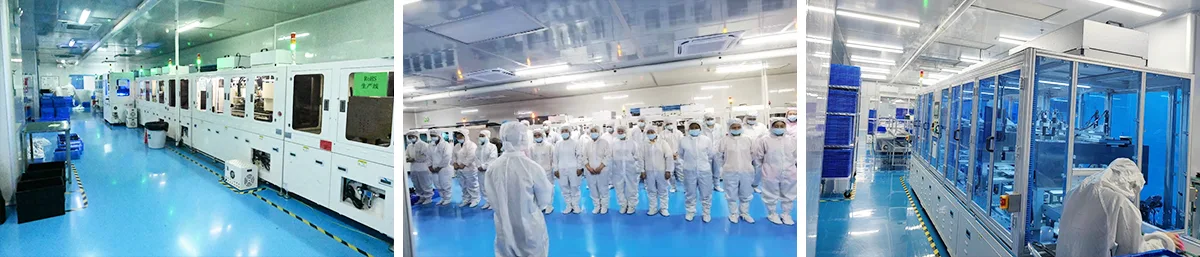

Quality System: Manufacturing adheres to a rigorous quality management system, ensuring full process control from component sourcing to production and testing.

Reliability Testing: All products undergo comprehensive reliability tests before shipment, including burn-in testing and signal integrity testing, to guarantee stable delivery quality.

Continuous Support: We offer a stable supply cycle and reliable technical support, positioning ourselves as your trusted long-term partner.
