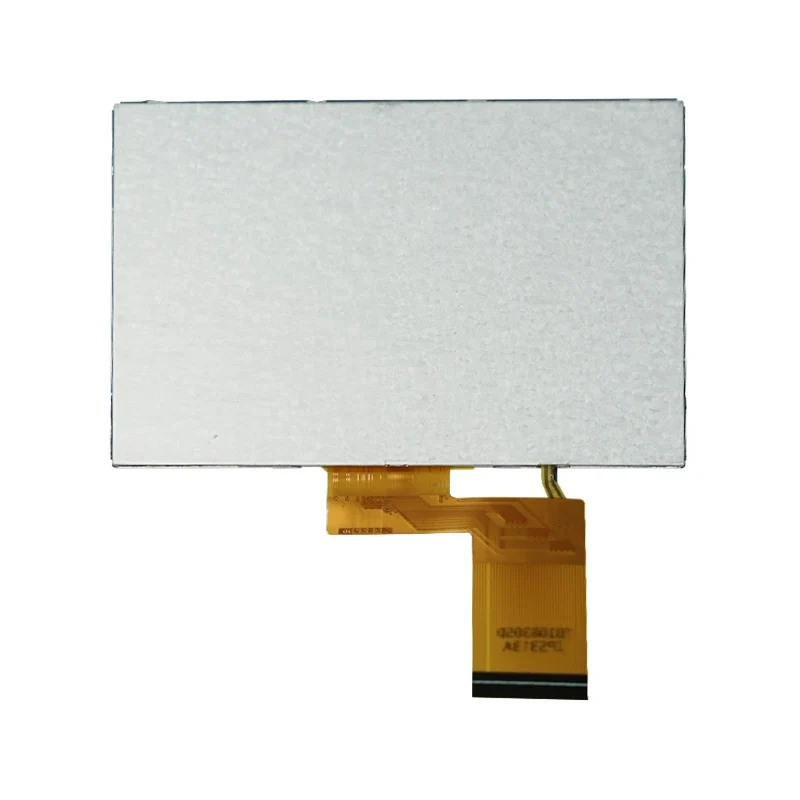

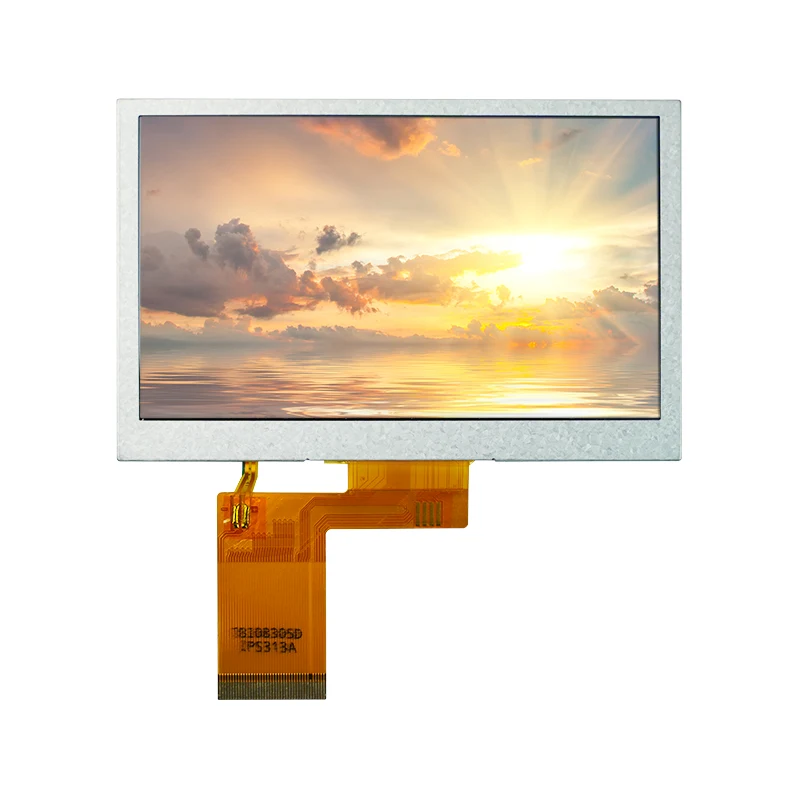

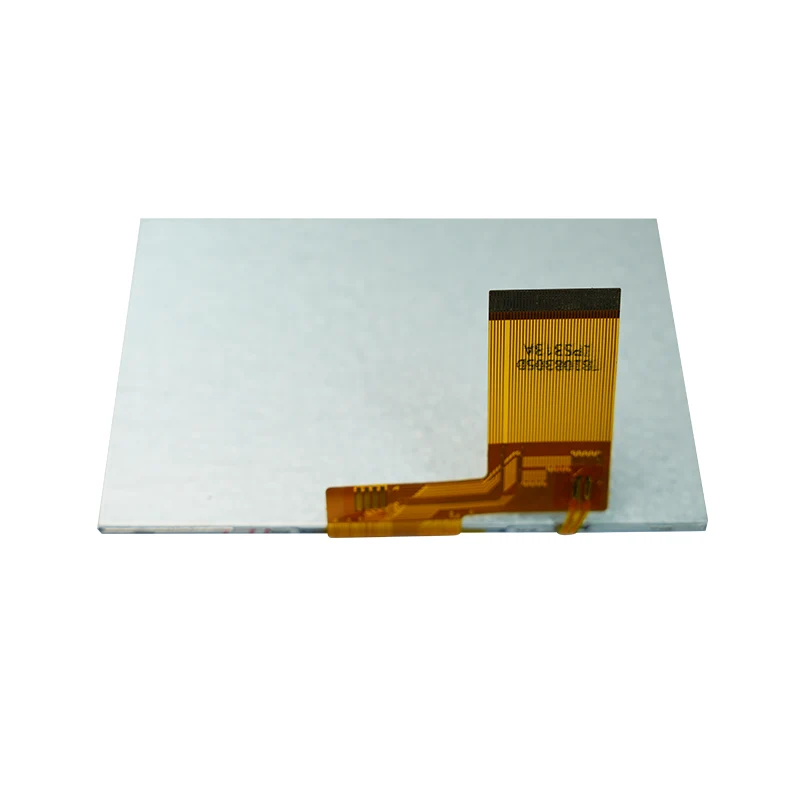

4.3'' Industrial HDMI TFT LCD Display Module

Elevate Your Display with the 4.3'' Industrial HDMI TFT LCD Display Module. Experience crisp 480×272 RGB resolution and 180-nit brightness for vivid visuals. Built for extremes: operates from -10°C to +60°C, survives storage at -20°C to +70°C, and endures thermal shocks (-40°C↔85°C). 4.3'' industrial HDMI TFT LCD display module is equipped with IPS-grade 70° viewing angles, 500:1 contrast, and 20ms response ensure reliability for industrial, medical, and automotive displays. MIPI-ready, RoHS-compliant—precision engineered for mission-critical clarity.

Send Inquiry

Product Description

Supporting small-batch trial orders and custom firmware/interface designs, TFT LCD module manufacture, Tianfu ensures seamless integration into smart controls/portable instruments, backed by a 12-month warranty.

Tianfu 4.3'' Industrial HDMI TFT LCD Display Module Features

1.Crystal-Clear Display

480×272 RGB resolution and 180-nit brightness for sharp visuals in any lighting.

2.Industrial-Grade Toughness

Operates from -10°C to +60°C, survives storage at -20°C to +70°C, and endures thermal shocks (-40°C↔85°C).

3.Long-Lasting Backlight

20,000-hour LED lifespan and 23.8V efficiency for energy-saving designs.

4.Fast Response & Wide Viewing

20ms response time and 70° horizontal/60° vertical angles for smooth, distortion-free visuals.

Tianfu 4.3'' Industrial HDMI TFT LCD Display Module In Stouck Specification

Core Specifications
Display Size	4.3-inch TFT-LCD
Resolution	480 × RGB × 272
Active Area	95.04mm (W) × 53.86mm (H)
Pixel Pitch	0.198mm (H) × 0.198mm (W)
Display Mode	Normally White, Transmissive
Driver IC	ILI6485

Electrical Parameters
Power Supply (VDD)	3.2V (Typical)
Logic Voltage (VIL/VIH)	Low: 0–0.64V / High: 2.56–3.2V
LED Forward Voltage	18.9V–23.8V (21.4V Typ)
LED Current	20mA (Typical)

Optical Performance
Luminance	160–200 cd/m² (180 Typ)
Contrast Ratio	500:1–700:1
Viewing Angle (H/V)	60°–70° / 45°–60° (CR>10)
Color Gamut	45%–50% (CIE1931)
Response Time	20–30ms (25ms Typ)

Environmental Ratings
Operating Temp	-10°C to 60°C
Storage Temp	-20°C to 70°C
Humidity	10%–90% RH
Backlight Lifetime	15,000–20,000 Hours

Interface & Reliability
Interface Type	24-bit RGB Parallel
Key Pins	LEDK/LEDA, HSYNC/VSYNC, 24×RGB Data
Thermal Shock Test	-20°C↔ 60°C, 25 Cycles
Vibration Test	50Hz, 2cm Amplitude, X/Y/Z Axes

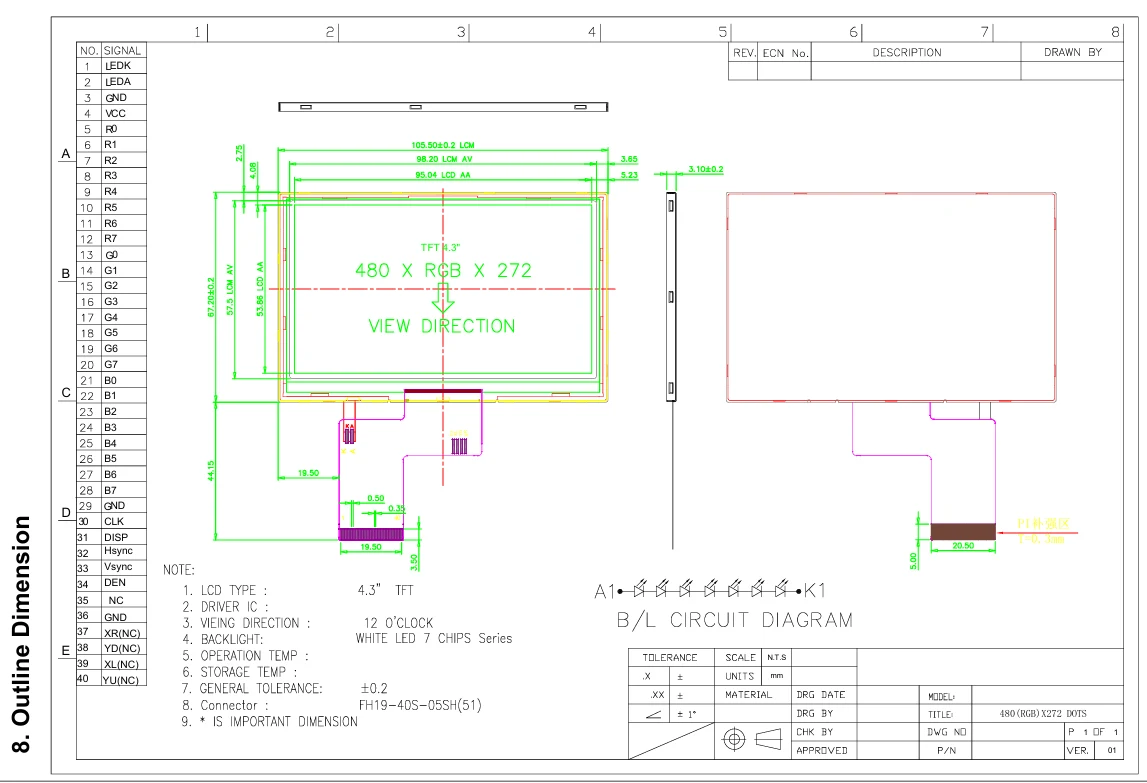

Tianfu Customized 4.3'' Industrial HDMI TFT LCD Display Module Details

Tianfu 4.3'' HDMI TFT LCD TFT LCD Display Module Application

Tianfu Leading Time

Standard Products		Customized Products
Order Quantity	Delivery Time	Customization Type	Delivery Time
1-30 PCS	Immediately	B/L & FPC & TP	within 5 weeks
31-100 PCS	1 week	B/L & FPC & TP	within 5 weeks
101-500 PCS	within 2 weeks	B/L & FPC & TP	within 5 weeks
501-1000 PCS	within 3 weeks	B/L & FPC & TP	within 5 weeks
1001-5000 PCS	within 3 weeks	BL & FPC & TP	within 6 weeks
5000+ PCS	within 4 weeks	BL & FPC & TP	within 6 weeks
