7.0 Inch 350 Nit Anti-glare IPS Thin In-cell Touch Screen Module
  • 7.0 Inch 350 Nit Anti-glare IPS Thin In-cell Touch Screen Module7.0 Inch 350 Nit Anti-glare IPS Thin In-cell Touch Screen Module
  • 7.0 Inch 350 Nit Anti-glare IPS Thin In-cell Touch Screen Module7.0 Inch 350 Nit Anti-glare IPS Thin In-cell Touch Screen Module
  • 7.0 Inch 350 Nit Anti-glare IPS Thin In-cell Touch Screen Module7.0 Inch 350 Nit Anti-glare IPS Thin In-cell Touch Screen Module
  • 7.0 Inch 350 Nit Anti-glare IPS Thin In-cell Touch Screen Module7.0 Inch 350 Nit Anti-glare IPS Thin In-cell Touch Screen Module

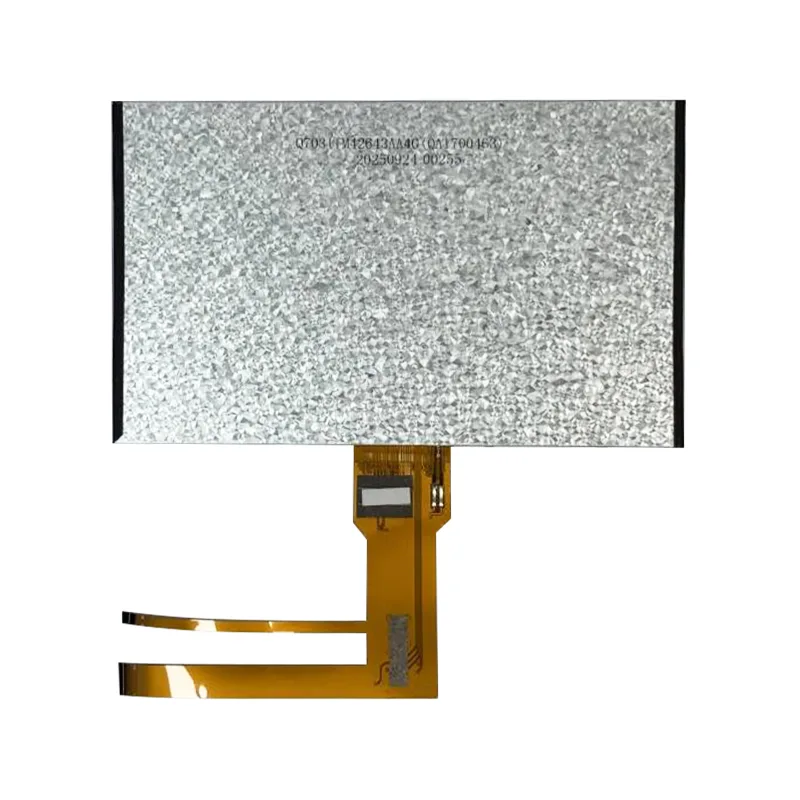

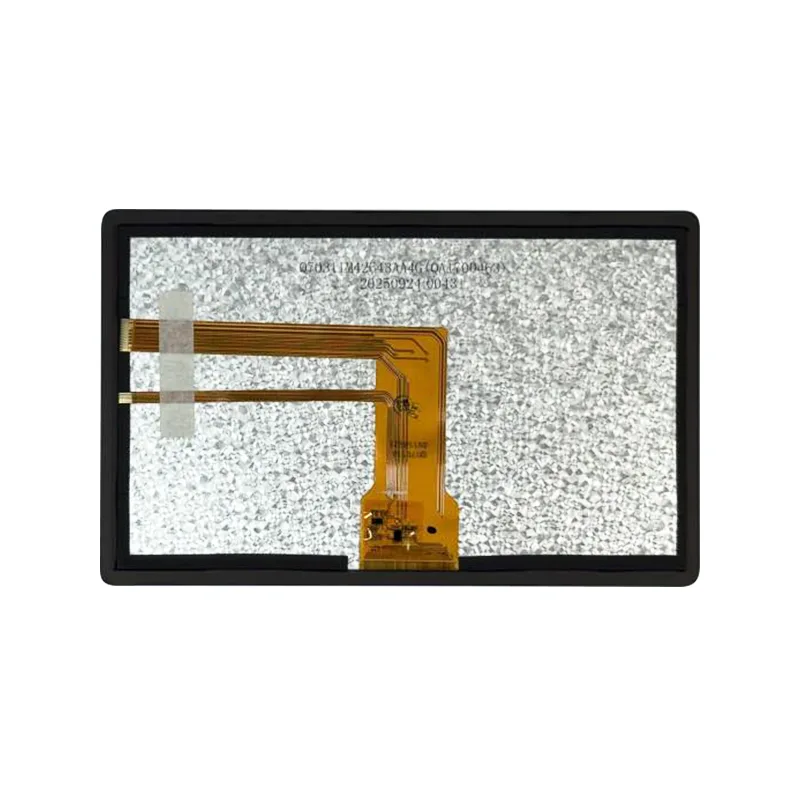

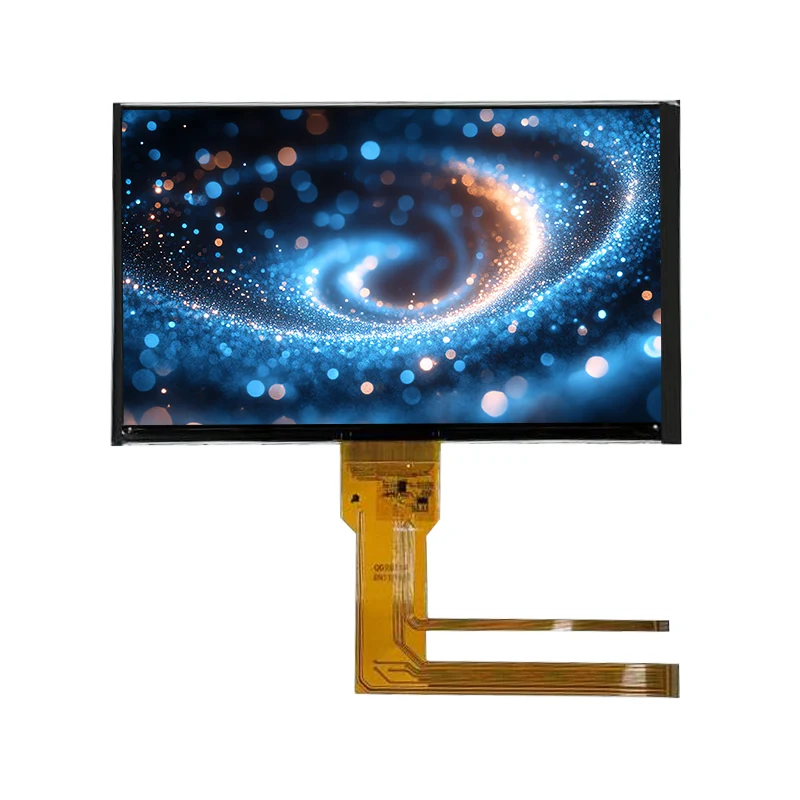

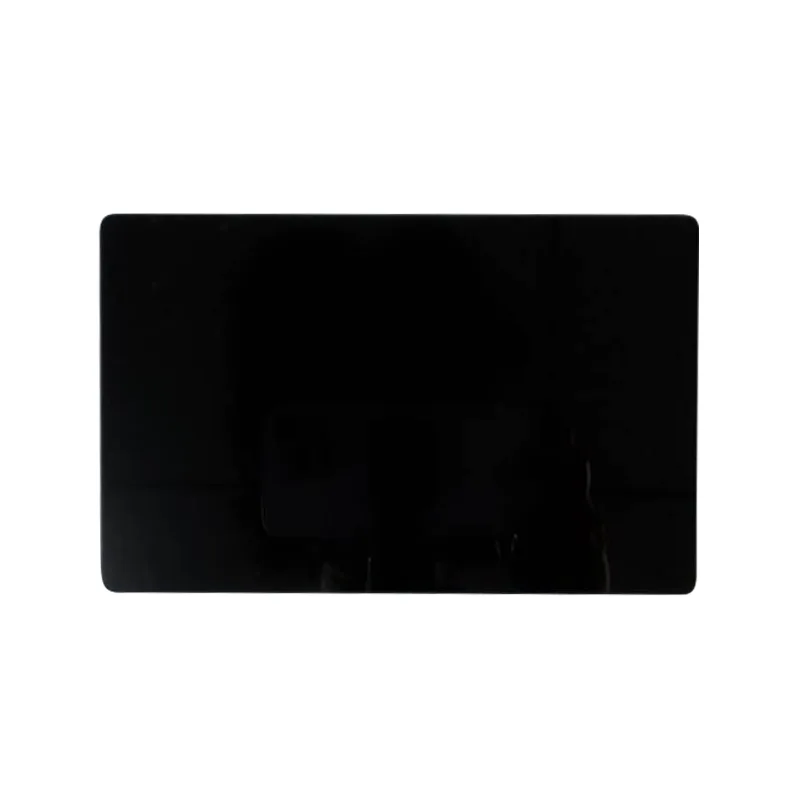

7.0 Inch 350 Nit Anti-glare IPS Thin In-cell Touch Screen Module

Experience the perfect blend of performance and durability. Our 7.0 inch 350 nit anti-glare IPS thin in-cell touch screen module boasts an excellent color gamut and an 80-degree wide viewing angle, ensuring your content displays exceptionally well.

Its rugged backlight has a lifespan of up to 20,000 hours, and its wide operating temperature range makes 7.0 inch 350 nit anti-glare IPS thin in-cell touch screen module ideal for harsh environments. Choose this clear, reliable, and high-performance display.


Application:

Retail and Point-of-Sale (POS) Systems

Compact and Efficient for Transactions: The compact form factor and WSVGA resolution provide a clear display area for transaction data and product information, ideal for counters with limited space.

Durable and Withstands High-Frequency Operation: With side-lit backlighting and a lifespan of 15,000-20,000 hours, this 7.0 inch 350 nit anti-glare IPS thin in-cell touch screen module is designed to meet the long-term operating demands common in retail environments.

Applications include:

• Handheld POS Terminals: Mobile credit card processors and ordering devices for restaurants.

• Small Payment Terminals: Self-checkout and ticketing machines.

• Inventory Management Scanners: Devices for inventory counting and price verification.


Item Specification

Display Specifications

Size

7.0 inch

Panel Type

IPS (IPSFilm)

Resolution

1024 × 600 (WSVGA)

Display Area

153.6 × 90.0 mm

Display Mode

Normally Black

Number of Colors

16.7M

Viewing Direction

All

Contrast Ratio

1500

Pixel Pitch

0.15 × 0.15 mm

Outline Dimension

174.0 × 109.0 × 5.5 mm

Driver IC

ST7232

Interface

TTL

LCD Type

Incell

Optical Characteristics

Brightness

300-350 Cd/cm²

Viewing Angle (CR > 10)

75-80 Degrees

Response Time (Rising + Falling)

25-30 ms

Transmittance

5.1-6%

Color Gamut (C light)

45-50%

Electrical Characteristics

Supply Voltage (VDD)

3.0-3.6 V (Typ. 3.3V)

LED Voltage

8.6-10.6 V (Typ. 9.6V)

LED Current

180 mA (Typ.)

Backlight Unit

Type

Edge-lighting

Number of LEDs

27

Operating LED Lifetime

15,000-20,000 hours (to 50% brightness)

Operating Conditions

Operating Temperature

-20°C to +70°C

Storage Temperature

-30°C to +80°C


Details


Tianfu Leading Time

Standard Products

Customized Products

Order Quantity

Delivery Time

Customization Type

Delivery Time

1-30 PCS

Immediately

B/L & FPC & TP

within 5 weeks

31-100 PCS

1 week

B/L & FPC & TP

within 5 weeks

101-500 PCS

within 2 weeks

B/L & FPC & TP

within 5 weeks

501-1000 PCS

within 3 weeks

B/L & FPC & TP

 within 5 weeks

1001-5000 PCS

within 3 weeks

BL & FPC & TP

within 6 weeks

5000+ PCS

within 4 weeks

BL & FPC & TP

within 6 weeks


Quality Inspection

Your device deserves a more reliable screen.

When you're focused on creating or operating, have you ever worried about screen stability? At Tianfu, our answer is: We strive for the highest level of quality control.

From globally sourced raw materials to manufacturing processes compliant with ISO 9001; from specialized testing to eliminate bubbles and delays to extreme testing simulating years of harsh environments (-40°C to 85°C, 100,000 touches)—all of this is to allow you to forget about the screen and fully immerse yourself in your work.

Therefore, we dare to provide a "Ten-Year Compliance Certificate" for every screen. This is not just a certificate, but a solid guarantee for the long-term stability of your device. Choose Tianfu, choose peace of mind.


Package

Tailor-made for your precision display modules, Tianfu offers comprehensive protective packaging solutions. Precisely secured inner trays, combined with highly cushioned EPE material, ensure a tight fit. A robust five-layer corrugated outer box, with internal foam and air cushioning, forms a quadruple protective barrier.

Having undergone rigorous ISTA-3A testing, it withstands drops, vibrations, and pressure challenges during transportation.

Vibration risk is reduced by over 98%, ensuring your display remains pristine and performs as expected after long journeys and multiple handling.
