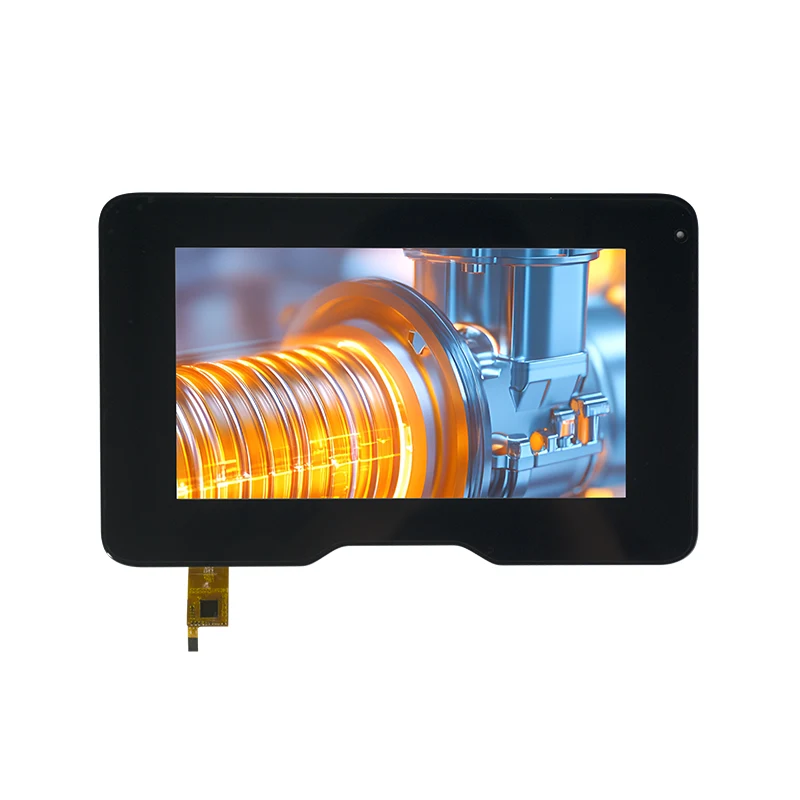

7.0' Wide Temp TFT Resistive Touch Screen Module

Experience vivid clarity on Tianfu this 7.0' Anti-glare 300 Nit Small TFT LCD Display Module : 1024×RGB×600 resolution & anti-glare for outdoor use. 270cd/m² brightness, 500:1 contrast, 12 O'clock viewing angles, and 10ms/15ms response for smooth motion. Ultra-efficient 1.674W backlight, 20K-hour lifespan. Built for industrial/commercial durability.

Send Inquiry

Product Description

Supporting small-batch trial orders and custom firmware/interface designs, TFT LCD display module manufactures, Tianfu ensures seamless integration into smart controls/portable instruments, backed by a 12-month warranty.

Tianfu 7.0' Wide Temp TFT Resistive Touch Screen Module In Stock Features

1.Military-Grade Durability

Engineered for 1 million+ operational cycles with extreme environmental resilience (-20°C to +70°C storage, -10°C to +60°C operation) and ≥3H surface hardness.

2.Precision Touch Performance

Delivers ≤1.5% linearity error with lightning-fast ≤15ms response time and optimized circuit resistance (X:150-550Ω/Y:450-1100Ω) for industrial control accuracy.

3.Optical Excellence

≥75% light transmittance with anti-Newton ring film technology and scratch-resistant surface, maintaining clarity in harsh lighting environments.

4.Slim-Profile Engineering

Ultra-thin 1.52±0.15mm architecture featuring precision 3M™ 200MP adhesive and dual-sided FPC tail (1.0mm pitch) for space-constrained applications.

Tianfu Customized 7.0' Wide Temp TFT Resistive Touch Screen Module Specification

Parameter	Specification
Panel Size	7.0-inch Resistive Touch Panel
Frame Dimensions	161.0±0.2mm × 96.5±0.2mm × 1.2±0.1mm
Optical Transparency	75% ± 3% @ 550nm
Operating Force	50g-120g (R0.8 stylus)
Durability (Knock Test)	1,000,000 cycles (R8, 150gf)
Durability (Stroke Test)	50,000 cycles (R0.8mm, 150gf)
Operating Temperature	-10°C to +60°C (20-85% RH)
Terminal Resistance	X: 150-900Ω, Y: 150-900Ω
Surface Hardness	≥3H (JIS K5400)
Connector Type	FPC (Tail length: 60.0±0.5mm)

Tianfu 7.0' Wide Temp TFT Resistive Touch Screen Module Details

7.0' Wide Temp TFT Resistive Touch Screen Module

Tianfu 7.0' TFT LCD Resistive Touch Screen Module Application

Tianfu Leading Time

Standard Products		Customized Products
Order Quantity	Delivery Time	Customization Type	Delivery Time
1-30 PCS	Immediately	B/L & FPC & TP	within 5 weeks
31-100 PCS	1 week	B/L & FPC & TP	within 5 weeks
101-500 PCS	within 2 weeks	B/L & FPC & TP	within 5 weeks
501-1000 PCS	within 3 weeks	B/L & FPC & TP	within 5 weeks
1001-5000 PCS	within 3 weeks	BL & FPC & TP	within 6 weeks
5000+ PCS	within 4 weeks	BL & FPC & TP	within 6 weeks
