10.1 Square RGB TFT Resistive Touch Screen Module

Tianfu 10.1 Square RGB TFT Resistive Touch Screen Module delivers premium performance with ≥85% light transmittance for crystal clarity and ≥6H surface hardness for superior scratch resistance. Operating efficiently at 2.8-3.3V with rapid ≤12ms response, 10.1 Square RGB TFT resistive touch screen module withstands extreme temperatures (-20°C to +70°C) and rigorous environmental testing including 80cm ball-drop impact. Backed by strict AQL quality standards, it ensures reliable touch functionality in demanding applications.

Send Inquiry

Product Description

Supporting small-batch trial orders and custom firmware/interface designs, Tianfu, as a touch screen module supplier, ensures seamless integration into smart controls/portable instruments, backed by a 12-month warranty.

Tianfu 10.1 Square RGB TFT Resistive Touch Screen Module In Stock Features

1.Premium Optical Performance

≥85% light transmittance ensures exceptional display clarity and vivid visual experience.

2.Military-Grade Durability

≥6H surface hardness withstands scratches and survives 80cm steel ball impacts (64g ×3 drops).

3.Ultra-Responsive Operation

≤12ms touch response time with low 12-14.5mA current consumption for seamless interaction.

4.Extreme Environment Ready

Operates reliably from -20°C to +70°C and passes rigorous 96hr humidity/120hr thermal shock testing.

Tianfu 10.1 Square RGB TFT Resistive Touch Screen Module Specification

Overall Dimensions (L×W×T)	74.22mm × 136.22mm × 4.80mm
TP Sensor Dimensions (L×W×T)	66.36mm × 118.46mm × 0.70mm
Viewable Area (L×W)	61.56mm × 109.53mm
Electrical Performance
Operating Voltage	3.3V (DC)
Insulation Resistance	≥20MΩ @25V (DC)
Response Time	<5ms
Capacitance	<5nF
Environmental & Reliability
Operating Temperature	-10℃ to +60℃
Storage Temperature	-20℃ to +70℃
Chemical Resistance	Passes 5 cycles of 99% alcohol wipe test
Click Lifespan	10 million cycles
Mechanical & Optical
Surface Hardness	≥6H
Transmittance	≥83%
Multi-Touch Support	5 Fingers
Interface & Materials
Interface Protocol	COb
Pin Definitions	1: SCL, 2: SDA, 3: VDD, 4: RST, 5: INT, 6: GND
Key Materials	• LENS: Glass (T=1.1mm) • TP: Dual-sided ITO glass (T=0.70mm) • FPC: Flexible PCB with gold-plated contacts

Tianfu 10.1 Square RGB TFT Resistive Touch Screen Module Details

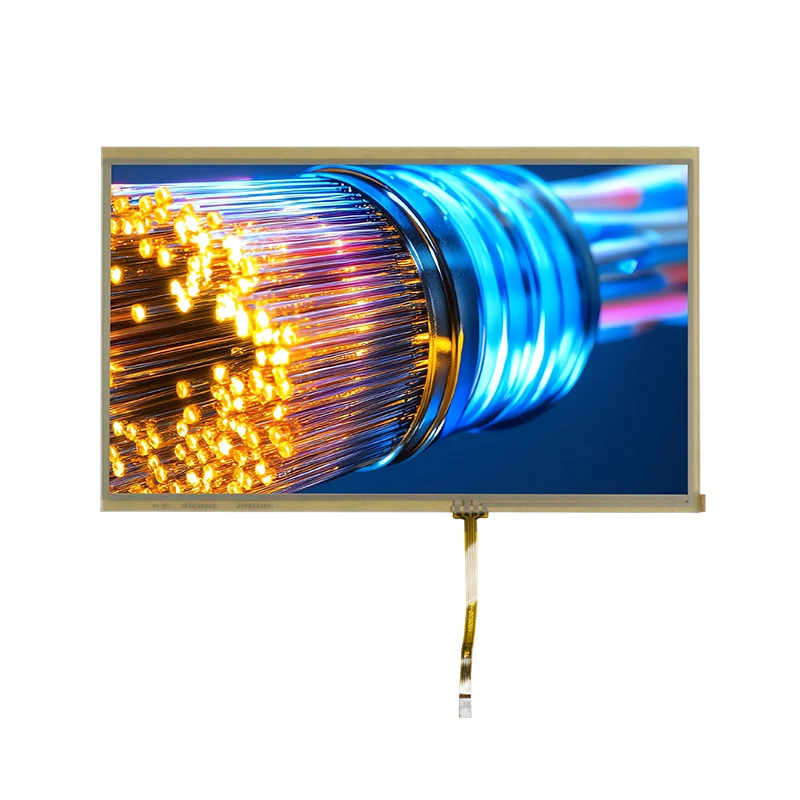

10.1 Square RGB TFT Resistive Touch Screen Module

Tianfu 10.1 Square RGB TFT Resistive Touch Screen Module Application

Tianfu Leading Time

Standard Products		Customized Products
Order Quantity	Delivery Time	Customization Type	Delivery Time
1-30 PCS	Immediately	B/L & FPC & TP	within 5 weeks
31-100 PCS	1 week	B/L & FPC & TP	within 5 weeks
101-500 PCS	within 2 weeks	B/L & FPC & TP	within 5 weeks
501-1000 PCS	within 3 weeks	B/L & FPC & TP	within 5 weeks
1001-5000 PCS	within 3 weeks	BL & FPC & TP	within 6 weeks
5000+ PCS	within 4 weeks	BL & FPC & TP	within 6 weeks
