3.5' 400 Nit Color TFT LCD Display Module

Tianfu 3.5' 400 Nit Color TFT LCD Display Module (320x240, 16.7M colors) delivers 400cd/m² brightness and 350:1 contrast for clear visibility in extreme conditions (-20°C~70°C). Features HX8238D driver, 24-bit RGB/CCIR656 interfaces, 20/25ms response, and robust certifications (thermal cycling -30°C↔80°C, ESD ±8kV, vibration). RoHS-compliant.3.5' 400 Nit color TFT LCD display module is ideal for automotive HMI, medical, and industrial controls.

Send Inquiry

Product Description

Supporting small-batch trial orders and custom firmware/interface designs, China TFT LCD display module manufacture, Tianfu ensures seamless integration into smart controls/portable instruments, backed by a 12-month warranty.

Tianfu 3.5' 400 Nit Color TFT LCD Display Module In Stock Features

1.Industrial-Grade Durability

Certified through thermal cycling (-30°C↔+80°C), ESD (±8kV air/±4kV contact), and vibration (10–150Hz) tests for extreme environment reliability.

2.High-Resolution Color Performance

320×RGB×240 resolution with 16.7M colors and 60% NTSC ratio, delivering vibrant visuals for HMI and medical displays.

3.Wide Temperature Operation

Stable performance across -20°C to +70°C (storage: -30°C~+80°C) for harsh industrial/outdoor applications.

4.Optimized Optical Clarity

400 cd/m² brightness, 350:1 contrast ratio, and rapid 20ms/25ms response time ensure sharp, flicker-free imaging.

Tianfu Customized 3.5' 400 Nit Color TFT LCD Display Module Specification

Module Type	3.5-inch TFT (a-Si)
Resolution	320×RGB×240
Interface	24-bit RGB / SERIAL RGB / CCIR656 / CCIR601
Color Depth	16.7M
Driver IC	HX8238D

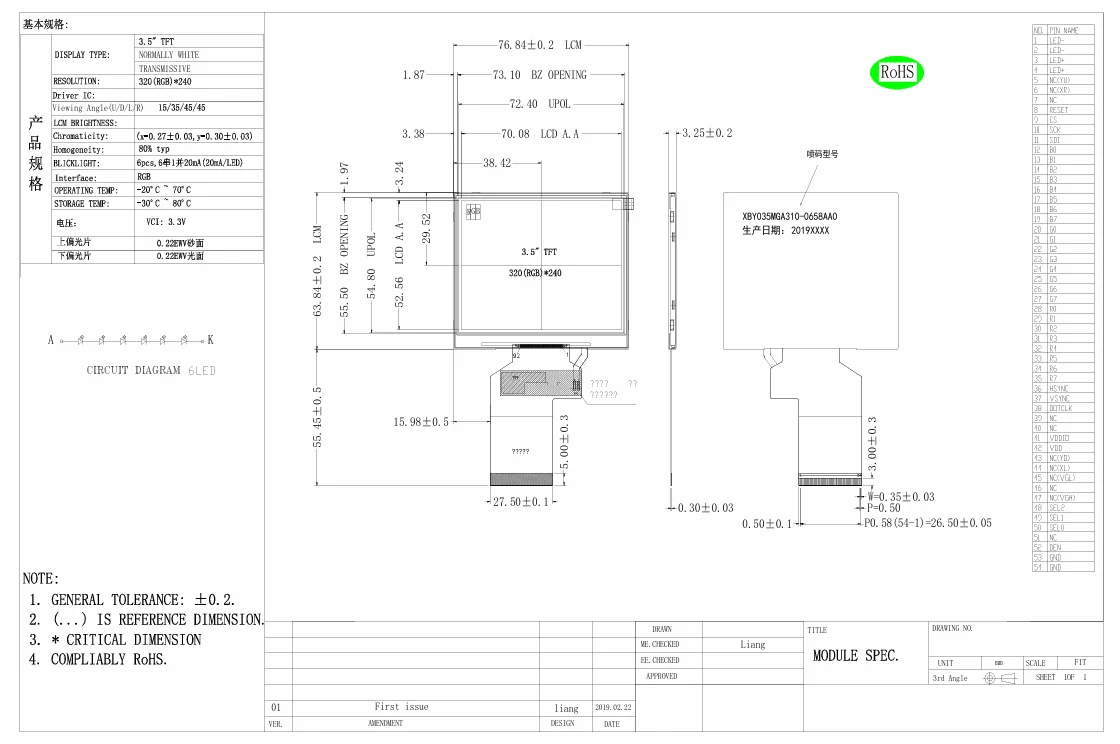

Mechanical Dimensions	76.90×63.9×3.26 mm
Active Area	70.08×52.56 mm
Operating Temperature	-20°C ~ +70°C
Storage Temperature	-30°C ~ +80°C
Backlight	6 LEDs (19.2V @20mA, 0.384W)
Brightness	400 cd/m² (Typ.)
Contrast Ratio	350:1 (Typ.)
Response Time	20ms (Rise) / 25ms (Fall)
NTSC Ratio	60%
Power Supply	3.3V (2.6–3.6V range)
Environmental Compliance	RoHS compliant
Reliability Tests	• High Temp Storage: 80°C/96H • Low Temp Storage: -30°C/96H • Thermal Cycling: -30°C↔ +80°C • ESD:±8kV Air /±4kV Contact • Vibration: 10–150Hz, 100m/s²

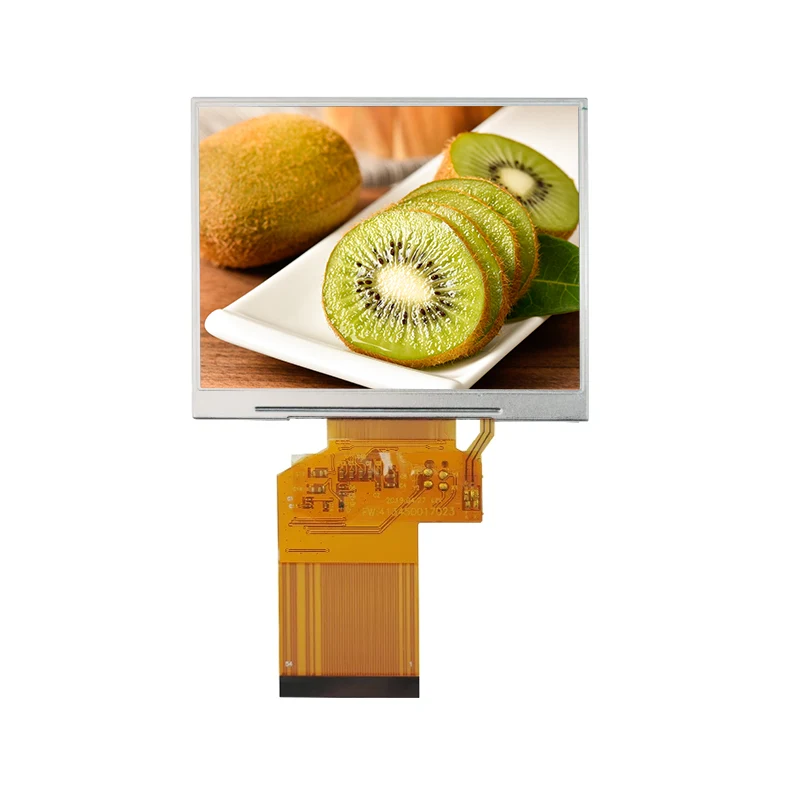

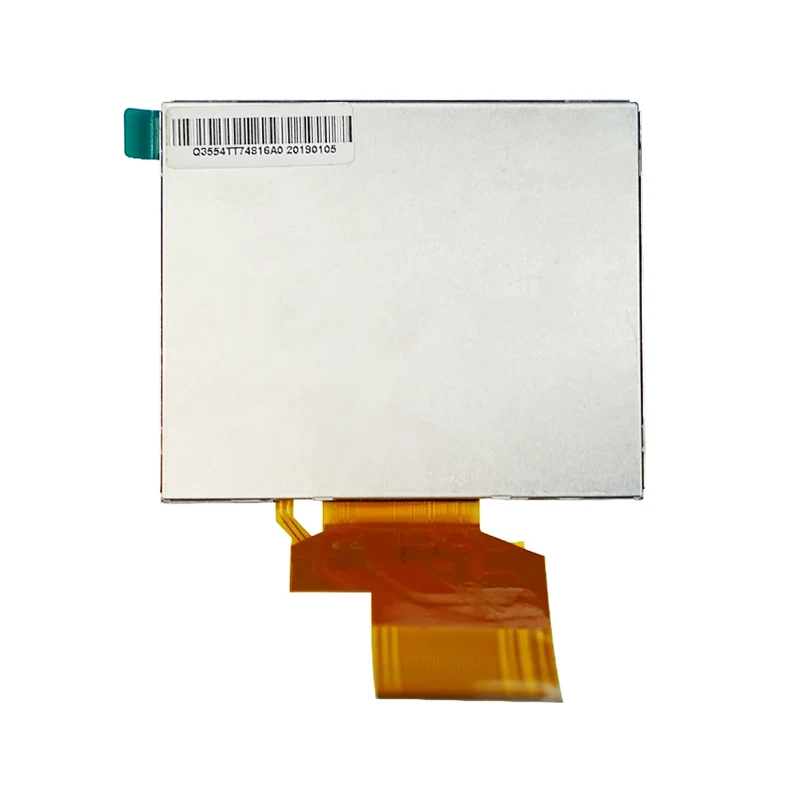

Tianfu 3.5' 400 Nit Color TFT LCD Display Module Details

Tianfu 3.5' Color TFT LCD Display Module Application

Tianfu Leading Time

Standard Products		Customized Products
Order Quantity	Delivery Time	Customization Type	Delivery Time
1-30 PCS	Immediately	B/L & FPC & TP	within 5 weeks
31-100 PCS	1 week	B/L & FPC & TP	within 5 weeks
101-500 PCS	within 2 weeks	B/L & FPC & TP	within 5 weeks
501-1000 PCS	within 3 weeks	B/L & FPC & TP	within 5 weeks
1001-5000 PCS	within 3 weeks	BL & FPC & TP	within 6 weeks
5000+ PCS	within 4 weeks	BL & FPC & TP	within 6 weeks
