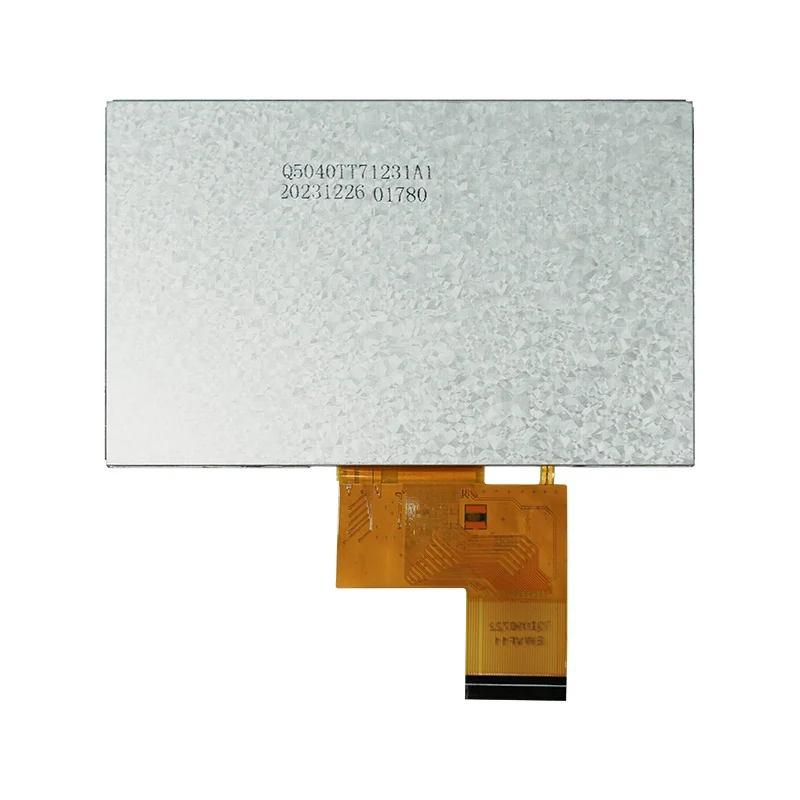

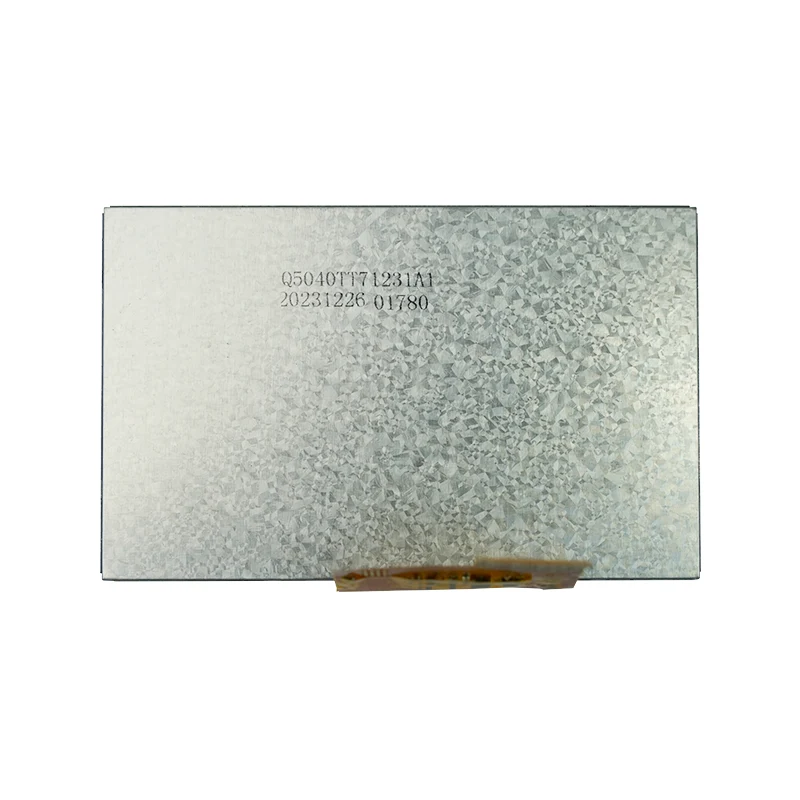

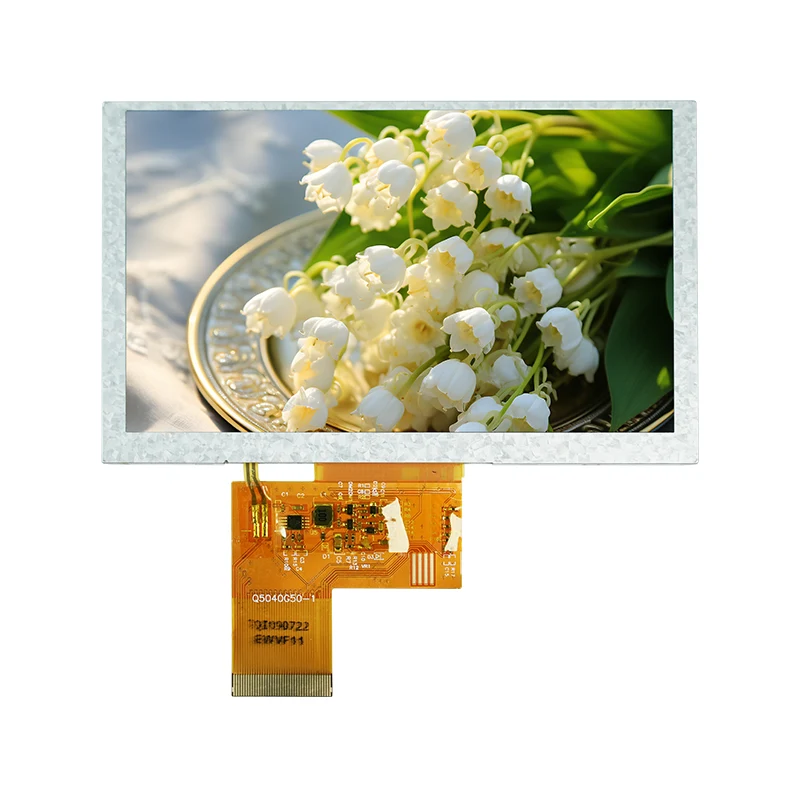

5.0' Normally White Color TFT LCD Display Module

Tianfu 5.0' Normally White Color TFT LCD Display Module for Demanding Applications: 800×480 resolution, 250 cd/m² brightness, and 350:1 contrast delivers crisp visuals. 50% of NTSC color gamut and 20ms response time ensure vibrant, real-time performance. Built rugged wide temperature (-10℃~60℃, RoHS) with 24-bit RGB interface and 19.2V LED backlight. 5.0' normally white color TFT LCD display module is ideal for industrial, medical, and portable systems.

Send Inquiry

Product Description

Supporting small-batch trial orders and custom firmware/interface designs, TFT LCD display module manufactures, Tianfu ensures seamless integration into smart controls/portable instruments, backed by a 12-month warranty.

Tianfu 5.0' Normally White Color TFT LCD Display Module In Stock Features

1.IPS Display with 1200:1 Contrast Ratio

Delivers superior color accuracy and free viewing angles for vivid visuals in industrial and medical applications.

2.High Brightness & Outdoor Readability

350 cd/m² luminance ensures clear visibility even under direct sunlight, perfect for HMI and portable devices.

3.Dual Interface Flexibility

Combines 24-bit RGB parallel interface with SPI control, enabling seamless integration in complex systems.

4.Extreme Environment Resilience

Operates from -20℃ to 70℃ with 50,000-hour MTBF, built for harsh factory floors and medical equipment.

Tianfu Customized 5.0' Normally White Color TFT LCD Display Module Specification

Core Specifications
Display Size	5.0-inch TFT-LCD
Resolution	800 × 480 pixels
Active Area	109.70mm (W) × 66.60mm (H)*
Pixel Pitch	~0.128mm (H) × 0.128mm (W)
Display Mode	Normally White, Transmissive
Driver IC	NV3047 (Image reference; not specified in PDF)
Optical Specifications
Luminance (Typ.)	250 cd/m²
Contrast Ratio	350:1 (Typ.)
Response Time	20 ms (Typ.)
NTSC Ratio	50%
Interface & Electrical
Interface Type	24-bit RGB Parallel - Data: R0-R7, G0-G7, B0-B7 - Control: HSYNC, VSYNC, DE, PCLK - Backlight: 19.2V (LED_A), GND (LED_K)
Power Supply	2.6V - 3.6V (VCC)
Operating Temperature	-10℃ to 60℃

Tianfu 5.0' Normally White Color TFT LCD Display Module Details

Tianfu 5.0 TFT LCD Display Module Application

Tianfu Leading Time

Standard Products		Customized Products
Order Quantity	Delivery Time	Customization Type	Delivery Time
1-30 PCS	Immediately	B/L & FPC & TP	within 5 weeks
31-100 PCS	1 week	B/L & FPC & TP	within 5 weeks
101-500 PCS	within 2 weeks	B/L & FPC & TP	within 5 weeks
501-1000 PCS	within 3 weeks	B/L & FPC & TP	within 5 weeks
1001-5000 PCS	within 3 weeks	BL & FPC & TP	within 6 weeks
5000+ PCS	within 4 weeks	BL & FPC & TP	within 6 weeks
