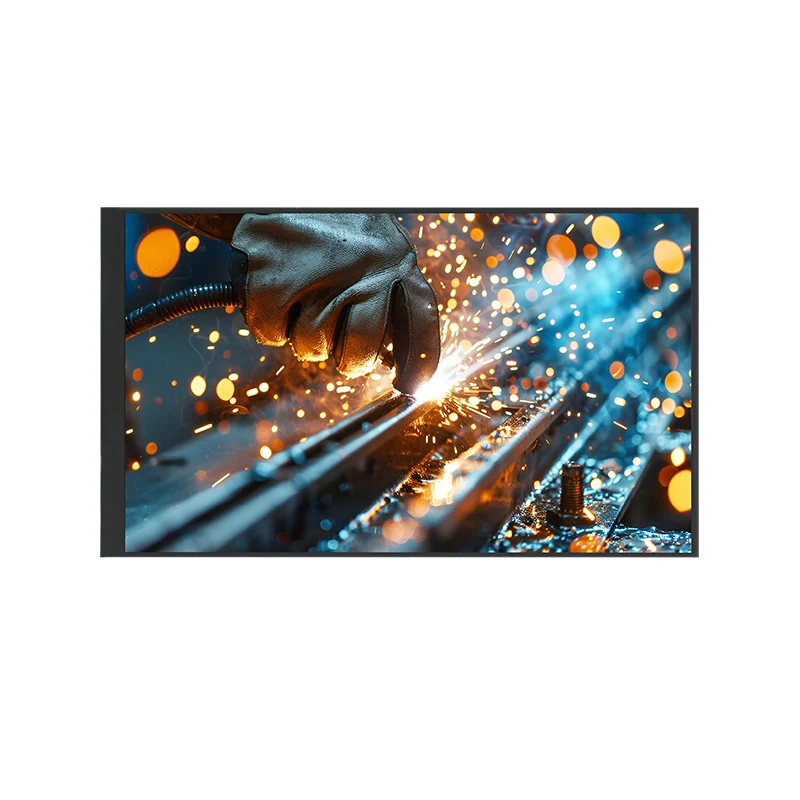

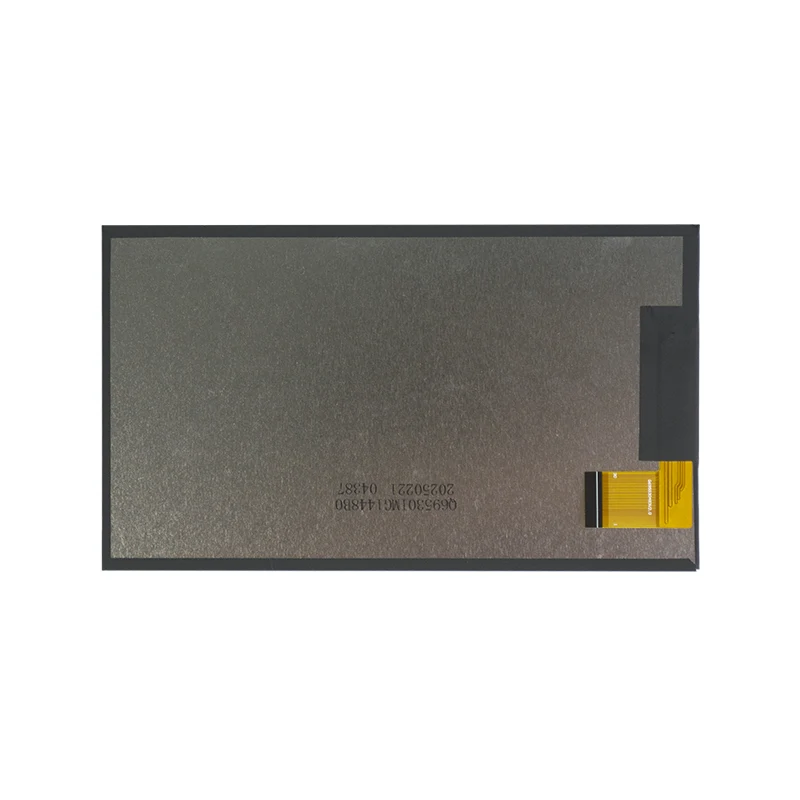

6.95' Wide Temp Color TFT LCD Display Module

Core Features & Application Scenarios

• High-Definition Visuals: WVGA resolution (600 × RGB × 1024) delivers sharp, detailed images.

• Wide Viewing Angles & Stable Display: IPS technology provides an 85° omnidirectional viewing angle, maintaining consistent color and contrast.

• Strong Ambient Light Adaptability: A typical brightness of 350 cd/m² combined with a 700:1 contrast ratio ensures excellent visibility in indoor and semi-outdoor environments.

• Broad Application Fields: Industrial Human-Machine Interfaces (HMI), medical equipment displays, portable testing instruments, smart home control panels, commercial terminals, and IoT display modules.

Core Product Value

We provide device manufacturers with a plug-and-play, stable, and reliable display module. This helps shorten product development cycles, reduce supply chain management complexity, and ensure a long-lasting, clear visual interaction experience even under harsh environmental conditions.

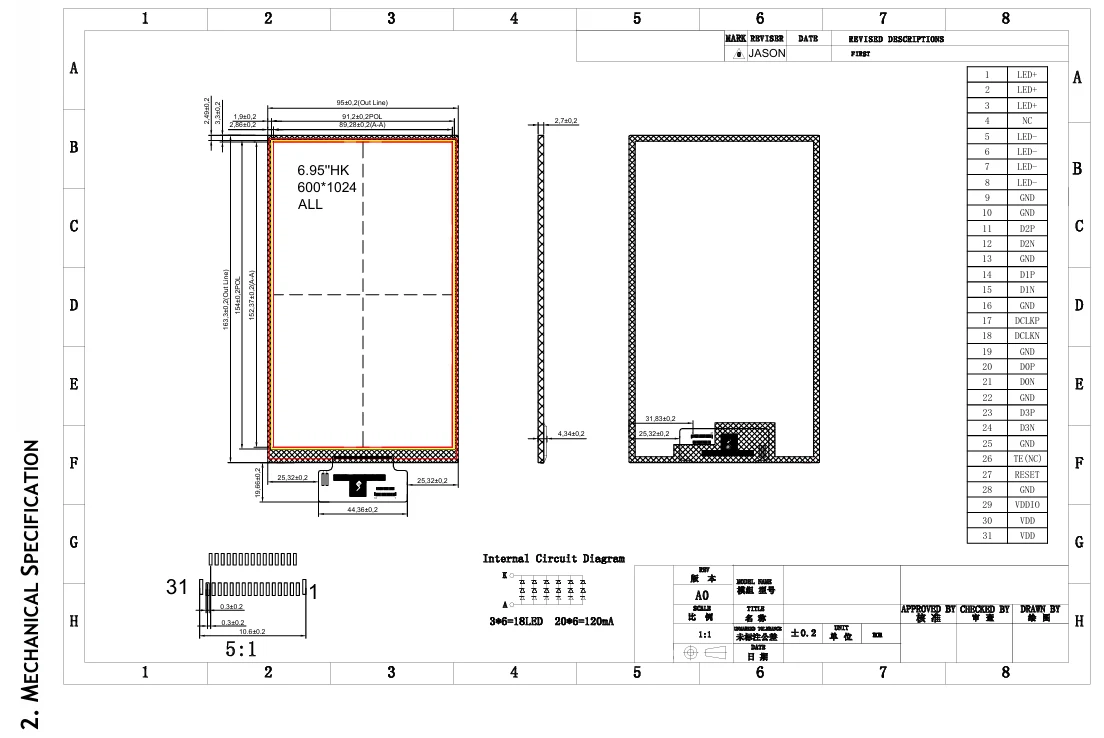

Tianfu Customized 6.95' Wide Temp Color TFT LCD Display Module Specification

Tianfu 6.95' Wide Temp Color TFT LCD Display Module Details

We understand the harsh nature of industrial applications, and 6.95' Wide Temp Color TFT LCD Display Module adheres to high‑quality standards throughout the entire design, material selection, and production processes.

• Strict Production Testing: Every module undergoes power‑on testing, signal testing, color uniformity checks, and pixel defect inspection (in accordance with industry‑wide standards) before leaving the factory.

• Key Component Certification: Core driver ICs, backlight LEDs, and other critical components are sourced from well‑known brands to ensure long‑term stable supply and consistent performance.

• Environmental Adaptability Validation: The module has been verified to operate stably within the specified wide‑temperature range, meeting the requirements of most industrial and commercial environments.

• ESD Protection: The circuit design includes basic ESD protection measures. We recommend that customers add corresponding protection in their system‑level product designs.

Compliance Statement

This product complies with the RoHS directive’s restrictions on hazardous substances. Production is strictly carried out in accordance with the ISO9001 certified system. We can assist in providing relevant compliance statements and technical support documents based on customers’ specific project requirements.

Customization Services & Process Flow

Standard Products & Customization

We offer this 6.95' Wide Temp Color TFT LCD Display Module as a standard product to ensure rapid sample support and stable mass production supply. At the same time, we understand that your product may require a unique design, so we provide flexible customization services:

Optical Customization: Adjust brightness (up to 500 cd/m² or higher), color temperature, and surface treatment (anti-glare, high-gloss, etc.).

Interface & Pin Adaptation: Within the scope of hardware design feasibility, we can negotiate adjustments to FPC length, interface position, and pin definitions.

Structural Customization: Provide plastic or metal frame designs to fit your device enclosure and installation method.

Backlight Dimming: Supports PWM dimming, with adjustable dimming frequency ranges available upon request.

Cooperation Process

Needs Analysis → Solution Evaluation & Quotation → Sample Testing → Design Confirmation → Small Batch Trial Production → Mass Delivery & Quality Tracking

We have a professional FAE (Field Application Engineer) team to provide you with full-process technical support from initial selection to mass production implementation.

Q1: What products is this display mainly suitable for?

A: This 6.95-inch WVGA IPS display is ideal for industrial control equipment (HMI), medical monitoring instruments, portable smart terminals, handheld barcode scanners, smart lockers, and self-service kiosks. It is specifically designed for applications requiring a balance of display reliability, wide viewing angles, and cost-effectiveness.

Q2: The interface is MIPI DSI, but my main control chip uses RGB or LVDS. Can it still be used?

A: Yes, you will need a bridge chip (such as solutions from DragonTrail or Realtek) to convert MIPI DSI to RGB or LVDS. We can provide recommendations for suitable bridge chips or reference designs for mature adapter boards to help you complete system integration quickly.

Q3: Can I request samples for testing?

A: Yes. We offer sample purchases for potential customers with clear project requirements. Please contact us through our business channels, providing your company information, project overview, and testing needs, and we will arrange this as soon as possible.

Q4: The operating temperature is -10°C to 60°C. Can it be used in colder or hotter environments?

A: This range is the guaranteed operating temperature for normal performance. If your application environment exceeds this range (e.g., outdoor equipment in cold regions), we can evaluate a custom wide-temperature version (for example, extended to -30°C~80°C), though this may involve adjustments to materials and costs.

Q5: At 350 nits brightness, is it visible outdoors in sunlight?

A: 350 cd/m² is typical for indoor applications. For outdoor sunlight readability, we recommend a high-brightness screen of 800 cd/m² or more, paired with optical bonding technology to reduce reflections. We can provide high-brightness customization options.

Q6: What is the approximate lifespan of the panel?

A: Under specified electrical and temperature conditions, the backlight lifespan (time until brightness decreases to 50% of the initial value) is typically over 30,000 hours. The actual lifespan is closely related to the operating environment, heat dissipation design, and driving current.

Q7: Do you provide technical support, such as drivers or initialization code?

A: Yes. We provide purchasing customers with basic specifications, interface timing diagrams, recommended circuit diagrams, and initialization code examples for the driver IC. For complex technical issues, our FAE team will provide professional support.

Q8: What is the Minimum Order Quantity (MOQ), and what is the lead time?

A: The MOQ for standard models is typically 500-1000 units, depending on the order structure. The standard lead time for mass production is approximately 4-6 weeks. For urgent samples or small batches, we have a fast-track process available for negotiation. MOQ and lead times for customized products need to be evaluated based on specific requirements.

Tianfu Leading Time
