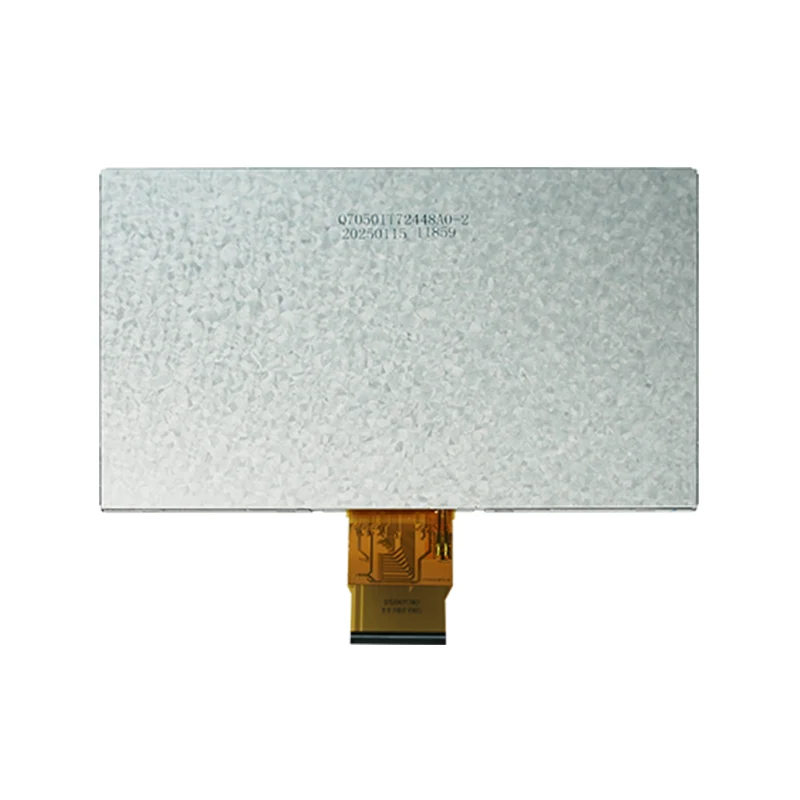

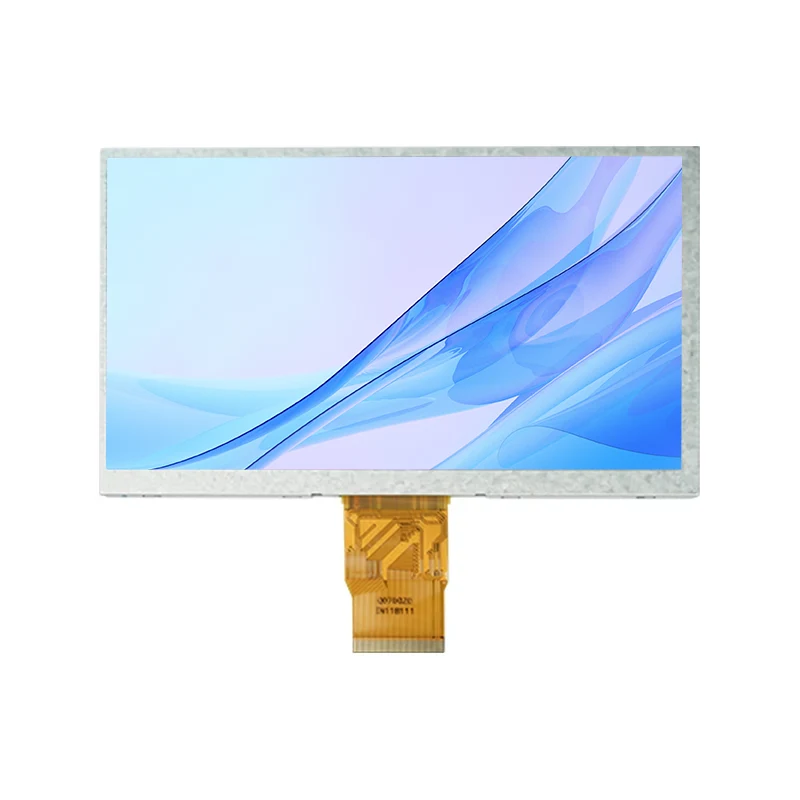

7.0' Free Viewing Angle Color TFT LCD Display Module

Core Specifications

Display Size

7.0-inch IPS TFT-LCD

Resolution

1024×RGB×600 (WVGA)

Pixel Pitch

0.1506(H) × 0.1432(V) mm

Active Area

154.21(H) × 85.92(V) mm

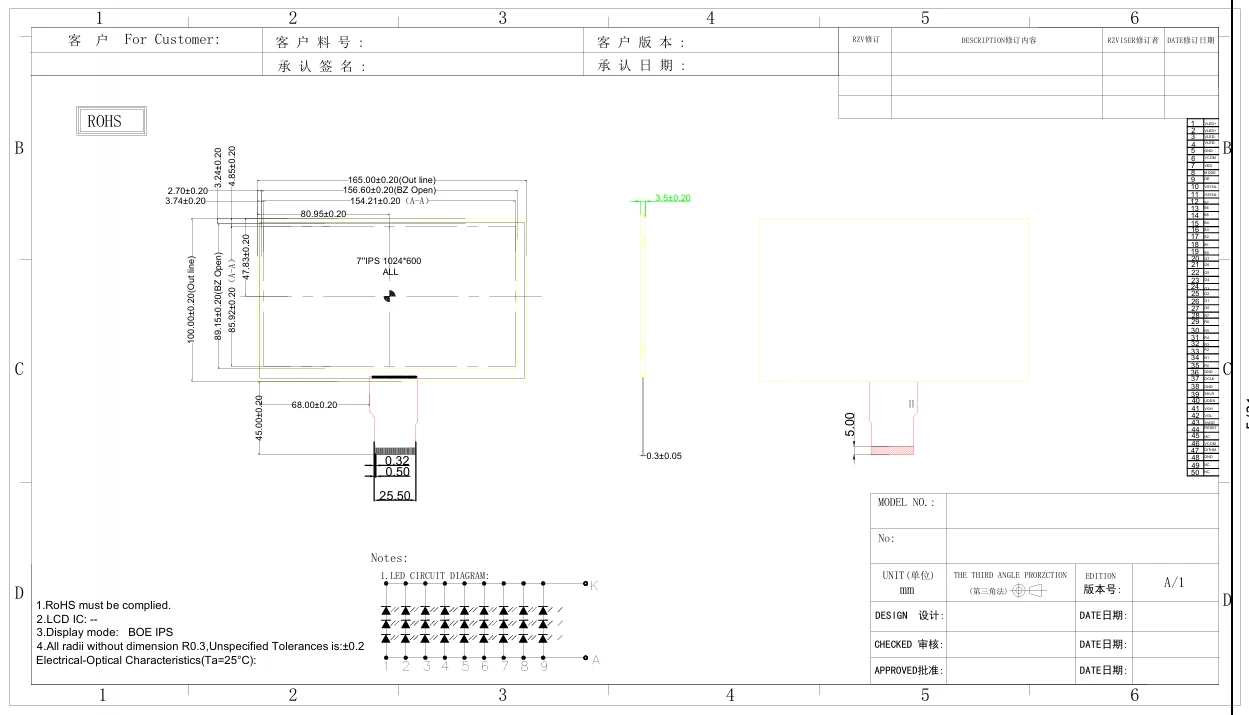

Outline Dimensions

165(W) × 100(H) × 3.5(D) mm

Display Mode

Normally Black (IPS Technology)

Interface

TTL Parallel RGB (50-pin FPC)

Surface Treatment

Anti-Glare (2H/3H Hard Coating)

Electrical Characteristics

Digital Supply Voltage (VDD)

3.3V (3.0–3.6V)

Analog Supply Voltage (AVDD)

9.6V (9.4–9.8V)

TFT Gate Voltage (VGH/VGL)

18V (17–19V) / -6V (-7–-5V)

Current Consumption (Typ.)

VDD: 30mA, AVDD: 35mA, VGH: 0.5mA, VGL: 1mA

Backlight Voltage/Current

9.6V (8.4–10.6V) / 180mA (27 LEDs)

Operating Temperature

-20°C to +70°C

Storage Temperature

-30°C to +80°C

Optical Characteristics

Luminance (Typ.)

450 cd/m² (Center Point)

Contrast Ratio (Typ.)

800:1 (0° Viewing Angle)

Response Time (Typ.)

25ms (Rise + Fall)

Viewing Angle (H/V)

80°/80° (CR > 10)

Color Gamut (NTSC)

50%

Chromaticity (White)

x: 0.230–0.330, y: 0.260–0.360

Interface & Control

Connector Type

Hirose FH12A-50S-0.55H (50-pin FPC)

Data Input

8-bit RGB (24-bit color depth)

Sync Modes

DE Mode (Default) / HS/VS Mode

Scan Direction Control

L/R (Left/Right Shift) / UPDN (Up/Down Scan)

Dithering Support

8-bit (H) or 6-bit (L) Resolution
