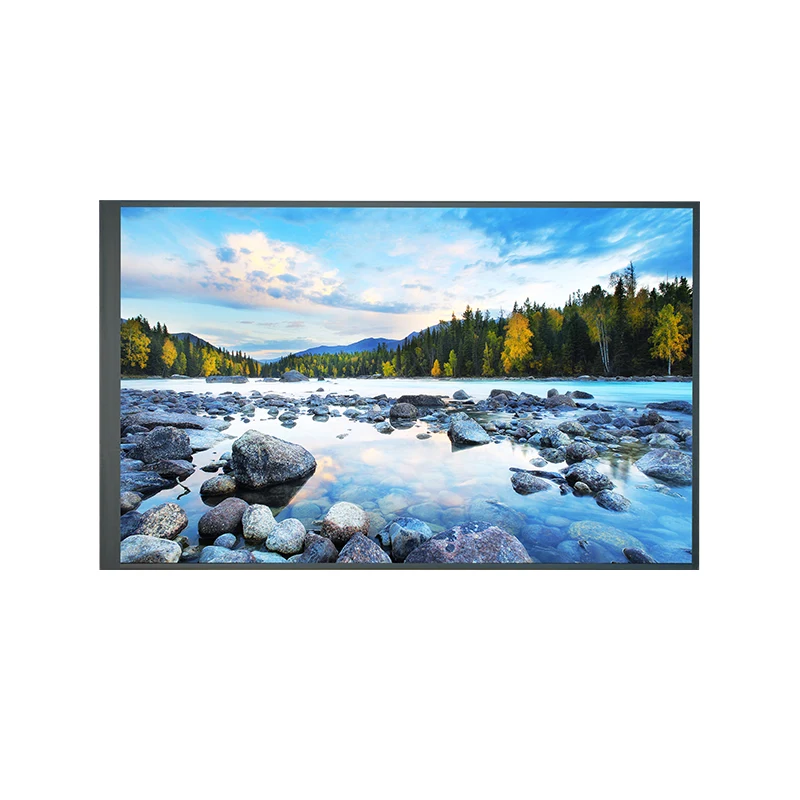

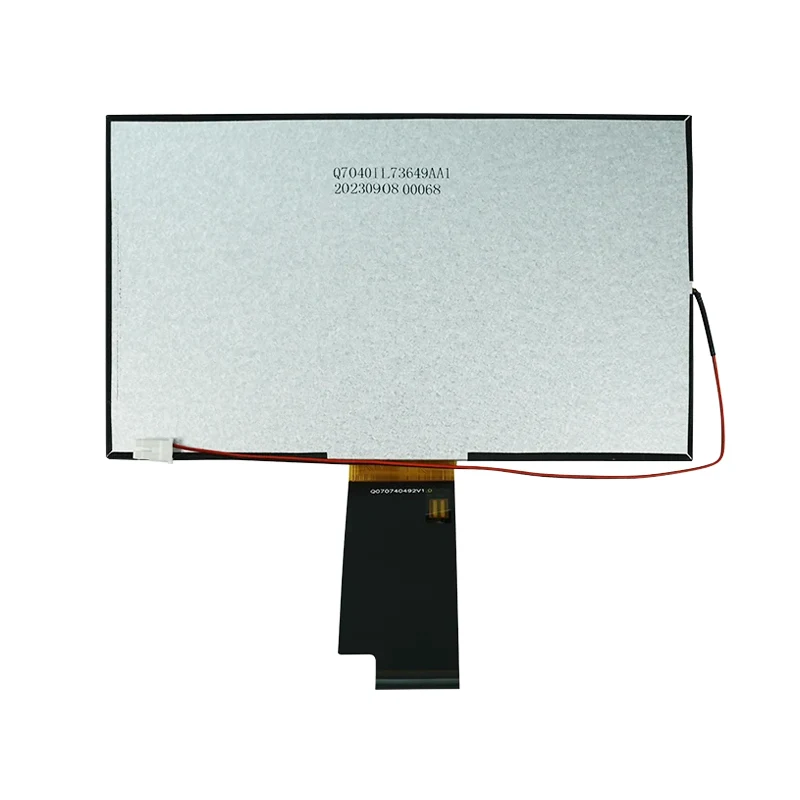

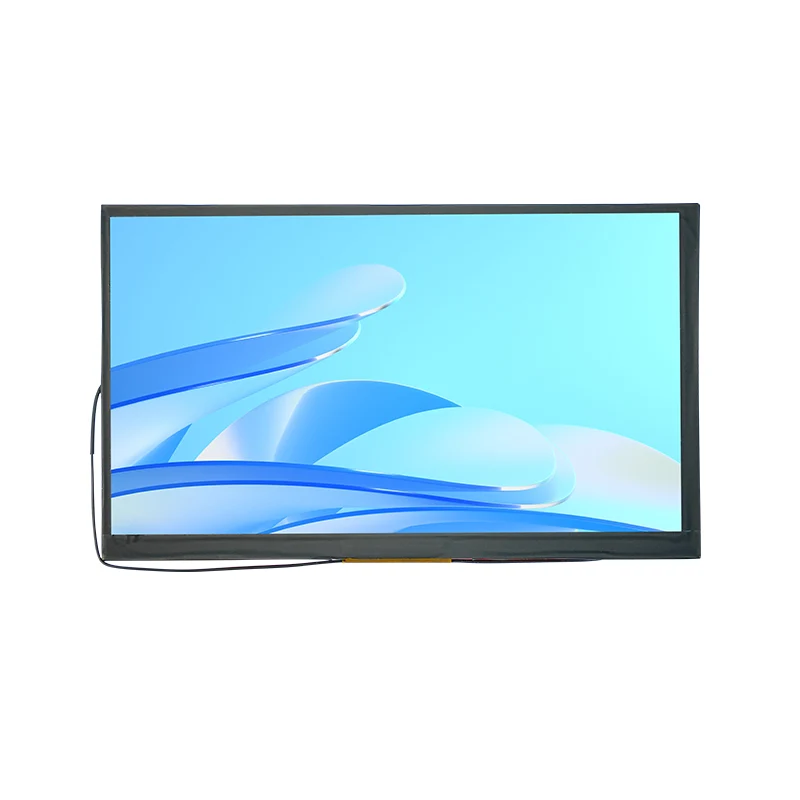

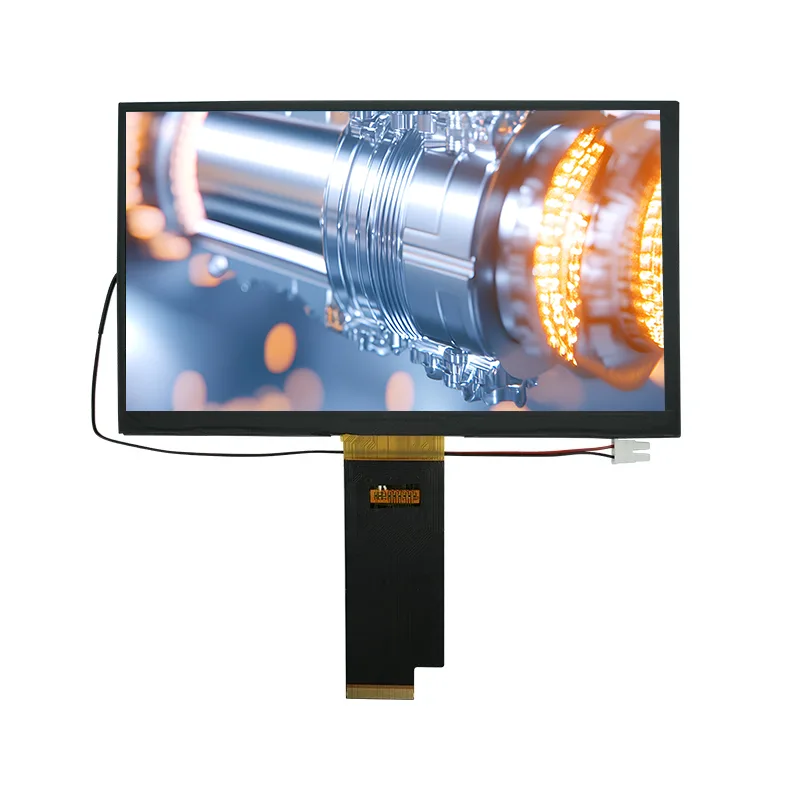

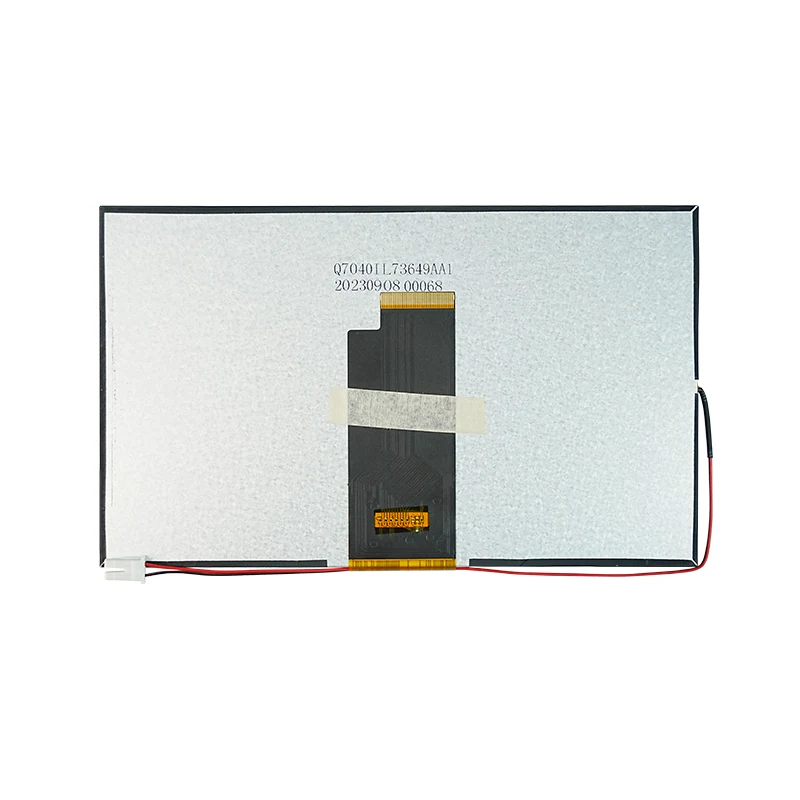

7.0 inch Industrial Transmissive IPS TFT LCD Screen Module

Application

Industrial HMI Applications

7.0 inch industrial transmissive IPS TFT LCD screen module operates over a wide temperature range of -20°C to 70°C (even wider temperature ranges, such as -30°C to 80°C). Its brightness exceeds 500 cd/m², with ultra-high brightness options reaching 1000-1500 cd/m², enabling continuous 24/7 operation and seamless integration with PLC systems and portable industrial HMI devices.

Medical Monitor Applications

7.0 inch industrial transmissive IPS TFT LCD screen module features anti-glare glass and a sunlight-readable display, effectively reducing eye fatigue for medical personnel during extended use. Its precise touch response, fast reaction time, and glove-compatible operation make it ideal for portable devices such as blood glucose meters, blood pressure monitors, and oximeters.

Consumer Electronics Applications

For consumer electronics, 7.0 inch industrial transmissive IPS TFT LCD screen module offers a 240×RGB×320 resolution with an RGB565 data format, low power consumption, a lifespan of ≥30,000 hours, and an IPS wide viewing angle. It is ideal for children's smartwatches, POS terminals, and drone remote controls (as a secondary screen).

In one case, we provided a 7.0 inch industrial transmissive IPS TFT LCD screen module to replace the original display of an industrial-grade POS device (mobile payment terminal), reducing costs by 25%.

Item Specification

Details

Tianfu Leading Time

Quality Inspection

Our Transmissive IPS TFT LCD Screen Module are custom developed for the aerospace industry, thanks to Tianfu's rigorous adherence to ISO 9001 quality management system certification.

During our production process, we employ a high-precision, 1:1 replication of ISO 9001 standards, ensuring high consistency from design to finished module.

Furthermore, we conduct rigorous inspections at every stage of manufacturing. Most importantly, before final delivery, these modules undergo burn-in testing that far exceeds industry standards, fully demonstrating Tianfu's commitment to product reliability in mission-critical aerospace applications. environments.

Package

Tianfu's packaging utilizes a fully customized solution for protecting TFT LCD display modules. The embedded card holder is custom-made to the precise dimensions of the LCD module (length, width, thickness, and edge curvature).

Custom embedded card holder (1:1 by the dimensions of card holder: LCD module) are placed in a corrugated box lined with EPE foam, ensuring a zero-gap, secure fit between the module and the pallet. The outer box for the TFT LCD screen module is custom-made with five layers of reinforced corrugated cardboard to match the pallet dimensions. Custom foam partitions and air cushions are added internally to form a four-layer protection system: module-card holder-inner box-outer box.

This solution, validated by ISTA-3A transportation testing (simulating drops, vibrations, and crushing during road and air transportation), effectively eliminates over 98% of transportation vibration risks, ensuring that the TFT LCD display module remains intact, free of scratches, and functional damage during long-distance transportation and multiple loading and unloading.
