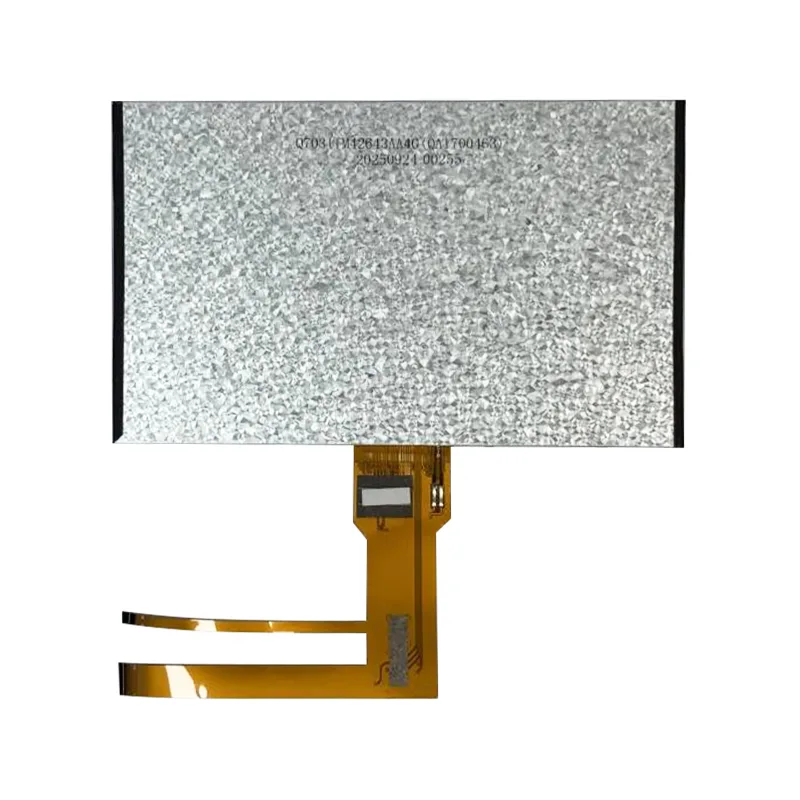

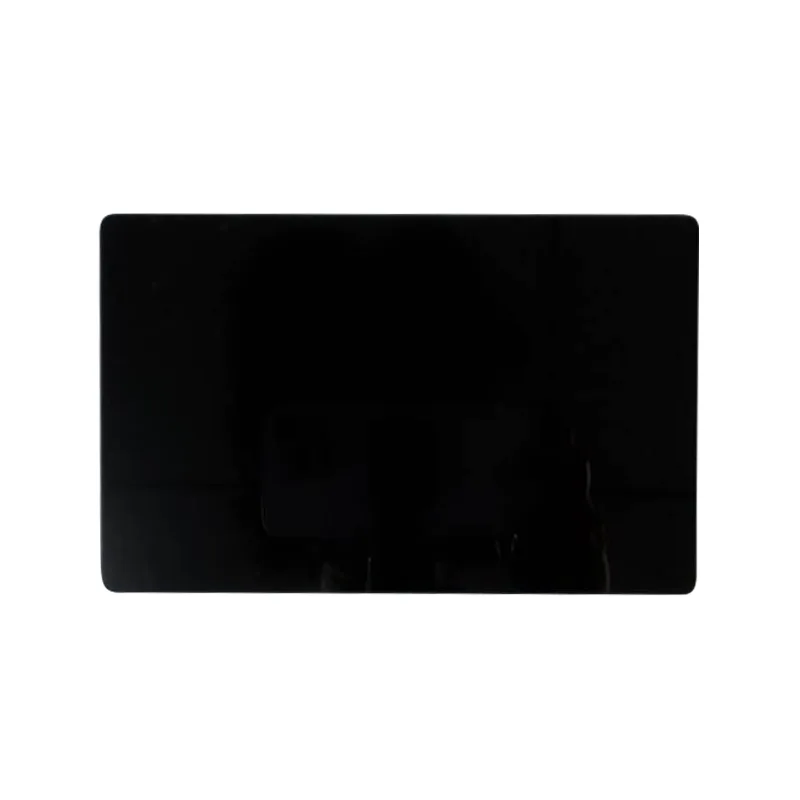

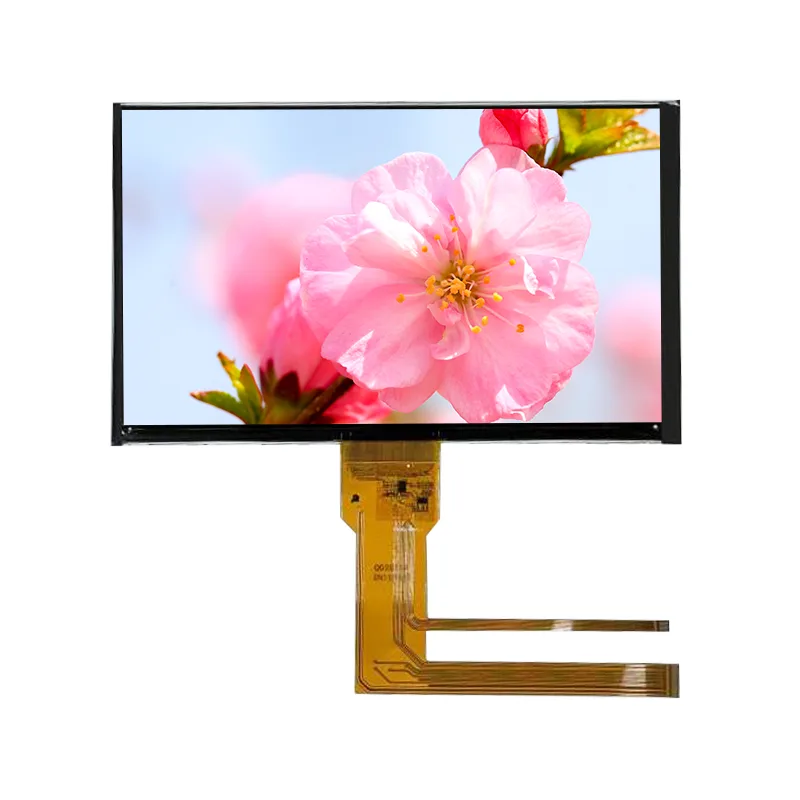

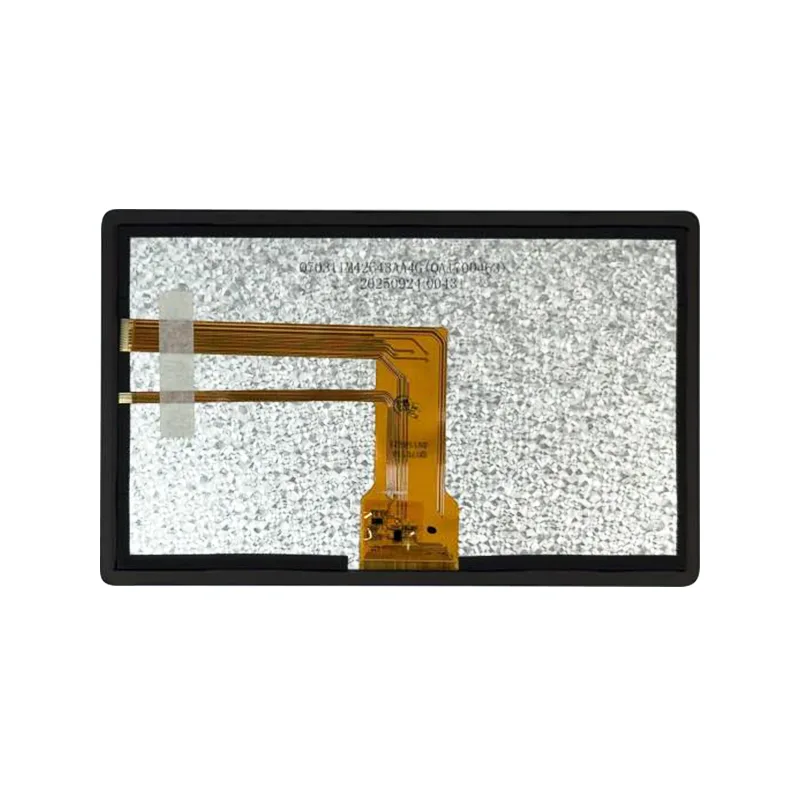

7.0 Inch Ultra-thin IPS Thin In-cell Touch Screen Module For Smart Home

❌ Common Challenges:

Poor color accuracy on displays, unresponsive touch controls, and high-power consumption leading to short battery life.

✅ Our Solution:

• Integrated In-cell Touch Technology: Utilizes In-cell LCD panels where the touch and display layers are fused into one. This delivers faster touch response and allows for a slimmer device profile.

• Vivid, True-to-Life Colors: Supports 16.7 million colors and a wide color gamut (45-50% NTSC). This ensures medical data and smart home interfaces are displayed with natural, accurate color reproduction.

• Low-Power Design: Operates at a low voltage range of 3.0V–3.6V (typical 3.3V). Combined with an edge-lighting backlight structure, our modules consume 20% less power than conventional designs, significantly extending battery life in portable devices.

Industrial Control Applications (PLC Panels / Smart Meters)

❌ Common Challenges:

Display failure in low-temperature workshop conditions, poor visibility of parameters under strong ambient light, and overheating damage from continuous 24/7 operation.

✅ Our Solution:

• Wide-Temperature Operation: Designed to operate from -20°C to 70°C and withstand storage temperatures from -30°C to 80°C. This ensures reliable performance in freezing northern workshops or high-temperature equipment compartments.

• High Contrast & High Brightness: With a 1500:1 contrast ratio and 300–350 nits (cd/m²) of brightness, every detail—from meter readings to control buttons—remains clearly visible, whether in dimly lit workshops or under direct, intense lighting.

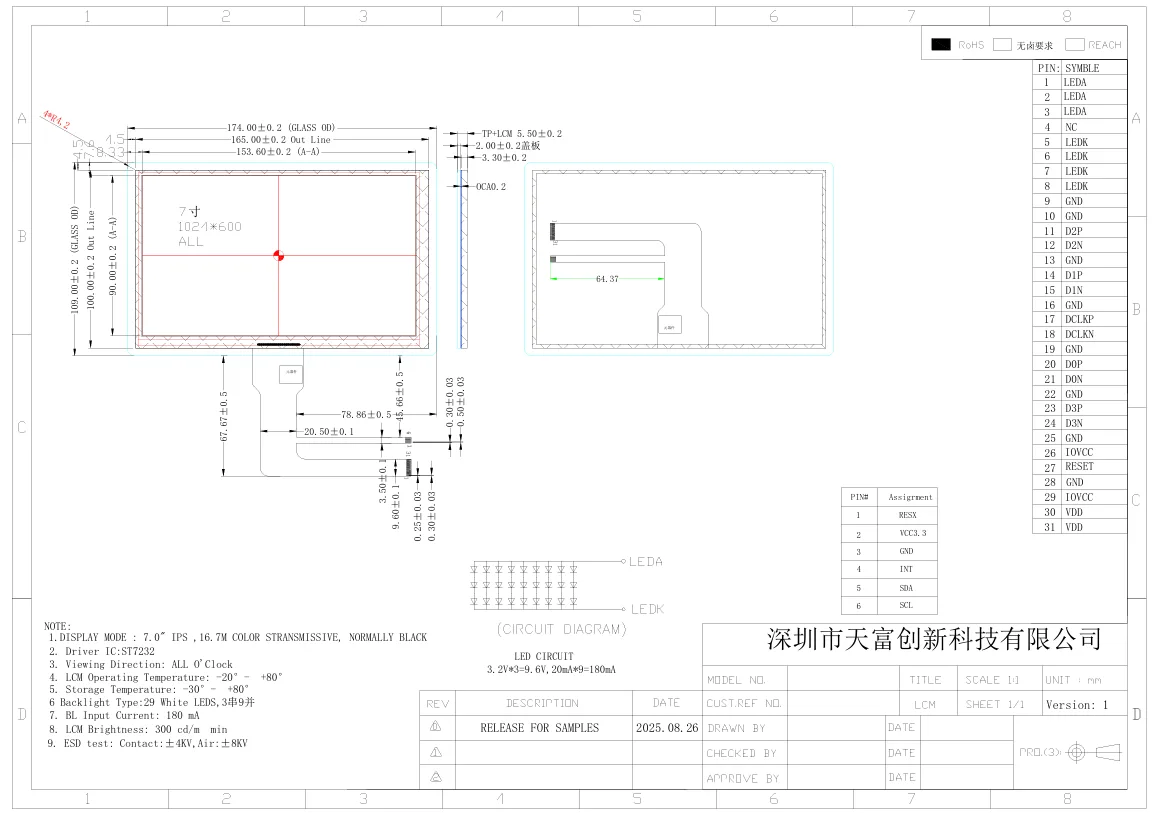

• Robust & Compact Design: Features an ultra-slim profile of just 5.5mm (overall dimensions: 174.0 × 109.0 × 5.5 mm) to fit into tight equipment layouts. Built with high-temperature-resistant PCB materials, it ensures 10,000 hours of continuous, failure-free operation under demanding industrial conditions.

📌 Our Client Profile: A mart home manufacturer.

🔍 Client Requirements: A 7-inch LCD module requiring wide-temperature operation, low power consumption. The core demands were "small minimum order quantity (initial batch of 500 units) + rapid debugging support."

✅ Our Solution:

Hardware Compatibility: Provided a TTL interface module compatible with the client's existing STM32 MCU platform. The driver IC (ST7232) was used, and ready-to-use driver code was supplied for seamless integration.

Customized Adaptation: Fine-tuned the mounting hole positions to fit the client's device dimensions precisely. The active display area of 153.6 × 90.0 mm perfectly matched their panel layout.

Technical Support: Assigned a dedicated engineer for 1-on-1 remote debugging, resolving interface communication issues within 2 hours.

📊 Results for the Client:

Reduced device development cycle from 15 days to just 7 days.

Achieved a defect rate of only 0.2% for the first batch, significantly lower than the industry average of 1%.

Secured a stable follow-up monthly order of 2,000 units.

Item Specification

Details

1. Global Compliance, Hassle-Free Export

✅ Complete Certification: Manufactured under ISO9001 certified processes; LCD display modules are RoHS and CE compliant.

✅ Documentation Support: Receive full certification reports and material declarations (SDS) immediately upon order placement, speeding up client factory audits.

2. Flexible Customization, Supports Small Batches

✅ Customization Options: Interface (e.g., TTL MIPI, MCU as optional,), backlight color (white/warm yellow), brightness, and mounting hole positions.

✅ Lead Time: Standard products ship within 48 hours. Custom prototypes take 7 days, with full delivery in 15 working days.

✅ Low MOQ: Minimum order quantity starts from just 1 unit.

3. Reliable After-Sales, Risk-Free Partnership

✅ Quality Commitment: Uses Grade A+ panels and branded components. It comes with a 1-year warranty and free replacement for non-human damage.

✅ Technical Support: 24/7 service via email, WhatsApp, or WeChat Work with a guaranteed response time of under 2 hours.
