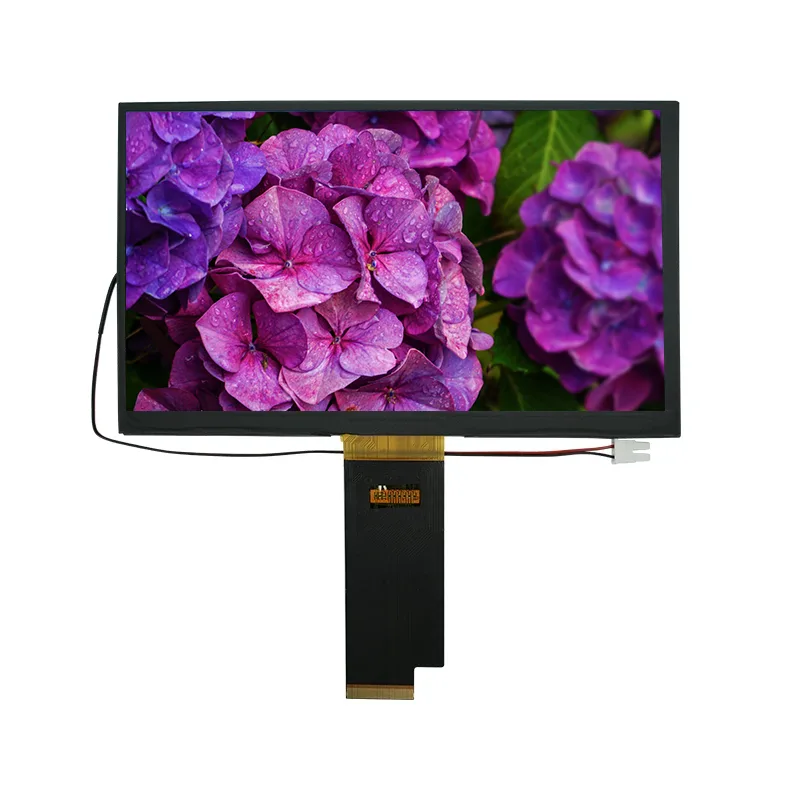

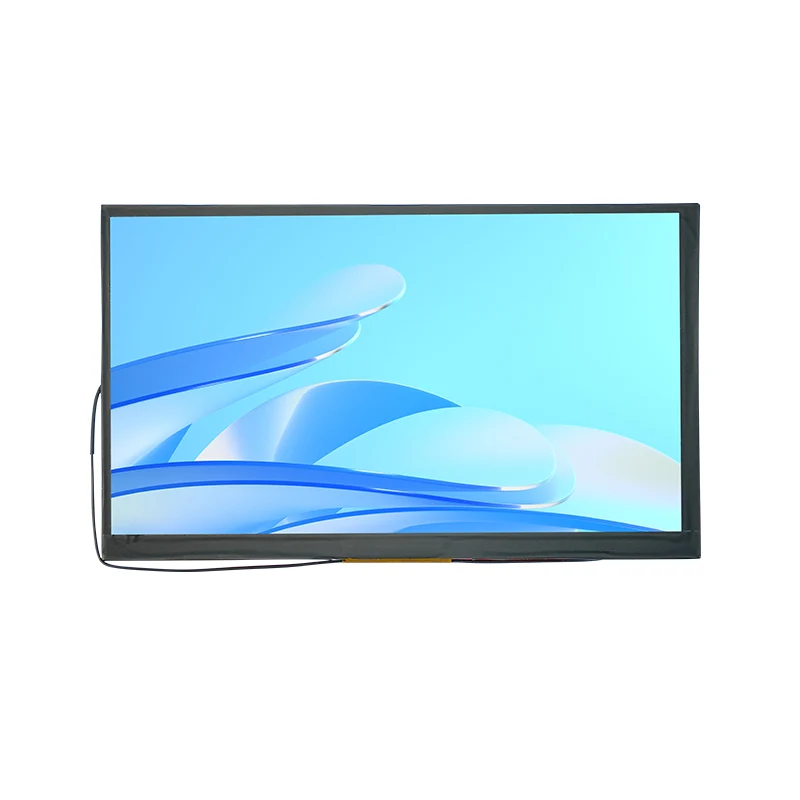

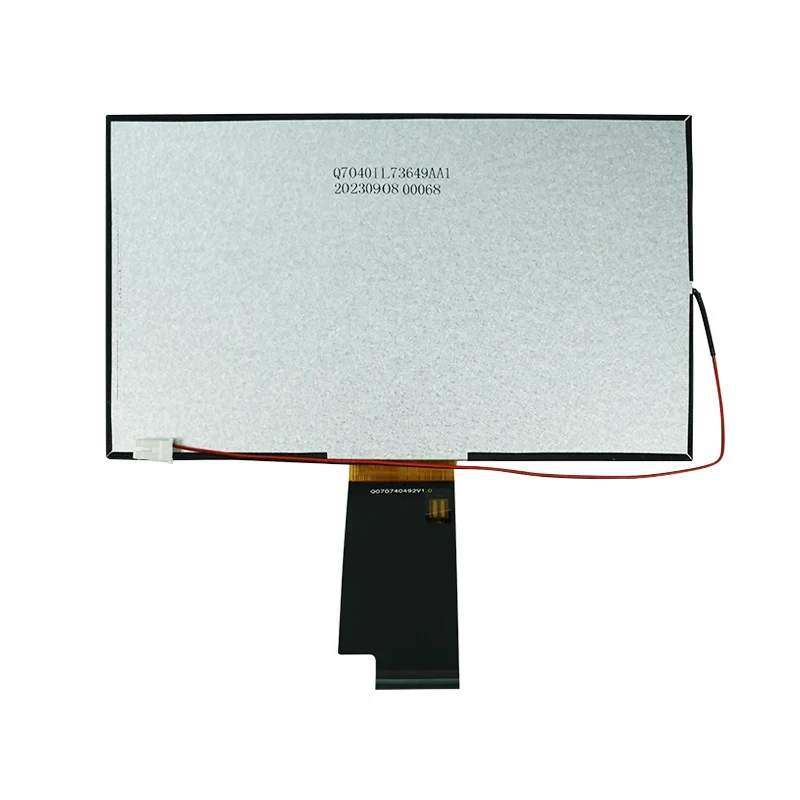

7.0 inch Wide-temp IPS TFT LCD Screen Module

Tianfu's 7.0 inch Wide-temp IPS TFT LCD Screen Module boasts an exceptional 1024x600 resolution, 140 cd/m² brightness, and an 800:1 contrast ratio for crisp, clear visuals. It features an anti-glare treatment, a wide viewing angle of 70° left and right, and 60°/45° top and bottom, and an operating temperature range of -20°C to +70°C. Equipped with a TTL interface and a stable 3.3V digital power supply, 7.0 inch wide-temp IPS TFT LCD screen module is ideal for industrial/automotive applications, delivering reliable, vivid performance.

Send Inquiry

Product Description

Features

1. Choose the Reliability of Tianfu

● Tianfu takes product reliability as its core competitiveness, implements strict standards, and has passed ISO 9001 certification. It replicates the production process 1:1 and implements standard operations and testing at all stages to prevent process deviations from causing quality fluctuations.

● Tianfu's 4.5-inch wide-temperature IPS TFT capacitive screen has passed a 48-hour "double 85" test before leaving the factory, with no bright or dark spots, a lifespan of ≥30,000 hours, and stable touch display even under long-term high-frequency use.

2. Help You Control Your Cost

While ensuring quality, Tianfu reduces the procurement costs of its 7.0 inch Wide-temp IPS TFT LCD Screen Module by 20%-30% for customers through comprehensive cost control. The specific implementation path is clear and achievable:

● Disintermediation through in-house developed production lines: We independently build a complete production chain, eliminating the need for external outsourcing or distribution through intermediaries. This eliminates the markup costs associated with intermediate links, reducing procurement costs by 20%-40% for customers.

● Direct sourcing from upstream reduces costs: We establish long-term, in-depth partnerships with core panel manufacturers. Leveraging our stable procurement scale and trust, we achieve competitive pricing, further reducing raw material procurement costs by 15%.

● Flexible MOQs reduce inventory: We support flexible production with minimum order quantities (MOQs), enabling on-demand orders without the burden of stocking inventory. This effectively reduces inventory backlogs and capital tie-ups, helping customers reduce inventory management costs by 20%.

3. MOQ: 1 pc, with Flexible Customization Based on Actual Needs.

● Hardware Customization: Size (non-standard sizes supported); Interfaces (LVDS/RGB/MIPI/parallel port, etc.); Backlight (edge-lit/direct-lit, adjustable color temperature); Glass (anti-glare/AR anti-reflective/anti-fingerprint); Bezel (narrow bezel/custom-shaped cutting); Connector position offset (±0.3mm accuracy); Brightness adjustment: 250~1500 cd/m² adjustable; Thickness reduction (full lamination ≤1.5mm), etc.

● Customization Service Process: Supports full-process customization from design drawings to mass production, with an MOQ of just 1 piece, and proofing cycle 30% faster than the industry average.

Item Specification

General Specifications

Panel Size	7.0 inch
Resolution	1024 × RGB × 600
Active Area	154.21(H) × 85.92(V) mm
Pixel Pitch	0.1506(H) × 0.1432(V) mm
Outline Dimension	164.3(W) × 97(H) × 2.6(D) mm
Number of Colors	16.7 Million
Display Mode	Normally White
Viewing Direction	6 o'clock
Pixel Arrangement	RGB Vertical Stripe

Optical Characteristics

Luminance (Brightness)	140 cd/m² (Typical)
Contrast Ratio	800:1 (Typical)
Luminance Uniformity	75% (Typical)
Response Time	25 ms (Typical)
Viewing Angle (Left/Right)	70° (CR > 10)
Viewing Angle (Up/Down)	60°/45° (CR > 10)
Surface Treatment	Anti-glare
NTSC Ratio	51% (Typical)

Electrical Characteristics

Interface	TTL
Digital Supply Voltage (VDD)	3.0V - 3.6V (3.3V Typical)
Analog Supply Voltage (AVDD)	9.4V - 9.8V (9.6V Typical)
TFT Gate On Voltage (VGH)	17V - 19V (18V Typical)
TFT Gate Off Voltage (VGL)	-7V - -5V (-6V Typical)
Digital Power Current	30 mA (Typical)
Analog Power Current	35 mA (Typical)

Backlight System

Backlight Type	White LED
Number of LEDs	18
LED Current	120 mA (Typical)
Forward Voltage	8.4V - 10.6V (9.6V Typical)
Power Dissipation	1152 mW (Typical)

Environmental Specifications

Operating Temperature	-20°C to +70°C
Storage Temperature	-30°C to +70°C

Tianfu Leading Time

Standard Products		Customized Products
Order Quantity	Delivery Time	Customization Type	Delivery Time
1-30 PCS	Immediately	B/L & FPC & TP	within 5 weeks
31-100 PCS	1 week	B/L & FPC & TP	within 5 weeks
101-500 PCS	within 2 weeks	B/L & FPC & TP	within 5 weeks
501-1000 PCS	within 3 weeks	B/L & FPC & TP	within 5 weeks
1001-5000 PCS	within 3 weeks	BL & FPC & TP	within 6 weeks
5000+ PCS	within 4 weeks	BL & FPC & TP	within 6 weeks

Quality Inspection

Tianfu’s TFT capacitive touch screen module fits aerospace, thanks to strict quality control. It meets ISO 9001, replicates its process 1:1, uses top materials, tests each production step, and has stricter pre-delivery aging tests to ensure stability for mission-critical use.

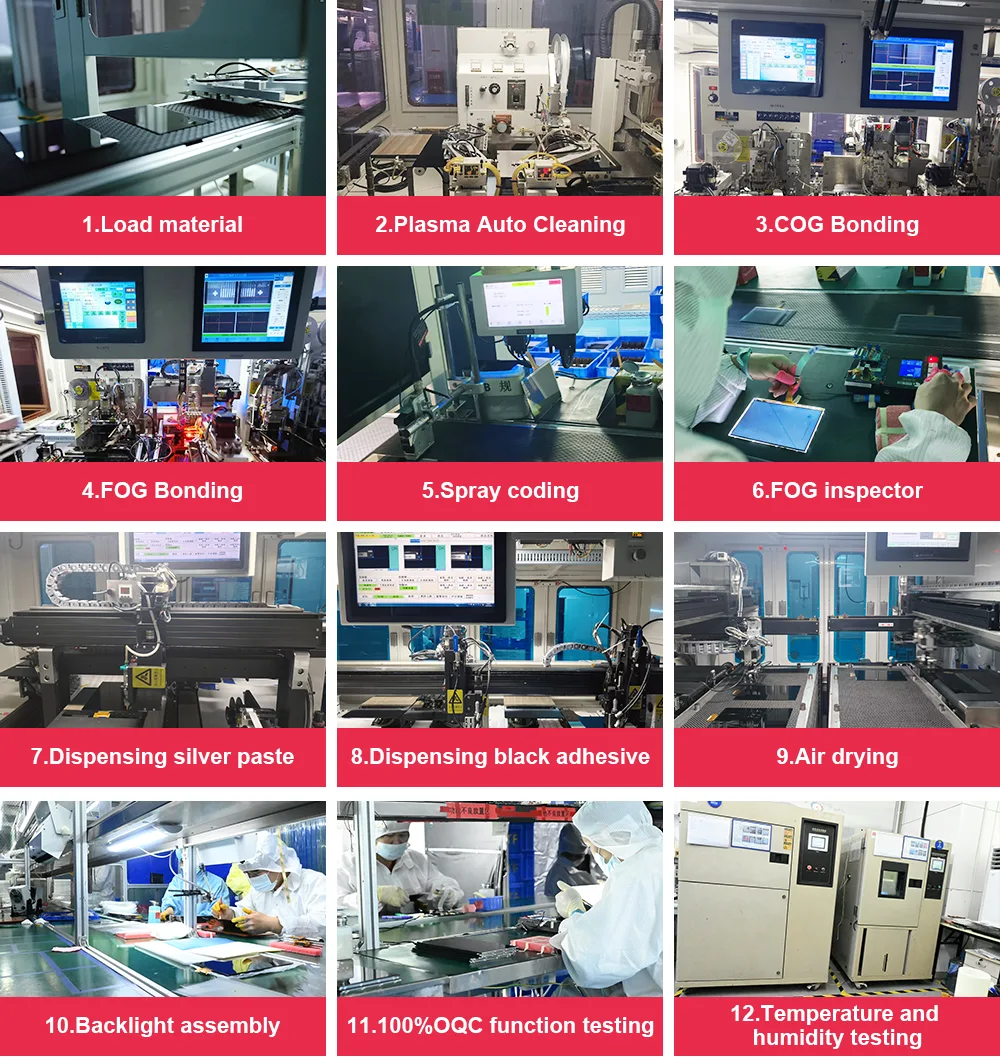

Manufacturing Process
