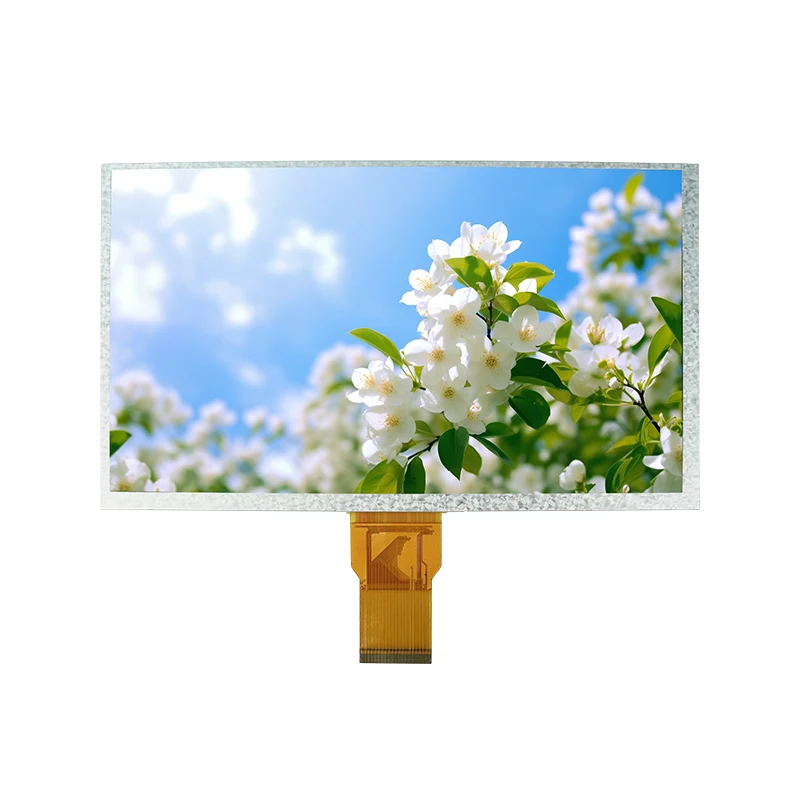

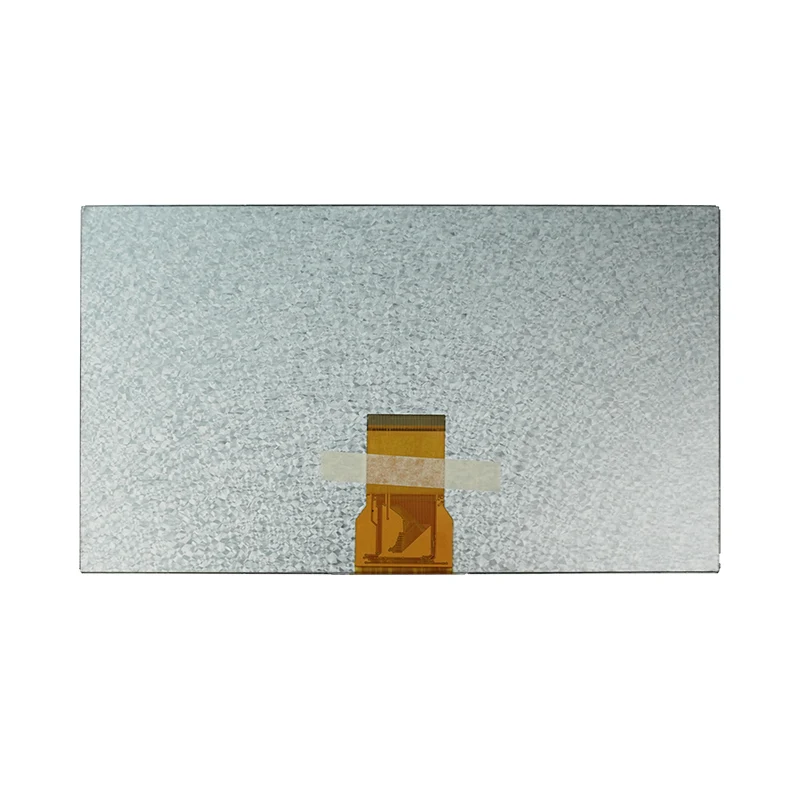

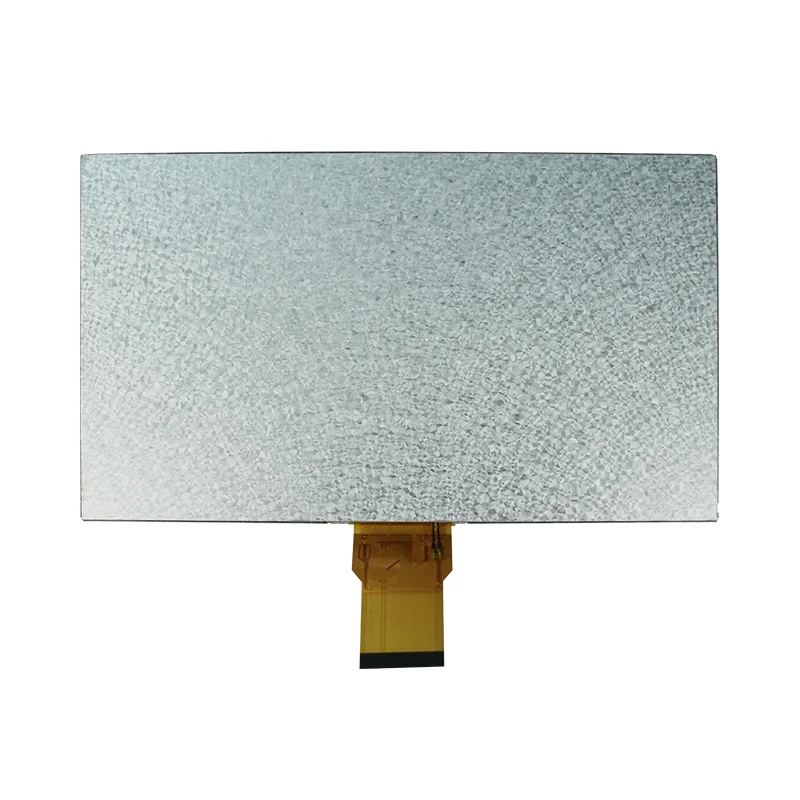

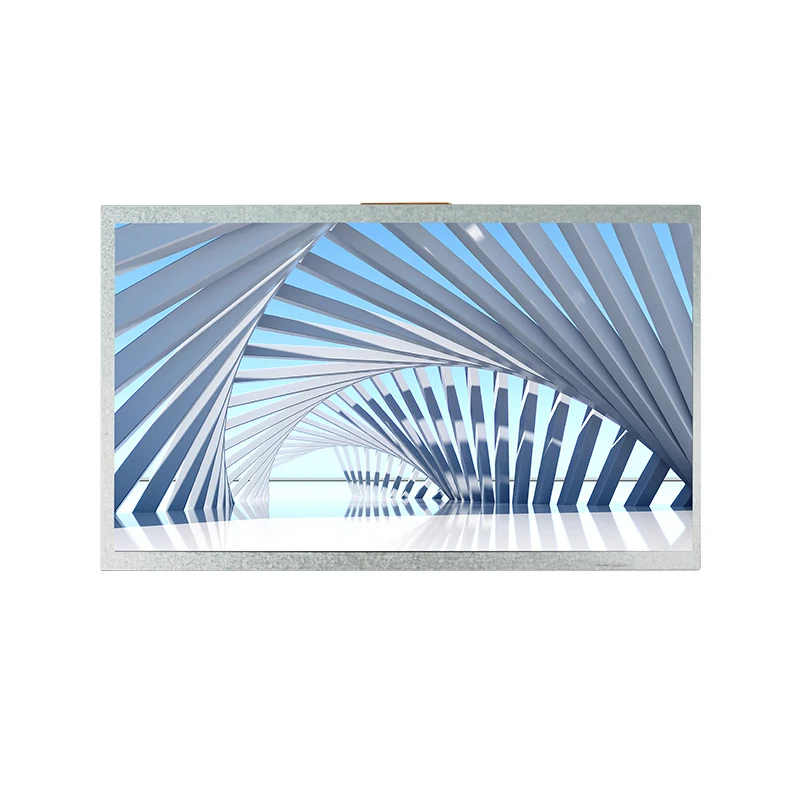

9.0' High Lightness TN TFT LCD Screen Module

Tianfu Display offers a cost-effective 9.0 inch TN TFT LCD module with 800x480 WVGA resolution. Featuring a 24-bit parallel RGB interface and 120 cd/m² brightness, this display is engineered for high reliability in indoor industrial HMI panels, medical instruments, and commercial test equipment. The wide operating temperature range from -20°C to +70°C ensures stable performance under challenging operational conditions.


Key Features

• Superior Clarity: 9.0-inch TFT-LCD with 800×480 RGB-stripe resolution and Normal White TN technology for crisp, high-contrast visuals.

• Rugged Reliability: Operates flawlessly in extreme temperatures (-20℃ to 70℃), ideal for industrial and outdoor applications.

• Seamless Integration: 24-bit parallel RGB interface and COG packaging ensure compact, lightweight design with versatile compatibility.

• Energy Efficiency: Ultra-low power consumption with optimized 18-LED backlight (120mA total current).

• Robust Power Flexibility: Supports wide voltage ranges (Digital: 2.8–3.3V, Analog: 9.4–9.8V, Gate: ±5.4–19V) for stable performance in harsh conditions.

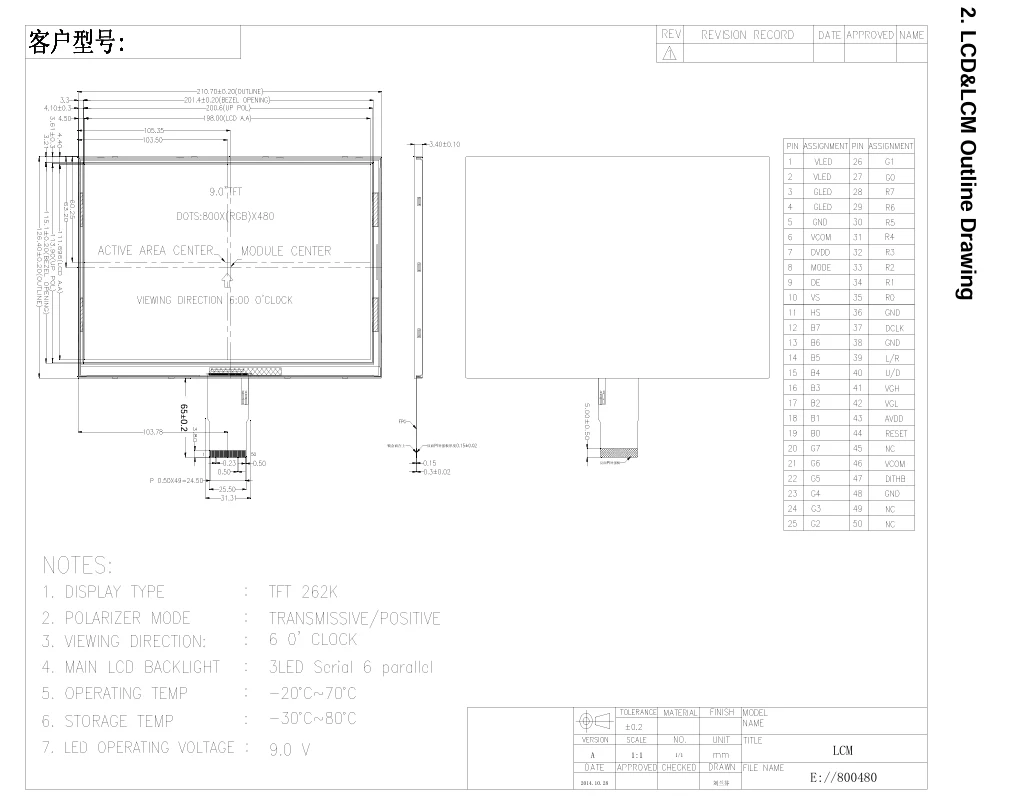

Technical Specifications

Core Specifications

Technical Details

Display Size

9.0-inch a-Si TFT-LCD (Transmissive)

Resolution

800(RGB) × 480 pixels (RGB-stripe)

Display Mode

Normal White TN, 6 o’clock Viewing Direction

Interface

24-bit Parallel RGB (MPU Interface)

Power Supply Voltage

Digital: 2.8–3.3 V (DVDD)
Analog: 9.4–9.8 V (AVDD)
Gate Voltage: VGH=17–19 V, VGL=-6.6–-5.4 V

Backlight

White LED × 18 (Total Current: 120 mA)

Operating Temperature

-20℃ to 70℃

Storage Temperature

-30℃ to 80℃

IC Package

Chip-on-Glass (COG)

Key Features

• Wide Operating Temperature
• High Contrast (120 cd/m²)
• Low Power Consumption


 Details


Applications & Industry Solutions

Engineers and procurement teams choose this 9.0" TN TFT LCD module when they need to solve specific application challenges:

  • Industrial Control Panels: Need a display that performs consistently in unairconditioned factory environments? The wide -20°C to 70°C operating temperature and COG (Chip-on-Glass) structure deliver robust 24/7 uptime for factory automation and HMI systems.
  • Medical Monitoring Devices: Concerned about power and space constraints in portable clinical equipment? The optimized 18-LED backlight (120mA total current) significantly extends battery life for handheld medical instruments without compromising display text clarity.
  • Smart Home Interfaces & IoT: Looking for a compact, slim-profile display that simplifies your hardware layout? The standard 24-bit parallel RGB interface and lightweight design enable seamless integration into smart appliances, access control systems, and security intercoms, speeding up your time-to-market.
  • Indoor Service Terminals & Vending: Seeking a high-performance yet budget-friendly display for indoor retail? The 120cd/m² brightness and cost-effective WVGA TN technology provide clear, high-contrast visibility for indoor ticketing kiosks, vending machines, and desktop test instruments.


After-Sales Support & Technical Services

Tianfu Display stands behind every 9.0" TN TFT LCD module with comprehensive engineering support and premium after-sales services. We don't just ship display components — we ensure your hardware integration succeeds from the prototype stage to mass production.

Warranty Coverage & Quality Guarantee

  • 12-Month Standard Warranty: Fully covers manufacturing defects, backlight failures, and display anomalies under normal operating conditions.
  • Extended Warranty Options: Available for volume wholesale orders or mission-critical industrial applications — contact our technical sales team for customized coverage plans.

B2B Engineering & Customization Services

  1. FPC & Interface Customization: Flexible Printed Circuit (FPC) length, shape, and pin definitions can be tailored to fit your enclosure design.
  2. Backlight & Brightness Tuning: Support high-brightness upgrades (up to 1000 /cd/m2) for outdoor readability requirements, or customized LED lifespans.
  3. Touch Panel Integration: Seamlessly compatible with Resistive Touch Panel (RTP) or Projected Capacitive Touch Panel (PCAP) multi-touch solutions.

Technical Support & Engineering Assistance


  1. Pre-Sales Engineering Consultation: Our engineers review your application requirements, operating environment, and interface compatibility before sample delivery.
  2. Firmware & Driver Support: Provide initialization code, timing parameters, and interface documentation for 24-bit RGB integration — reducing your development cycle.
  3. Customization Support: For Backlight, FPC, TP, or COG modifications, our team manages the full engineering change process from prototype to mass production.
  4. On-Site Support: For strategic partners and volume customers, on-site technical assistance is available for critical integration phases.



Service Process — From Integration to Production

We believe in data-driven trust. For every production batch, we provide:


  1. Incoming Quality Control (IQC) Reports: Raw material inspection records for glass, IC, backlight, and FPC components.
  2. Process Quality Control (PQC) Data: Real-time yield tracking, bonding line inspection, and aging test logs.
  3. Outgoing Quality Control (OQC) Reports: Final inspection records including brightness uniformity, color gamut, and interface signal integrity.
  4. Lot Traceability: Each module is traceable to production date, batch number, and key process parameters — enabling rapid root cause analysis if issues arise.



FAQs — Common After-Sales Questions

• Q1: What is the typical lead time for warranty replacement?

◦ A: For confirmed manufacturing defects or quality non-conformities within the 12-month warranty period, replacement units are processed rapidly. Standard stock items are typically shipped within 48 hours to minimize your production downtime.

• Q2: Do you provide engineering support for integration issues?

◦ A: Yes, absolute hardware and software integration support is provided. Our R&D engineers assist you with initialization codes, 24-bit RGB/TTL timing parameter adjustments, interface debugging, and mechanical fit checks throughout your design-in phase.

• Q3: Can I get failure analysis reports for returned modules?

◦ A: Yes. For batch quality issues or returns from critical industrial applications, our QA laboratory performs deep component-level root cause analysis and delivers an official failure analysis report (8D report format) within 3-5 business days.

• Q4: What if I need support after the warranty period?

◦ A: We offer continuous paid repair services and long-lifecycle technical consulting for post-warranty modules. To support long-term industrial projects, we ensure stable availability of legacy components and drop-in replacements for at least 5+ years.
