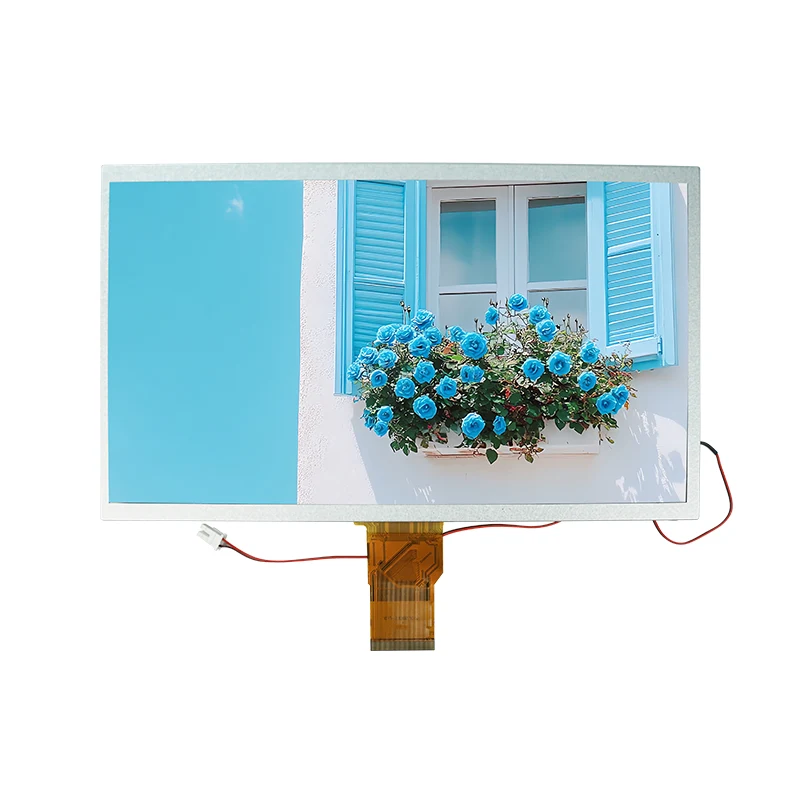

10.1' Custom RGB TN TFT LCD Screen Module

Tianfu 10.1' Custom RGB TN TFT LCD Screen Module: 1024×600 resolution, 16.7M colors, and 400:1 contrast powered by a 24-bit RGB interface. Built for rugged performance with -20°C to 70°C operation, 9.6V LED backlight, and 50% NTSC gamut. 10.1' Custom RGB TN TFT LCD Screen Module is ideal for industrial/commercial use—durable, vibrant, and viewing angle-optimized (6 o’clock).

Send Inquiry

Product Description

Supporting small-batch trial orders and custom firmware/interface designs, China LCD module Factory, Tianfu ensures seamless integration into smart controls/portable instruments, backed by a 12-month warranty.

Tianfu 10.1' Custom RGB TN TFT LCD Screen In Stock Module Features

1.High-Resolution Clarity

10.1-inch display with 1024×600 pixels and 16.7M colors for sharp, vibrant visuals.

2.Industrial-Grade Durability

Operates reliably in -20°C to 70°C, ideal for harsh environments.

3.24-Bit RGB Precision

Seamless color accuracy and compatibility with modern systems.

4.Bright LED Backlight

200 cd/m² brightness and 9.6V/180mA efficiency for consistent visibility.

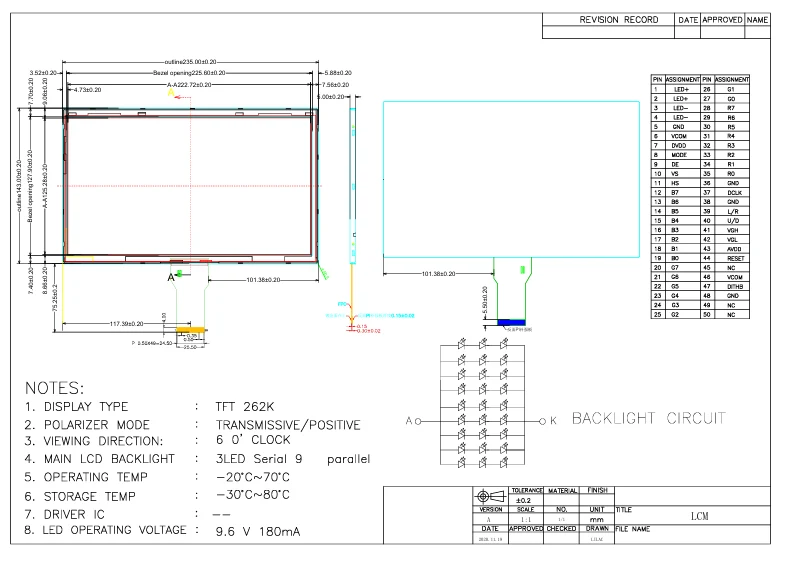

Tianfu Customized 10.1' Custom RGB TN TFT LCD Screen Module Specification

Parameter	Specification
Display Size	10.1-inch Color TFT-LCD (Transmissive)
Resolution	1024(RGB) × 600 pixels (RGB Vertical Stripe)
Display Mode	Normally White, 6 o'clock Viewing Direction
Interface	24-bit Parallel RGB
Power Supply Voltage	Digital: 3.0–3.6 V (VDD) Analog: 10–11 V (AVDD) Gate ON: 20–22 V (VGH) Gate OFF: -9–-7 V (VGL)
Backlight	LED (Forward Voltage: 9.6 V, Current: 180 mA)
Operating Temperature	-20°C to 70°C
Storage Temperature	-30°C to 80°C
Contrast Ratio	400:1 (Typ.)
Luminance	200 cd/m² (Typ.)

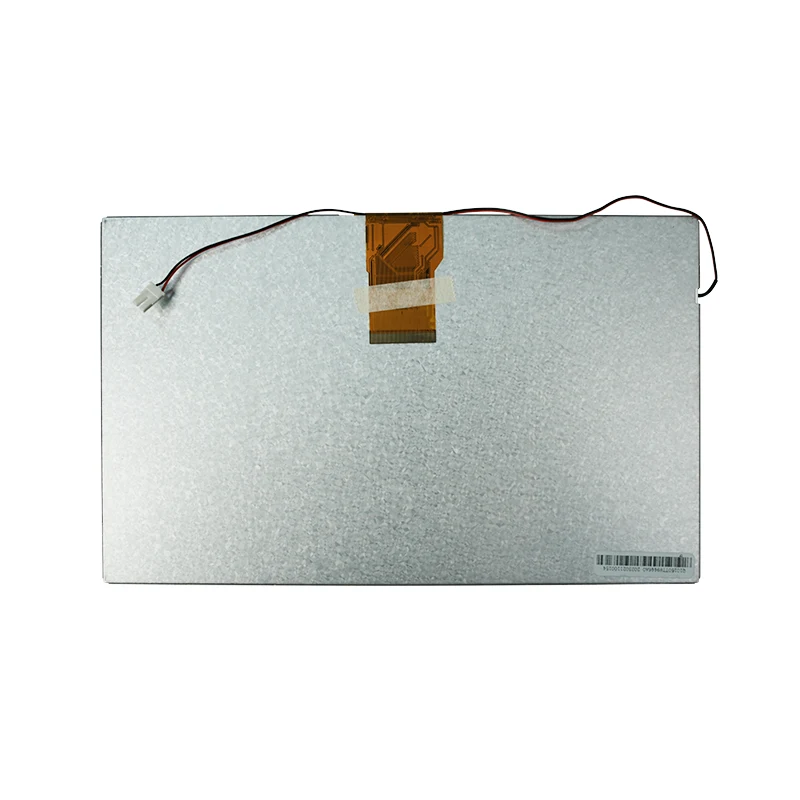

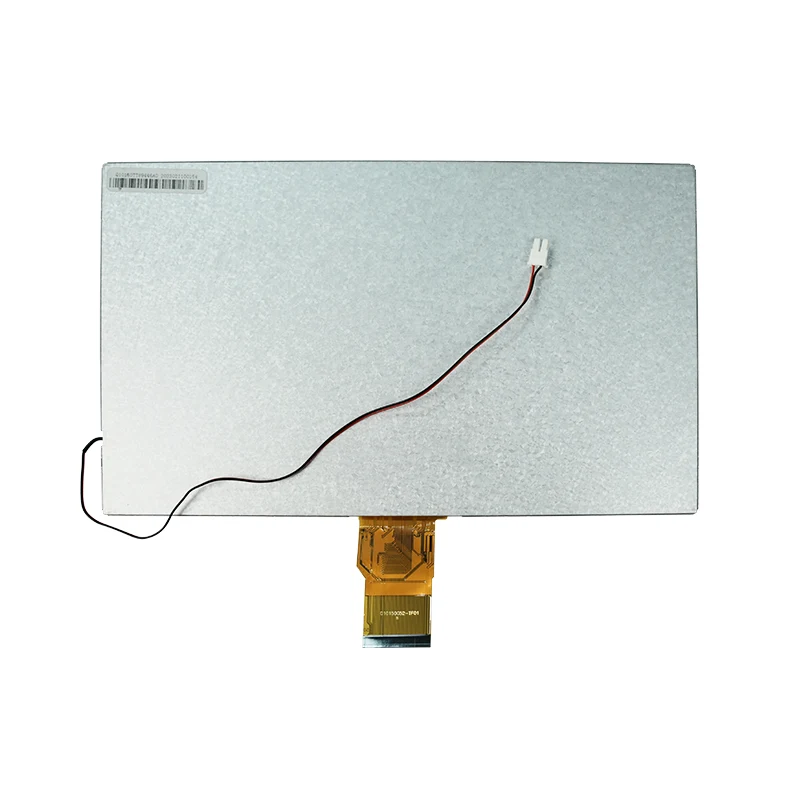

Tianfu 10.1' Custom RGB TN TFT LCD Screen Module Details

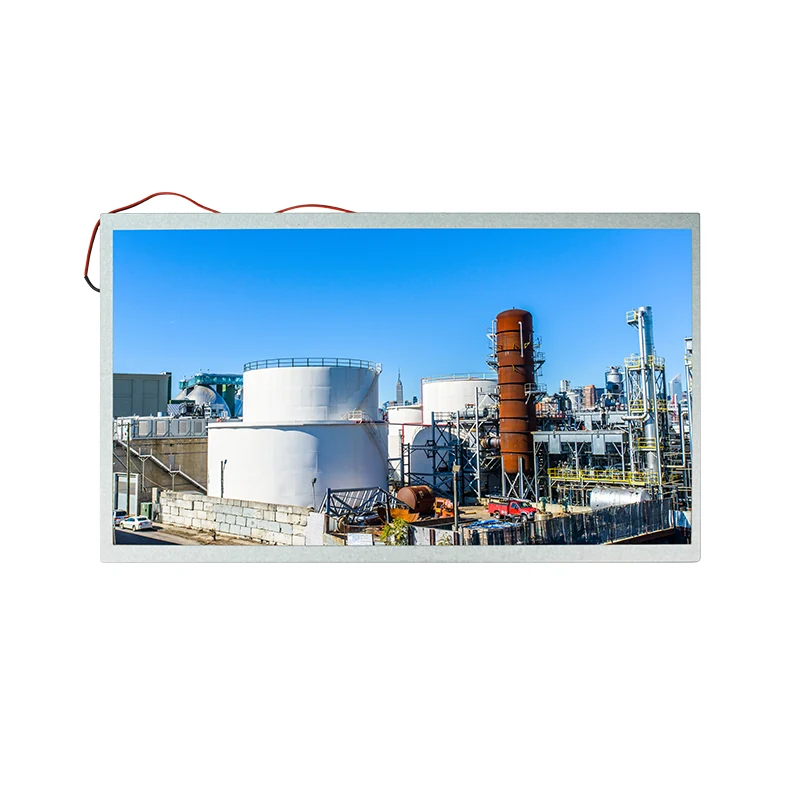

Tianfu 10.1' Custom RGB TN TFT LCD Screen Module Application

Tianfu Leading Time

Standard Products		Customized Products
Order Quantity	Delivery Time	Customization Type	Delivery Time
1-30 PCS	Immediately	B/L & FPC & TP	within 5 weeks
31-100 PCS	1 week	B/L & FPC & TP	within 5 weeks
101-500 PCS	within 2 weeks	B/L & FPC & TP	within 5 weeks
501-1000 PCS	within 3 weeks	B/L & FPC & TP	within 5 weeks
1001-5000 PCS	within 3 weeks	BL & FPC & TP	within 6 weeks
5000+ PCS	within 4 weeks	BL & FPC & TP	within 6 weeks
