21.5' High Brightness FHD IPS Color TFT LCD Display Module

Tianfu 21.5' High Brightness FHD IPS Color TFT LCD Display Module Enjoy vivid FHD clarity on a 21.5-inch LCD with 1920×1080 resolution, offering crisp visuals and vibrant colors. Features a 4000:1 contrast ratio and 6.5ms response time for smooth motion and deep blacks. 178° ultra-wide viewing angle ensures color accuracy from any angle. Equipped with LVDS/eDP interface and 5V low-power (0.77A–1.61A) efficiency. Built tough with anti-glare coating, 3H hardness, and thermal resilience (up to 50°C). 21.5' High Brightness FHD IPS Color TFT LCD Display Module is ideal for high-performance displays in demanding environments.

Send Inquiry

Product Description

Supporting small-batch trial orders and custom firmware/interface designs, Tianfu, China TFT LCD screen module manufactures, ensures seamless integration into smart controls/portable instruments, backed by a 12-month warranty.

Tianfu 21.5' High Brightness FHD IPS Color TFT LCD Display Module In Stock Features

1.Ultra-High Contrast (4000:1)

Deep blacks and vibrant colors for cinematic clarity.

2.Fast 6.5ms Response Time

Smooth motion handling in dynamic visuals.

3.178° Ultra-Wide Viewing Angle

Consistent color accuracy from any perspective.

4.Robust LVDS/eDP Interface

Seamless integration with low-power efficiency (5V, 0.77A–1.61A).

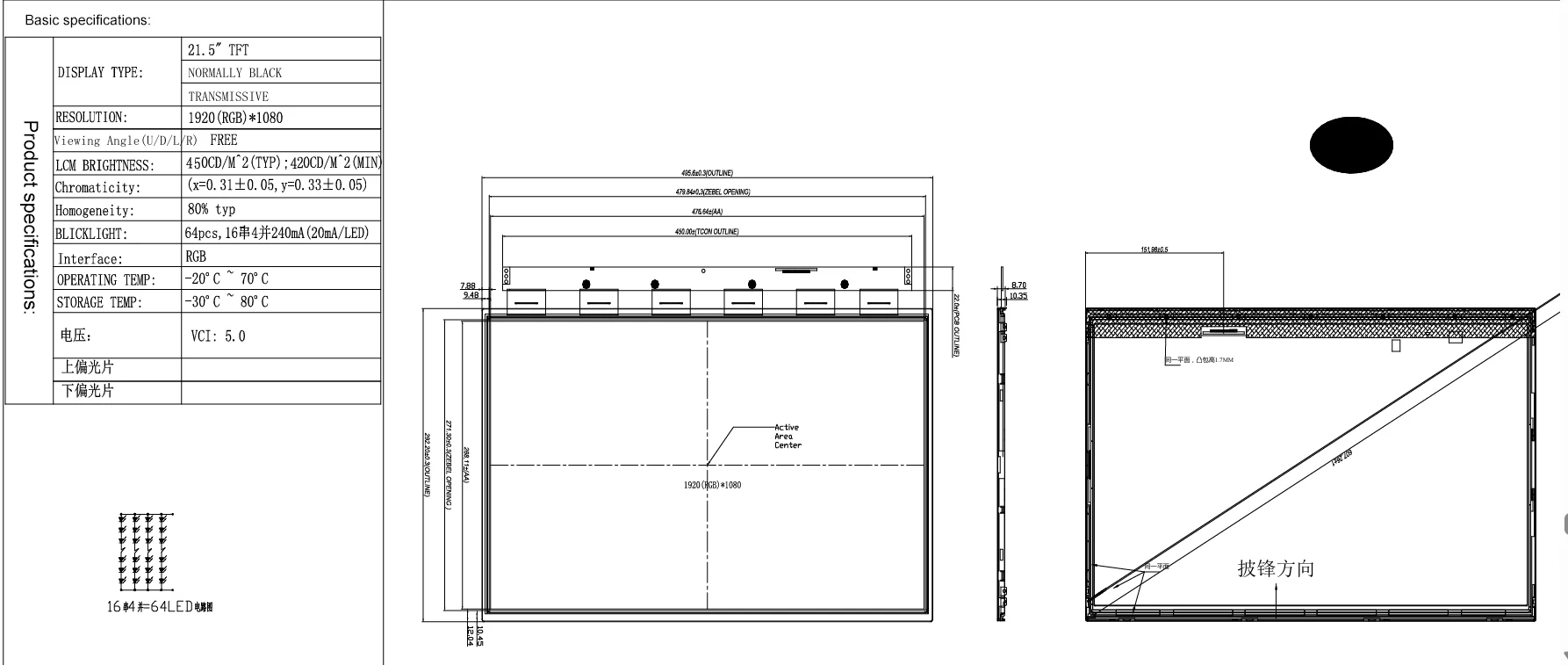

Tianfu Customized 21.5' High Brightness FHD IPS Color TFT LCD Display Module Specification

Parameter	Specification
Resolution	1920×1080 (FHD)
Active Area	476.64 (H) × 268.11 (V) mm
Display Size	21.5-inch (PDF) / 13.3-inch (TFT-LCD) & 10.1-inch (Touch) (Image)
Contrast Ratio	4000:1 (Typ., PDF) / 1500:1 (Typ., Image)
Response Time	6.5ms (Typ.)
Viewing Angle	178°(H)/178°(V) (CR ≥10)
Interface (Main)	PDF: 30-pin LVDS (Starconn CN1) Image: 30-pin eDP 1.2 (LV03030-13100) • Protocol: 2-lane eDP @2.7Gbps • Power: 3.3V±10% (Logic), 9-21V (LED) • Key Pins: LANE0/1_P/N, AUX_CH_P/N, BL_ENABLE, HPD
Interface (Touch)	FPC Connector (FH19SC-6S-0.5SH), I²C Protocol (SCL-Pin1, SDA-Pin24)
Optical Luminance	300-330 cd/m² (Image) / Measured via CSOT’s BLU (PDF)
Power Consumption	• 5V DC Supply (PDF) • Current @60Hz: 0.77A (Black) - 1.16A (White) • Current @75Hz: 0.79A (Black) - 1.61A (Horizontal Stripe)
Mechanical Dimensions	487.54 (H) × 279.684 (V) × 1.335 (D) mm (Open Cell)
Operating Temperature	0°C to 50°C (Ambient), ≤65°C (Surface)
Storage Conditions	-20°C to 60°C (Temperature), 50±10% RH (Humidity)

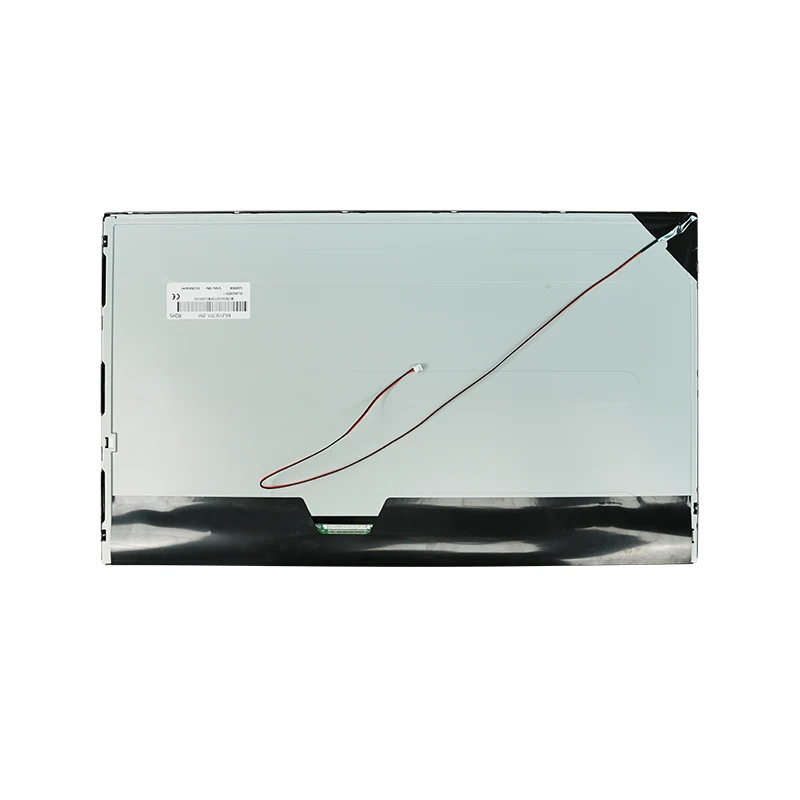

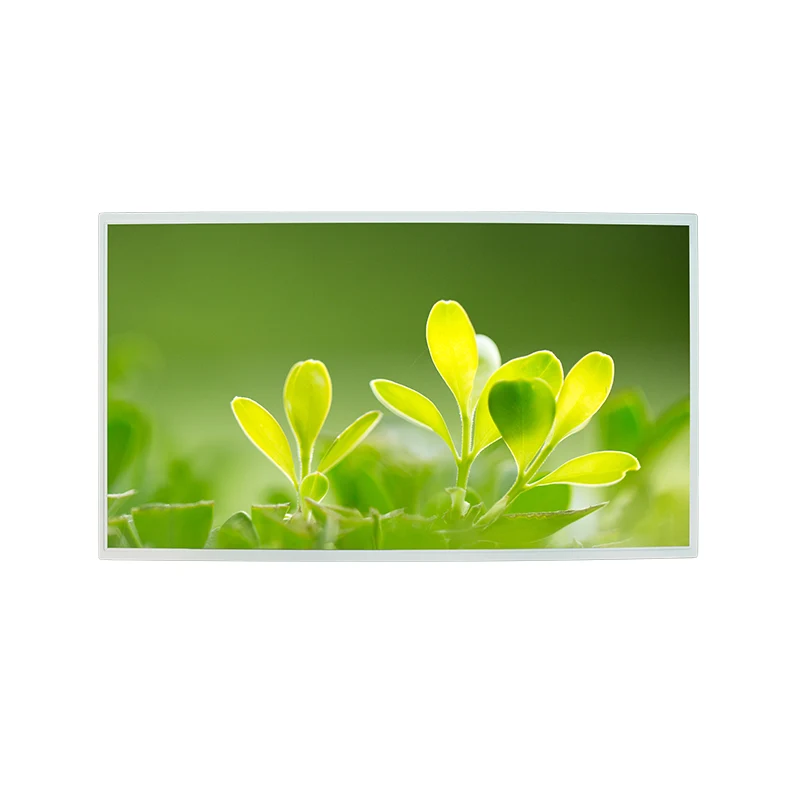

Tianfu 21.5' High Brightness FHD IPS Color TFT LCD Display Module Details

Tianfu IPS TFT LCD Display module Application

Tianfu Leading Time

Standard Products		Customized Products
Order Quantity	Delivery Time	Customization Type	Delivery Time
1-30 PCS	Immediately	B/L & FPC & TP	within 5 weeks
31-100 PCS	1 week	B/L & FPC & TP	within 5 weeks
101-500 PCS	within 2 weeks	B/L & FPC & TP	within 5 weeks
501-1000 PCS	within 3 weeks	B/L & FPC & TP	within 5 weeks
1001-5000 PCS	within 3 weeks	BL & FPC & TP	within 6 weeks
5000+ PCS	within 4 weeks	BL & FPC & TP	within 6 weeks
