3.5' Industrial Control IPS TFT LCD Screen Module

Precision-engineered 3.5' Industrial Control IPS TFT LCD Screen Module. Features 320×RGB×240 resolution, ultra-thin zones (0.3±0.03mm), and ±0.2mm dimensional accuracy. Optimized for free-viewing direction with strict glass-BL alignment specs. 3.5' industrial control IPS TFT LCD screen module is ideal for high-accuracy display integration.

Send Inquiry

Product Description

Supporting small-batch trial orders and custom firmware/interface designs, China TFT LCD display module manufacture, Tianfu ensures seamless integration into smart controls/portable instruments, backed by a 12-month warranty.

In Stock Features

1.High-Precision Construction

Strict dimensional tolerances within ±0.2mm ensure reliable component fit and integration.

2.Optimized 3.5" Display

3.5' industrial control IPS TFT LCD screen module features a 320×RGB×240 resolution LCD panel for clear visual performance.

3.Ultra-Thin Design Zones

Critical areas achieve remarkably thin profiles down to 0.3±0.03mm.

4.Engineered Viewing & Assembly

3.5' industrial control IPS TFT LCD screen module enables free viewing direction and includes precise glass-to-BLU alignment specs (0.59mm/1.35mm).

Specification

Module Type	3.5-inch TFT
Resolution	320×RGB×240
Interface	24-bit RGB / SERIAL RGB / CCIR656 / CCIR601
Film (ITO FILM)	Matte anti-Newton ring, 0.188mm thick, Sheet Resistance: 350~500 Ω
Driver IC	HX8238D

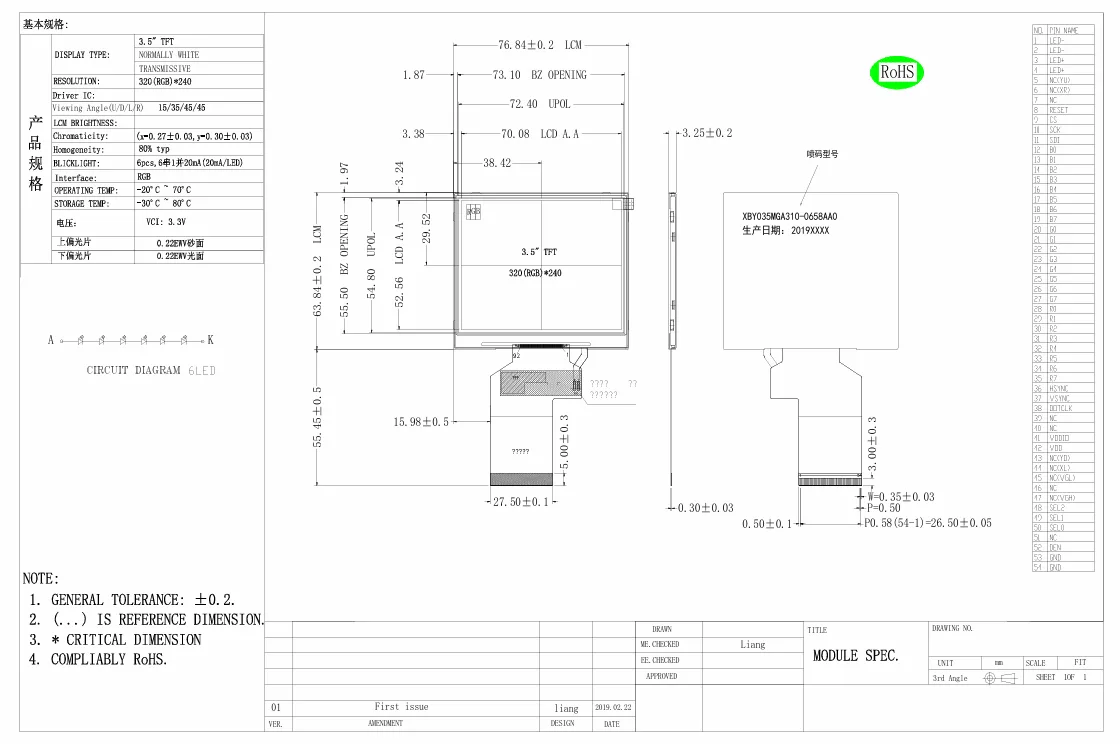

Mechanical Dimensions	76.90×63.9×3.26 mm
Active Area	70.08×52.56 mm
Operating Temp	-10°C ~ +60°C
Storage Temperature	-20°C ~ +70°C
Surface Hardness	≥ 3H
Response Time	≤ 15 ms
Circuit Resistance (X)	150 - 550 Ω (Film Side)
Circuit Resistance (Y)	450 - 1100 Ω (Glass Side)
Key Dimensions	AA (Active Area): 55.20 x 96.65 mm OD (Outline): 66.80 x 105.40 mm Adhesive VA (Viewing Area): 57.9 x 99.4 mm Adhesive OD (Outline): 66.40 x 105.00 mm
Power Supply	3.3V (2.6–3.6V range)
Environmental Compliance	RoHS compliant
Reliability Tests	• High Temp Storage: 80°C/96H • Low Temp Storage: -30°C/96H • Thermal Cycling: -30°C↔ +80°C • ESD:±8kV Air /±4kV Contact • Vibration: 10–150Hz, 100m/s²

Details

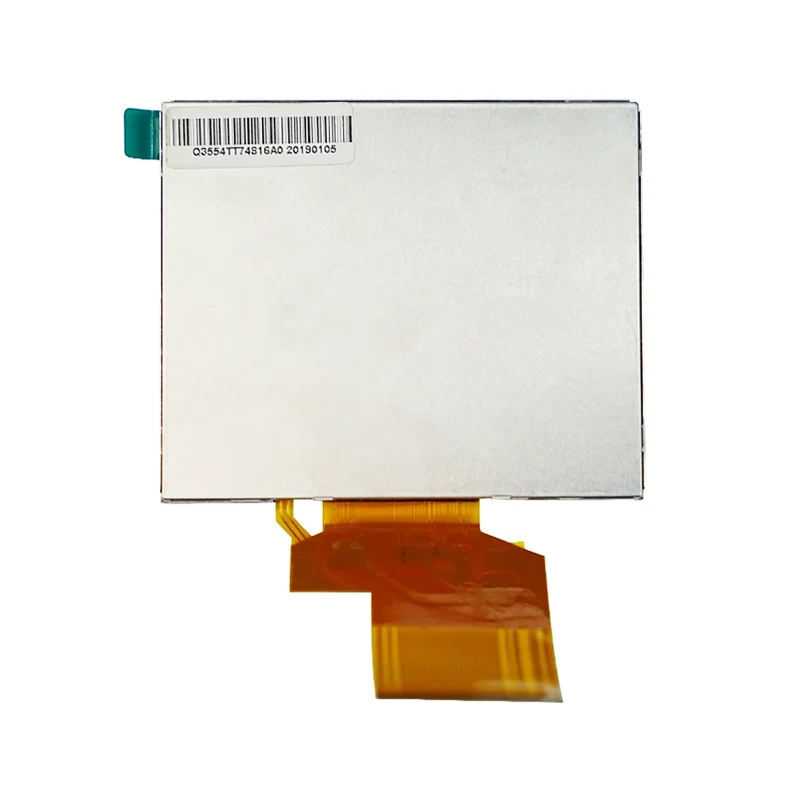

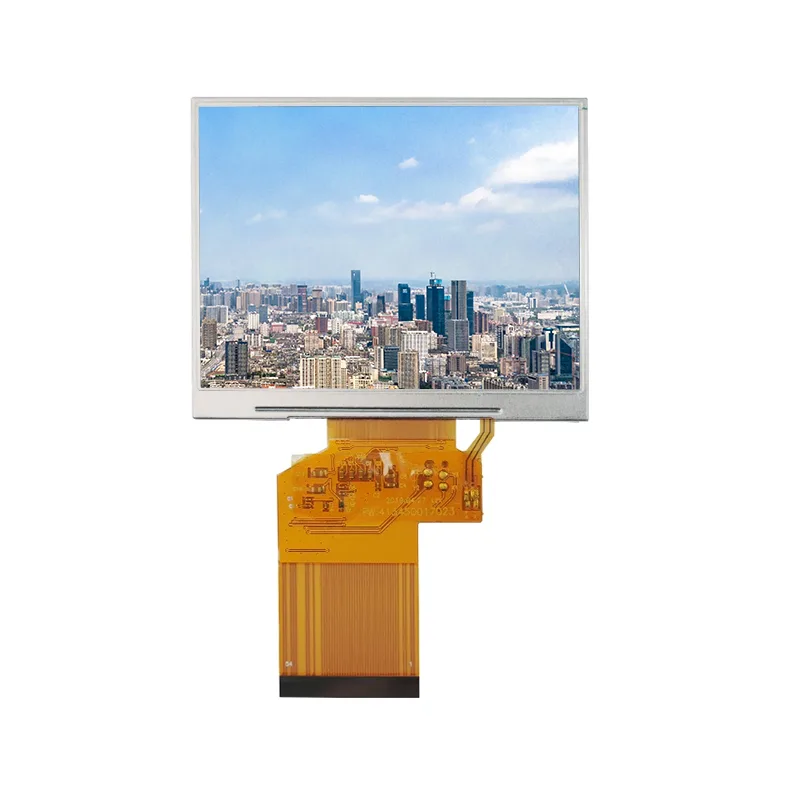

3.5' Industrial Control IPS TFT LCD Screen Module

Application

Tianfu Leading Time

Standard Products		Customized Products
Order Quantity	Delivery Time	Customization Type	Delivery Time
1-30 PCS	Immediately	B/L & FPC & TP	within 5 weeks
31-100 PCS	1 week	B/L & FPC & TP	within 5 weeks
101-500 PCS	within 2 weeks	B/L & FPC & TP	within 5 weeks
501-1000 PCS	within 3 weeks	B/L & FPC & TP	within 5 weeks
1001-5000 PCS	within 3 weeks	BL & FPC & TP	within 6 weeks
5000+ PCS	within 4 weeks	BL & FPC & TP	within 6 weeks
