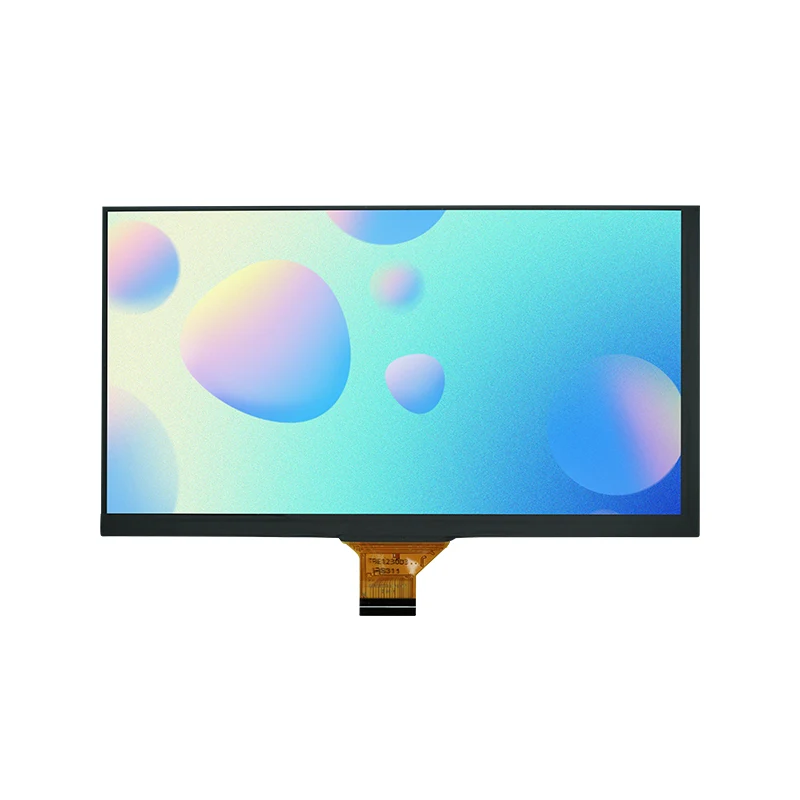

7.0' 50 Pin TN TFT LCD Screen Module

Rugged Tianfu 7.0' 50 Pin TN TFT LCD Screen Module for Harsh Environments：1024×RGB×600 TN panel delivers 800:1 contrast with 140 nits brightness. Built for -20℃~+70℃ operation, featuring TTL interface, anti-glare surface, and 18-LED backlight (9.6V/120mA). 25ms response, 51% NTSC color, IEC-certified shock/vibration resistance. 7.0' 50 Pin TN TFT LCD screen module is ideal for medical equipment and rugged HMI systems.

Send Inquiry

Product Description

Supporting small-batch trial orders and custom firmware/interface designs, TFT LCD screen module manufactures, Tianfu ensures seamless integration into smart controls/portable instruments, backed by a 12-month warranty.

Tianfu 7.0' 50 Pin TN TFT LCD Screen Module In Stock Features

1.Industrial Temperature Endurance

Operates flawlessly in -20℃ to +70℃ environments with IEC-certified thermal/vibration/ESD resistance.

2.High-Contrast TN Panel

Delivers 800:1 contrast ratio and 140nits brightness for sharp visibility under harsh lighting.

3.Robust TTL Interface

50-pin parallel RGB interface with scan direction control (UPDN/SHLR) and DE/SYNC mode selection.

4.Durable Backlight System

18-LED array (9.6V/120mA) with anti-glare surface treatment and 1152mW power efficiency.

Tianfu Customized 7.0' 50 Pin TN TFT LCD Screen Module Specification

Core Specifications
Display Size	7.0-inch TN TFT-LCD
Resolution	1024×RGB×600 (WVGA)
Pixel Density	0.1506(H)×0.1432(V) mm pixel pitch
Display Mode	Normally White
Interface	TTL Parallel RGB
Surface Treatment	Anti-glare

Optical Specifications
Luminance (Typ.)	140 cd/m²
Contrast Ratio	800:1
Response Time	25ms (Typ.)
Color Gamut	51% NTSC
Uniformity	75% (Luminance), ±0.008 (Color coordinates)

Electrical Specifications
Power Supply	3.3V Digital (±10% tolerance) 9.6V Analog
Current Consumption	30mA (Digital), 35mA (Analog)
Backlight System	18 LEDs 1152mW total power
Operation Temp	-20℃ to +70℃
Storage Temp	-30℃ to +70℃

Certified Reliability-4
Thermal Tests	96hrs @-30℃/+70℃ 10-cycle thermal shock (-20℃↔60℃)
Vibration	10-50Hz/1.0mm sweep
ESD Protection	±4kV contact / ±8kV air discharge

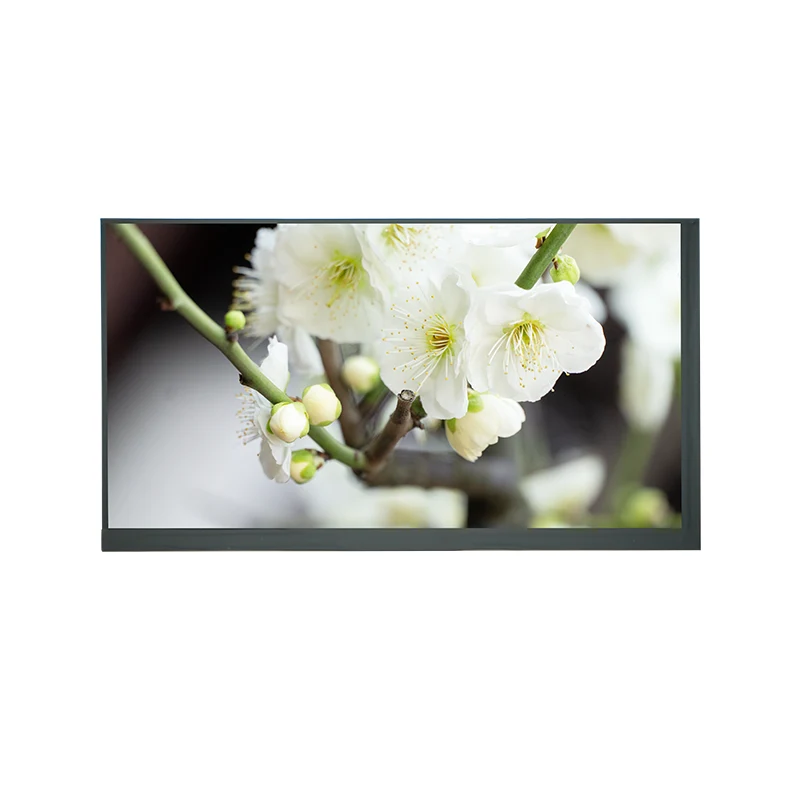

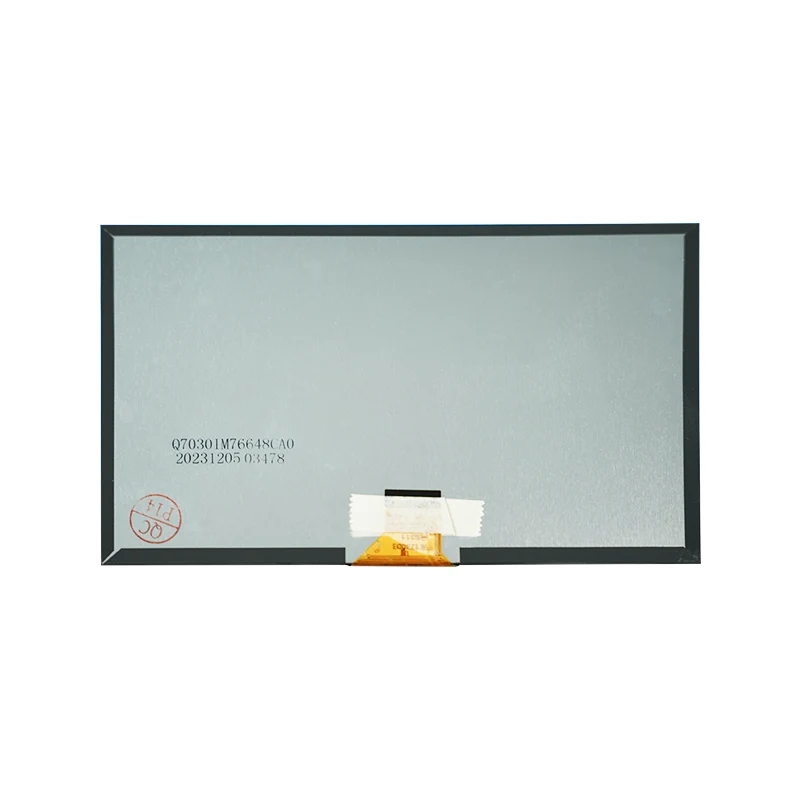

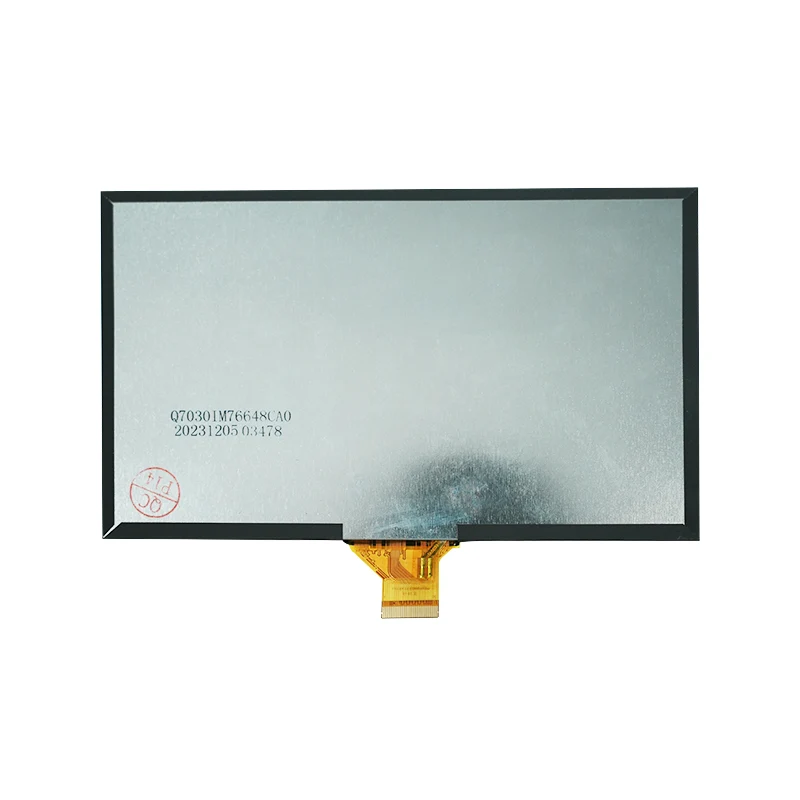

Tianfu 7.0' 50 Pin TN TFT LCD Screen Module Details

Tianfu 7.0' TFT LCD Screen Module Application

Tianfu Leading Time

Standard Products		Customized Products
Order Quantity	Delivery Time	Customization Type	Delivery Time
1-30 PCS	Immediately	B/L & FPC & TP	within 5 weeks
31-100 PCS	1 week	B/L & FPC & TP	within 5 weeks
101-500 PCS	within 2 weeks	B/L & FPC & TP	within 5 weeks
501-1000 PCS	within 3 weeks	B/L & FPC & TP	within 5 weeks
1001-5000 PCS	within 3 weeks	BL & FPC & TP	within 6 weeks
5000+ PCS	within 4 weeks	BL & FPC & TP	within 6 weeks
