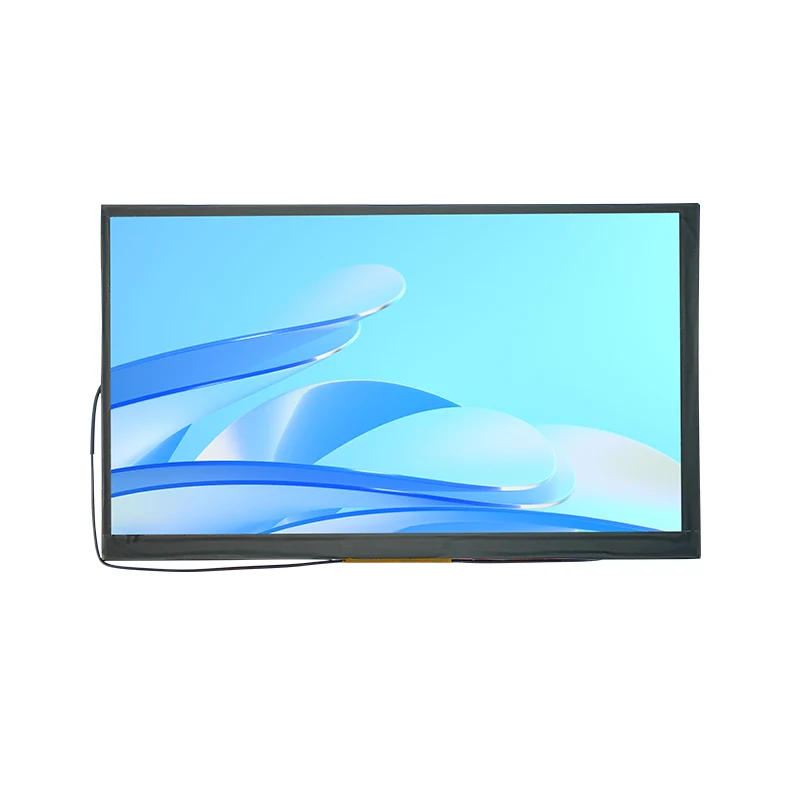

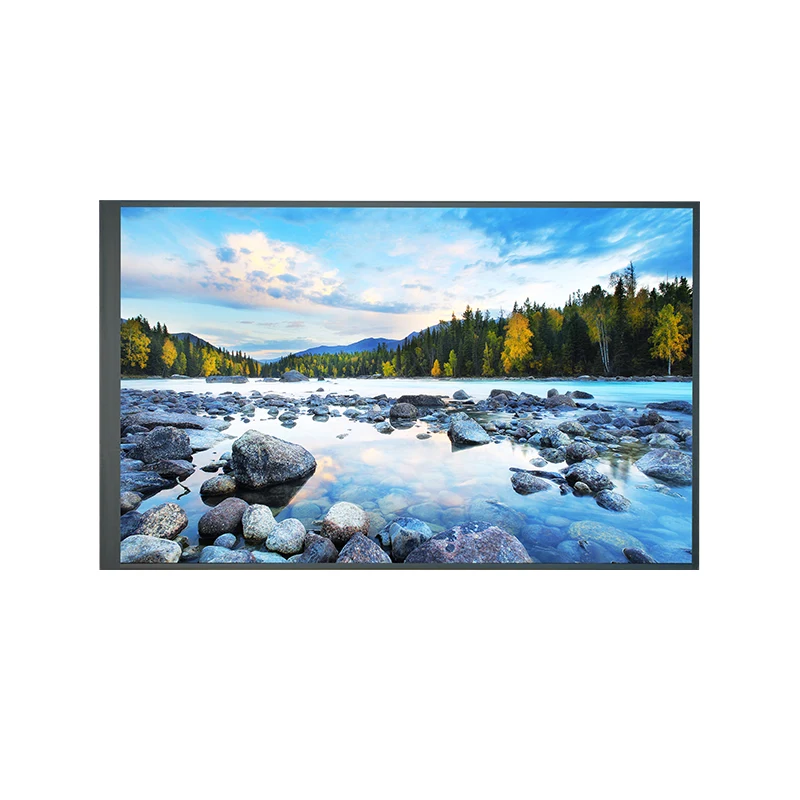

7.0 Anti-Glare IPS TFT LCD Screen Module

This product features a 7-inch TFT LCD with 800×480 high-definition resolution and 16.7 million colors. The viewing area measures 154.08×85.92mm and features a 3H anti-glare surface. 7.0 anti-glare IPS TFT LCD screen module offers a wide operating temperature range (-10°C to 60°C), industrial-grade stability, 24-bit RGB interface support, and a response time of just 25ms. It is suitable for a variety of applications, including industrial control, medical equipment, and automotive displays.

Send Inquiry

Product Description

Features

1. Choose the Reliability of Tianfu

● Tianfu prioritizes product reliability and strictly adheres to the ISO 9001 certification system, replicating its production processes 1:1 to eliminate quality fluctuations due to process deviations.

● 7.0 Anti-Glare IPS TFT LCD Screen Module undergo a 48-hour "Double 85" (high temperature and high humidity) test before leaving the factory, ensuring a service life of ≥30,000 hours. The touch display remains stable and reliable even under long-term, high-frequency operation.

2. Help You Control Your Cost

● Without compromising on quality, Tianfu cuts customers’ procurement costs for 7.0 Anti-Glare IPS TFT LCD Screen Module by 20%-30% via holistic cost management.

● Self-built production lines eliminate intermediaries: We independently build a complete production chain, eliminating middleman markups and reducing procurement costs by 20%-40%.

● Direct sourcing reduces costs: We establish long-term, in-depth partnerships with core panel manufacturers. By encouraging our stable procurement scale and trust, we achieve competitive pricing and further reduce raw material procurement costs by 15%.

● Flexible MOQs reduce inventory: We support flexible production with minimum order quantities (MOQs), enabling on-demand orders without the burden of stocking inventory. This effectively reduces inventory backlogs and capital tie-ups, helping customers reduce inventory management costs by 20%.

3. MOQ: 1 pc, with Flexible Customization Based on Actual Needs.

● Hardware Customization: Size (non-standard sizes supported); Interfaces (LVDS/RGB/MIPI/parallel port, etc.); Backlight (edge-lit/direct-lit, adjustable color temperature); Glass (anti-glare/AR anti-reflective/anti-fingerprint); Bezel (narrow bezel/custom-shaped cutting); Brightness adjustment: 250~1500 cd/m² adjustable; Thickness reduction (full lamination ≤1.5mm), etc.

● Customization Service Process: Supports full-process customization from design drawings to mass production, with an MOQ of just 1 piece, and proofing cycle 30% faster than the industry average.

Item Specification

Panel Size	7.0 inch
Resolution	800 × RGB × 480 (800H × 480V pixels)
Active Area	154.08 (H) × 85.92 (V) mm
Pixel Pitch	0.1926 (H) × 0.1790 (V) mm
Outline Dimension	164.9 (W) × 100 (H) × 3.5 (D) mm
Number of Colors	16.7 Million
Pixel Arrangement	RGB Vertical Stripe
Response Time (Tr+Tf)	25 ms (typical)
Viewing Direction	6 o'clock (Max Contrast, Gray level inversion)
Surface Treatment	Anti-Glare, Hardness: 3H

Optical Characteristics

Luminance (Center)	280 cd/m² (typical at 180mA)
Contrast Ratio	800:1 (typical)
Color Chromaticity (White)	Wx: 0.25, Wy: 0.28 (typical)
Viewing Angle (CR≥10)	Left/Right: 80° (typical), Upper: 60°, Lower: 70°

Electrical Characteristics

Digital Supply Voltage (DVDD)	3.3V (typical)
Analog Supply Voltage (AVDD)	10.4V (typical)
Gate On Voltage (VGH)	16V (typical)
Gate Off Voltage (VGL)	-7.0V (typical)
Common Voltage (VCOM)	4.3V (typical)

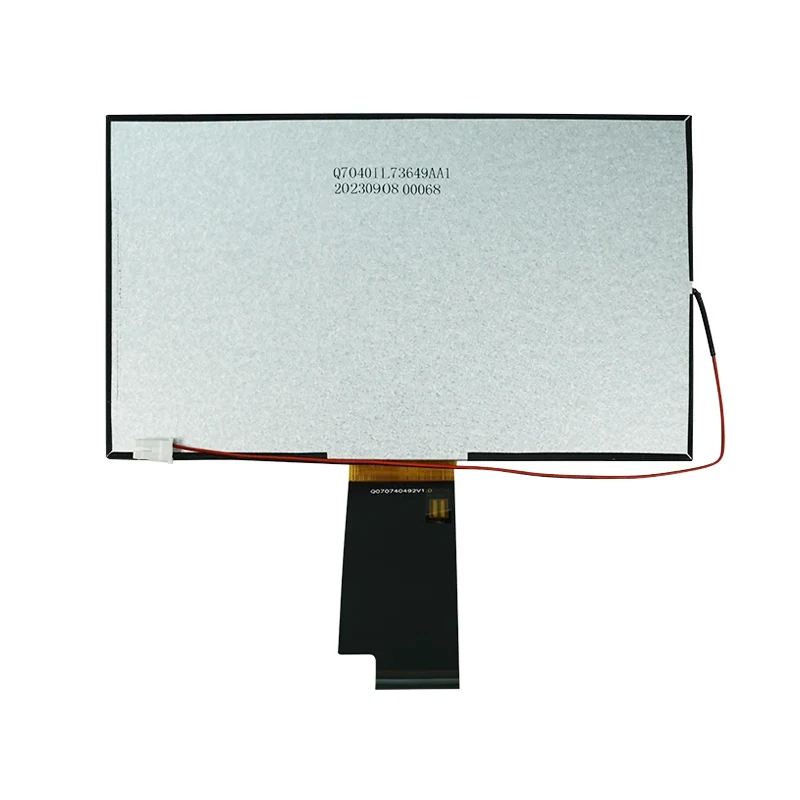

Interface	50-pin FPC connector (RGB 24-bit)

Environmental Specifications

Operating Temperature	-10°C to +60°C
Storage Temperature	-20°C to +70°C

Tianfu Leading Time

Standard Products		Customized Products
Order Quantity	Delivery Time	Customization Type	Delivery Time
1-30 PCS	Immediately	B/L & FPC & TP	within 5 weeks
31-100 PCS	1 week	B/L & FPC & TP	within 5 weeks
101-500 PCS	within 2 weeks	B/L & FPC & TP	within 5 weeks
501-1000 PCS	within 3 weeks	B/L & FPC & TP	within 5 weeks
1001-5000 PCS	within 3 weeks	BL & FPC & TP	within 6 weeks
5000+ PCS	within 4 weeks	BL & FPC & TP	within 6 weeks

Quality Inspection

Tianfu's TFT capacitive touch screen modules are suitable for aerospace applications due to their strict quality control. The modules comply with ISO 9001 standards, have 1:1 replication of system processes, use high-quality materials, are tested at each production stage, and undergo more stringent pre-delivery aging tests – all to ensure stability in mission-critical applications.
