Tianfu 15.6' HD Wide Temp IPS TFT LCD Screen Module: Precision Meets Durability
Ultra-sharp 1920×1080 resolution with RGB vertical stripes. EDP 1.2 @2.7Gbps ensures seamless data flow, while 220 cd/m² brightness and 1000:1 contrast deliver vivid visuals. Rugged design withstands 0–50°C operation, anti-glare coating, and compact 359.5×223.75×3.1mm profile. 15.6' HD wide temp IPS TFT LCD screen module is built for industrial, multimedia, and commercial excellence.

Send Inquiry

Product Description

Supporting small-batch trial orders and custom firmware/interface designs, Tianfu, China TFT LCD screen module manufactures, ensures seamless integration into smart controls/portable instruments, backed by a 12-month warranty.

Tianfu 15.6' HD Wide Temp IPS TFT LCD Screen Module In Stock Features

1.Crystal-Clear Full HD

15.6” 1920×1080 resolution with RGB vertical stripes for sharp, vibrant imagery.

2.High-Speed Connectivity

2-lane eDP 1.2 @2.7Gbps ensures lag-free data transmission.

3.Brilliant Display

220 cd/m² brightness, 1000:1 contrast, and 89° wide viewing angles (CR >10).

4.Industrial Durability

Operates in 0–50°C, withstands -20–60°C storage, and anti-glare coated.

Tianfu Customized 15.6' HD Wide Temp IPS TFT LCD Screen Module Specification

Parameter	Specification
Display Size	15.6 inch (TFT-LCD) / Active Area: 344.16 × 193.59 mm
Resolution	1920 × 1080 pixels (RGB vertical stripe)
Interface (Main)	Connector: 20455-030E-66 (I-PEX, 30-pin) Protocol: 2-lane eDP 1.2 @2.7Gbps Power: 3.3V ±10% (Logic), 7-21V (LED Backlight) Key Pins: LANE0/1_P/N, AUX_CH_P/N, BL_ENABLE, HPD, LCD_VCC, LCD_GND
Interface (Touch)	Not specified in PDF
Optical	Luminance: 220 cd/m² (Typ) Contrast Ratio: 1000:1 (Typ) Viewing Angle: 89° (CR >10, H/V) Response Time: 25-35 ms (Typ) Chromaticity (White): x=0.313, y=0.329
Power Consumption	Logic & Driver: 0.561W (Typ) Backlight (LED): 12V @180mA (Typ)
Electrical Ratings	Logic Supply Voltage: 3.0–3.6V Backlight Voltage: 7–21V Operating Temp: 0–50°C Storage Temp: -20–60°C

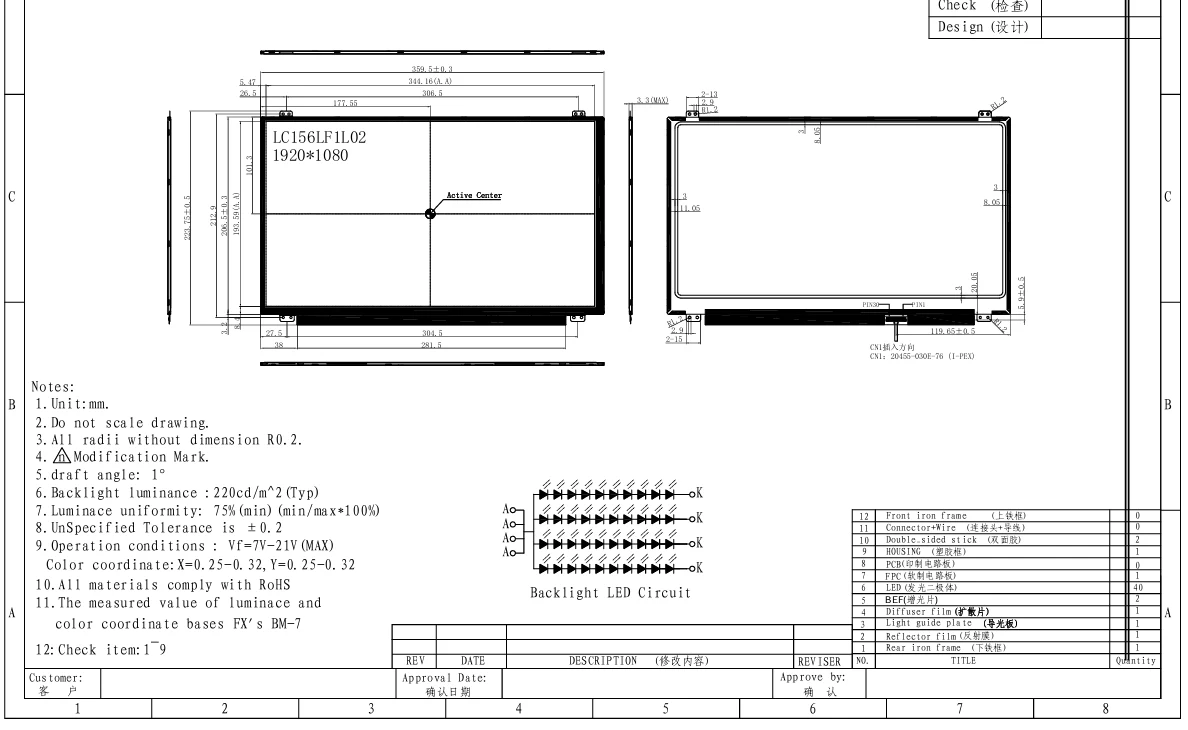

Mechanical	Dimensions (W×H×D): 359.5 × 223.75 × 3.1 mm (Typ) Mass: TBD
Reliability	High Temp Storage: 70°C/240h Low Temp Storage: -35°C/240h Humidity Test: 50°C, 95%RH/240h

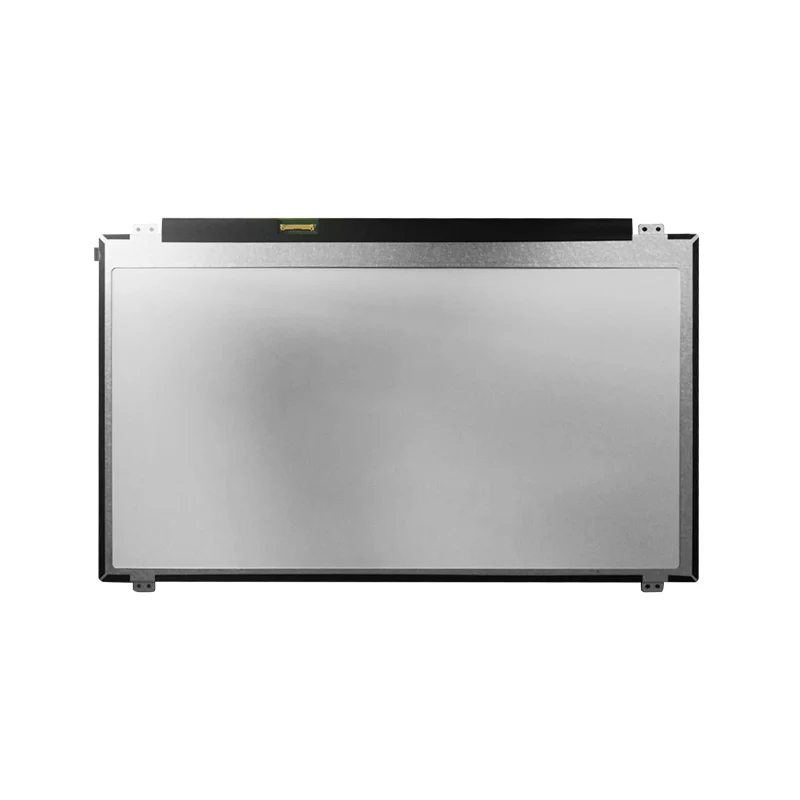

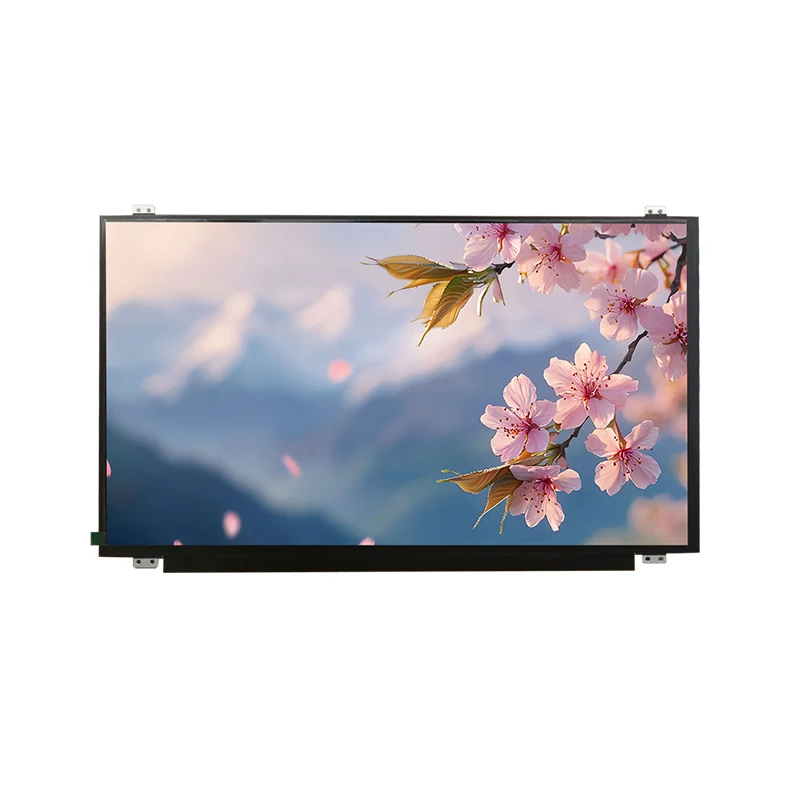

Tianfu 15.6' HD Wide Temp IPS TFT LCD Screen Module Details

Tianfu IPS TFT LCD Display module Application

Tianfu Leading Time

Standard Products		Customized Products
Order Quantity	Delivery Time	Customization Type	Delivery Time
1-30 PCS	Immediately	B/L & FPC & TP	within 5 weeks
31-100 PCS	1 week	B/L & FPC & TP	within 5 weeks
101-500 PCS	within 2 weeks	B/L & FPC & TP	within 5 weeks
501-1000 PCS	within 3 weeks	B/L & FPC & TP	within 5 weeks
1001-5000 PCS	within 3 weeks	BL & FPC & TP	within 6 weeks
5000+ PCS	within 4 weeks	BL & FPC & TP	within 6 weeks
