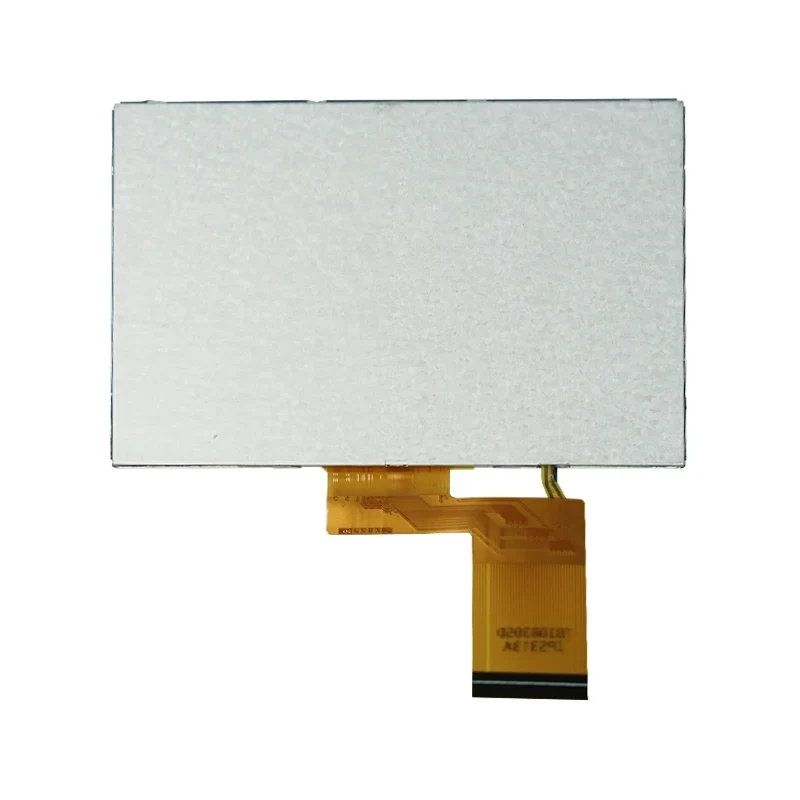

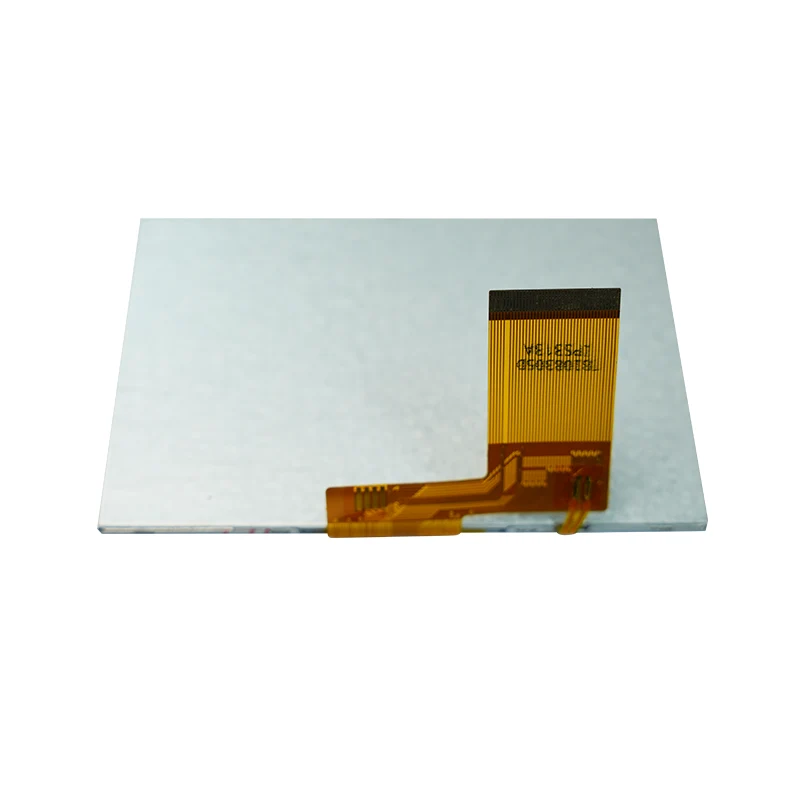

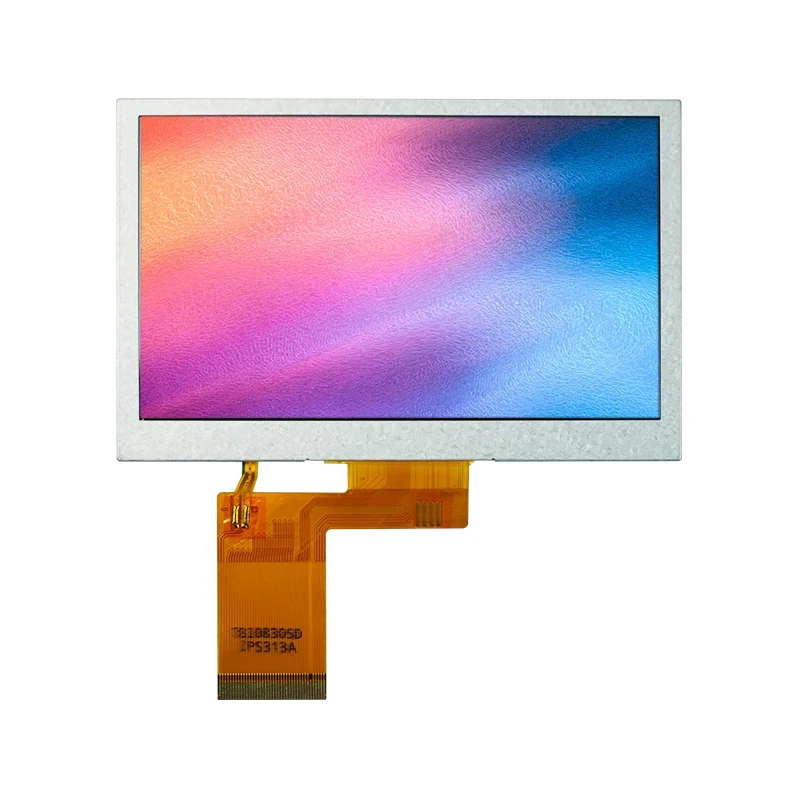

4.3' RGB Interface IPS TFT LCD Screen Module

Core Capabilities:

• Display dynamic images, text, and graphical user interfaces (GUI)

• Support 480×272 resolution, ensuring clear and readable content

• Direct connection to the main control chip via RGB interface, simplifying system integration

• High‑brightness backlight (typical value 620 cd/m²) ensures visibility in strong light environments

• Low‑power design extends device battery life

Tianfu Customized 4.3' RGB Interface IPS TFT LCD Screen Module Specification

Tianfu Customized 4.3' RGB Interface IPS TFT LCD Screen Module Details

This 4.3' RGB Interface IPS TFT LCD Screen Module is widely used across multiple industries due to its compact size, high brightness, and ruggedness.

Here are some typical application scenarios and case examples:

Industrial Automation and Control Systems

• Case: Used in factory production line monitoring terminals to display real‑time production data and equipment status. In strong ambient light, the high‑brightness backlight ensures operators can read information clearly.

• Advantages: Wide‑temperature operation (-10°C~60°C) suits workshop environments; fast response time (40ms) supports dynamic updates.

Medical Equipment

• Case: Integrated into portable medical diagnostic instruments such as blood glucose meters or electrocardiographs (ECGs) to display patient data and graphical results.

• Advantages: High contrast ratio (1000:1) improves image clarity to help medical staff make accurate judgments; low power consumption extends device runtime.

Consumer Electronics

• Case: Applied in smart home control panels to display temperature, humidity, and device control interfaces.

• Advantages: RGB interface supports rich colors to enhance user interaction; small pixel pitch (0.198mm) delivers fine image quality.

Automotive and Transportation Systems

• Case: Used in in‑vehicle infotainment systems or rear‑seat displays to present navigation and media content.

• Advantages: Vibration‑resistant design (based on the robust TFT structure) accommodates vehicle vibration; normally black mode reduces glare in dark environments.

Embedded Development and Education

• Case: Used by students and engineers for prototyping, such as robot control interfaces or IoT device displays.

• Advantages: Simple interface (CLK, HSYNC, etc.) for easy connection to common microcontrollers (e.g., STM32, Raspberry Pi).

• Extended Applications: POS terminals, security monitoring displays, smart instrument panels, etc.

We have collected feedback from manufacture users across various industries to comprehensively evaluate the actual performance of this display module. Please note that the experience is based on specifications and typical applications and may vary depending on the specific usage environment.

Visual Performance

• Brightness & Readability: Users report that the 620 cd/m² backlight is sufficiently bright for outdoor or brightly lit indoor environments, ensuring clear visibility of content. The typical contrast ratio of 1000:1 deepens blacks and brightens whites, enhancing the overall visual experience.

• Color Performance: With a color gamut covering 40%~50% (CIE1931), color reproduction is realistic, making it suitable for displaying charts and images. However, the color gamut may be limited for professional graphic design applications.

• Response Time: The typical response time of 40ms is sufficient for most static and dynamic content. While slight motion blur may occur during fast video playback, it is well-suited for industrial control and non-high-speed gaming scenarios.

Integration & Ease of Use

• Interface Compatibility: The 24-bit RGB interface is widely supported, with users reporting simple integration with ARM Cortex-M series or Linux systems. Control signals (such as DEN, DISP) simplify timing configuration.

• Power Management: The wide voltage input range (VCC 2.65~3.3V) allows flexible power supply, reducing the need for external regulation. Measured power consumption is relatively low, contributing to energy efficiency.

• Size & Installation: The compact 4.3-inch design fits well in space-constrained devices. The active display area of 95.04mm × 53.86mm optimizes the screen-to-body ratio.

Environmental Adaptability

• Temperature Performance: It operates stably within the range of -10°C~60°C, and users confirm no display abnormalities when used in outdoor equipment. The storage temperature range of -20°C~70°C ensures safety during transportation and storage.

• Durability: The TFT panel and SC7283 driver IC provide reliable operation, with no reported failures in industrial vibration environments.

• Summary of Clients Reviews: “This display offers high value for money, sufficient brightness, and simple integration. It perfectly matches our requirements for our in-vehicle display project. The response time is acceptable, and the after-sales service response is also fast.”
