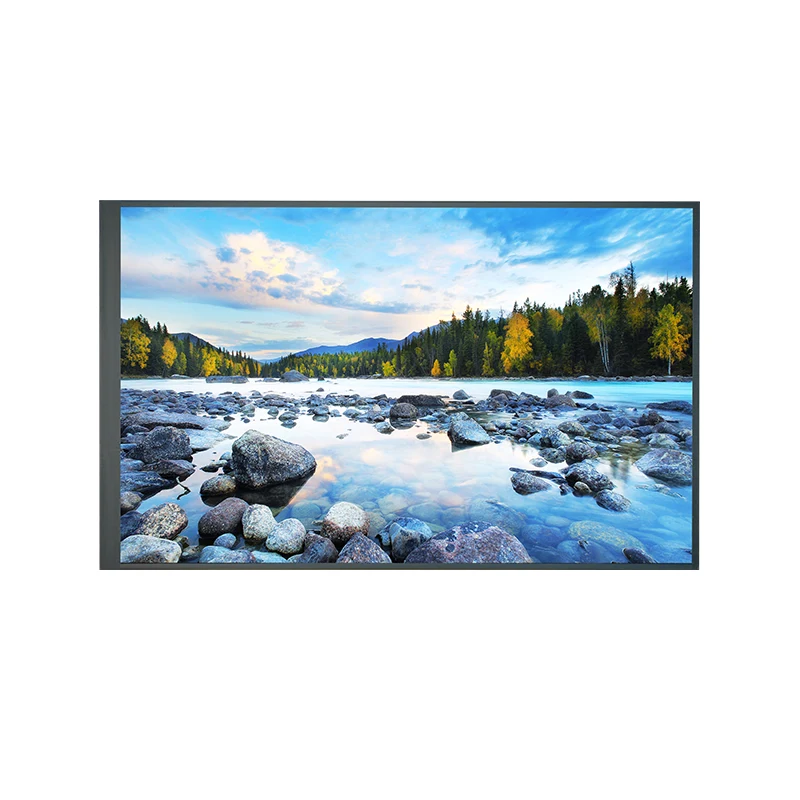

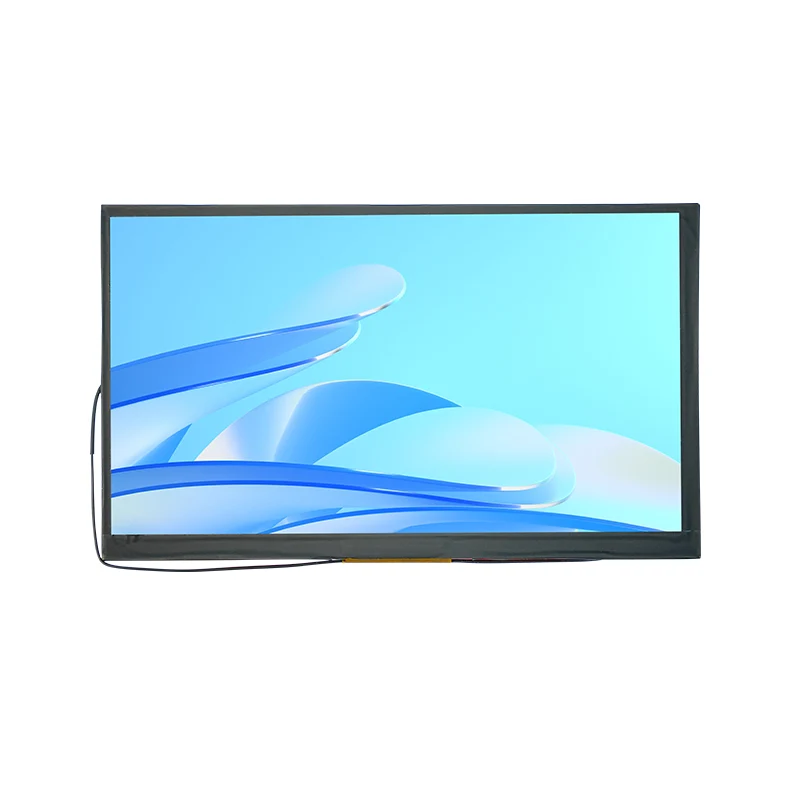

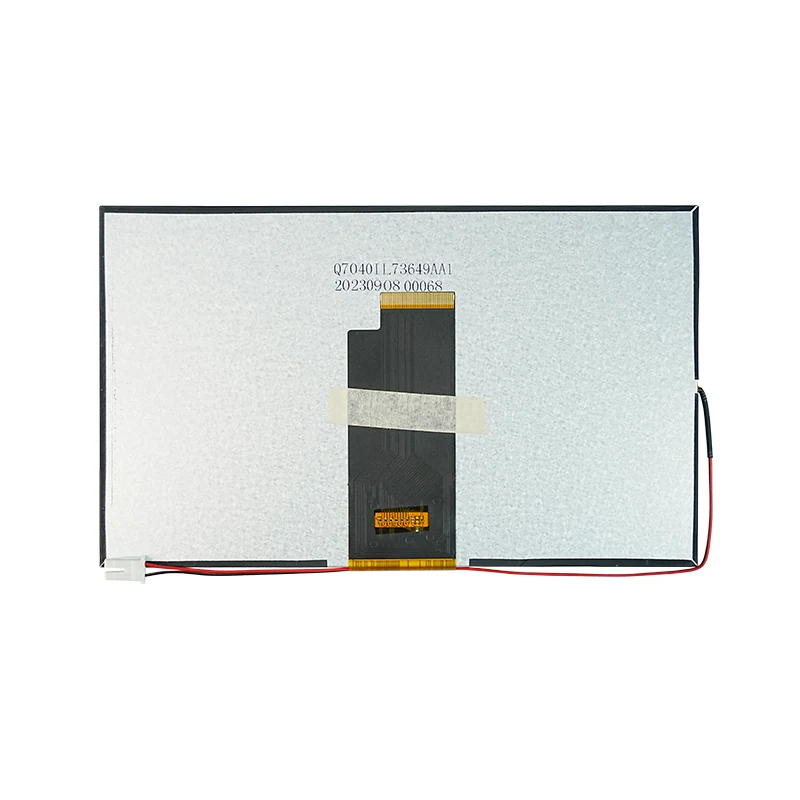

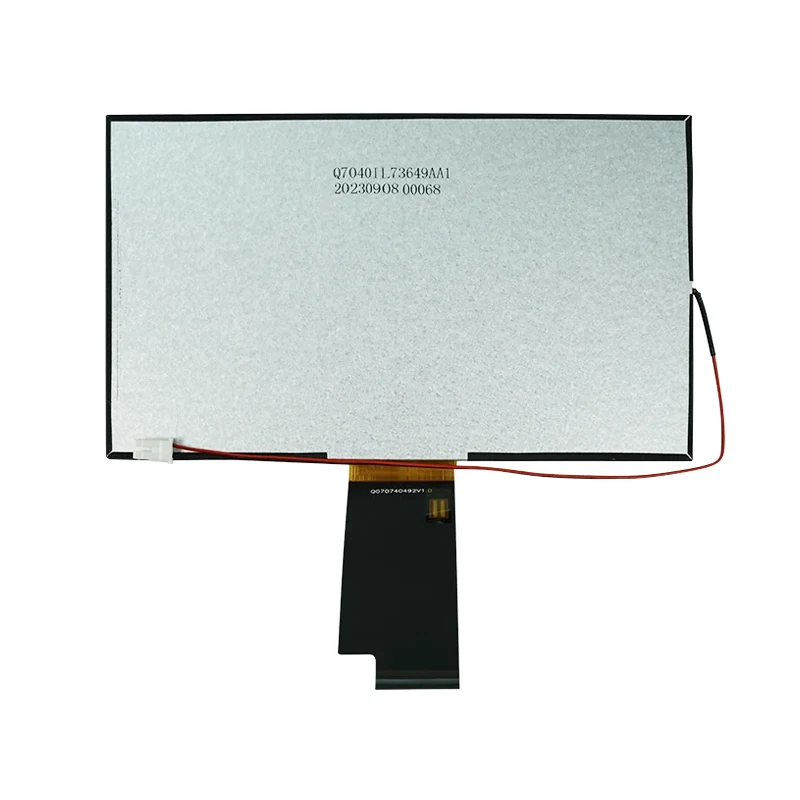

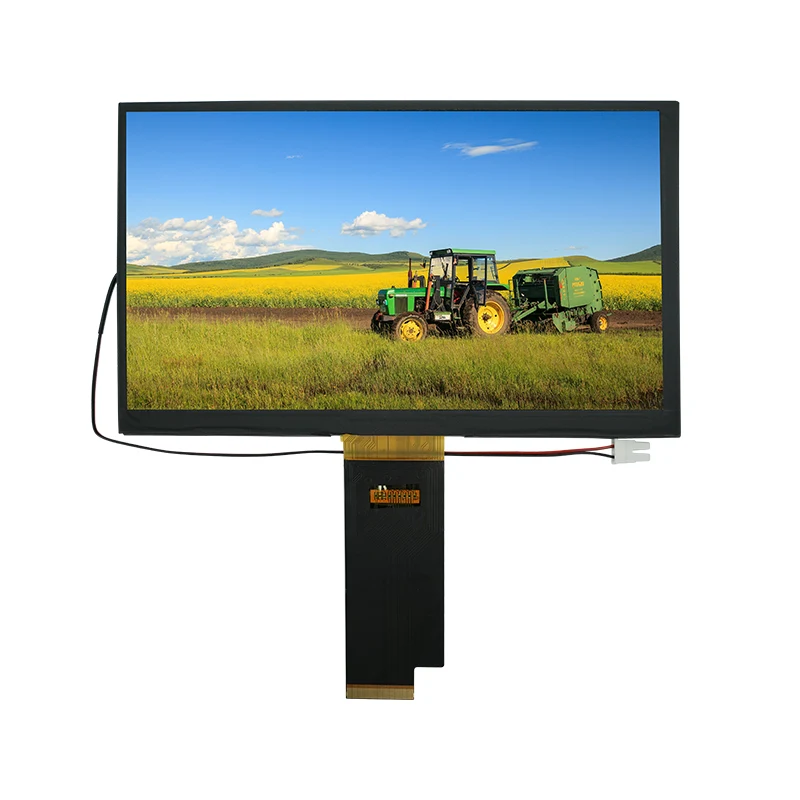

7.0' 500 Nit IPS TFT LCD Screen Module

Core Competencies

・High Visibility Display: 500 cd/m² high brightness combined with anti-reflective surface treatment ensures clear readability even in strong ambient light.

・Wide Temperature Adaptability: Operating temperature range of -20°C to 70°C, suitable for various industrial environments.

・Accurate color reproduction: Approximately 72% NTSC color gamut coverage, accurately reproducing color information.

・Rugged and Durable Design: 2H/3H hardness coating provides surface protection and extends product lifespan.

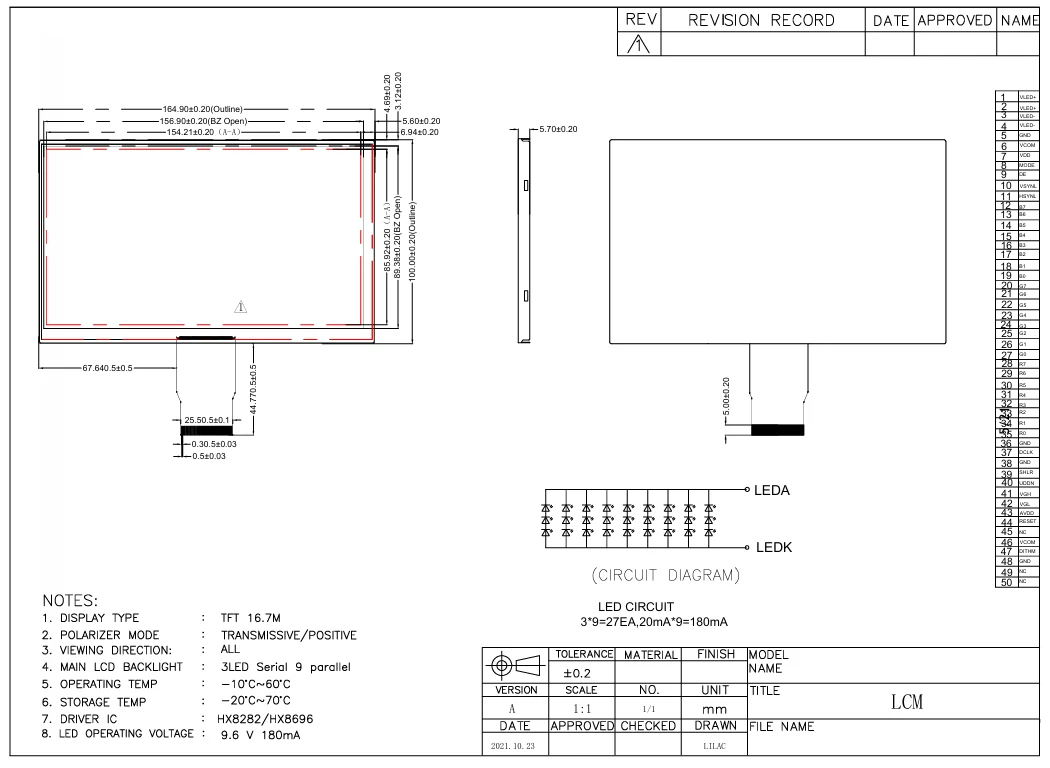

Tianfu Customized 7.0' 500 Nit IPS TFT LCD Screen Module Specification

Tianfu 7.0' 500 Nit IPS TFT LCD Screen Module Details

7.0' 500 Nit IPS TFT LCD Screen Module is specifically designed for industrial equipment, outdoor instruments, medical devices, in-vehicle systems, and automation control panels that require reliable display functionality.

Industrial Automation and Control

Case: Factory Production Line Control Panel

In automotive manufacturing assembly lines, this display serves as a control terminal showing real‑time production data, equipment status, and operational guidelines. Its high brightness ensures clear visibility under factory lighting, while the wide temperature range adapts to non‑climate‑controlled workshop environments. IPS technology allows operators to read information accurately from various angles.

Outdoor Equipment and Instruments

Case: Solar Power Plant Monitoring Terminal

Displays installed in outdoor monitoring cabinets must overcome direct sunlight and temperature variations. The 500 cd/m² brightness and anti‑glare coating eliminate reflection interference, and the operating range of -20°C to 70°C adapts to day‑night and seasonal temperature differences.

Transportation Systems

Case: In‑Vehicle Information Display System

Used for instrument displays in special‑purpose vehicles such as engineering machinery and agricultural equipment. The IPS wide viewing angle ensures both the driver and co‑driver can clearly see information, and the 25ms response time is sufficient for displaying dynamic data such as vehicle speed and fuel level.

Medical and Testing Equipment

Case: Portable Medical Diagnostic Devices

Color accuracy (72% NTSC) ensures medical images are displayed realistically. The normally black mode reduces power consumption during standby, meeting the energy efficiency requirements of medical equipment.

Self‑Service Terminals

Case: Outdoor Self‑Service Ticket Machines

Anti‑glare treatment reduces ambient light reflection, high contrast makes QR codes and fare information clearly distinguishable, and the rugged surface treatment resists touch‑related wear and tear.

Tianfu 7.0' 500 Nit IPS TFT LCD Screen Module Application

Quality Assurance System

Production Standards: Manufactured under ISO 9001 quality management system certification

Inspection Process: 100% power-on testing, with sampling undergoing 72-hour aging tests

Pixel Standards: Complies with ISO 13406-2 Class II pixel defect standards

Packaging Protection: Anti-static and shock-resistant packaging to ensure safe transportation

Reliability Data

Backlight Lifespan: Typical 50,000 hours (at 25°C)

Mechanical Durability: Surface hardness of 2H/3H, providing excellent scratch resistance

Connection Reliability: Interface insertion/removal cycles ≥ 10,000 times

Customization Options and Process Flow

Customizable Parameters

1.Interface Adaptation

◦ Adjustable interface pin definitions

◦ Support for conversion to LVDS, MIPI, and other interfaces

◦ Custom connector types and positions

2.Optical Adjustments

◦ Custom brightness (up to 1000 cd/m²)

◦ Color temperature adjustment (cool white / warm white)

◦ Special anti-reflective coating

3.Structural Modifications

◦ Front bezel size and mounting hole adjustments

◦ Addition of touch screen (resistive / capacitive)

◦ Special protective treatments (waterproof, dustproof)

4.Electrical Optimization

◦ Low-power version optimization

◦ Wide voltage input design (9–36V)

◦ Integrated power management circuitry

Standard Process Flow:

Requirements Analysis → Solution Design → Prototype Production → Customer Validation → Small-batch Trial Production → Reliability Testing → Mass Production → Factory Inspection

Typical Customization Lead Time

• Light customization (interface/brightness adjustment): 4–6 weeks

• Medium customization (touch screen addition/structural adjustment): 8–10 weeks

• Deep customization (new optical design/special environment adaptation): 12–16 weeks

Minimum Order Quantity

• Standard models: 500 pieces

• Custom models: Negotiable based on customization level (typically 1 pieces)
