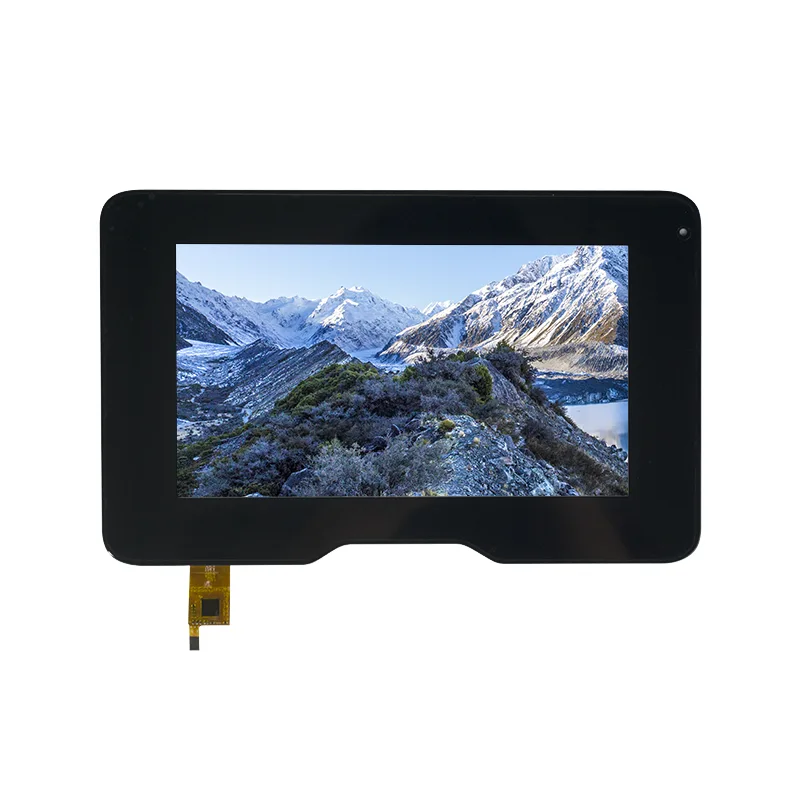

7.0' Customized Design TFT Capacitive Touch Screen Module

Discover the 7.0' Customized Design TFT Capacitive Touch Screen Module. Experience flawless 10-point multi-touch on durable Glass/Glass construction. Built tough with 6H hardness, wide operating temperatures (-10°C~60°C), and proven reliability. Engineered by Shenzhen Tianfu for demanding applications. 7.0' customized design TFT capacitive touch screen module enhanced durability meets precision control.

Send Inquiry

Product Description

Supporting small-batch trial orders and custom firmware/interface designs, 7.0' Customized Design TFT Capacitive Touch Screen Module supplier, Tianfu ensures seamless integration into smart controls/portable instruments, backed by a 12-month warranty.

Product Features

1.Premium 5-Point Touch

Experience smooth, multi-finger interaction enabled by the advanced GT911 controller.

2.Crystal-Clear Display

Achieves exceptional clarity with over 83% visible area (VA) light transmittance.

3.Robust & Durable Surface

Features a PET surface hardened to ≥3H, passing a stringent 64g steel ball impact test.

4.Wide Operating Range

Reliable performance guaranteed from -10°C to +60°C and up to 80% humidity.

Tianfu 7’ Touch Screen Module Specification

Module Type	7-inch Capacitive Touch Panel (Glass Cover Lens + Glass Sensor)
Mechanical Dimensions	97.00 × 160.77 × 1.10 mm (Sensor Outline; Tolerance: ±0.20 mm)
Active Area	88.32 × 154.65 mm (Tolerance: ±0.20 mm)
Structure	FPC: Adhesive-less Electrolytic Copper (0.1 ± 0.05 mm) Sensor: Glass (1.1 ± 0.07 mm)
Optical Properties	Light Transmittance: ≥90% (JIS K7105) Haze: <3% (JIS K7105)
Operating Temperature	-20°C to +70°C, ≤70% RH
Storage Temperature	-30°C to +80°C, ≤80% RH
Reliability Tests	• High-Temp Storage: 60°C, 24h • Low-Temp Storage: -20°C, 24h (No Condensation) • Damp Heat: 60°C/90% RH, 24h (No Condensation) • High-Temp Operating: 70°C, 24h • Low-Temp Operating: -20°C, 24h (No Condensation)
Life Test	• Dot Test: 250g × 1 million cycles • Slide Test: 250g × 100k cycles (Functional OK; Minor Scratches Acceptable)

Tianfu Capacitive Touch Screen Module Details

7.0' Customized Design TFT Capacitive Touch Screen Module

Tianfu 7.0' Capacitive Touch Screen Module Application

Tianfu Leading Time

Standard Products		Customized Products
Order Quantity	Delivery Time	Customization Type	Delivery Time
1-30 PCS	Immediately	B/L & FPC & TP	within 5 weeks
31-100 PCS	1 week	B/L & FPC & TP	within 5 weeks
101-500 PCS	within 2 weeks	B/L & FPC & TP	within 5 weeks
501-1000 PCS	within 3 weeks	B/L & FPC & TP	within 5 weeks
1001-5000 PCS	within 3 weeks	BL & FPC & TP	within 6 weeks
5000+ PCS	within 4 weeks	BL & FPC & TP	within 6 weeks
