14'' Industrial TFT Capacitive Touch Screen Module

Rugged 14'' Industrial TFT Capacitive Touch Screen Module: 10-point control, 6H hardened glass survives 50cm drops. Precision 310.3×175.0mm view area. -10°C~60°C operation with 500gf/cm FPC strength. Humidity/temperature certified. 14'' industrial TFT capacitive touch screen module is ideal for industrial applications demanding reliability.

Send Inquiry

Product Description

Supporting small-batch trial orders and custom firmware/interface designs, Tianfu, as a touch screen module supplier, ensures seamless integration into smart controls/portable instruments, backed by a 12-month warranty.

Product Features

1.10-Point Multi-Touch Control

Glass-on-glass construction enables simultaneous 10-finger recognition for advanced gesture interaction.

2.Military-Grade Environmental Resilience

Operates at -10°C~60°C / 45-85% RH with 120hr extreme temperature storage (-20°C~70°C) certification.(Sources: Page 3 – Operation/Storage Conditions; Page 5 – Reliability Tests)

3.6H Hardness & Impact Resistance

Survives 3x 50cm 64g steel ball drops (JIS K-5400 standard) with scratch-resistant 6H surface hardness.

4.Precision-Engineered Reliability

310.3×175.0mm ±0.20mm view area with 500gf/cm FPC bond strength (ASTM D903 validated) for industrial integration.

Product Specification

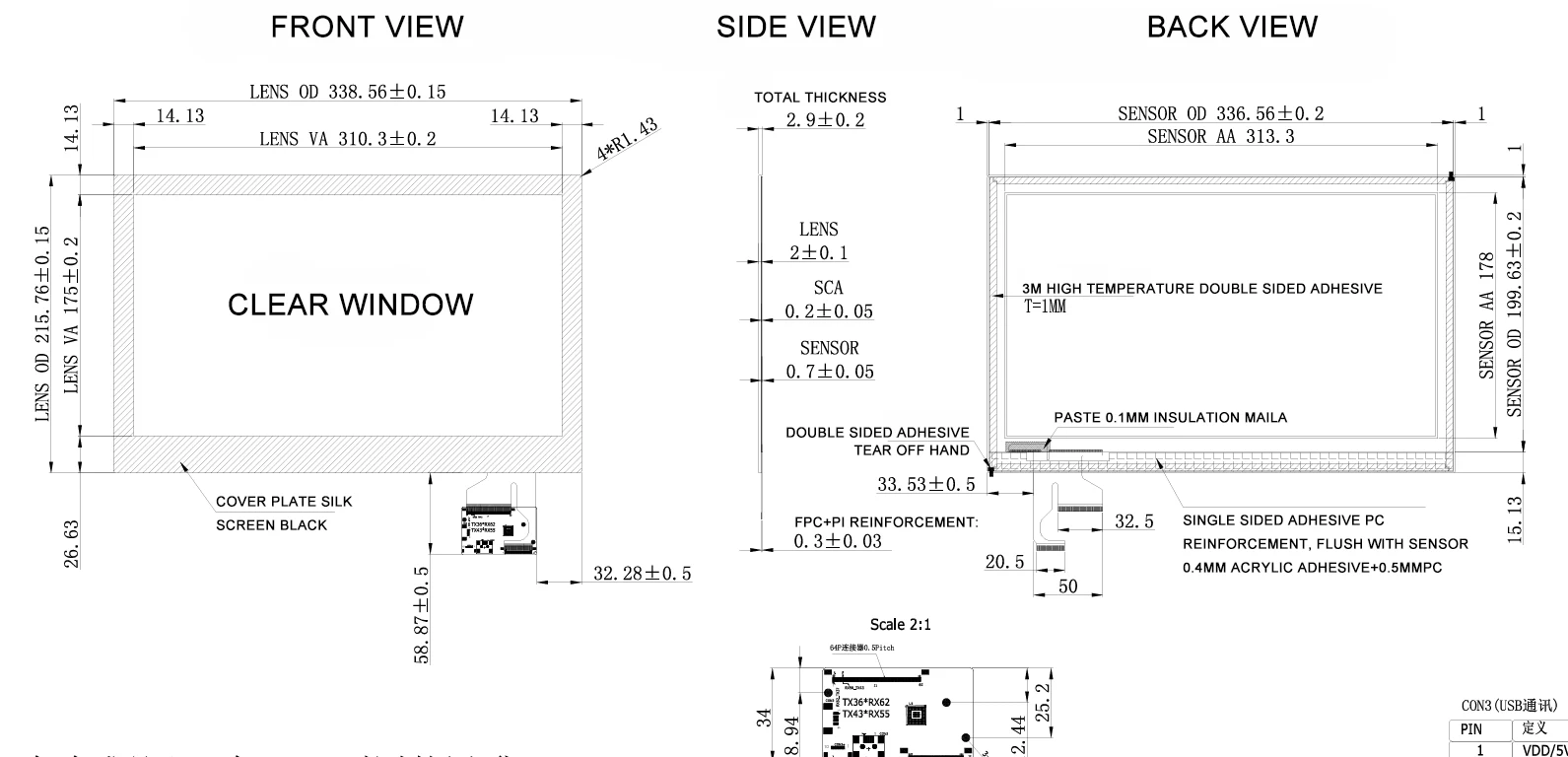

Overall Dimensions (L×W×T)	338.56mm × 215.76mm × 2.90mm
TP Sensor Dimensions (L×W×T)	336.56mm × 119.63mm × 0.70mm
Viewable Area (L×W)	310.30mm × 175.00mm
Mechanical Characteristics
Ball Drop Test	64g steel ball from 50cm height (3 impacts)
Hardness	≥6H (JIS K-5400)
Warpage	≤Length × 0.1%
FPC Peeling Strength	≥500gf/cm (ASTM D903/D3807)
Environmental Specifications
Operation Condition	-10℃~+60℃/45%~85% RH
Storage Condition	-20℃~+70℃/45%~85% RH

Product Details

14'' Industrial TFT Capacitive Touch Screen Module

Product Application

Tianfu Leading Time

Standard Products		Customized Products
Order Quantity	Delivery Time	Customization Type	Delivery Time
1-30 PCS	Immediately	B/L & FPC & TP	within 5 weeks
31-100 PCS	1 week	B/L & FPC & TP	within 5 weeks
101-500 PCS	within 2 weeks	B/L & FPC & TP	within 5 weeks
501-1000 PCS	within 3 weeks	B/L & FPC & TP	within 5 weeks
1001-5000 PCS	within 3 weeks	BL & FPC & TP	within 6 weeks
5000+ PCS	within 4 weeks	BL & FPC & TP	within 6 weeks
