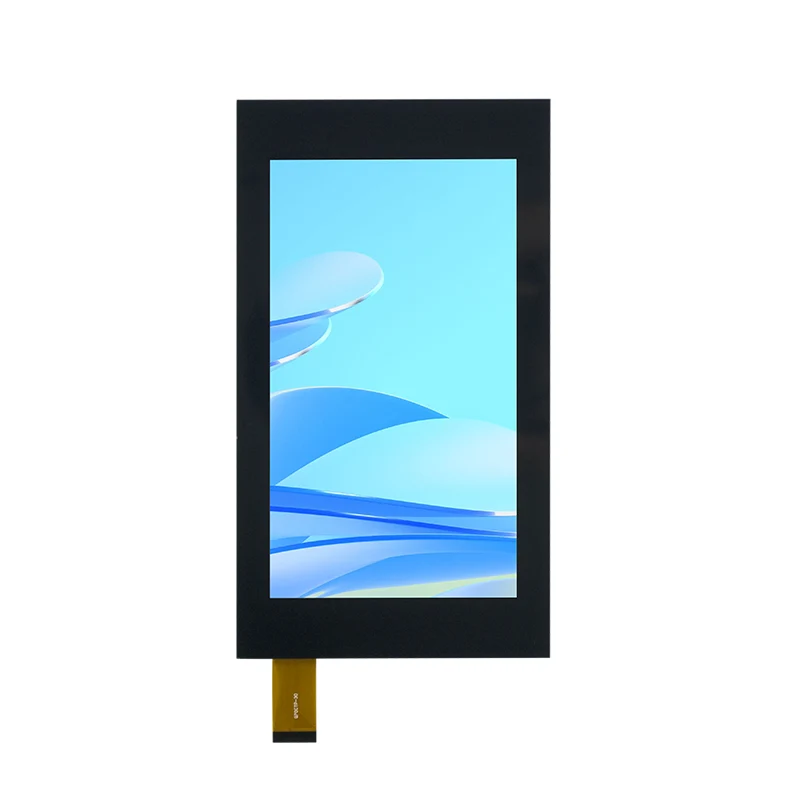

7' Multi-touch FHD Capacitive Touch Screen Module

Tianfu 7' Multi-touch FHD Capacitive Touch Screen Module Experience precision and durability with the QT70 5-point multi-touch panel. Engineered with PET and 1.1mm ITO glass, it delivers ≥80% transparency for crystal-clear responsiveness. Built to endure: operates flawlessly from -10°C to +60°C, survives 1M+ taps, and resists scratches (≥3H hardness). Ideal for industrial and consumer tech, 7' multi-touch FHD capacitive touch screen module ensures ≤3% linearity, ≤15ms response, and passes rigorous thermal, vibration, and drop tests.

Send Inquiry

Product Description

Supporting small-batch trial orders and custom firmware/interface designs, Tianfu, China TFT LCD screen module manufactures, ensures seamless integration into smart controls/portable instruments, backed by a 12-month warranty.

Tianfu 7' Multi-touch FHD Capacitive Touch Screen Module In Stock Features

1.5-Point Multi-Touch Precision

Seamless interaction for complex applications.

2.Industrial-Grade Durability

Survives 1 million+ taps and harsh environments (-10°C to +60°C).

3.Crystal-Clear Clarity

≥80% transparency with scratch-resistant 3H-hardness surface.

4.Reliable Performance

≤3% linearity, ≤15ms response, and ≥20MΩ insulation for stable operation.

Tianfu Customized 7' Multi-touch FHD Capacitive Touch Screen Module Specification

Parameter	Specification
Product Model	QT70

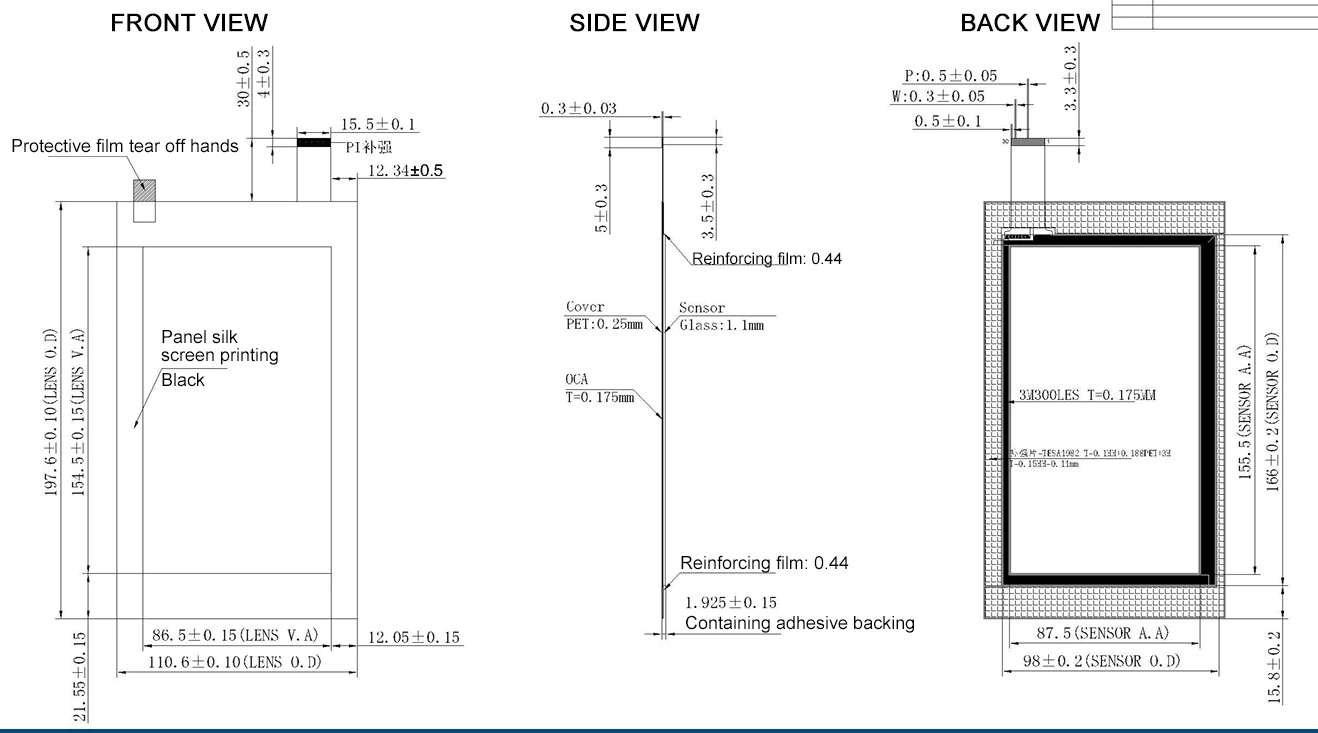

Structure	Layer 1: PET (0.25mm) Layer 2: ITO Glass (1.1mm) Tail Type: FPC (Gold-plated)
Touch Points	5-point multi-touch
Operating Environment	-10℃ to +60℃, ≤90%RH (non-condensing)
Storage Environment	-20℃ to +70℃, ≤90%RH (non-condensing)
Electrical Characteristics	• Insulation Resistance: ≥20MΩ@25V DC • Linearity: ≤3.0% • Contact Jitter Time: ≤15ms
Mechanical Characteristics	• Input Method: Finger/Stylus • Operating Force: ≤10g (finger) • Durability: ≥1M taps / ≥100K pen slides • Surface Hardness: ≥3H (500gf test)
Optical Characteristics	Transparency: ≥80% (white light test)
Display Size	13.3 inch (TFT-LCD) / 10.1 inch (Touch)
Resolution	1920×1080 (Active Area: 293.76×165.24mm)
Main Interface	Connector: LV03030-13100 (30-pin) Protocol: 2-lane eDP_1.2 @2.7Gbps Power: 3.3V±10% (Logic), 9-21V (LED) Key Pins: LANE0/1_P/N, AUX_CH_P/N, BL_ENABLE, HPD
Touch Interface	Connector: FPC (FH19SC-6S-0.5SH) Type: I²C (SCL-Pin1, SDA-Pin24)
Luminance	300-330 cd/m²
Contrast Ratio	1500:1 (Typ)

Tianfu 7' Multi-touch FHD Capacitive Touch Screen Module Details

Tianfu IPS TFT LCD Display module Application

Tianfu Leading Time

Standard Products		Customized Products
Order Quantity	Delivery Time	Customization Type	Delivery Time
1-30 PCS	Immediately	B/L & FPC & TP	within 5 weeks
31-100 PCS	1 week	B/L & FPC & TP	within 5 weeks
101-500 PCS	within 2 weeks	B/L & FPC & TP	within 5 weeks
501-1000 PCS	within 3 weeks	B/L & FPC & TP	within 5 weeks
1001-5000 PCS	within 3 weeks	BL & FPC & TP	within 6 weeks
5000+ PCS	within 4 weeks	BL & FPC & TP	within 6 weeks
