7.0' TFT IPS Capacitive Touch Screen Module Sunlight Readable

Experience premium 7.0' TFT IPS Capacitive Touch Screen Module Sunlight Readable: Glass-on-glass clarity (≥90% transmittance, <3% haze). Engineered for durability with 1M-touch lifespan, extreme temperature resilience (-30°C to 80°C), and precision tolerances (±0.07mm). 7.0' TFT IPS capacitive touch screen module sunlight readable is ideal for industrial displays that require flawless performance.

Send Inquiry

Product Description

Supporting small-batch trial orders and custom firmware/interface designs, TFT capactive touch screen module supplier, Tianfu ensures seamless integration into smart controls/portable instruments, backed by a 12-month warranty.

Product Features

1.Crystal-Clear Visual Performance

≥90% light transmittance with <3% haze (JIS K7105 certified) delivers exceptional optical clarity for vivid display viewing.

2.Industrial-Grade Resilience

Withstands extreme environments (-20°C to +80°C storage, 60°C/90%RH damp heat tests) and survives 1 million touch cycles at 250g force.

3.Precision Engineered Reliability

Ultra-tight tolerances (±0.07mm thickness control, ±0.20mm dimensional accuracy) ensure perfect fitment in critical applications.

4.Validated Long-Term Durability

Rigorously tested through thermal shock, condensation-free operation, and mechanical stress verification for mission-critical performance.

Product Specification

Module Type	7-inch Capacitive Touch Panel (Glass Cover Lens + Glass Sensor)

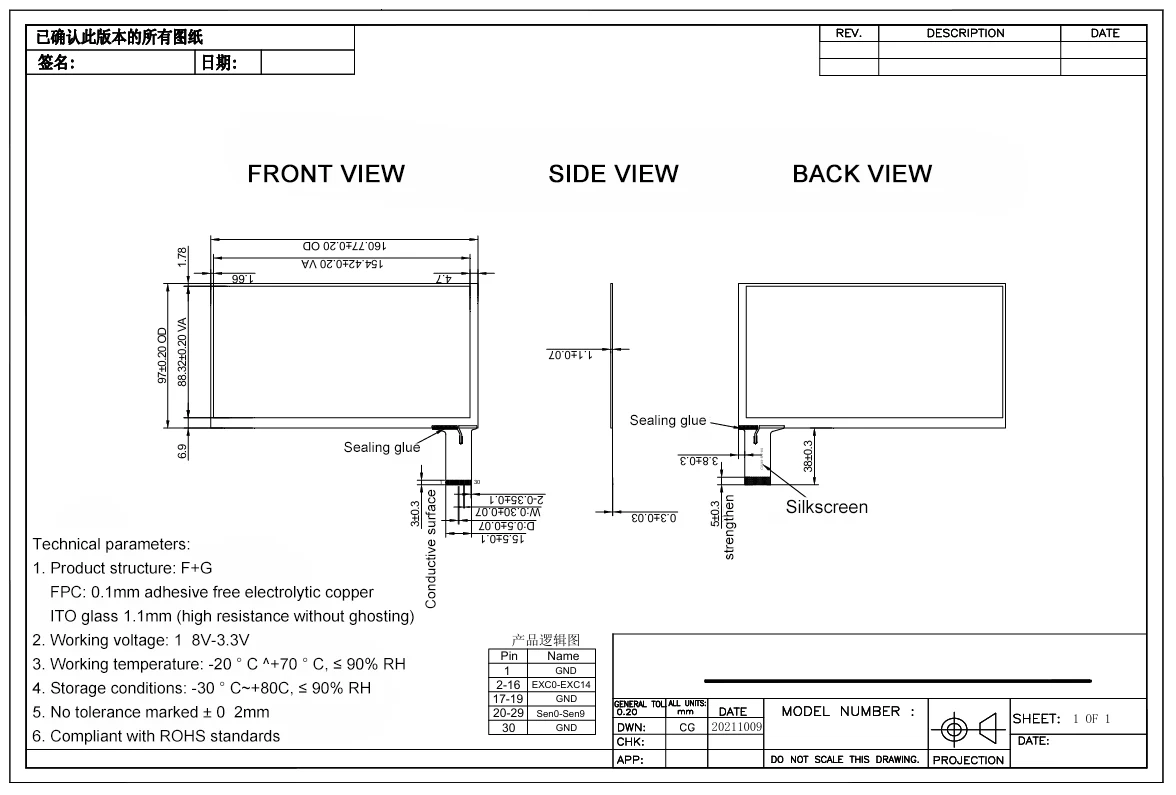

Mechanical Dimensions	97.00 × 160.77 × 1.10 mm (Sensor Outline; Tolerance: ±0.20 mm)
Active Area	88.32 × 154.65 mm (Tolerance: ±0.20 mm)
Structure	FPC: Adhesive-less Electrolytic Copper (0.1 ± 0.05 mm) Sensor: Glass (1.1 ± 0.07 mm)
Optical Properties	Light Transmittance: ≥90% (JIS K7105) Haze: <3% (JIS K7105)
Operating Temperature	-20°C to +70°C, ≤70% RH
Storage Temperature	-30°C to +80°C, ≤80% RH
Reliability Tests	• High-Temp Storage: 60°C, 24h • Low-Temp Storage: -20°C, 24h (No Condensation) • Damp Heat: 60°C/90% RH, 24h (No Condensation) • High-Temp Operating: 70°C, 24h • Low-Temp Operating: -20°C, 24h (No Condensation)
Life Test	• Dot Test: 250g × 1 million cycles • Slide Test: 250g × 100k cycles (Functional OK; Minor Scratches Acceptable)

Product Details

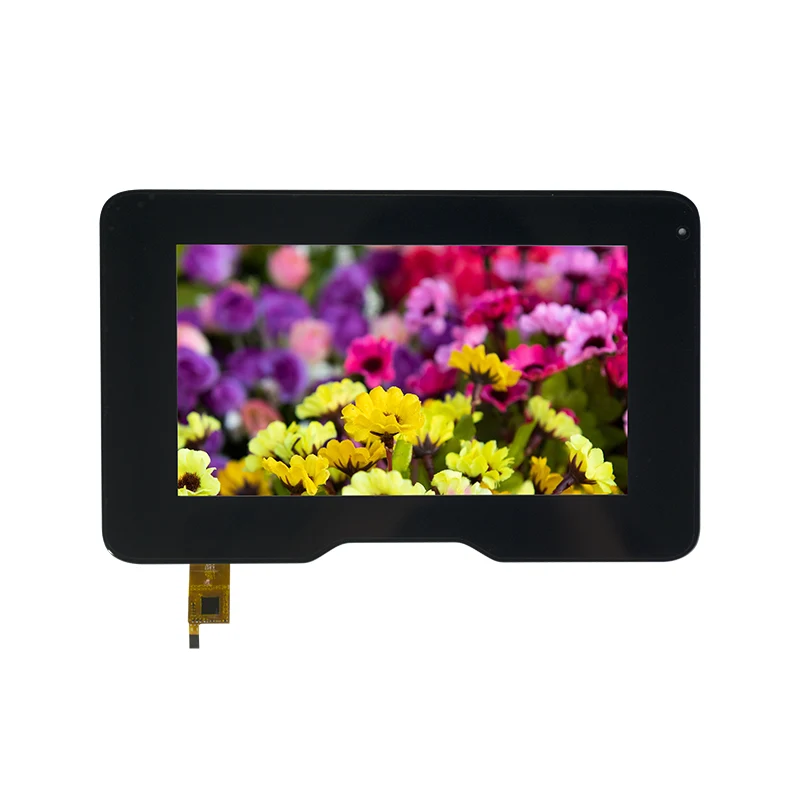

7.0' TFT IPS Capacitive Touch Screen Module Sunlight Readable

Product Application

Tianfu Leading Time

Standard Products		Customized Products
Order Quantity	Delivery Time	Customization Type	Delivery Time
1-30 PCS	Immediately	B/L & FPC & TP	within 5 weeks
31-100 PCS	1 week	B/L & FPC & TP	within 5 weeks
101-500 PCS	within 2 weeks	B/L & FPC & TP	within 5 weeks
501-1000 PCS	within 3 weeks	B/L & FPC & TP	within 5 weeks
1001-5000 PCS	within 3 weeks	BL & FPC & TP	within 6 weeks
5000+ PCS	within 4 weeks	BL & FPC & TP	within 6 weeks

Hot Tags: 7.0' TFT IPS Capacitive Touch Screen Module Sunlight Readable
