10.1' High Brightness IPS Color TFT LCD Display Module

Tianfu 10.1' High Brightness IPS Color TFT LCD Display Module: 1024x600 IPS with full viewing angles. 350cd/m² high brightness, 800:1 contrast, 16.7M colors via 24-bit RGB color TFT LCD display module. Built tough: -10°C~60°C range, 42-LED backlight (140mA), anti-glare surface. Otherwise, this color TFT LCD display module compacts (235x143x5mm) for industrial, medical, or outdoor use. Uncompromised visuals, unmatched durability.

Send Inquiry

Product Description

Supporting small-batch trial orders and custom firmware/interface designs, Tianfu, as a China LCD display supplier, ensures seamless integration into smart controls/portable instruments, backed by a 12-month warranty.

Tianfu 10.1' High Brightness IPS Color TFT LCD Display Module In Stock Features

1.Superior Display Technology

10.1" IPS panel with 80/80/80/80 viewing angles for consistent color accuracy.

2.High-Resolution Visuals

1024×600 RGB vertical stripe resolution, delivering sharp and detailed imagery.

3.Brightness & Contrast

350 cd/m² luminance (Typ.) and 800:1 optical contrast for vivid visibility in any lighting.

4.Extreme Durability

Operates in -10°C to 60°C, survives storage at -20°C to 70°C for harsh environments.

Tianfu Customized 10.1' High Brightness IPS Color TFT LCD Display Module Specification

Display Size	10.1-inch Color TFT-LCD (Transmissive)
Resolution	1024(RGB) × 600 pixels (RGB Vertical Stripe)
Display Mode	Normally Black, 80/80/80/80 Viewing Direction
Interface	IPS with 24-bit Parallel RGB
Power Supply Voltage	Digital: 3.3 V (DVDD) Analog: 9.4–12 V (AVDD) Gate ON: 15–22 V (VGH) Gate OFF: -9–(-5) V (VGL)
Luminance	350 cd/m² (Typ.)
Contrast Ratio	450:1 (Typ.) / 800:1 (Optical)
Backlight	White LED (42 LEDs, 140mA Typ.)
Operating Temperature	-10℃ to 60℃

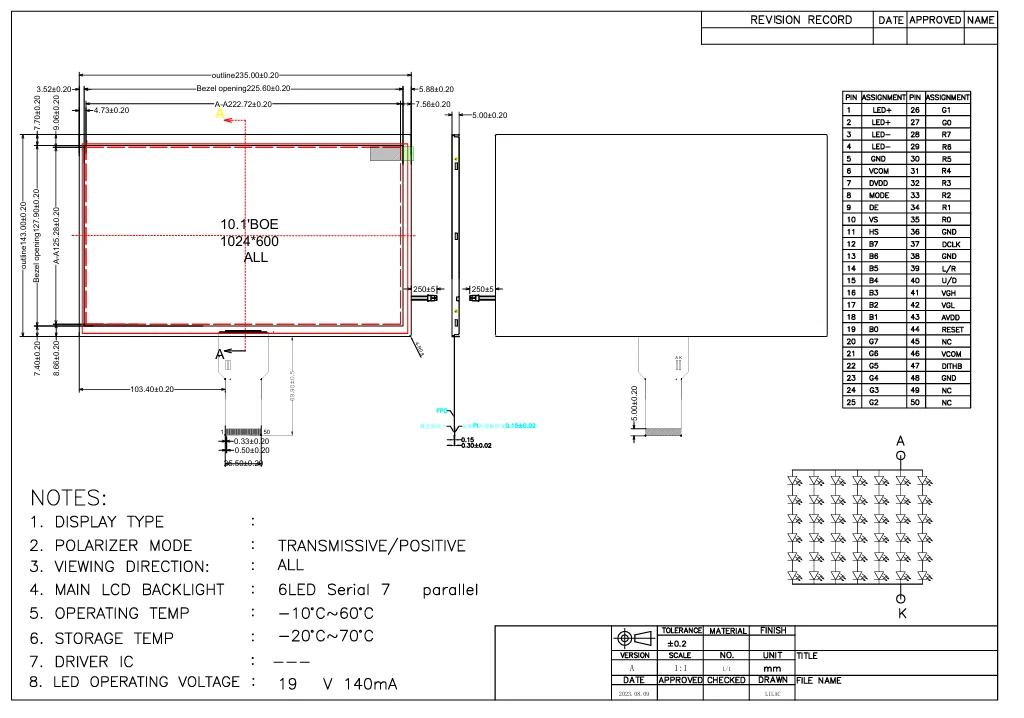

Tianfu 10.1' High Brightness IPS Color TFT LCD Display Module Details

Tianfu 10.1' High Brightness IPS Color TFT LCD Display Module Application

Tianfu Leading Time

Standard Products		Customized Products
Order Quantity	Delivery Time	Customization Type	Delivery Time
1-30 PCS	Immediately	B/L & FPC & TP	within 5 weeks
31-100 PCS	1 week	B/L & FPC & TP	within 5 weeks
101-500 PCS	within 2 weeks	B/L & FPC & TP	within 5 weeks
501-1000 PCS	within 3 weeks	B/L & FPC & TP	within 5 weeks
1001-5000 PCS	within 3 weeks	BL & FPC & TP	within 6 weeks
5000+ PCS	within 4 weeks	BL & FPC & TP	within 6 weeks
