2.4' OEM Tiny Low Power TFT Capacitive Touch Screen Module

Tianfu 2.4' OEM Tiny Low Power TFT Capacitive Touch Screen Module: (240RGB×320 resolution, 12 o'clock viewing) operates at -30°C~+85°C for harsh environments. Certified CE/RoHS with aluminum frame and low-power LED backlight, this 2.4' OEM tiny low power TFT capacitive touch screen module serves automotive dashboards, industrial systems, outdoor IoT, and home appliances (washing machines/vacuums).

Send Inquiry

Product Description

Supporting small-batch trial orders and custom firmware/interface designs, China TFT LCD display module factory, Tianfu ensures seamless integration into smart controls/portable instruments, backed by a 12-month warranty.

Tianfu 2.4'' Tiny Capacitive Touch Screen Module In Stock Features

1.High-Resolution QVGA Display

240(RGB) × 320 pixels with TFT-LCD technology, delivering sharp and vibrant visuals for detailed graphics and text.

2.Optimized Viewing Performance

12 o’clock viewing angle with 300 cd/m² typical brightness (center point) and 200:1 contrast ratio, ensuring excellent visibility in diverse lighting conditions.

3.Fast Response for Dynamic Content

Rapid pixel transitions: 15ms rise time (Tr) and 20ms fall time (Tf), ideal for smooth video playback and interactive applications.

4.Energy-Efficient Operation

Low power consumption: 2.4' OEM tiny low power TFT capacitive touch screen module operates at 2.8V/3.3V logic voltage with a 5mA typical current draw, enhanced by integrated DC/DC converter technology.

Tianfu Customized TFT Capacitive Touch Screen Module Specification

Parameter	TFT-LCD with ST7789V Driver IC
Module Type	2.4" Projected Capacitive Touch Panel (Glass/Glass)
Resolution	240×RGB×320 pixels
Viewing Direction	12 o'clock (θ ≤ 90°, φ ≤ 360°)
Brightness (Center)	280–300 cd/m² (Typical)
Contrast Ratio	200:1 (Typical)
Response Time	Rise: 15ms, Fall: 20ms (Typical)
Interface	MCU 8/16-bit (Parallel 8080 Timing)
Operating Voltage	2.6–3.5V (VDD), 2.8V/3.3V (Typical)
Current Consumption	5mA (Typical @ 2.8V)
Backlight Voltage	3.2V (Typical @ 80mA, 4 LEDs in parallel)
Module Dimensions	42.72 × 60.26 × 2.3 mm
Active Area	36.72 × 48.96 mm
Operating Temperature	-20°C to +70°C
Storage Temperature	-30°C to +80°C
Backlight Lifespan	30,000 hours (Typical)

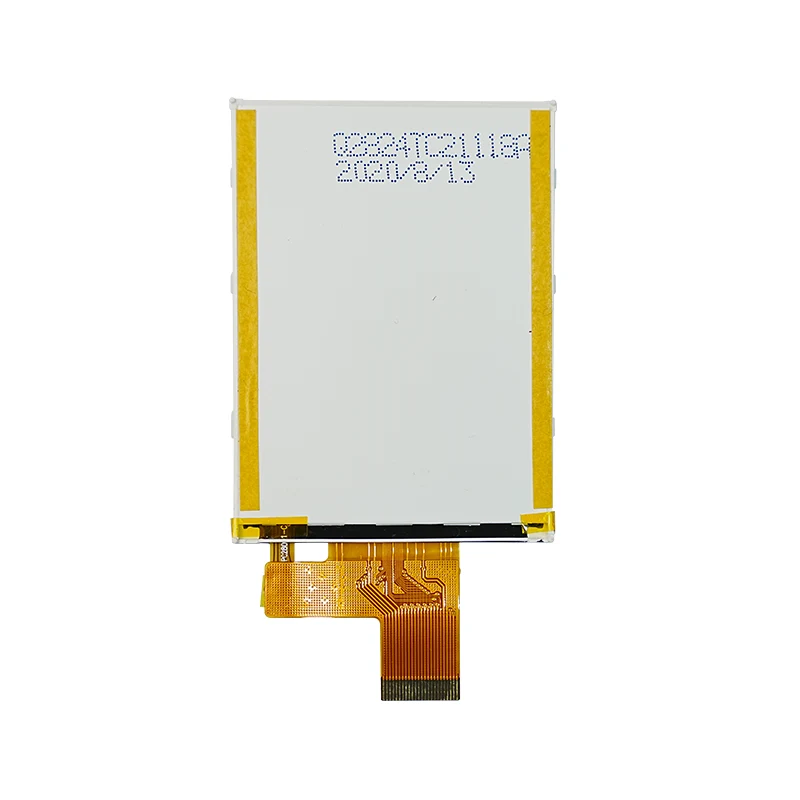

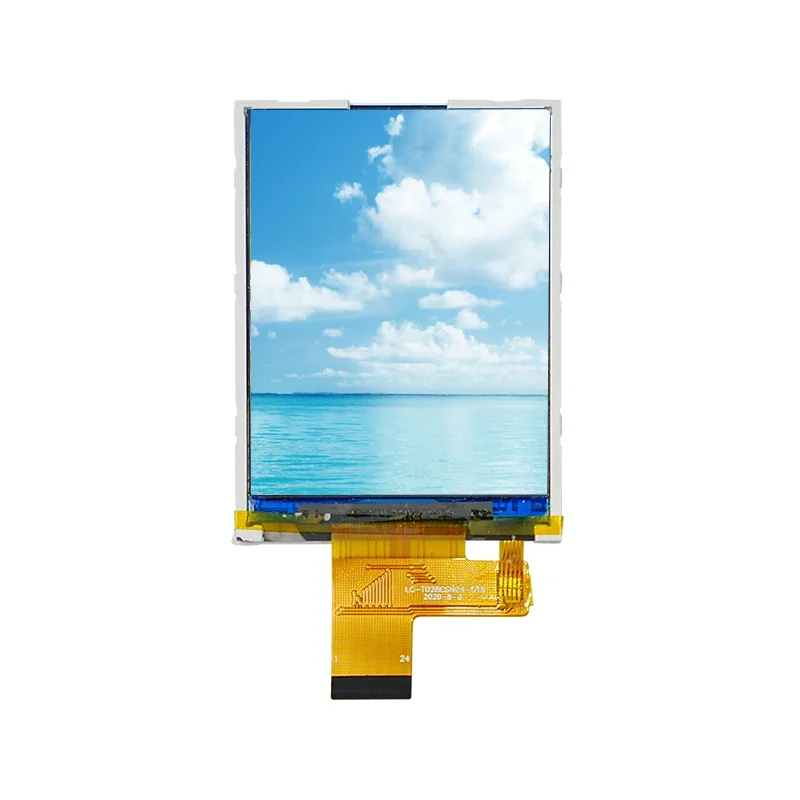

Tianfu TFT Capacitive Touch Screen Module Details

2.4' OEM Tiny Low Power TFT Capacitive Touch Screen Module

Tianfu 2.4’ Capacitive Touch Screen Module Application

Tianfu Leading Time

Standard Products		Customized Products
Order Quantity	Delivery Time	Customization Type	Delivery Time
1-30 PCS	Immediately	B/L & FPC & TP	within 5 weeks
31-100 PCS	1 week	B/L & FPC & TP	within 5 weeks
101-500 PCS	within 2 weeks	B/L & FPC & TP	within 5 weeks
501-1000 PCS	within 3 weeks	B/L & FPC & TP	within 5 weeks
1001-5000 PCS	within 3 weeks	BL & FPC & TP	within 6 weeks
5000+ PCS	within 4 weeks	BL & FPC & TP	within 6 weeks
