3.5' Customized 400 Nit TFT Capacitive Touch Screen Module

Tianfu Experience industrial-grade touch performance: 3.5' Customized 400 Nit TFT Capacitive Touch Screen Module survives 1M+ taps with ≤1.5% linearity error and 15ms response. 3.5' customized 400 Nit TFT capacitive touch screen module is engineered for extreme environments (-20°C~70°C) featuring ≥3H scratch resistance, ≥75% clarity, and ultra-slim 1.52mm profile with precision 3M adhesives. RoHS certified reliability.

Send Inquiry

Product Description

Supporting small-batch trial orders and custom firmware/interface designs, China TFT touch screen module manufacture, Tianfu ensures seamless integration into smart controls/portable instruments, backed by a 12-month warranty.

3.5' 400Nit TFT Capacitive Touch Screen Module In Stock Features

1.Industrial-Grade Durability

Engineered for 1 million+ tap cycles and 50,000+ stroke operations, with ≥3H surface hardness and robust performance across -20°C to +70°C environments.

2.High-Precision Touch Performance

3.5' customized 400 Nit TFT capacitive touch screen module delivers ≤1.5% linearity error and ≤15ms response time with optimized circuit resistance (X:150-550Ω/Y:450-1100Ω) for exceptional touch accuracy.

3.Optical Clarity & Reliability

Features ≥75% light transmittance with anti-Newton ring film technology, backed by ≥20MΩ insulation resistance and RoHS-compliant materials.

4.Optimized Mechanical Design

Ultra-slim 1.52±0.15mm profile with precision-engineered components (3M 200MP adhesive, dual-sided FPC tail) and strict ±0.1mm dimensional tolerances.

3.5' 400Nit Capacitive Touch Screen Module Specification

Module Type	3.5-inch TFT
Resolution	320×RGB×240
Interface	24-bit RGB / SERIAL RGB / CCIR656 / CCIR601
Film (ITO FILM)	Matte anti-Newton ring, 0.188mm thick, Sheet Resistance: 350~500 Ω
Driver IC	HX8238D
Mechanical Dimensions	76.90×63.9×3.26 mm
Active Area	70.08×52.56 mm
Operating Temp	-10°C ~ +60°C
Storage Temperature	-20°C ~ +70°C
Surface Hardness	≥ 3H
Response Time	≤ 15 ms
Circuit Resistance (X)	150 - 550 Ω (Film Side)
Circuit Resistance (Y)	450 - 1100 Ω (Glass Side)
Key Dimensions	AA (Active Area): 55.20 x 96.65 mm OD (Outline): 66.80 x 105.40 mm Adhesive VA (Viewing Area): 57.9 x 99.4 mm Adhesive OD (Outline): 66.40 x 105.00 mm
Power Supply	3.3V (2.6–3.6V range)
Environmental Compliance	RoHS compliant
Reliability Tests	• High Temp Storage: 80°C/96H • Low Temp Storage: -30°C/96H • Thermal Cycling: -30°C↔ +80°C • ESD:±8kV Air /±4kV Contact • Vibration: 10–150Hz, 100m/s²

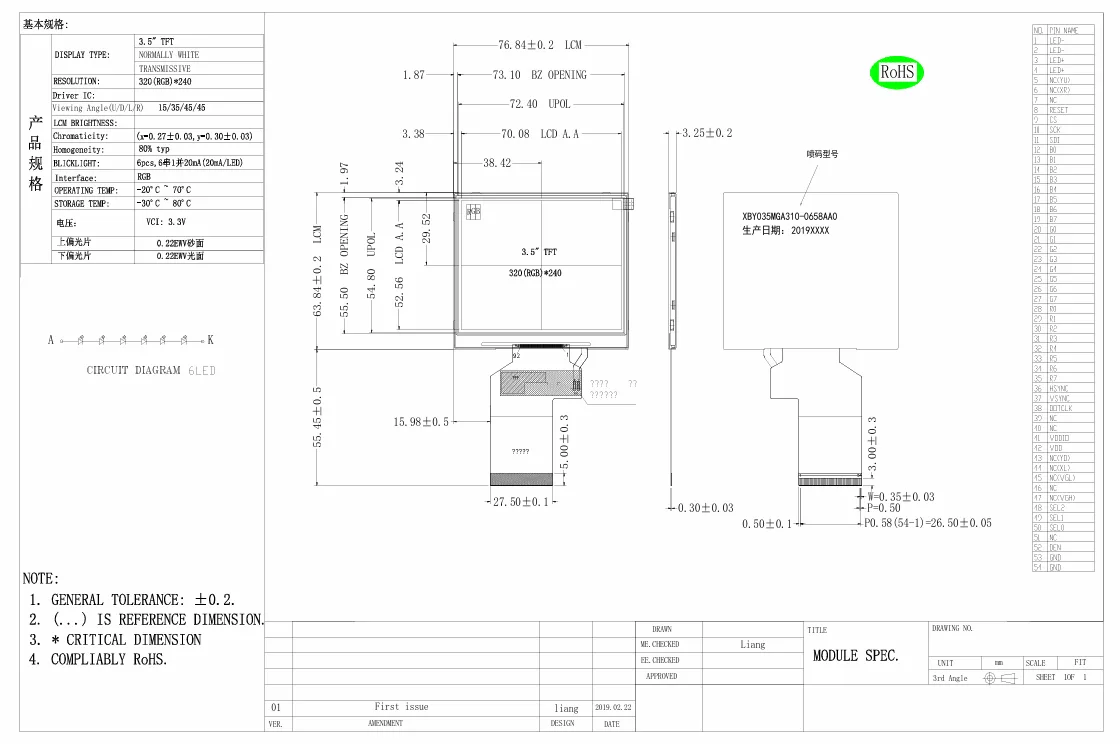

3.5' TFT Capacitive Touch Screen Module Details

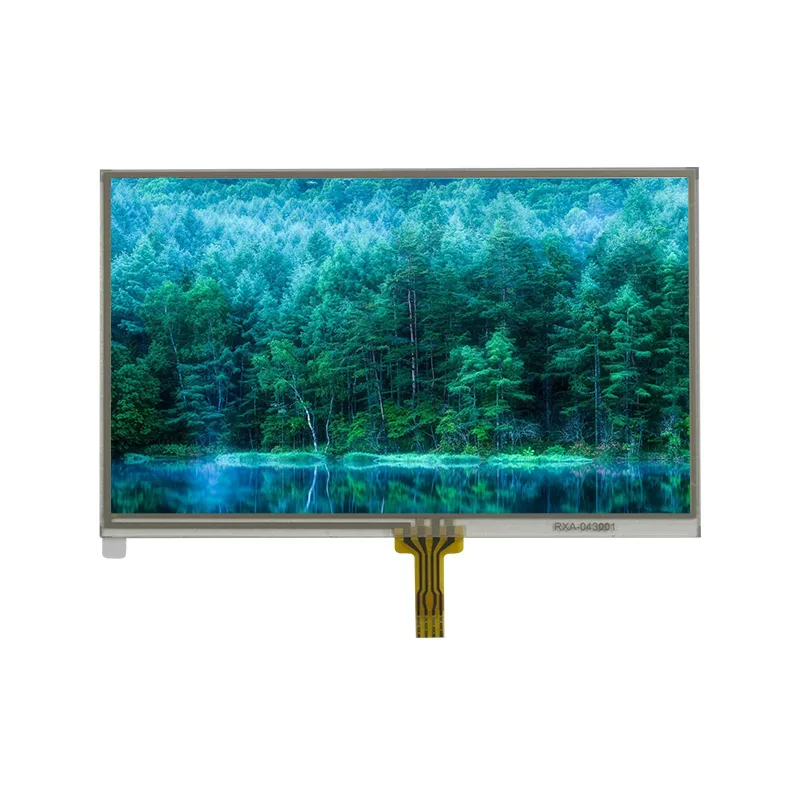

3.5' Customized 400 Nit TFT Capacitive Touch Screen Module

3.5' 400Nit TFT Capacitive Touch Screen Module Application

Tianfu Leading Time

Standard Products		Customized Products
Order Quantity	Delivery Time	Customization Type	Delivery Time
1-30 PCS	Immediately	B/L & FPC & TP	within 5 weeks
31-100 PCS	1 week	B/L & FPC & TP	within 5 weeks
101-500 PCS	within 2 weeks	B/L & FPC & TP	within 5 weeks
501-1000 PCS	within 3 weeks	B/L & FPC & TP	within 5 weeks
1001-5000 PCS	within 3 weeks	BL & FPC & TP	within 6 weeks
5000+ PCS	within 4 weeks	BL & FPC & TP	within 6 weeks
