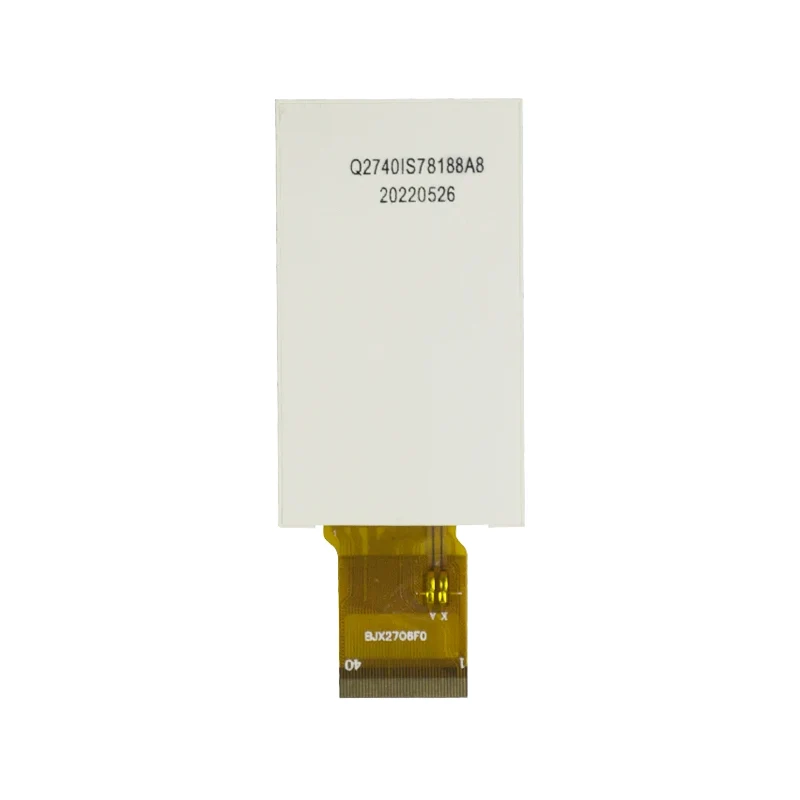

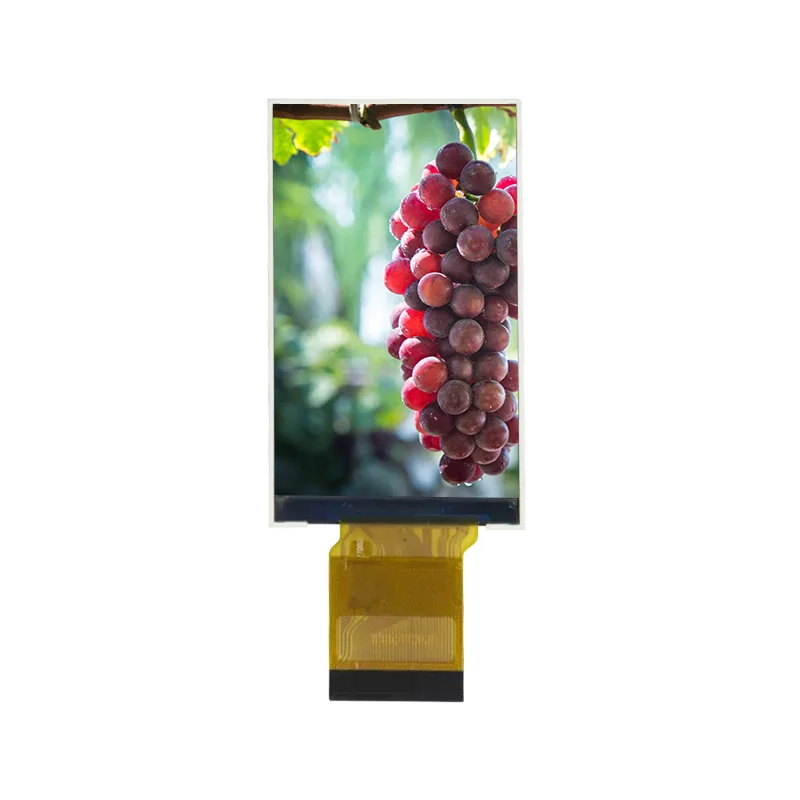

3.92' High Brightness IPS TFT LCD Screen Module

General Specifications

Module Type

3.92-inch TFT (a-Si)

-

-

Display Resolution

320 × 320 pixels

-

-

Interface Type

MCU/SPI

-

-

Color Depth

16.7M COLORS

-

-

Driver IC

ST7796

-

-

Mechanical Dimensions

76.72 × 74.86 × 2.1 mm

-

-

Active Area

71.13 × 69.82 mm

-

-

Operating Temperature

-20°C to +70°C℃

-

-

Storage Temperature

-30°C to +80°C

-

-

Electrical Specifications

Parameter

Min

Typ

Max

System Voltage (VDD)

2.5 V

2.8 V

3.6 V

TFT Gate ON Voltage (VGH)

10 V

12 V

14 V

TFT Gate OFF Voltage (VGL)

-14 V

-12 V

-10 V

Reliability Tests

Test Item

Conditions

High Temperature Storage

80°C, 240 hours

Low Temperature Storage

-30°C, 240 hours

High Temp & Humidity (Operational)

60°C, 90% RH, 240 hours

Standard Products

Customized Products

Order Quantity

Delivery Time

Customization Type

Delivery Time

1-30 PCS

Immediately

B/L & FPC & TP

within 5 weeks

31-100 PCS

1 week

B/L & FPC & TP

within 5 weeks

101-500 PCS

within 2 weeks

B/L & FPC & TP

within 5 weeks

501-1000 PCS

within 3 weeks

B/L & FPC & TP

 within 5 weeks

1001-5000 PCS

within 3 weeks

BL & FPC & TP

within 6 weeks

5000+ PCS

within 4 weeks

BL & FPC & TP

within 6 weeks
