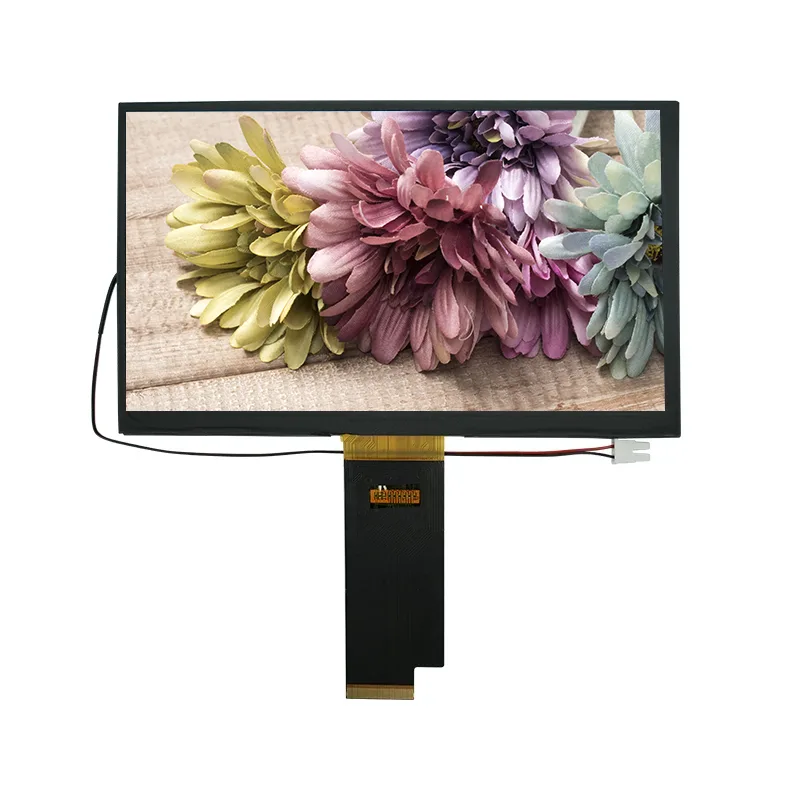

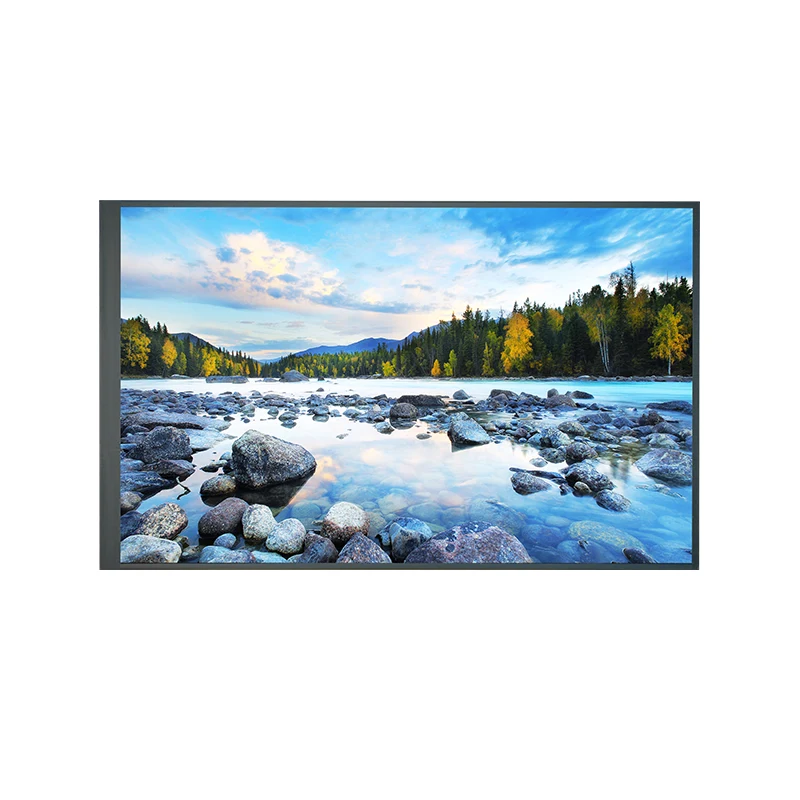

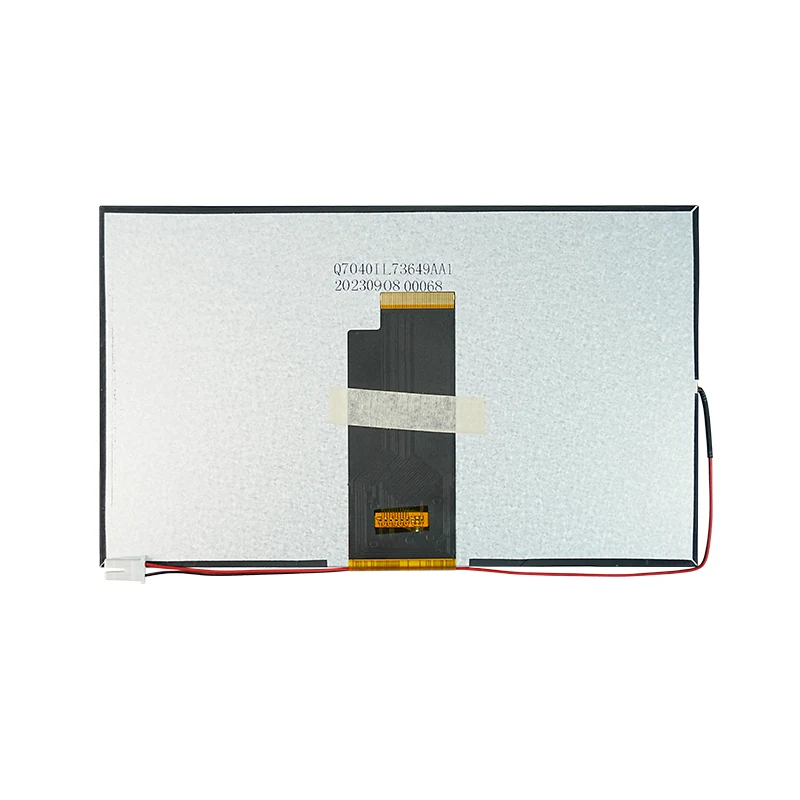

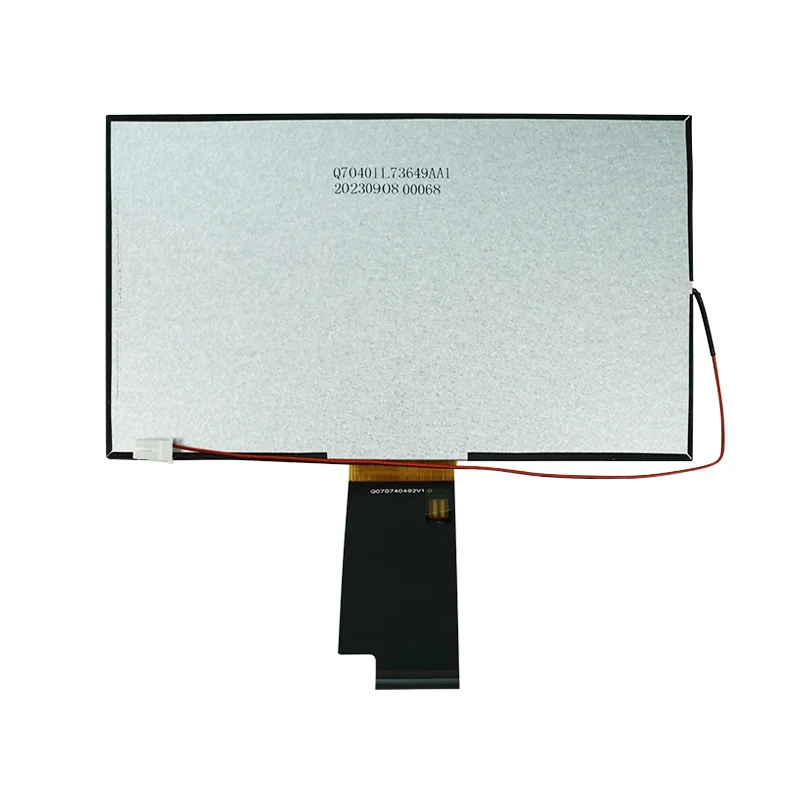

7.0 inch Normally White IPS TFT LCD Screen Module

7.0 inch Normally White IPS TFT LCD Screen Module boasts 800x480 resolution and 16.7 million colors for vivid visuals. Its high brightness of 270 nits and 500:1 contrast ratio ensures excellent readability. 7.0 inch normally white IPS TFT LCD screen module operates reliably in temperatures ranging from -20°C to 70°C. Its anti-glare surface enhances visibility, making it ideal for industrial, automotive, and medical applications where durability and performance are paramount.

Send Inquiry

Product Description

Features

1. Choose the Reliability of Tianfu

● We strictly adhere to ISO 9001 standards and replicate their production system 1:1, ensuring fully standardized operations at every step.

● Every 5.0-inch full-viewing-angle capacitive touchscreen module we deliver undergoes a 48-hour 85°C/85% RH high-temperature and high-humidity test, with no bright or dark spots.

2. Help You Control Your Cost

For 5.0-inch free-view capacitive touch screen modules of the same specs, we help you cut costs by 20%-40%:

● In-house production lines eliminate middleman markups, directly reducing your procurement costs by 20%-40%.

● Long-term partnerships with panel manufacturers drive a further 15% reduction in procurement costs.

● Flexible MOQ for custom production let you save 20% on inventory costs.

3. MOQ: 1 pc, with Flexible Customization Based on Actual Needs.

● Hardware Customization: Size (non-standard sizes supported); Interfaces (LVDS/RGB/MIPI/parallel port, etc.); Backlight (edge-lit/direct-lit, adjustable color temperature); Glass (anti-glare/AR anti-reflective/anti-fingerprint); Brightness adjustment: 250~1500 cd/m² adjustable; Thickness reduction (full lamination ≤1.5mm), etc.

● Customization Service Process: Supports full-process customization from design drawings to mass production, with an MOQ of just 1 piece, and proofing cycle 30% faster than the industry average.

Item Specification

Parameter	Specification
Panel Size	7.0 inch (Diagonal)
Driver Element	a-Si TFT Active Matrix
Resolution	800 × RGB × 480 (800H × 480V pixels)
Number of Colors	16.7 Million
Display Mode	Normally White, Transmissive
Pixel Pitch	0.1926 (H) × 0.1790 (V) mm
Dot Pitch	0.0642 (W) × 0.1790 (H) mm
Active Area	154.08 (W) × 85.92 (H) mm
Module Size	164.9 (W) × 100.0 (H) × 3.5 (D) mm
Surface Treatment	Anti-Glare
Color Arrangement	RGB Stripe
Interface	Digital
Backlight Power Consumption	1.674W (Typical)
Panel Power Consumption	0.226W (Typical)
Weight	150g (Typical)
Driver IC	EK9713/EK73002
LCD Supplier	INNOLUX
Digital Power Supply (DVDD)	3.0V to 3.6V (3.3V Typical)
Analog Power Supply (AVDD)	9.6V to 10.6V (10.4V Typical)
Gate ON Voltage (VGH)	14.5V to 20.5V (16V Typical)
Gate OFF Voltage (VGL)	-9V to -5V (-7V Typical)
Common Voltage (VCOM)	3.5V to 4.1V (3.8V Typical)
LED Voltage (VL)	8.7V to 10.6V (9.6V Typical)
LED Current (IL)	180mA (Typical)
LED Lifetime	20,000 hours
Viewing Angle (CR≥10)	Left/Right: 70° (Typical) Up: 60° (Typical) Down: 70° (Typical)
Response Time	TON: 10ms (Typical) TOFF: 15ms (Typical)
Contrast Ratio	500:1 (Typical)
Color Chromaticity	Wx: 0.31 (Typical) Wy: 0.33 (Typical)
Luminance	270 cd/m² (Typical)
Luminance Uniformity	75% (Typical)
Operating Temperature	-20°C to +70°C
Storage Temperature	-30°C to +80°C

Tianfu Leading Time

Standard Products		Customized Products
Order Quantity	Delivery Time	Customization Type	Delivery Time
1-30 PCS	Immediately	B/L & FPC & TP	within 5 weeks
31-100 PCS	1 week	B/L & FPC & TP	within 5 weeks
101-500 PCS	within 2 weeks	B/L & FPC & TP	within 5 weeks
501-1000 PCS	within 3 weeks	B/L & FPC & TP	within 5 weeks
1001-5000 PCS	within 3 weeks	BL & FPC & TP	within 6 weeks
5000+ PCS	within 4 weeks	BL & FPC & TP	within 6 weeks

Quality Inspection

Tianfu’s TFT capacitive touch screen modules are ideal for aerospace, due to rigorous quality control. ISO 9001-certified with 1:1 adherence to its standards, they undergo full-production inspections and above-industry aging tests—confirming extreme-environment stability for aerospace’s reliability-critical missions.

Manufacturing Process
